2.3 Unit screen
This section describes the manual operation buttons on the Unit screen.
n
Manual conveyor operation 1

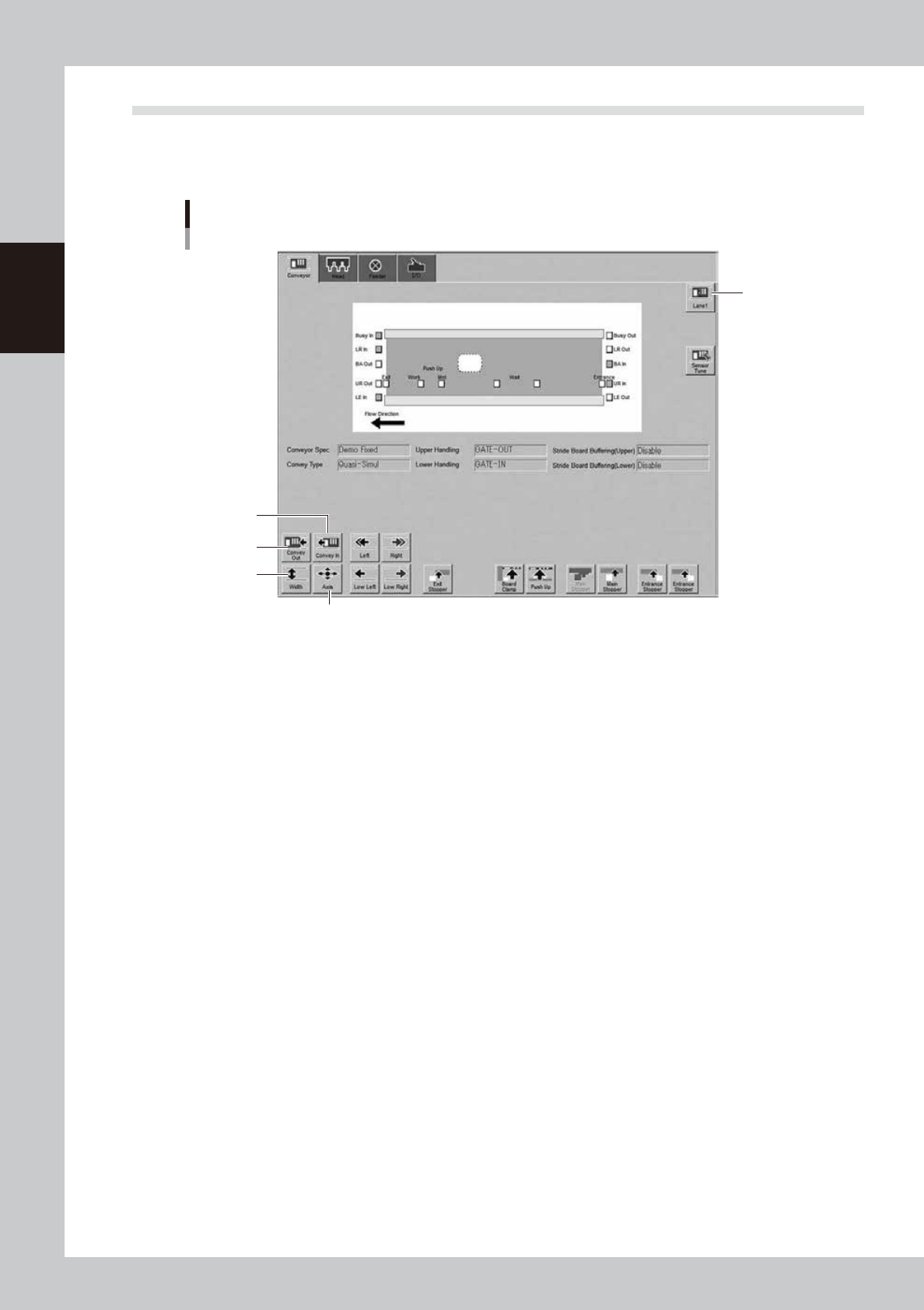

[Unit] - [Conveyor] screen
Conveyor manual buttons : YSM20R Single-lane / YSM20WR Dual-lane screen
4
2
1
5
3
24204-KMK-10
1. [Lane switch] button (YSM20WR Dual-lane)
Switches the display of Lane 1/Lane 2.
2. [Convey Out] button (YSM20R Single-lane / YSM20WR Dual-lane)
If a board is on the conveyor, pressing this button moves the board to the unloading exit port.
3. [Convey In] button (YSM20R Single-lane / YSM20WR Dual-lane)
Pressing this button moves the board from the entrance/loading port or the standby position and clamp the board at the
mounting position.
2-15
2
Basic operation
4. [Width] button
Use this button to adjust the conveyor width to match the width of boards to be produced.
Pressing the [Width] button displays the "Conveyor Width" screen. Check the conveyor width and press the [OK] button.
The conveyor width is changed to the specified width. The desired conveyor width can be set by entering the value.

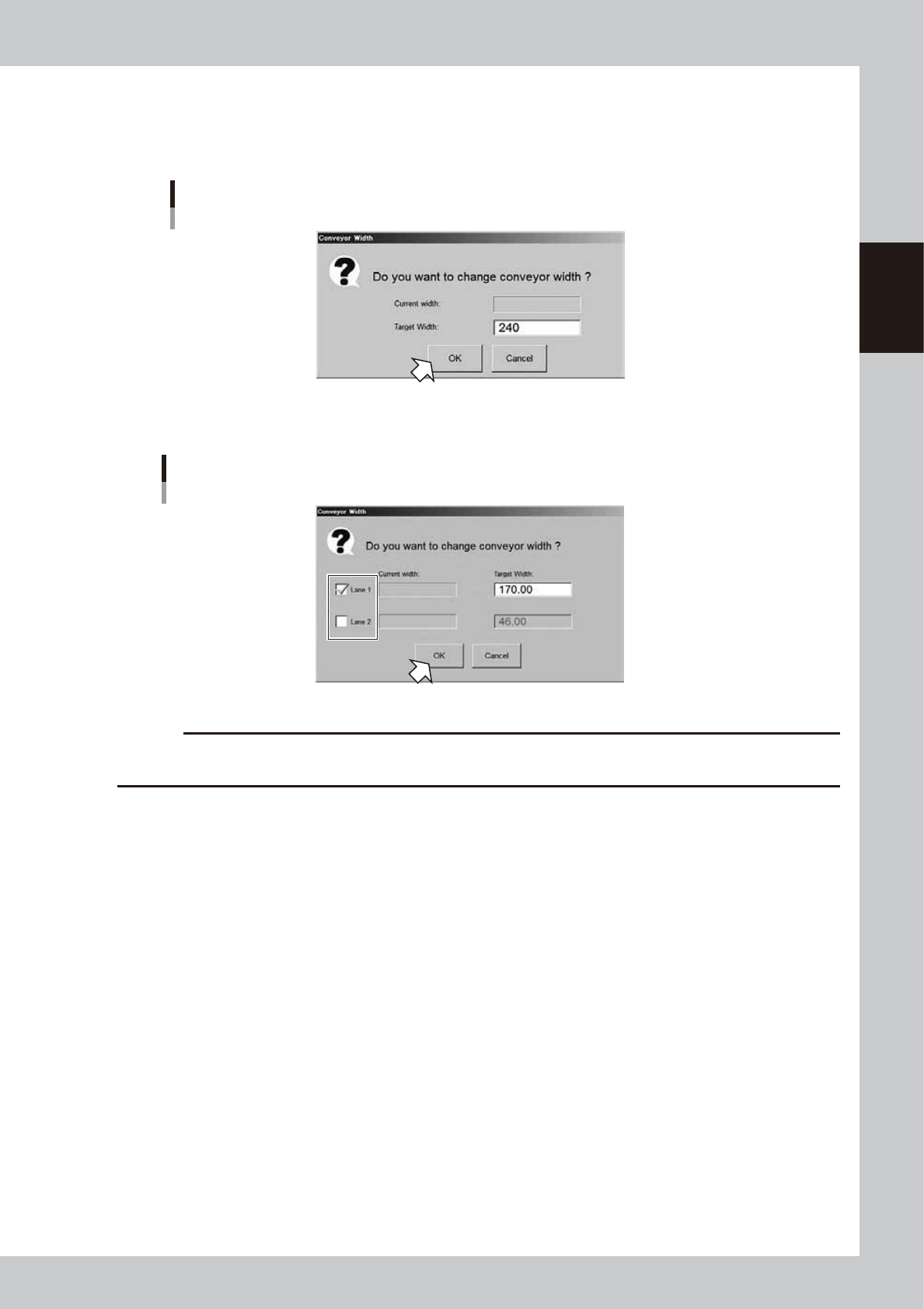

"Conveyor Width" screen
Single-lane
24205-KMK-00
The conveyor width can be specified by lane with YSM20WR Dual-lane machine.
When using one side of lanes only, remove the check mark of lane not to be used and then enter the value.
"Conveyor Width" screen
Dual-lane
24235-KMK-00
c
CAUTION
When changing the conveyor width, check in advance that the conveyor rails do not collide the push-up pins and
other devices.
2-16
2
Basic operation
5. [Axis] button
Use this button when moving each axis manually.
Pressing the [Axis] button displays the "Move Axis" screen. Switch tabs on this screen to select the axis to be moved.
Press the [Arrow] buttons or the [PTP] button to move the axis over to the desired position.

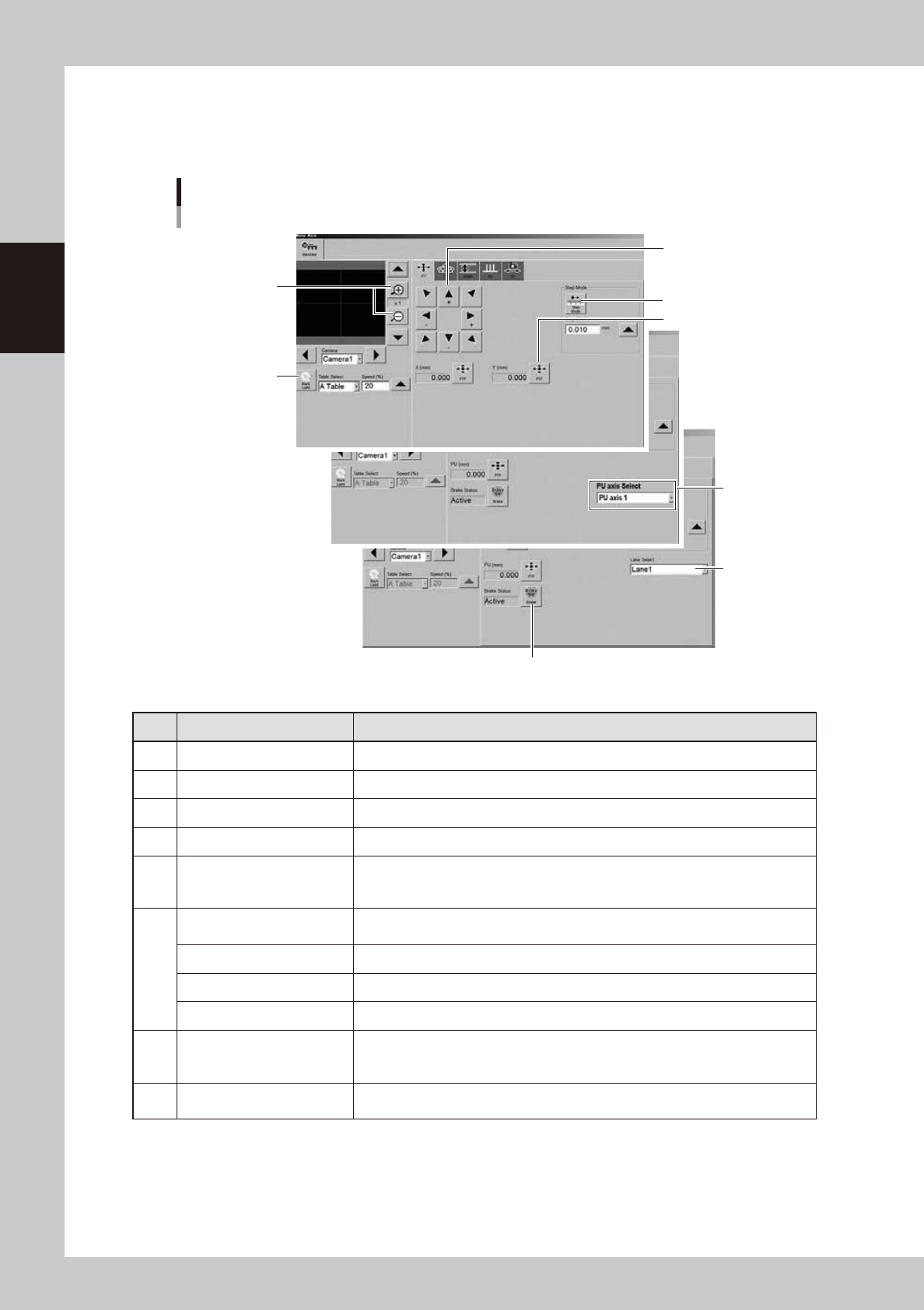

"Move Axis" screen
1
2
3
5
4
6
7
8
24206-KMK-10
Button name Function
1 Zoom in/out (+, -) Zooms in or out the image. (16 times to 1/16 times)
2 Mark Light Allows changing mark lighting manually. Using this button does not affect data.
3 PTP The object moves to the numerically input coordinate.
4 Arrow Use these buttons to move the selected axis in the desired direction.
5 Step Mode
The inching stroke defines the distance to move when pressing an arrow button
once. With the [Step Mode] button pressed, pressing and holding an arrow button
does not stroke fast.
6
Head Select
Selects the head to be operated. (Available for operating the Z-axis and R-axis only.
Note that the several heads on the R-axis rotate simultaneously.)
Conveyor Select Selects the conveyor to be operated. (Dual-stage only)
U Axis Select Selects the U axis to be operated. (Dual-stage only)
PU Axis Select Selects the PU axis to be operated. (Dual-stage only).
7 Brake
Use this button when you want to release the brake during emergency stop.
(PU-axis only)
The brake is automatically released when the servo is turned on.
8 Lane Select
Select the lane to be operated when using both lanes of dual-lane.
(Dual-lane: Width-axis and PU-axis only)
