2-22 2 Basic operation 3. Displaying the production monitors Press the [Monitor] button and check each monitor screen that appears to confirm the operation status during the production. The monitor screens includes the […

2-21

Basic operation

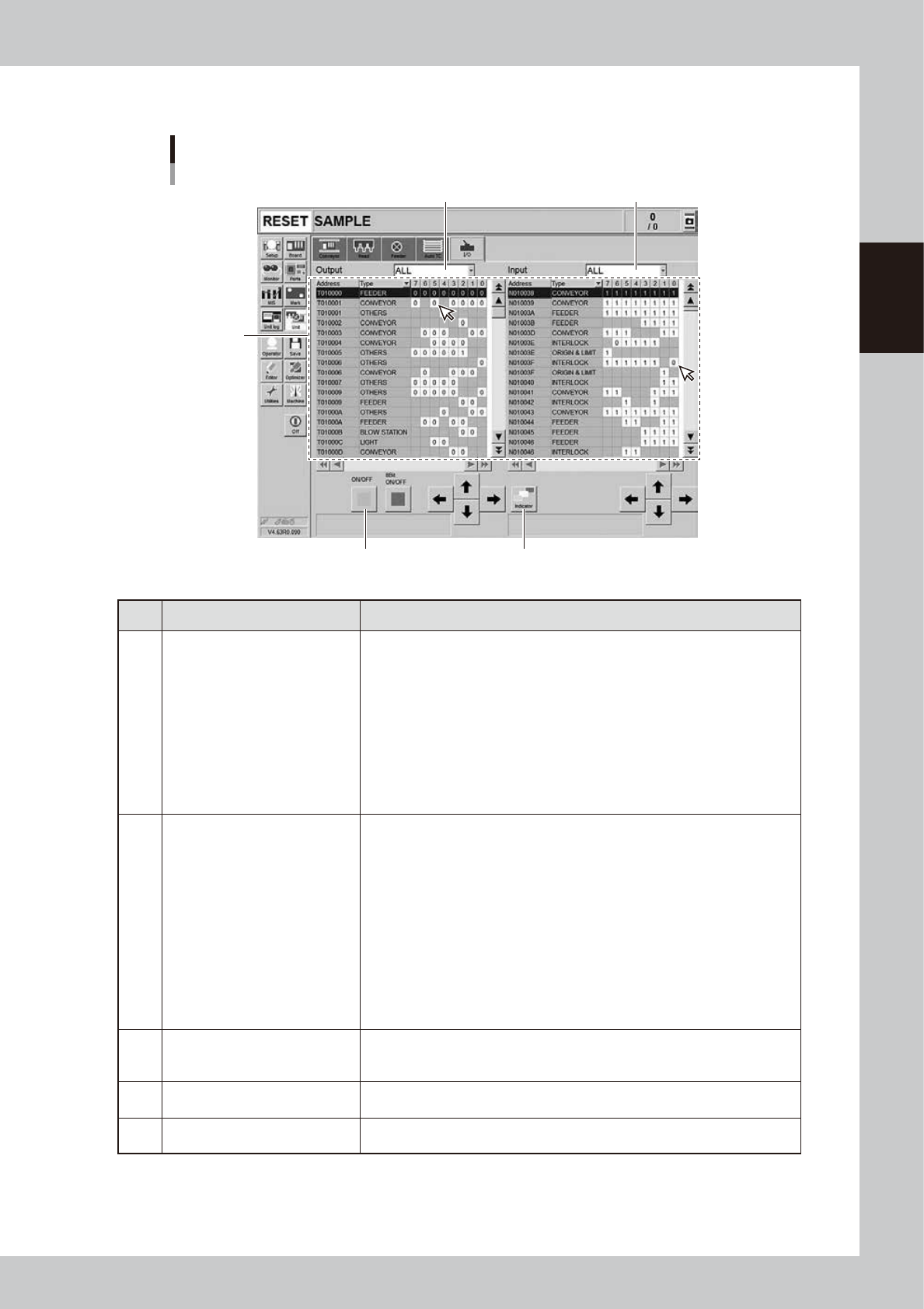

Manual I/O operation

1 2

[Unit] – [I/O] screen

24211-KMK-00

Button name Function

1 Select output display group

Select the output group for display in the "Output" status list. The following

groups can be selected:

• FEEDER

• NZL STATION (Nozzle station)

• DUMP STATION

• BLOW STATION

• CONVEYOR

• HEAD

• LIGHT

• ATS

• OTHERS

2 Select input display group

Select the input group for display in the "Input" status list. The following groups

can be selected:

• INTERLOCK

• ORIGIN & LIMIT

• FEEDER

• NZL STATION (Nozzle station)

• DUMP STATION

• BLOW STATION

• CONVEYOR

• HEAD

• LIGHT

• ATS

• OTHERS

3 ON/OFF

As for the output signals, the valve actuation etc can be output forcibly as

needed. Click to select arbitrary signal and press the [ON/OFF] button. The

selected output signal turns ON or OFF.

4 Indicator

Lights up each unit of indicator such as a feeder, a carriage and a tray changer.

The mode of indication can be selected from “All”, “Individual” or “Sequence”.

5 Input/Output

Indicates the current status of sensors and valves.

I/O contents are displayed at the bottom of the screen with selecting by a cursor.

2-22

Basic operation

3. Displaying the production monitors

Press the [Monitor] button and check each monitor screen that appears to confirm the operation status

during the production. The monitor screens includes the [Main], [Vision], [Alignment], [Retry] etc. Select the

corresponding tab to check the ongoing mounting information.

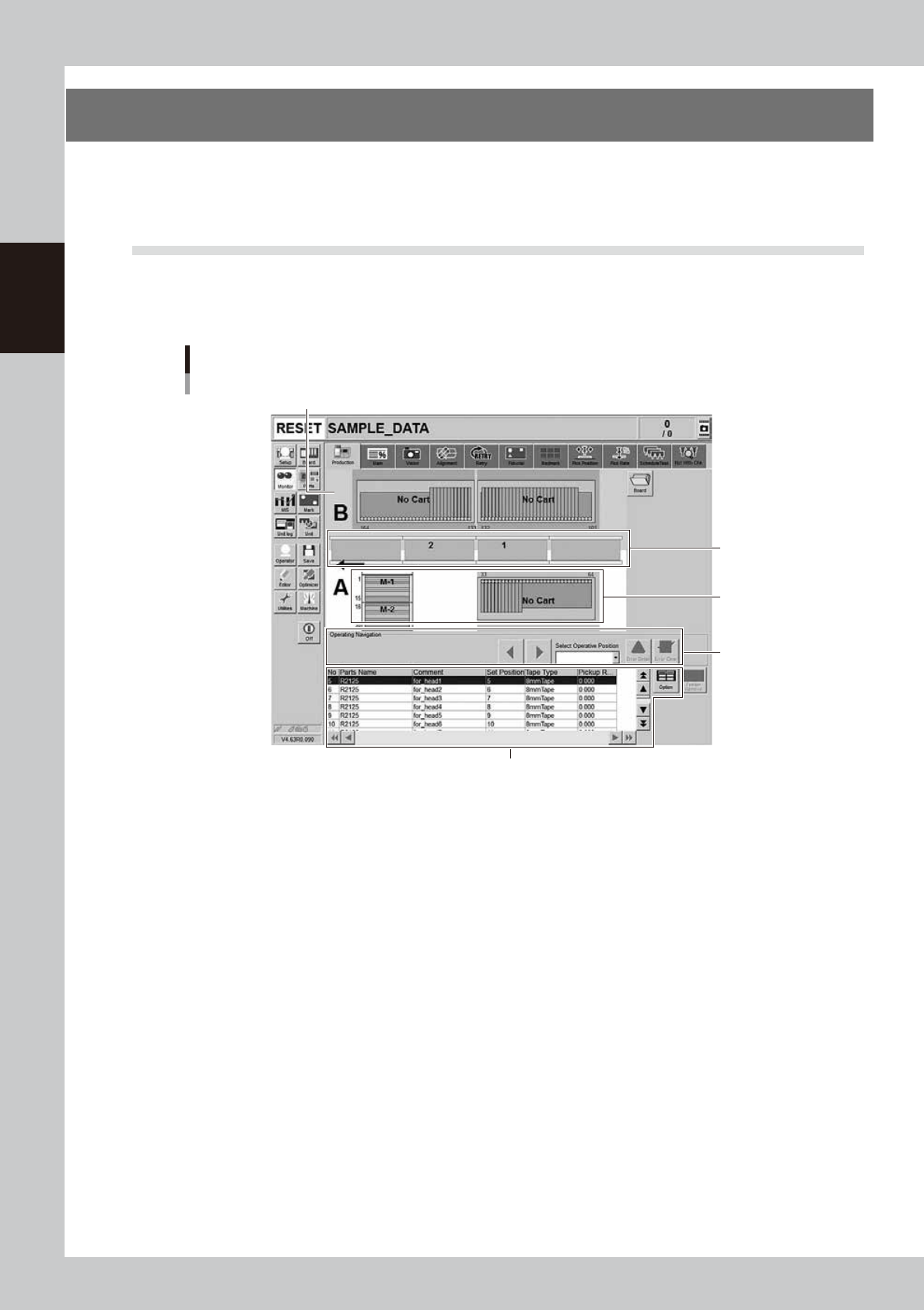

3.1 Production

This screen graphically shows the information of machines currently producing boards. The machine status

information such as errors that the machine is currently experiencing or work instructions appears on the lower

part of the screens.

Monitor: Production

Shows the machine rear as a colored background.

24212-KMK-00

1. Transfer status area

The board that the machine is currently working on is displayed in green.

If an error related to transfer has occurred or if a hazard prediction sensor is activating, the board is displayed in red.

2. Feeder status area

This area displays the feeder at the feeder set position that is registered on [Parts] - [Pick] tab - A: Feeder Set No. of the

board that the machine is currently working on. Nothing appears at the feeder set position where no components are

registered. The feeder is displayed in green where the feeder is correctly set up and ready for process. It is displayed in

red if the feeder is incorrectly set up or experiencing an error.

For machines equipped with a tray changer such as sATS30NS, the pallets setting status is displayed in this area.

3. Operating Navigation area (operating instruction message area)

• Operating Navigation instructions

This displays messages with countermeasures for handling errors, operating instructions or warnings at operating position

selected with the "Select Operating Position" drop-down list. When multiple errors occur, those items with the highest

priority for countermeasures are displayed in sequence. To switch to other instruction messages, press the left/right arrow

buttons.

2-23

Basic operation

• Select Operating Position drop-down list

If the machine is experiencing errors at more than one location, select the location to check from the drop-down list.

Note that the drop-down list shows only positions that require operator task.

TIP

Errors are also displayed in the graphic layout view on the upper part of the screen.

The operating position can be selected by clicking the error area on the graphic layout view. However, the operating

position cannot be selected if clicking an area where there are no errors or operating instructions.

• [Error Detail] button

Pressing this button displays an error message screen that contains detailed information and countermeasures for the

error and operating instruction, or warning displayed in the "Operating Navigation" area.

• [Error Clear] button

Press this button after recovering from the error or after handling the operating instruction or warning displayed in the

"Operating Navigation" area. Pressing this button shows that recovery is complete by following the message in the

"Operating Navigation" area, and that automatic operation can restart. However, automatic operation will not restart if a

recovery task is still incomplete.

TIP

If an error has occurred that affects the entire machine, the entire background area is displayed in blue.

4. Component information display area

Displays basic information on components currently being used in the program (board data) for production. Data that is

causing an error appears in a different color.

• [Option] button

Switches the "part details" area display ON and OFF.
