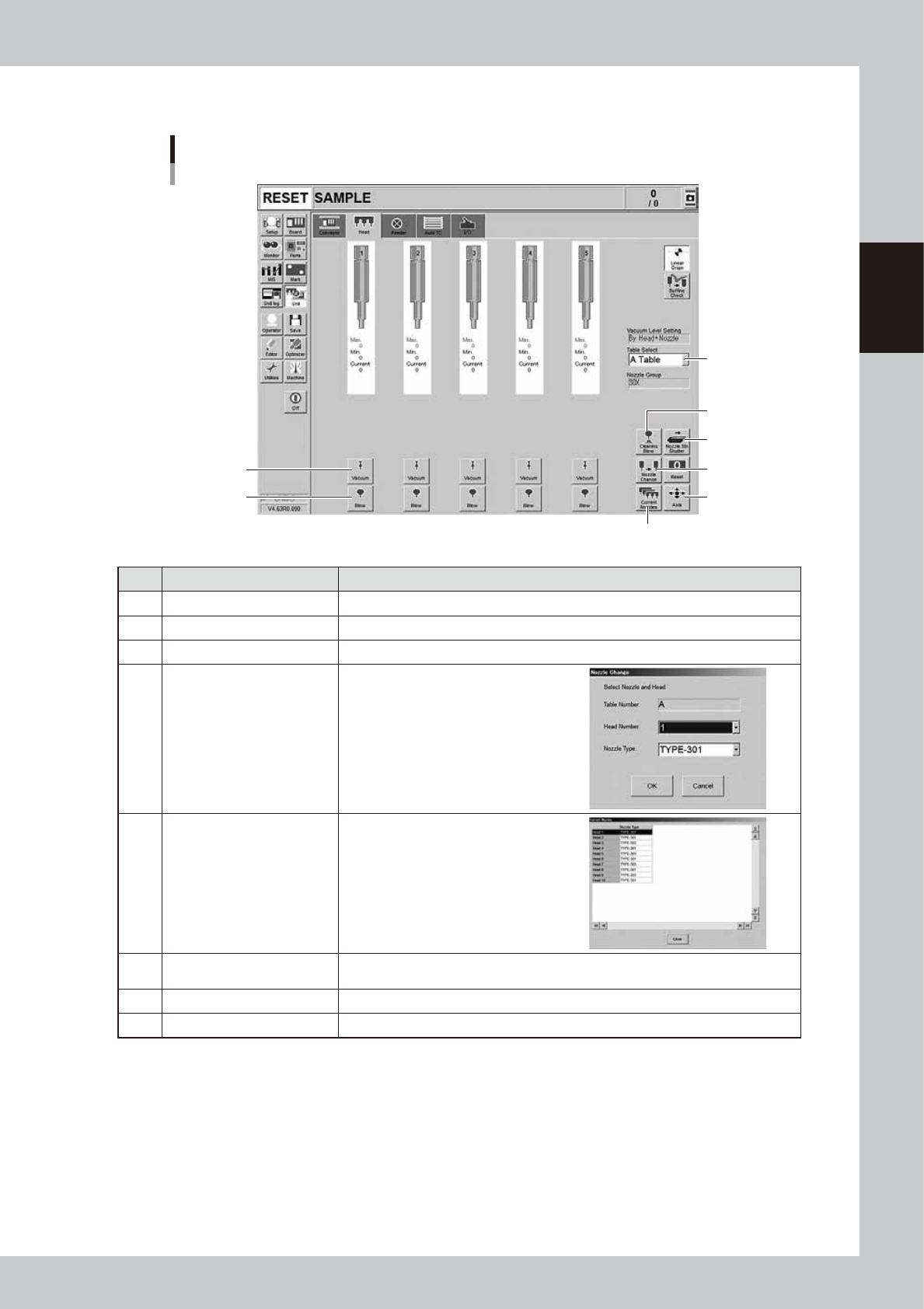

2-19
2
Basic operation
n
Manual head operation
1
2
3
4
5
6
8
7
[Unit] – [Head] screen
24209-KMK-00
Button name Function
1 Vacuum Turns the vacuum of each head on or off.
2 Blow Turns the air blow in each head on or off.
3 Nozzle STN Shutter Opens or closes the nozzle station shutter.
4 Nozzle Change
Opens the "Nozzle Change" screen.
Specify the head and nozzle type to
perform nozzle change.
5 Current Nozzles
Shows a list of nozzle types currently
attached to each head.
6 Axis
Opens the "Move Axis" screen. This is the same as the [Axis] button on the [Unit] -
[Conveyor] screen.
7 Cleaning Blow Displays the "Execution Nozzle Cleaning Blow" screen.
8 Table Select Switches the table display.
2-20
2
Basic operation
n
Manual feeder operation
2
5
8
9
3
6
4
1 7
[Unit] – [Feeder] screen
24210-KMK-00
Button name Function
1 Feeder Information
Displays the information of the feeders set on the feeder plate.
The No. displayed in the "Status" column indicates the error code No. For error
details, refer to "SS Feeder User's Manual" and the "ZS Feeder User's Manual".
2 Feed
Feeds the tape on the feeder selected by the feeder information to one pitch.
Each time pressing this button advances the tape at the specified pitch.
3 Back
Moves the tape backwards by one pitch on the feeder selected by the feeder
information.
Each time pressing this button moves the tape backward at the specified pitch.
4 Feeder Setting
Pressing this button opens the feeder setting
dialog box that allows selecting a feed pitch
from 1 to 72 mm.
Set the feed pitch and press the [OK] button.
The set feeder pitch is stored in memory.
5 Speed Select the feed speed from the drop-down list with "Normal", 90,80, to 10%.
6 Reload Clears the feeder condition (memory) and reloads the setting.
7 Up/down arrows Moves the selected row up or down.
8 Cutter Opens or closes the tape cutter.
9 Plate Information Allows you to check the version of the plate board in the feeder plate.
2-21
2
Basic operation
n
Manual I/O operation
1 2
3
5
4
[Unit] – [I/O] screen
24211-KMK-00
Button name Function
1 Select output display group
Select the output group for display in the "Output" status list. The following
groups can be selected:
• FEEDER
• NZL STATION (Nozzle station)
• DUMP STATION
• BLOW STATION
• CONVEYOR
• HEAD
• LIGHT
• ATS
• OTHERS
2 Select input display group
Select the input group for display in the "Input" status list. The following groups
can be selected:
• INTERLOCK
• ORIGIN & LIMIT
• FEEDER
• NZL STATION (Nozzle station)
• DUMP STATION
• BLOW STATION
• CONVEYOR
• HEAD
• LIGHT
• ATS
• OTHERS
3 ON/OFF
As for the output signals, the valve actuation etc can be output forcibly as
needed. Click to select arbitrary signal and press the [ON/OFF] button. The
selected output signal turns ON or OFF.
4 Indicator
Lights up each unit of indicator such as a feeder, a carriage and a tray changer.
The mode of indication can be selected from “All”, “Individual” or “Sequence”.
5 Input/Output
Indicates the current status of sensors and valves.
I/O contents are displayed at the bottom of the screen with selecting by a cursor.
