3-27
3
Flow from starting up machine to production
3
Set the “Nozzle Tip Cleanliness Check”.
1. Pull down the “Check Item” and select “Nozzle Tip Cleanliness Check”.
2. Provide the check boxes of the object nozzles (standard specification: 301A/302A and narrowly
spaced nozzle specification: 311A, 312A/313A) with a check mark. Then, enter “1000” into the
“Database No.”
3. Press the “Save” icon on the upper left corner of the screen to save the settings.
4. Press the “Close [x]” icon on the upper right corner of the screen to exit the “VmSpec” screen.
4
Read out the board data again.
Reading out the board data again makes the Nozzle tip cleanliness check settings taken in.
TIP
The components database number “1000” is a recognition data dedicated to the nozzle tip cleanliness check.

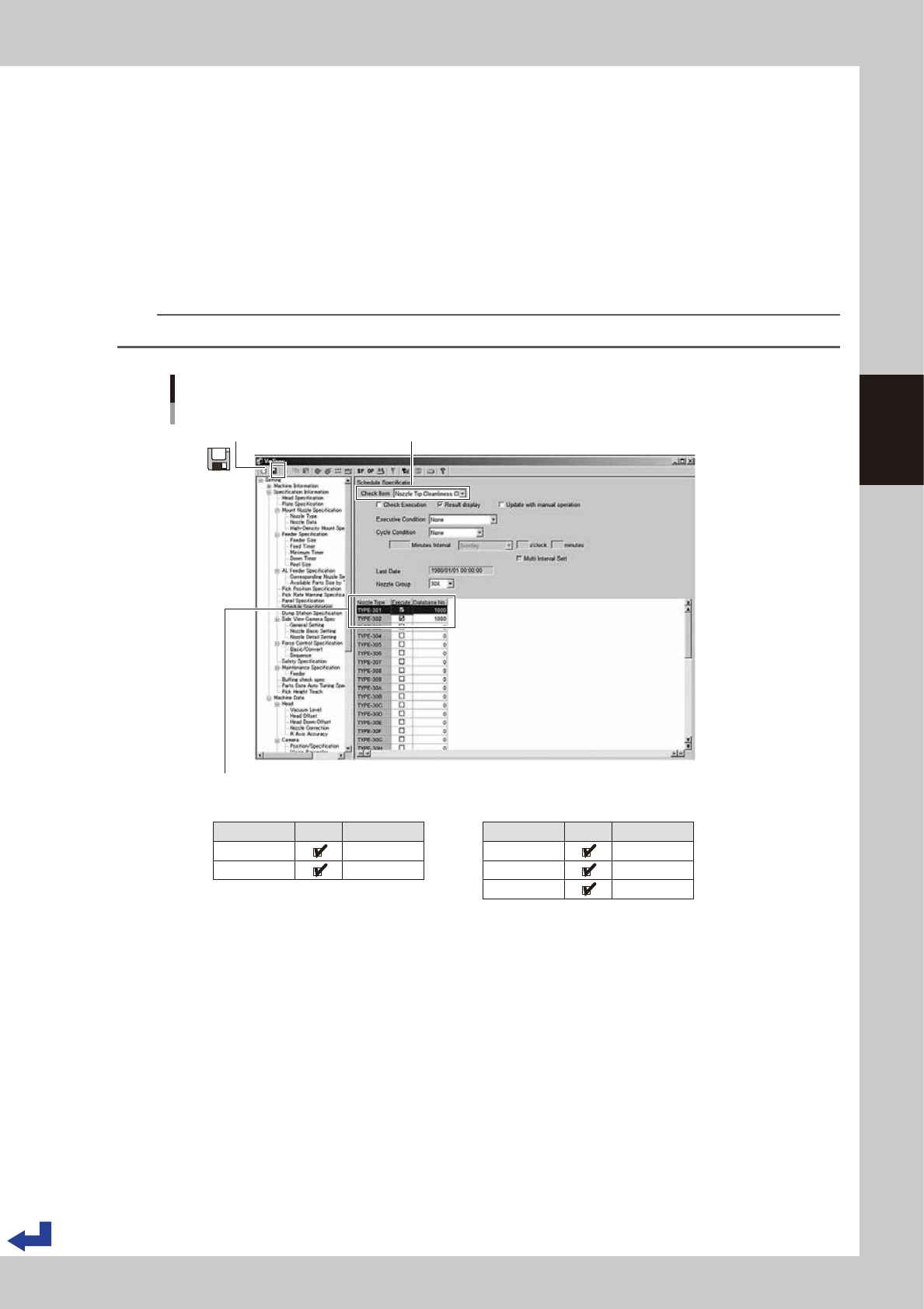

Setting Nozzle Tip Cleanliness Check
[VmSpec] screen
1. Select check item “Nozzle Tip Cleanliness Check”.3. Press the “Save” icon.
2. Provide the check boxes “Execute” of the object nozzles with a check mark. Enter “1000” into the “Database No.”
Nozzle Type
TYPE-301
TYPE-302
Execute Database No.
1000
1000
■ Nozzle group 30X (Standard) ■ Nozzle group 31X (narrowly spaced type)
Nozzle Type
TYPE-311
TYPE-312
TYPE-313
Execute Database No.
1000
1000
1000
24319-KMK-00
3-28
3
Flow from starting up machine to production
1.10 Starting production
This procedure description in this section assumes that the board data to be used for production has been read
out.
1
Set the operation speed.
Set the automatic operation speed. Although normally set to 100% of the speed, the operation speed
can be slowed down when it is necessary to confirm the operation such as testing the mounting of
components on a new board.
Change the operation speed by pressing the [
▲
] button of the “Condition” column on the “Setup”
screen or directly entering the speed values into the “Speed”.

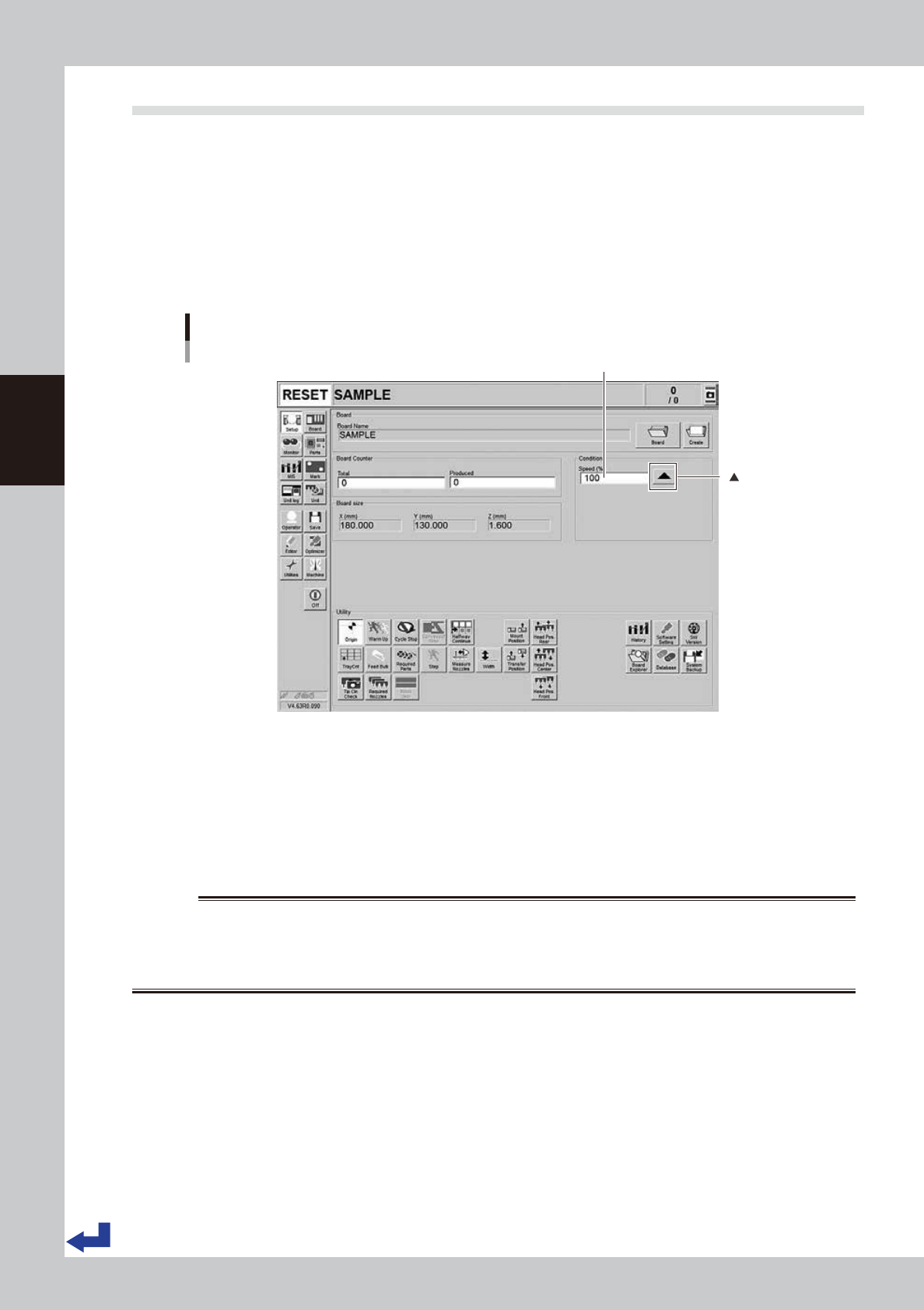

Setting the operation speed
[Setup] screen
Set the operation speed.
[ ] button
24320-KMK-00
2
Start the automatic operation.
1. (If the emergency stop button has been pressed) Cancel the emergency stop and press the [READY]
button on the operation panel.
2. Press the [START] button on the operation panel. When the sensor at the loading port of the conveyor
detects a board, the conveyor belt starts rotating, transfers the board to the mounting position and
starts mounting the components on the board.
w
WARNING
THE GREEN SIGNAL LIGHT LIGHTS UP WHEN THE MACHINE IS OPERATING. THE SIGNAL LIGHT LIGHTS UP IN YELLOW (BLUE) IF
AN ERROR OCCURS OR MACHINE GOES THROUGH THE INTERLOCKED OPERATION. THE SIGNAL LIGHT LIGHTS UP IN RED
(WHITE) IN AN EMERGENCY STOP. MAKE ABSOLUTELY SURE THAT WHEN THE SIGNAL LIGHT STAYS GREEN, NEVER ATTEMPT
TO ENTER THE MOTION ENVELOPE OF THE HEAD UNITS.
3-29
3
Flow from starting up machine to production
1.11 Ending production
The following describes the procedure for ending board production.
1
Stop the machine operation.
The following 4 methods stop the machine operation.
1. [STOP] button (operation panel)
Pressing the [STOP] button suspends the machine operation. To resume operation, press the [START]
button.
2. [Cycle Stop] button ( [Setup] screen)
When finishing mounting the current board, the machine stops without moving the mounted board
downstream.
3. [Convey-out stop] button ( [Setup] screen)
Use this button when you want to end production after completing component mounting on the
boards currently on the conveyor. All boards on the conveyor are carried out after component
mounting, but new boards are not carried in from the upstream side.
4. Emergency stop button
Press this button to trigger emergency stop. Do not use this button for stopping the automatic
operation in normal operation.
c
CAUTION
Do not press the emergency stop button during operation except in case of emergency.

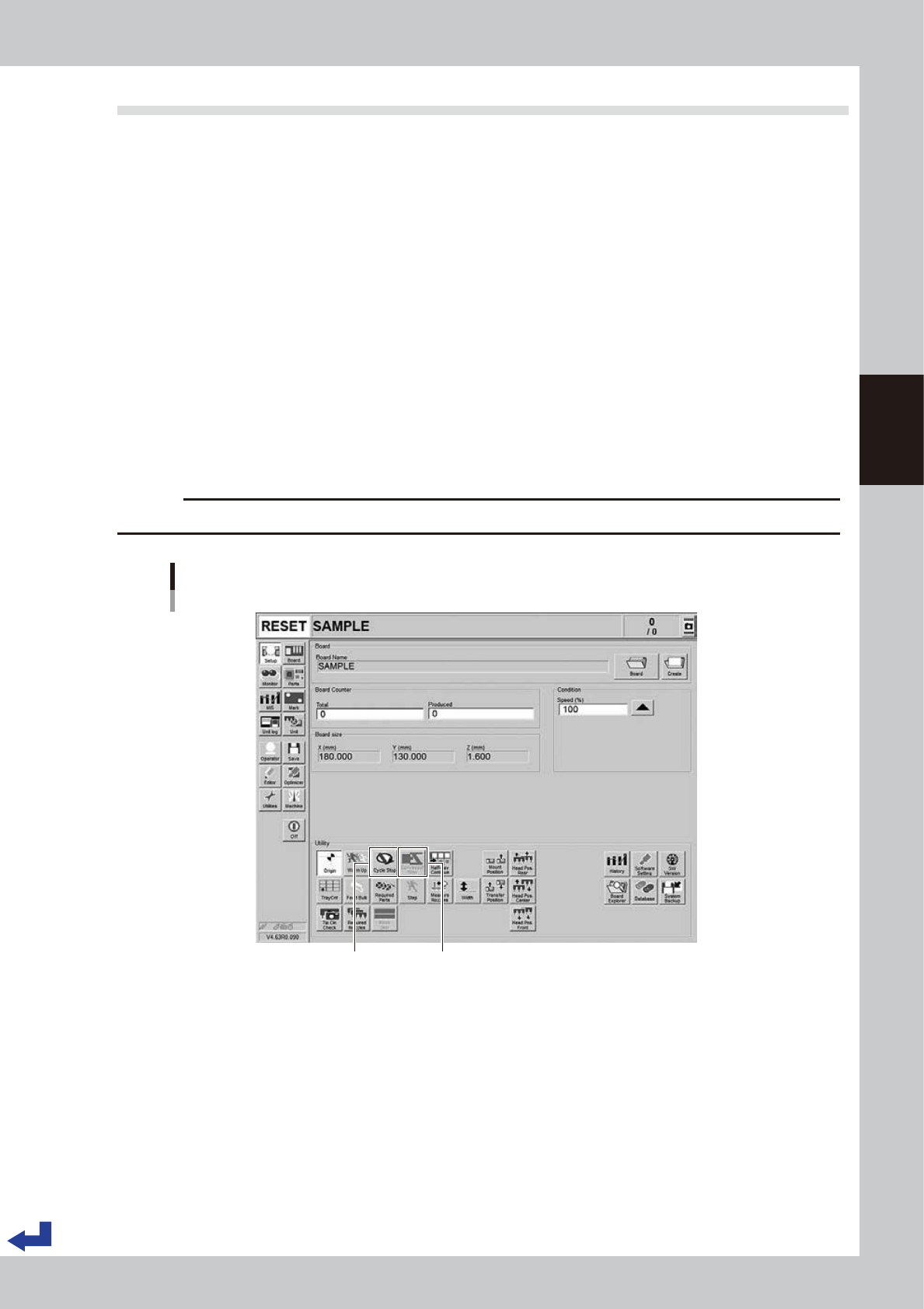

[Cycle Stop] button / [Convey-out Stop] button
[Setup] screen
[Convey-out Stop] button[Cycle Stop] button
24321-KMK-00
2
Reset the operation.
Press the [RESET] button on the operation panel. The machine then returns to the board production
standby status.
