2-65
2
Basic operation
4.1.6 Detaching the feeder exchange carriage
e
1
Press the emergency stop button.
Stop the mounter if in operation and then press the emergency stop button on the mounter.
2
(If SS feeder exchange carriage) Open the safety cover of the machine.
3
Turn the clamp switch to the right (OFF).
The clamp switch indicator flashes, the carriage clamp on the mounter moves up, and the feeder plate
is released. When released, the clamp switch will go off.
Clamp switch
Clamp switch
23230-KMK-00
4
Check that the clamp switch lamp is off.
5
Detach the feeder exchange carriage from the mounter.
Slowly pull back on the handles to separate the feeder exchange carriage from the mounter.
w
WARNING
DO NOT TOUCH THE MOUNTER BODY AND FEEDER EXCHANGE CARRIAGE WHILE THE CLAMP SWITCH LAMP IS FLASHING.
FINGERS MIGHT BE CAUGHT BY RISING FEEDER PLATE, AND PINCHED AND CRUSHED.
2-66
2
Basic operation
4.1.7 Detaching the feeder
This section describes the procedure to detach ZS feeder and SS feeder from ZS feeder exchange carriage as an
example.
n
If detaching ZS feeder from ZS feeder exchange carriage.
1
Detach ZS feeder from the carriage.
1. Hold the unclamping lever of ZS feeder.
2. While holding the unclamping lever, pull the feeder straight out.
ZS Feeder exchange carriage
Detaching ZS feeder
Unclamping lever
Clamping lever assembly
23231-KMK-00
2
Detach the reel.
Detach the reel from the reel holder.
2-67
2
Basic operation
n
If detaching SS feeder from ZS feeder exchange carriage.
e
1
Open the safety cover of the machine (If the carriage is set on the machine
already).
If the carriage is attached on the mounter, press the EMERGENCY STOP button, then open the safety
cover of the machine.
n
NOTE
To detach SS feeder from ZS feeder exchange carriage, it is required to open the guide rail cover. To open the guide
rail cover of ZS feeder exchange carriage attached on the machine, it is required to open the safety cover of the
machine.
2
Open the guide rail cover of ZS feeder exchange carriage.
1. Push the cover locks at left and right of the carriage to release them.
2. Lift up the guide rail cover to open it.
3

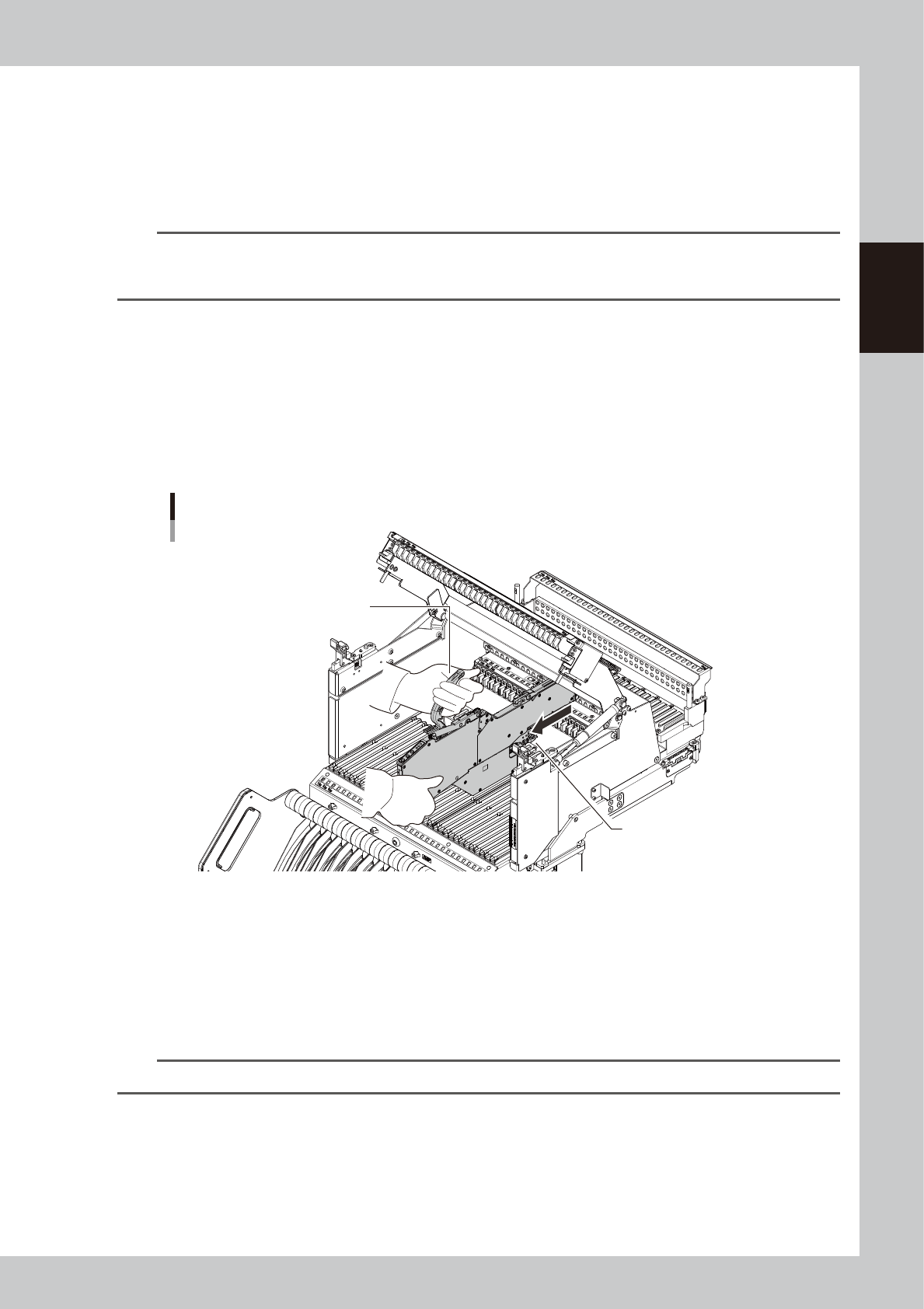

Detach SS feeder from the carriage.
1. While holding SS feeder at the bottom, pull out the handle backward.
2. While pulling out the handle backward, pull the feeder straight out.
ZS Feeder exchange carriage
Detaching SS feeder
Pull out the handle backward.
Clamping lever assembly
23232-KMK-00
4
Close the guide rail cover.
1. Close the guide rail cover.
2. After closing the cover, push the cover locks on both sides of the carriage to surely lock them.
5
Detach the reel.
Detach the reel from the reel holder.
n
NOTE
If the cover locks are released during production, the interlock stops the operation. Make sure that it is surely closed.
