1-37
1
Unit names and functions
4
Enter Feeder Set No. of the copied component.
1. Press the [Assistant] button again to return to the "Pick" tab.
2. Enter the desired number to "Feeder Set No." of the component copied in Step 3. The desired
number must not overlap the other feeder set position.

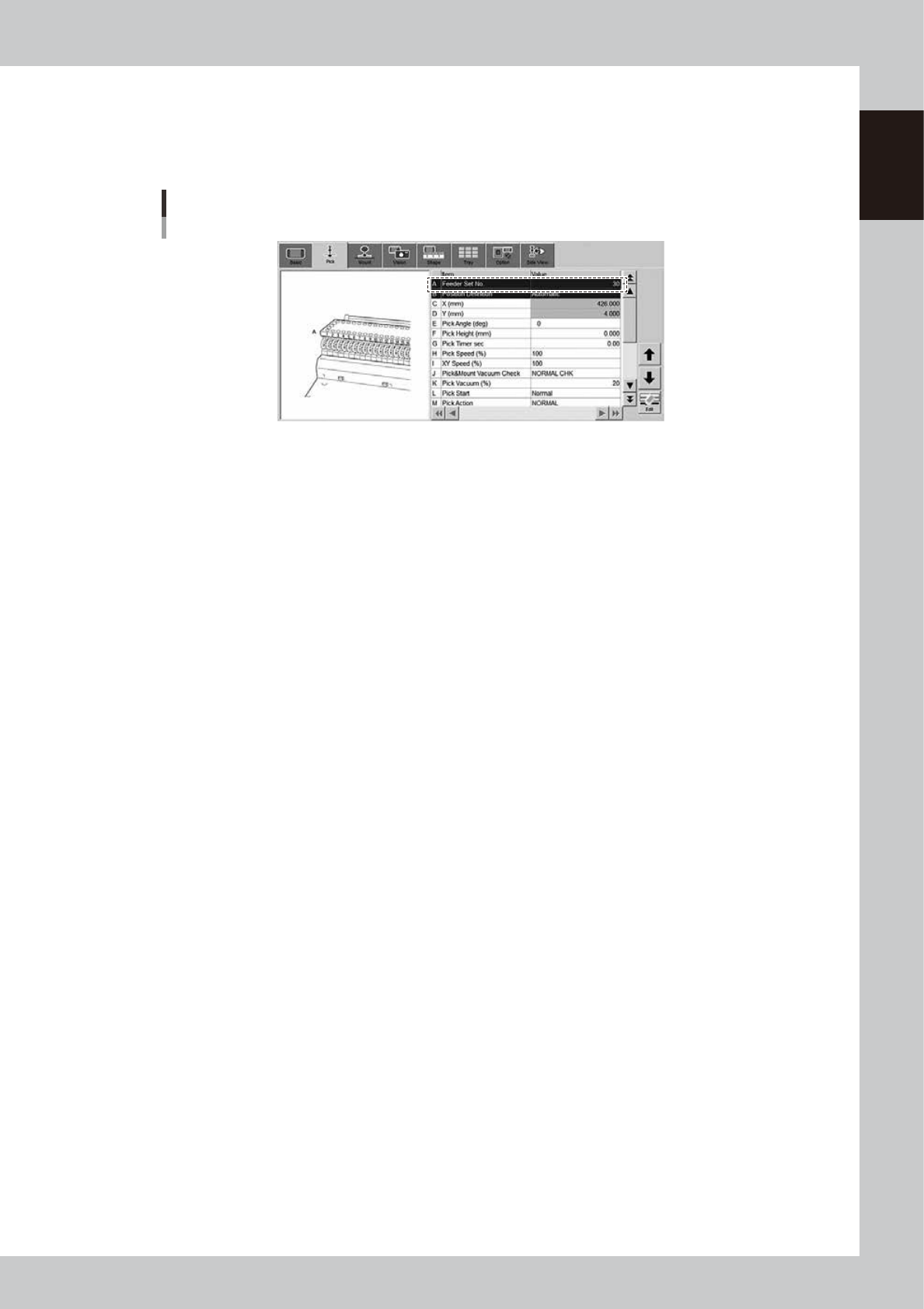

Entering Feeder Set No.
[Parts] - [Pick] tab
24117-KMK-00
1-38
1
Unit names and functions
5

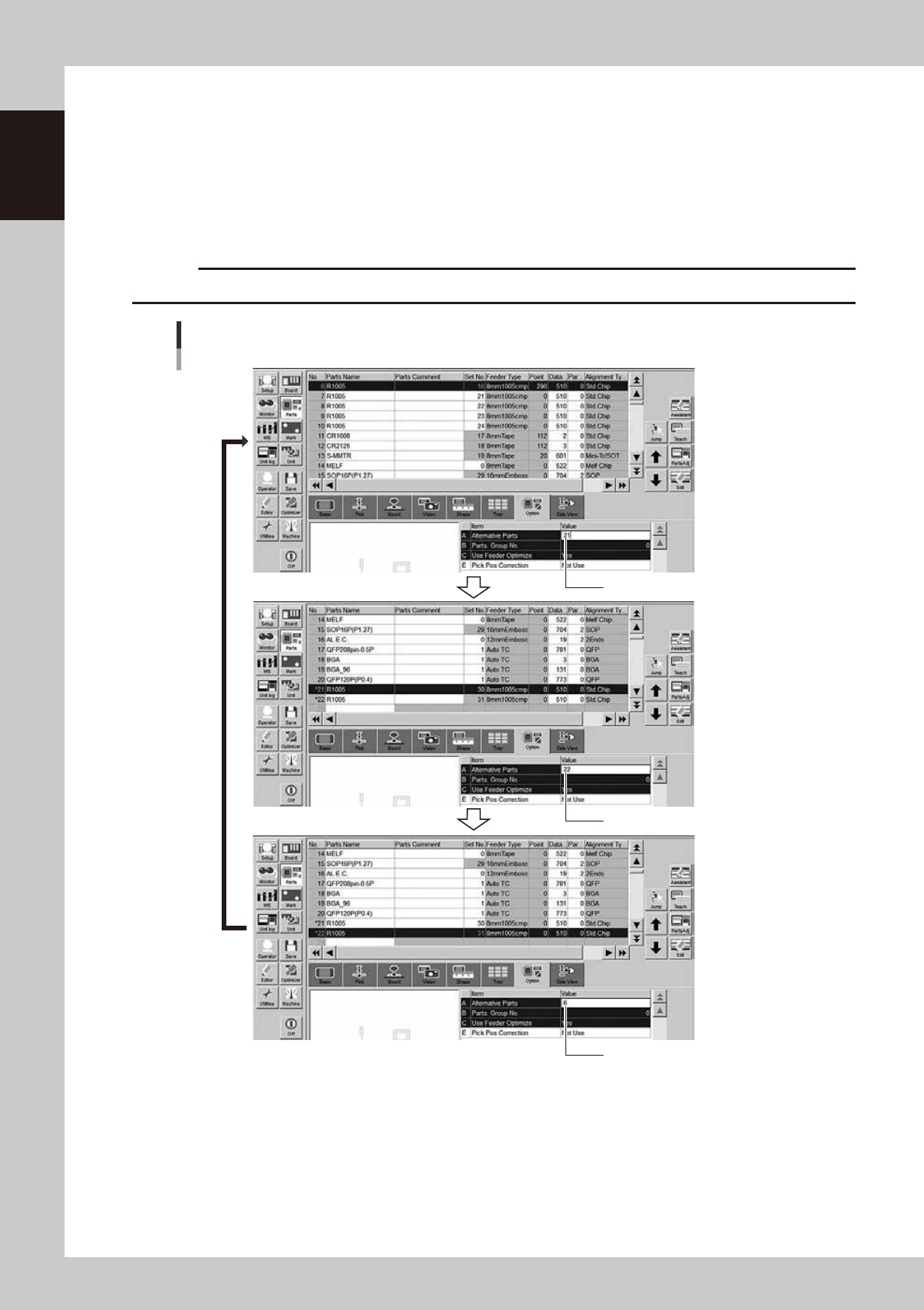

Specify the alternative component numbers.
1. Select the "Option" tab.
2. Select data No. 6 and set the "Alternative Parts" to "21".
3. Select data No.21 and set the "Alternative Parts" to "22".
4. Select data No. 22 and set the "Alternative Parts" to "6".
The settings above mean that the alternative component for No. 6 is No.21, that for No.21 is No. 22 and
that for No. 22 is No. 6, just like making a loop as an alternative component group.
c
CAUTION
Data No. for alternative components must make a loop.
Enter “21”.
Alternative component number settings
Enter “22”.
Enter “6”.
24118-KMK-00
1-39
1
Unit names and functions
4.4 Tray component supply unit (option)
There are three types of tray component supply units, sATS30NS, sATS30 and cATS10.
sATS30NS, sATS30, cATS10
sATS30NS
sATS30
cATS10
23121-KMK-00
n
sATS30NS, sATS30
Supplies tray components with setting two magazines containing 15 pallets. With sATS30NS, components can be supplied
by a pallet even during production.
n
NOTE
sATS30NS can be installed to YSM20R, TypePV and YSM20WR.
n
cATS10
Supplies tray components with setting a magazine containing 10 pallets. This is the type of a carriage, which can be
exchanged with a feeder exchange carriage by users, who need to be trained.
n
NOTE
Refer to the option manuals for details of sATS30NS, sATS30 and cATS10.
n
NOTE
For changing the carriages between cATS10 type and feeder exchange carriage type, the training by YAMAHA or
YAMAHA distributors is necessary. Contact us in advance.
