4.1.2 Setting feeders on the feeder exchange carriage
This section describes the procedure to set the feeder with component tape on the feeder exchange carriage.
For example here, ZS feeder and SS feeder are set on ZS feeder exchange carriage.
c
CAUTION
Before setting up the feeder on the mounter main body, be sure to load the tape feeder with component tape in the
temporary tape set station or the power station for off-line setup. Setting the tape feeder with component tape cannot
be set up on the mounter.
n
NOTE
The following 3 tape feeders, SS feeder, ZS feeder and Auto loading feeder, are available with the machine.
It is required to open the guide rail cover for the carriage to set SS feeder on ZS feeder exchange carriage.
n
If ZS feeder is set on ZS feeder exchange carriage
1
Clean the feeder plate.
Before setting the feeder on the carriage, remove dust or foreign matter from the feeder plate. Use the
feeder plate cleaning brush that comes with the machine, a vacuum cleaner (home use) or the vacu-
um assembly (option) to get rid of dust or foreign matter on the feeder plate.
c
CAUTION
If a component or foreign matter disturbs when setting the feeder plate, the feeder may not sit there correctly, making
it unable to pick up components in a stable manner.
Foreign object where the feeder sits in may cause electrical short circuit, possibly causing devices to be damaged.
When cleaning the feeder plate, be sure not to let foreign object contaminate the connectors.
Cleaning feeder plate for carriage
Carriage for SS feeder
Carriage for ZS feeder
Use dust pan to collect foreign objects.
Cleaning brush Use home vacuum cleaner.
Use home vacuum cleaner.
Cleaning brush
Use dust pan to collect foreign objects.
23213-KMK-00
2-50
2
Basic operation
2
Place the tape reels in the slots of the reel holder.
The storing position varies depending on the tape reel size. Regarding a tape reel over 7 inches, lift the
upper reel holder and store it in the lower reel holder.
Reel holder
Setting the tape reel in the reel holder
Tape reel over
7 inches
7-inch reel
23214-KMK-00
2-51
2
Basic operation
3
Set ZS feeder.
1. Hold the unclamping lever of ZS feeder.
2. Confirm the setting number of top and bottom are same
.
3. Place the feeder temporarily with its under rail aligned with the guide on the feeder plate side.
4. While keeping holding the unclamping lever, slide the feeder on the feeder plate to surely insert the
feeder to the end.
c
CAUTION
Be careful not to insert the feeder too strongly.
Inserting the feeder without matching the setting number of top and bottom makes the feeder set diagonally, and
then it might cause the fault.
18
50
18
50
Check the setting number.
Check the setting number.

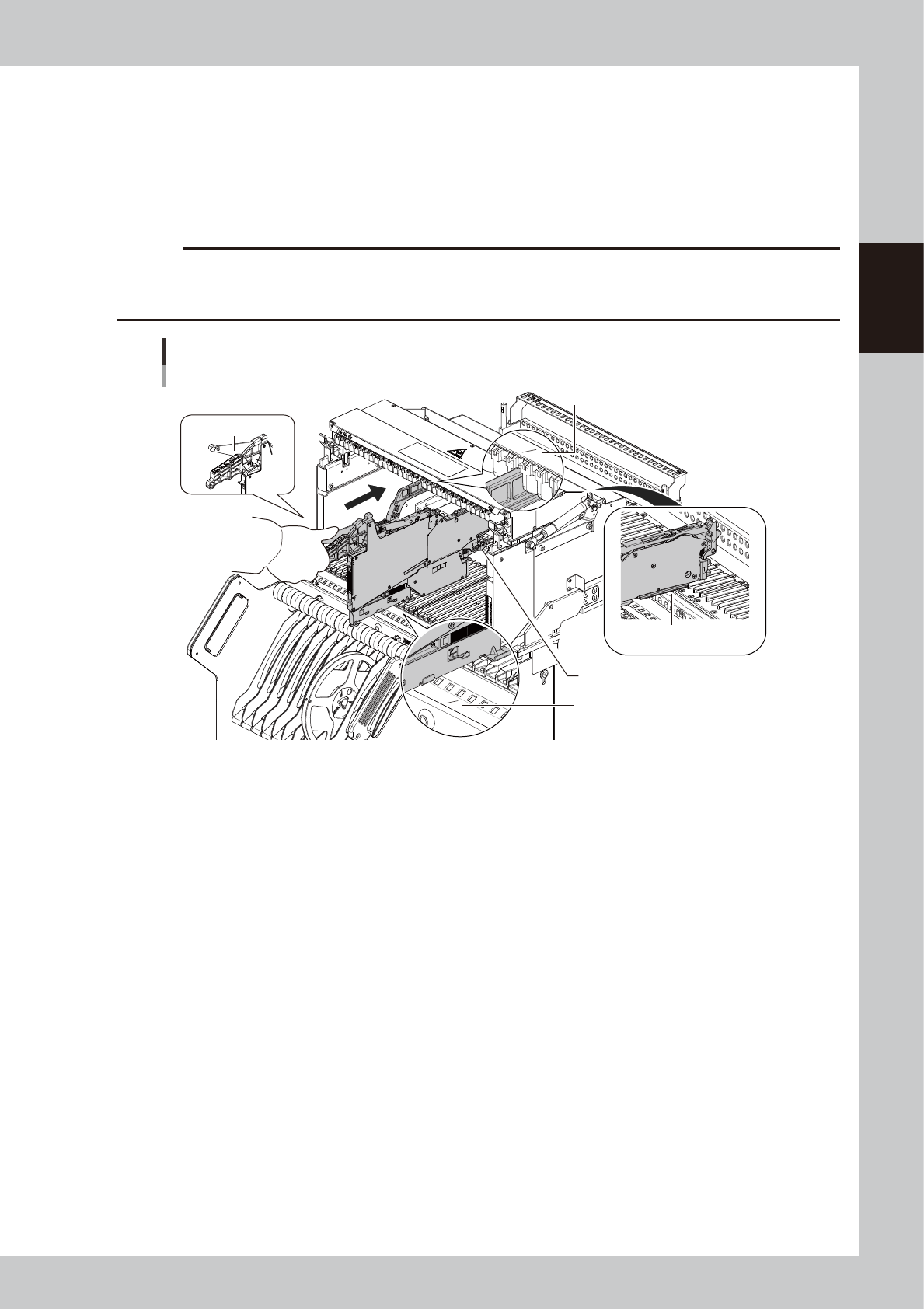

ZS Feeder exchange carriage
Setting ZS feeder
Unclamping lever
Under rail
Clamping lever assembly
23215-KMK-00
4
Lock the clamping lever assembly.
Release the unclamping lever. Check that the clamping lever assembly locks into the feeder plate. Set
the feeder correctly. Otherwise, the feeder could come off while mounting.
5
Check the state of setting in feeder.
View the feeder from the side to see that “the tape guide assembly is locked and not lifted”, “the
positioning device of the feeder reaches the far end” and “the under rail of the feeder firmly, correctly
sits in the feeder plate guide”.
