1-41
1
Unit names and functions
1. Entrance stopper
If a board is on the mounting position already, other board carried into the conveyor waits at the position of the entrance
stopper.
2. Stage 1 main stopper
The board stopper for the mounting position of the stage 1. A board carried into the conveyor is in contact with the main
stopper, then it stops.
3. Stage 2 main stopper
The board stoppers for mounting position of the stage 2. There are two main stoppers for the stage 2, which are used
depending on the board sizes.
4. Exit stopper
If the machine in downstream doesn't demand a board, the mounted board waits at the position of the exit stopper.
5. Stage 1,2 Push-up plate
6. Push-up pins
Push-up pins are arranged on the push-up plate depending on the board to be mounted. When a board comes to the
mounting position, these pins secure the board by pushing it up from the bottom.
7. Board hold plate
8. Board clamp plate
When a board comes to the mounting position, the board clamp plate moves up. This clamps the board by pushing its
edges up against the board hold plates.
9. Pin push-up prevention sensor
This sensor stops the push-up plate moving up by detecting the push-up pin pushes up the conveyor frame when the
push-up pins are between the push-up plate and the conveyor frame.
1-42
1
Unit names and functions
n
YSM20R Single-lane L = 360 mm type
Board transfer
direction
Conveyor unit

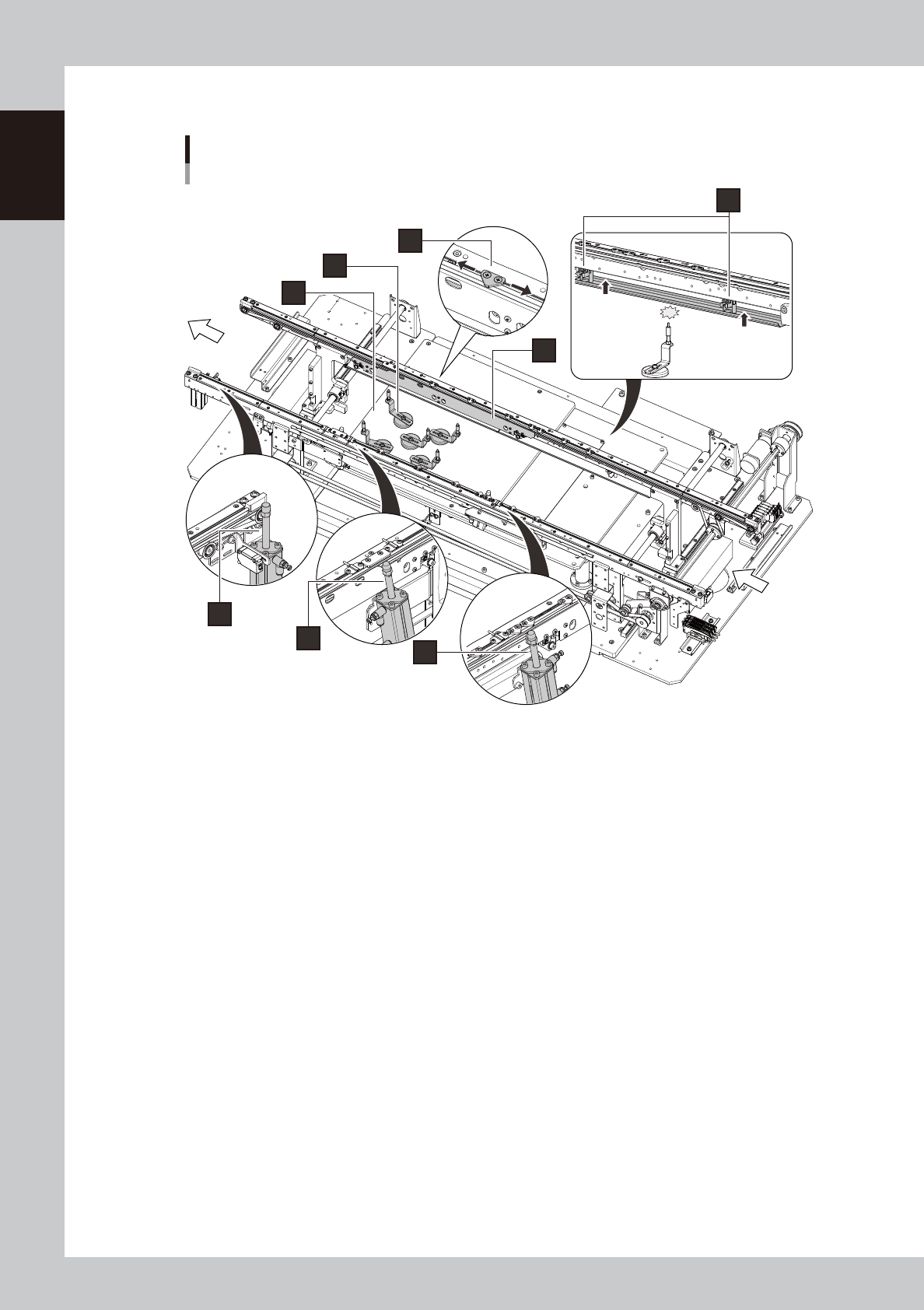

Single-lane L = 360 mm type (Example: Right-to-left flow)
6
1
4
7
8
5
2
3
23123-KMK-00
1. Entrance stopper
If a board is on mounting position of the stage already, other board carried into the conveyor waits at the position of the
entrance stopper.
2. Main stopper
The board stopper for the mounting position. A board carried into the conveyor is in contact with the main stopper, then
it stops. Single-lane type has 1 main stopper.
3. Exit stopper
If the machine in down stream doesn't demand a board, the mounted board waits at the position of the exit stopper.
4. Push-up plate
5. Push-up pins
Push-up pins are arranged on the push-up plate depending on the board to be mounted. When a board comes to the
mounting position, these pins secure the board by pushing it up from the bottom.
6. Board hold plate
7. Board clamp plate
When a board comes to the mounting position, the board clamp plate moves up. This clamps the board by pushing its
edges up against the board hold plates.
8. Pin push-up prevention sensor
This sensor stops the push-up plate moving up by detecting the push-up pin pushes up the conveyor frame when the
push-up pins are between the push-up plate and the conveyor frame.
1-43
1
Unit names and functions
n
YSM20R Single-lane L = 510 mm type
Board transfer
direction
Conveyor unit
Single-lane L = 510 mm type (Example: Right-to-left flow)
6
1
4
7
8
5
2
3
23138-KMK-00
1. Entrance stopper
If a board is on mounting position of the stage already, other board carried into the conveyor waits at the position of the
entrance stopper. Single-lane L = 510 mm type has 2 entrance stoppers. The stopper to be used varies depending on the
board size.
2. Main stopper
The board stopper for the mounting position. A board carried into the conveyor is in contact with the main stopper, then
it stops. For the type of single-lane, there is one main stopper.
3. Exit stopper
If the machine in down stream doesn't demand a board, the mounted board waits at the position of the exit stopper.
4. Push-up plate
5. Push-up pins
Push-up pins are arranged on the push-up plate depending on the board to be mounted. When a board comes to the
mounting position, these pins secure the board by pushing it up from the bottom.
6. Board hold plate
7. Board clamp plate
When a board comes to the mounting position, the board clamp plate moves up. This clamps the board by pushing its
edges up against the board hold plates.
Regarding single-lane L = 510 mm type, there are small and large clamp board assembly.
8. Pin push-up prevention sensor
This sensor stops the push-up plate moving up by detecting the push-up pin pushes up the conveyor frame when the
push-up pins are between the push-up plate and the conveyor frame.
