1-53 1 Unit names and functions n YSM20WR Single-lane (for transferring heavy board) A B C D E F Carrying direction Entrance stopper 2 ENT -CONVEYOR ENTRANCE W AITING POSITION1 ST AGE PCB MOUNT POSITION ST AGE WORK OUT2 …
1-52
1
Unit names and functions
n
YSM20WR Dual-lane L = 510 mm type
Lane 1
Lane 2
Transfer
direction
Transfer
direction
LANE1
ENT-CONVEYOR
ENTRANCE
LANE2
ENT-CONVEYOR
ENTRANCE
LANE1
WAITING POSITION1
LANE2
WAITING POSITION1
Entrance stopper
LANE1
STAGE PCB
MOUNT POSITION
LANE2
STAGE PCB
MOUNT POSITION
Main stopper
LANE1
STAGE WORK OUT2
LANE2
STAGE WORK OUT2
LANE1
EXIT POSITION
LANE2
EXIT POSITION
Exit stopper
Entrance stopper
Main stopper
Exit stopper
LANE1
WAITING POSITION2
LANE2
WAITING POSITION2
Entrance stopper
Entrance stopper
YSM20WR conveyor sensor layout
Dual-lane L = 510 mm type (Example: Right-to-left flow)
A
B
C
D
E
F
A
B
C
D
E
F
23145-KMK-00
Sensor name Sensor number Remarks
A
LANE1 ENT-CONVEYOR ENTRANCE
LANE2 ENT-CONVEYOR ENTRANCE
N2302000
N2304000
Reflective type
B
LANE1 WAITING POSITION2
LANE2 WAITING POSITION2
N2302001
N2304001
Thrubeam type
C
LANE1 WAITING POSITION1
LANE2 WAITING POSITION1
N2302002
N2304002
Thrubeam type
D
LANE1 STAGE PCB MOUNT POSITION
LANE2 STAGE PCB MOUNT POSITION
N2302003
N2304003
Thrubeam type
E
LANE1 STAGE WORK OUT2
LANE2 STAGE WORK OUT2
N2302005
N2304005
Thrubeam type
F
LANE1 EXIT POSITION
LANE2 EXIT POSITION
N2302006
N2304006
Thrubeam type
1-53
1
Unit names and functions
n
YSM20WR Single-lane (for transferring heavy board)
A
B
C
D
E
F
Carrying direction
Entrance stopper 2
ENT-CONVEYOR ENTRANCE
WAITING POSITION1
STAGE PCB MOUNT POSITION
STAGE WORK OUT2
EXIT POSITION
Main stopper
Exit stopper
Entrance stopper 1
WAITING POSITION2
YSM20WR conveyor sensor layout
Single-lane for transferring heavy board (Example: Right-to-left flow)
23148-KMK-00
Sensor name Sensor number Remarks
A
ENT-CONVEYOR ENTRANCE
N2302000
Reflective type
B
WAITING POSITION2
N2302001
Thrubeam type
C
WAITING POSITION1
N2302002
Thrubeam type
D
STAGE PCB MOUNT POSITION
N2302003
Thrubeam type
E
STAGE WORK OUT2
N2302005
Thrubeam type
F
EXIT POSITION
N2302006
Thrubeam type
1-54
1
Unit names and functions

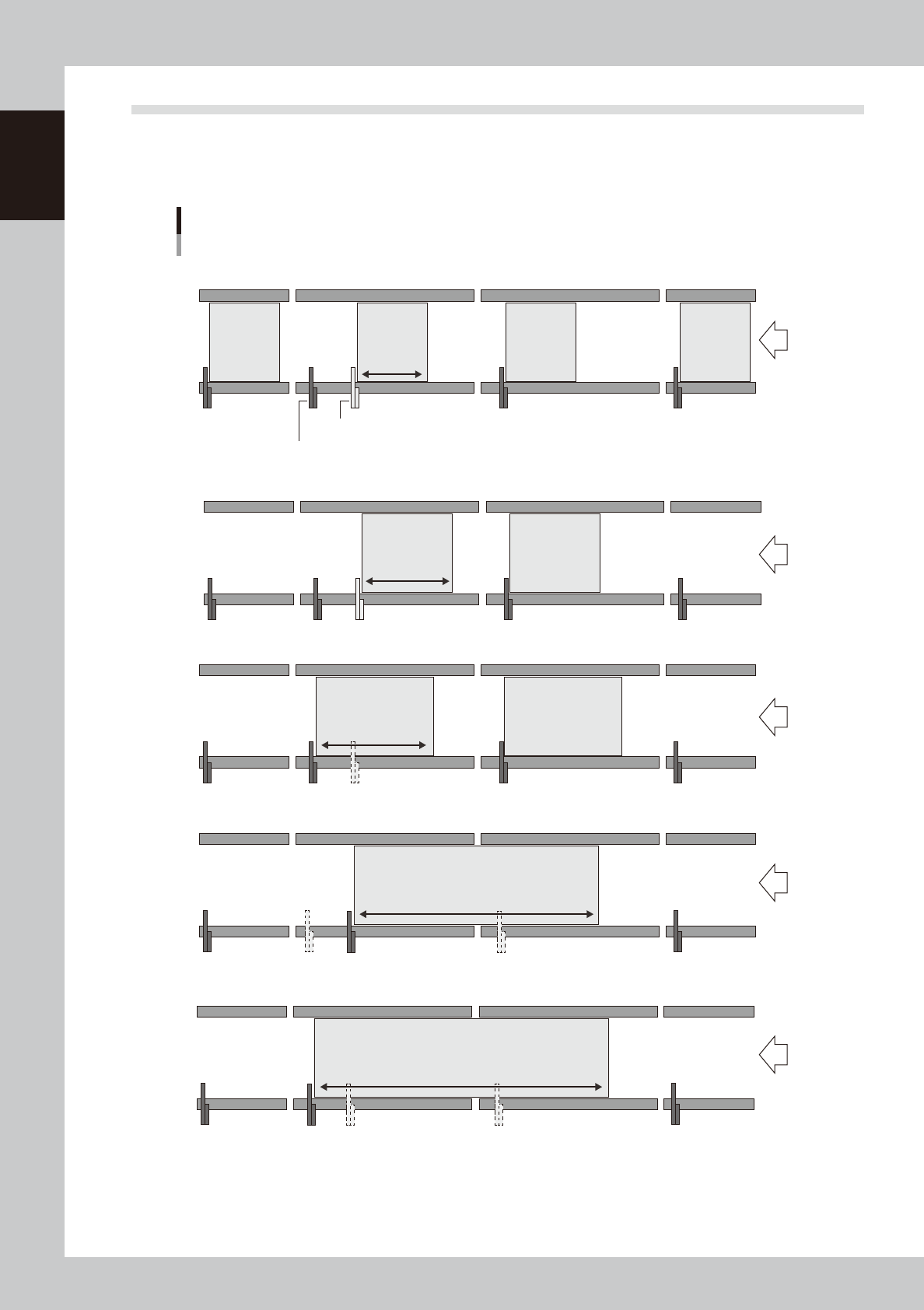

5.3 Board position in machine by conveyor type/board size
The board stay position in YSM20R/YSM20WR machine varies depending on the conveyor type and board size.
The following figures describe each position.
n
YSM20R Dual-stage type
L ≤ 810 mm: 1 board can stay in machine
Relation between board size and board position
L ≤ 210 mm: 4 boards can stay in machine
L ≤ 305 mm: 2 boards can stay in machine
L ≤ 380 mm: 2 boards can stay in machine
L ≤ 720 mm: 1 board can stay in machine
L ≤ 210 mm
L ≤ 305 mm
L ≤ 380 mm
L ≤ 810 mm
L ≤ 720 mm
Main stopper 1
Main stopper 2
23140-KMK-10
