2-61
2
Basic operation
6
Set the tape feed pitch.
Drop down the “Feed Pitch” on the “Feeder Setting” screen to select the feed pitch. Then, press the
[OK] button.
Setting the tape feed pitch
24230-KMK-00
7
Check the tape feed operation.
Press the [Feed] button on the lower right of the screen to check that the tape is fed at the pitch you
set.
Feeder [Feed] button Feeder [Back] button
Checking the feed pitch
[Unit] - [Feeder] screen
24231-KMK-00
c
CAUTION
When returning the component to the standby position, make sure to press the [Back] button more than twice and
then press the [Feed] button to align the component with the standby position. If pressing the [Back] button once or
aligning the standby position by the [Back] button, pickup position offset of the fist component will occur.
2-62
2
Basic operation
4.1.5 Disposing of used cover tape and carrier tape
As a daily routine, dispose of the used cover tape and carrier tape from time to time.
n
Disposing of used cover tape
n
NOTE
Especially when the components are supplied continuously with the tape splicing, the used cover tape accumulates
too much and pushes the tail cover causing to open it automatically as shown below. (the cover tape with about 2
reels of 8 mm tapes can be stored in a feeder)
Tape feeder with its tail cover automatically opened
Pushed out top tapeTail cover
23225-KMK-00
1
Check the used cover tape.
Open the tail cover to see whether there is used cover tape.
Check the cover tape in the feeder.
Checking the used cover tape
Tail cover
23226-KMK-00

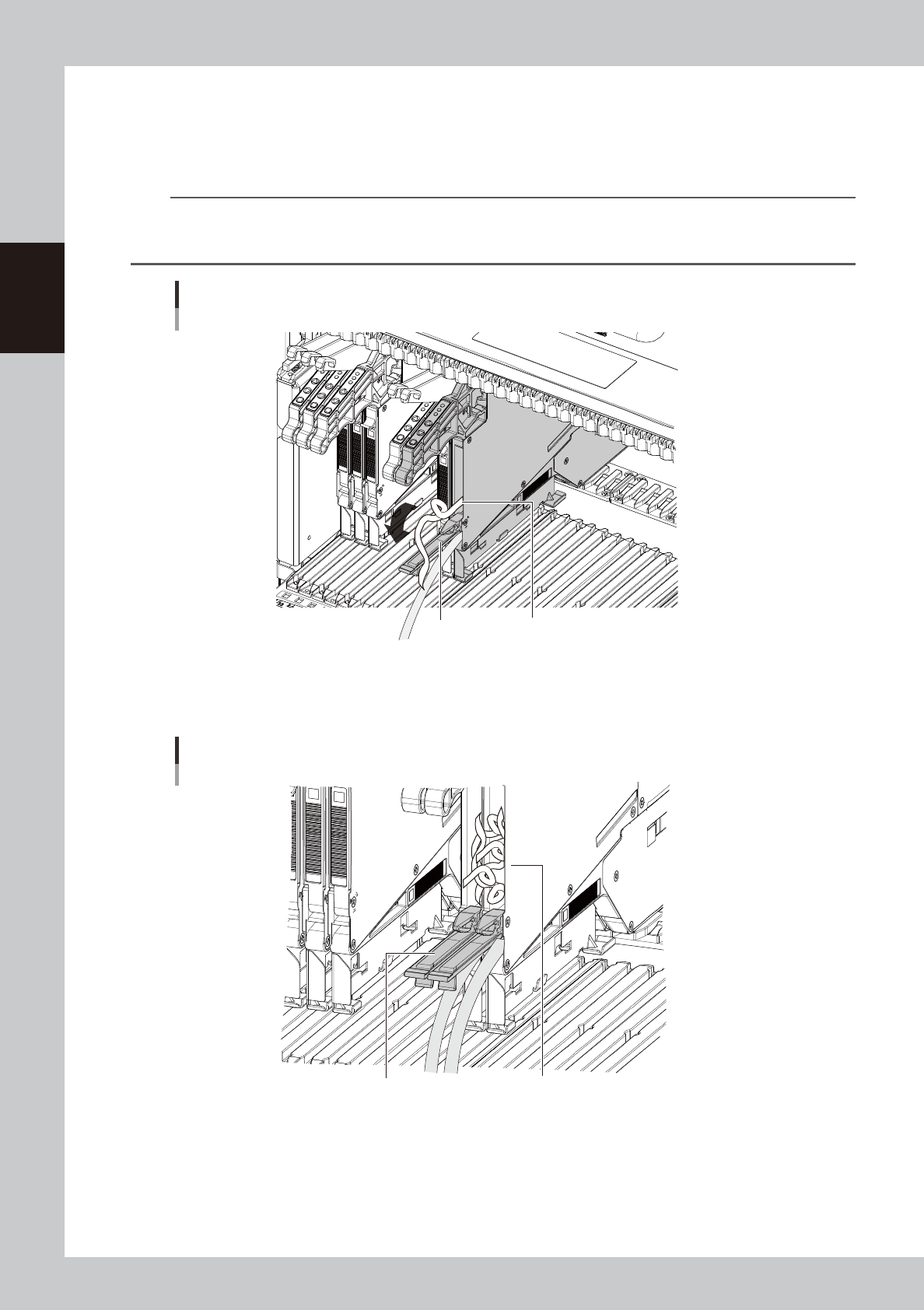

2-63
2
Basic operation
2
Cut the used cover tape.
If the cover tape still remains, use the edge cutter installed behind the tail cover to cut off the used
cover tape.
Cutting the used cover tape
Cover tape to be cut
Edge cutter
23227-KMK-00
3
Close the tail cover.
Note that the tail cover has a magnet.
Closing the tail cover
Tail cover
Magnet
23228-KMK-00
