3-16
3
Flow from starting up machine to production
2
Move down the Board edge clamp unit.
Press [Board Clamp] button in [Unit] - [Conveyor] screen to move down the board edge clamp unit.
Moving down the board edge clamp unit.

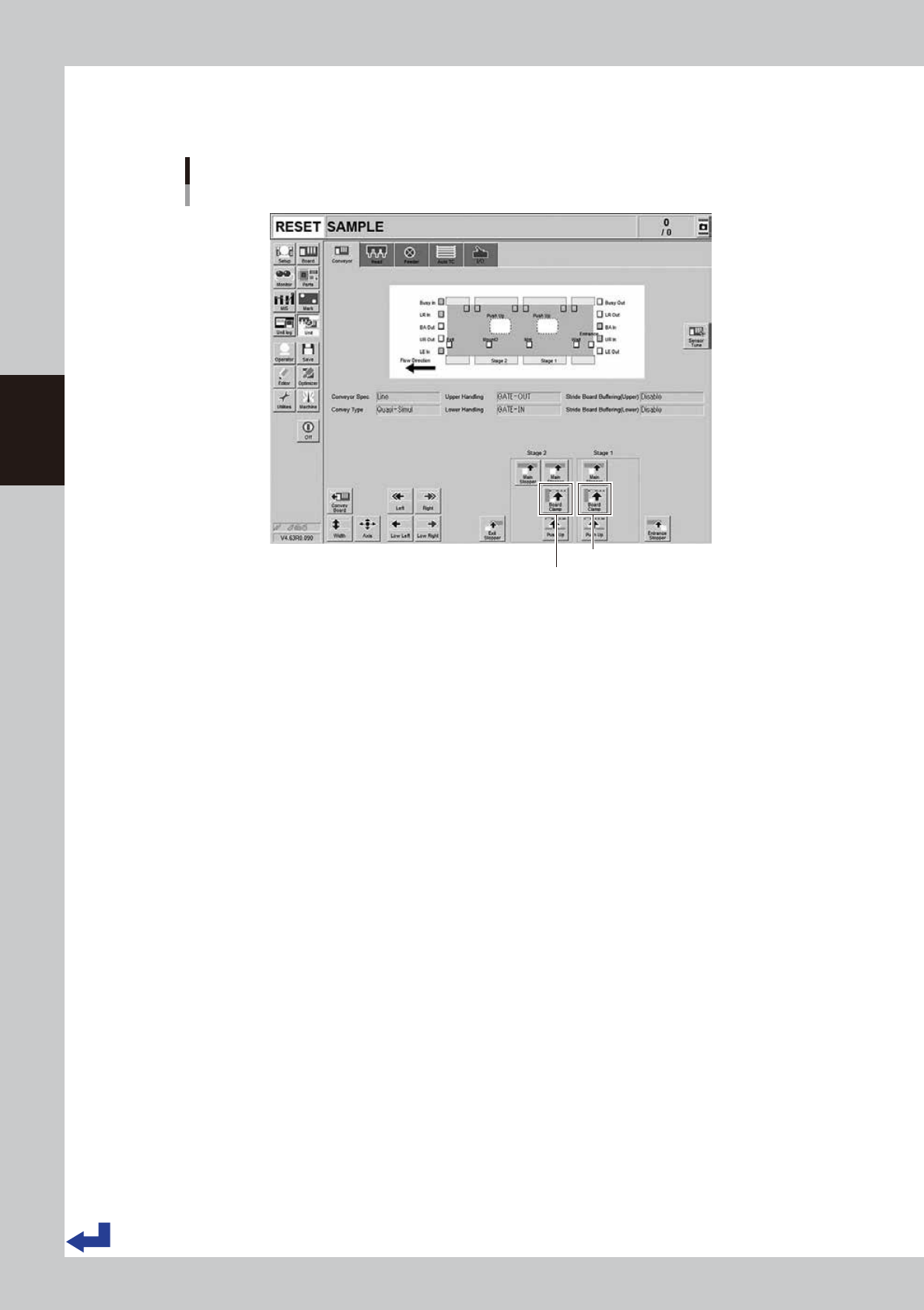

Dual stage : [Unit] - [Conveyor] screen
Stage 1 [Board Clamp] button
Stage 2 [Board Clamp] button
24312-KMK-00
3-17
3
Flow from starting up machine to production
3
Adjust the board hold plate positions.
1. Press [EMERGENCY STOP] button and open the safety cover.
If the carriage type machine, remove the carriage to easily access to the conveyor.
2. Loosen the screws on the board hold plates with a Phillips screw driver. It is not required to detach
them.
3. Move the board hold plates to the side according to the size and shape of the board.
4. Tighten the screws on the board hold plates.
TIP
The board hold plate overlaps the board by 3 mm (the length of the portion of the board hold plate over the board is
3 mm).
3mm
Adjusting the board hold plate positions
Dual stage :
Phillips screw driver
Loosen screws to move board hold plate.
• Board hold plates are not uniformly laid out.
Tips for adjusting the board hold plates
• Board hold plates are uniformly laid out.
• There is no obstacles such as a slit.
• The number of plates is insufficient.
Move over the board hold plate.
Board hold plates
• Board hold plate holds down a
portion with a slit.
• Board hold plate is too close to a
component mounting position.
23305-KMK-00
3-18
3
Flow from starting up machine to production
4
(YSM20R Dual-stage type) Adjust the board hold plate on the downstream stage.
1. If the carriage type machine, attach the carriage.
2. Close the safety cover and release [EMERGENCY STOP] button.
3. Press [Convey Board] in [Unit] - [Conveyor] screen.
4. "Convey Board" check screen appears, so confirm "All position" is ticked, and then press [OK].
5. "CONVEYOR AND FIX" message appears, then the board is conveyed from the upstream stage to the
downstream stage, and the board is fixed.
6. Adjust the board hold plate position on the downstream stage by step 2 and 3.
5
Remove the board.
1. If the carriage type machine, attach the carriage.
2. Close the safety cover and release [EMERGENCY STOP] button.
3. (YSM20R Dual-stage type) Press [Convey Board] button on [Unit] - [Conveyor] screen.
(YSM20R Single-lane / YSM20WR Dual-lane type) Press[Convey Out] button on [Unit] - [Conveyor]
screen.
4. (YSM20R Dual-stage type) The "Convey Board" check screen appears, so confirm "All position" is
ticked, and then press the [OK] button.
5. The "CONVEY AND FIX" screen appears. The board is transferred from the mount position (YSM20R
Dual-stage type: downstream stage) to the exit.
6. Remove the board manually.
TIP
Here, the board is conveyed in "All position". If either of "Entrance -> Upper Stage", "Upper Stage -> Lower Stage" or
"Lower Stage -> Exit" is ticked, the board is conveyed only the path which is ticked.
