1-2
1

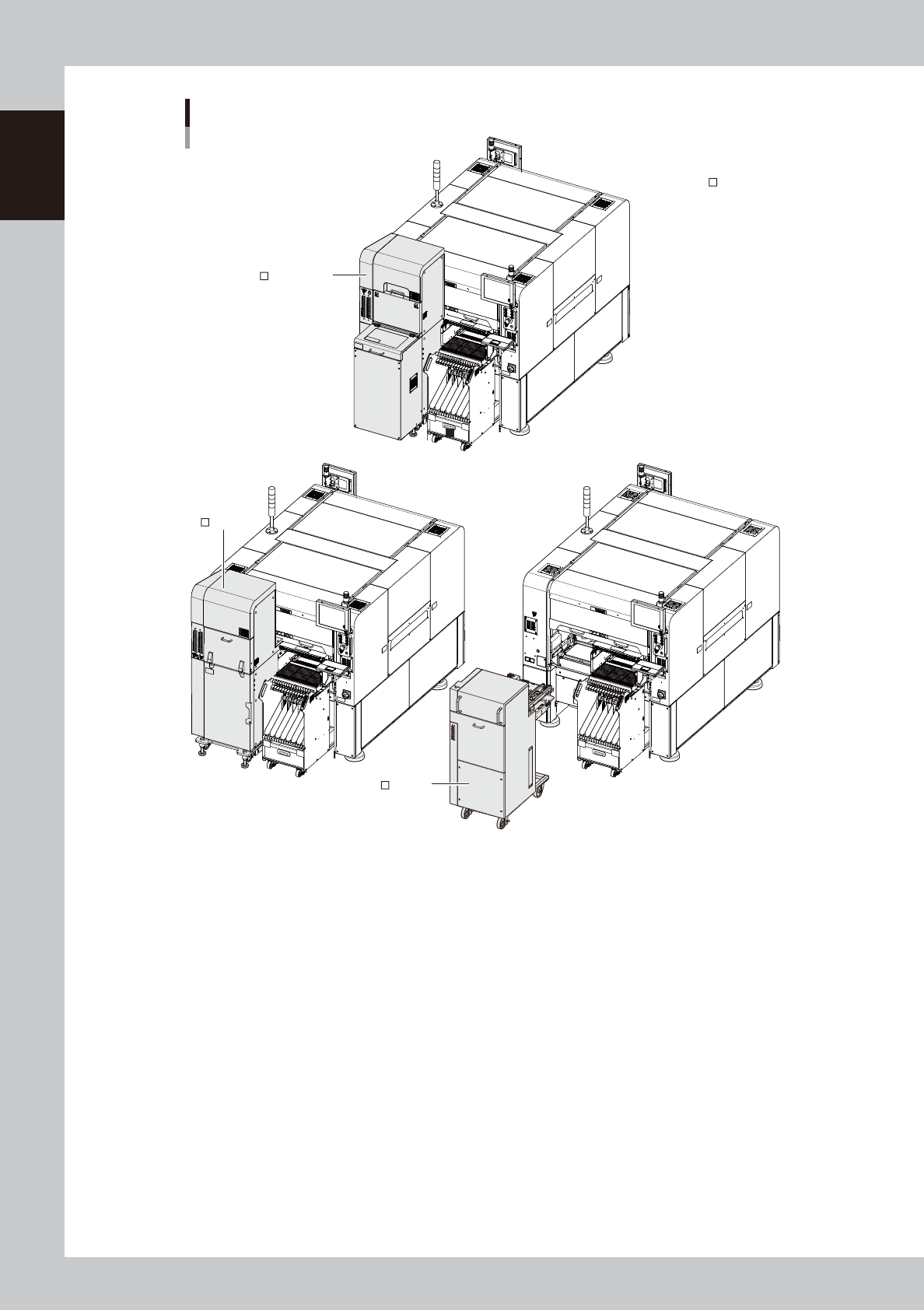

Unit names and functions
Machine main unit
Tray component supply unit
■ : Standard units
: Options
sATS30NS
sATS30
sATS30
23101-KMK-00
1-3
1
Unit names and functions
n
Safety cover
This cover must be closed during operation. If opened, emergency stop is triggered.
n
Power switch
Turns on or off the power to the machine. The power is on when turned to the right.
c
CAUTION
Wait about 2 seconds when powering on the machine after powered off it.
Set-up station (option)
This is used for setting component tapes in feeders and for changing the feed pitch.
Set-up station
7-inch tape reel holder
Guide rail
Display (Pitch indication)
Panel buttons
(Pitch switching)
15-inch tape reel holder
Power signal connector
23102-KMK-00
1-4
1
Unit names and functions
n
USB flash drive port
Use this USB flash drive port when making a data backup or upgrading the software version.
USB flash drive port
USB flash drive port
Keyboard port
Keyboard (option)
23103-KMK-00
n
Other connection ports
These ports are used for option units.
Other connection ports
Air joint for cATS10
Connector for cATS10
Front right sideFront left side
Air coupler
Air coupler
Connector for FM head load
calibration
Connector
for dipping station
23104-KMK-00
