Basic operation
6
Close the latch.
7
Press the pallet indicator button.

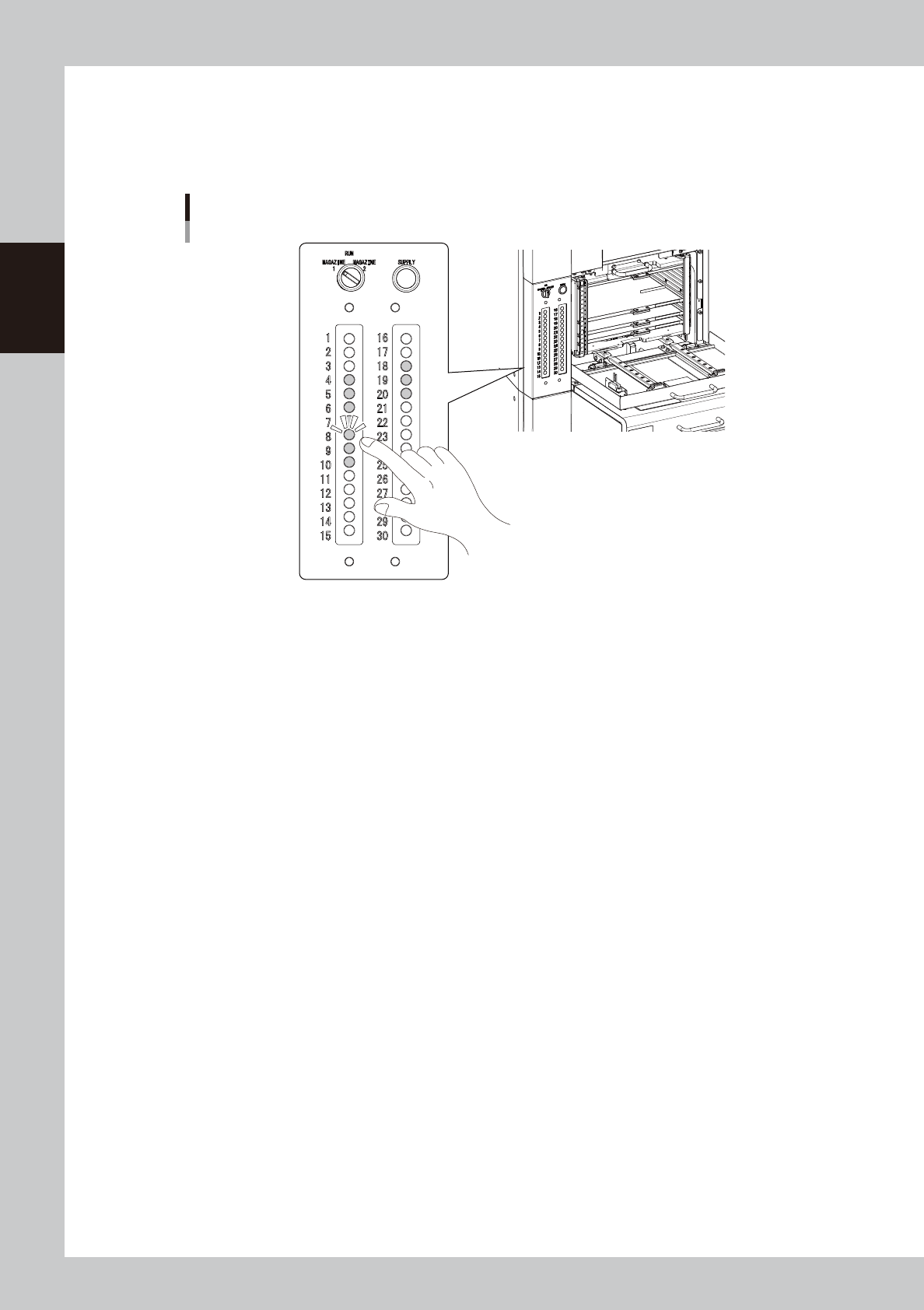

Press the "indicator" button for the number of the pallet where the components are supplied.
Indicator button
23247-KMK-00
8
Close the magazine door.
Confirm that the latch is closed, then close the magazine door.
9
Turn the magazine exchange switch back to "RUN".
The magazine door is locked, and then the door indicator for the magazine exchange switch is on.
Chapter 3 Flow from starting up machine to
production
Contents
1. Flow from starting up machine to production 3-1
1.1 Pre-operation check 3-2
1.2 Starting the machine 3-3
1.3 Selecting the operator 3-4
1.4 Warming up the machine 3-6
1.5 Selecting the board data 3-7
1.6 Conveyor unit setup 3-8
1.6.1 Laying out push-up pins 3-9
1.6.2 Adjusting board hold plate position 3-15
1.6.3 Checking condition of clamping the board 3-19
1.7 Preparing component tape (Tape feeder) 3-21
1.8 Preparing tray component supply unit 3-22
1.9 Confirming nozzles 3-24
1.10 Starting production 3-28
1.11 Ending production 3-29
1.12 Powering off the machine 3-30
1.13 Resuming operation from the stopped point 3-32
3-1
3
Flow from starting up machine to production
1. Flow from starting up machine to production
The following flow diagram shows the basic procedures from starting the machine, mounting components and
stopping the machine after finishing up the production.
Power on the machine.
Return the units to their origins.
Starting the machine
Pre-operation check
Selecting the operator
Resuming operation from the stopped point
Warming up the machine
Selecting the board data
Conveyor unit setup
Preparing component tape (Tape feeder)
Preparing tray components
( Tray component supply unit : option)
Starting production
Ending production
Powering off the machine
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.10
1.11
1.12
1.13
Check the operation speed.
Return the units to their origins.
Power off the machine.
Resume the operation where it left off.
Block skip
Start from this step if switching the production board data.
Confirming nozzles
1.9
Confirm the nozzle types.
Check the nozzle tip cleanness.
Flow from starting up machine to production
Check that the push-up pins, board
hold plate and state of securing board
in place are all right.
* Jump to desired page by clicking from to .
Click to return to this page.
1.1
1.13
23301-KMK-00
