2-22
2
Basic operation
3. Displaying the production monitors
Press the [Monitor] button and check each monitor screen that appears to confirm the operation status
during the production. The monitor screens includes the [Main], [Vision], [Alignment], [Retry] etc. Select the
corresponding tab to check the ongoing mounting information.
3.1 Production
This screen graphically shows the information of machines currently producing boards. The machine status
information such as errors that the machine is currently experiencing or work instructions appears on the lower
part of the screens.
1
2
3
4
Monitor: Production
Shows the machine rear as a colored background.
24212-KMK-00
1. Transfer status area
The board that the machine is currently working on is displayed in green.
If an error related to transfer has occurred or if a hazard prediction sensor is activating, the board is displayed in red.
2. Feeder status area
This area displays the feeder at the feeder set position that is registered on [Parts] - [Pick] tab - A: Feeder Set No. of the
board that the machine is currently working on. Nothing appears at the feeder set position where no components are
registered. The feeder is displayed in green where the feeder is correctly set up and ready for process. It is displayed in
red if the feeder is incorrectly set up or experiencing an error.
For machines equipped with a tray changer such as sATS30NS, the pallets setting status is displayed in this area.
3. Operating Navigation area (operating instruction message area)
Operating Navigation instructions
This displays messages with countermeasures for handling errors, operating instructions or warnings at operating position
selected with the "Select Operating Position" drop-down list. When multiple errors occur, those items with the highest
priority for countermeasures are displayed in sequence. To switch to other instruction messages, press the left/right arrow
buttons.
2-23
2
Basic operation
Select Operating Position drop-down list
If the machine is experiencing errors at more than one location, select the location to check from the drop-down list.
Note that the drop-down list shows only positions that require operator task.
TIP
Errors are also displayed in the graphic layout view on the upper part of the screen.
The operating position can be selected by clicking the error area on the graphic layout view. However, the operating
position cannot be selected if clicking an area where there are no errors or operating instructions.
[Error Detail] button
Pressing this button displays an error message screen that contains detailed information and countermeasures for the
error and operating instruction, or warning displayed in the "Operating Navigation" area.
[Error Clear] button
Press this button after recovering from the error or after handling the operating instruction or warning displayed in the
"Operating Navigation" area. Pressing this button shows that recovery is complete by following the message in the
"Operating Navigation" area, and that automatic operation can restart. However, automatic operation will not restart if a
recovery task is still incomplete.
TIP
If an error has occurred that affects the entire machine, the entire background area is displayed in blue.
4. Component information display area
Displays basic information on components currently being used in the program (board data) for production. Data that is
causing an error appears in a different color.
[Option] button
Switches the "part details" area display ON and OFF.
2-24
2
Basic operation

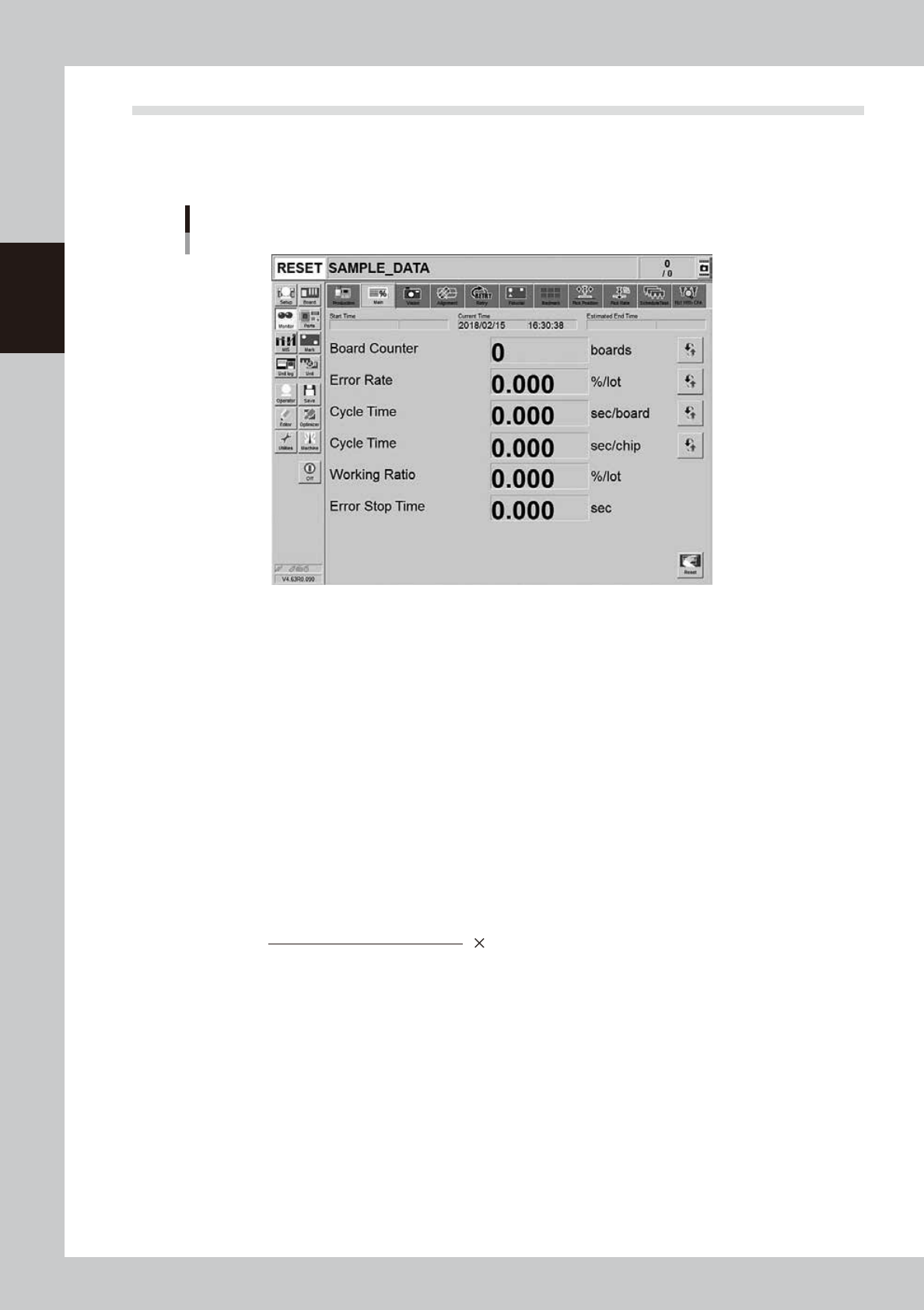

3.2 Main
The [Monitor] - [Main] tab screen shows you the real-time production status such as the board count and cycle
time. Displaying this screen during production is handy. All information will be cleared when the board type is
changed.
Monitor: Main
24213-KMK-00
Start Time
Displays the date and time that the board data currently being produced was changed.
Estimated End Time
Displays the estimated time of finishing the production.
Current Time
Displays the current date and time of the system clock time built-in the machine.
Board Counter
The board counter displays the number of boards produced after changing to the current production board data. The
board counter counts only the boards completed the mounting. Pressing the button on the right side allows to switch
between “Board Counter” and “Block Counter”.
Error Rate
The ratio of components discarded due to the pick up error or recognition error occurred from the time of changing to
the board data currently producing to present to all the consumed components. This data is updated when changing the
production board.
Number of discarded components
Total component consumption
Error rate (%) = 100
Pressing the button on the right allows to switch between “Error Rate” and “Pickup Rate (= 100% - Error Rate)”.
Cycle Time (sec/board)
The cycle time shows the average (seconds/board) of the mounting time per board. The data is updated when the
mounting is completed.
Pressing the button on the right allows to switch among “Cycle time”, “Mount CT (cycle time)” and “Transfer CT (cycle
time)”. The Cycle Time = Mount CT + Transfer CT.
The Mount CT (cycle time) includes the board mark recognition time such as fiducial bad marks, component recognition
time, mounting time, retry operation time, component discarding time and nozzle changing times. The stopping time due
to an error and the [Stop] button is not included.
Cycle Time (sec/chip)
Shows the time (seconds) to mount one component on the board. This is the time obtained by dividing the time for one
sequence from pickup to mounting by the number of components mounted in that sequence.
Pressing the button on the right switches the indications among “Cycle time (sec/chip)”, “Cycle time (sec/block)”, “Cycle
time (chip/hour)”, “Cycle time (block/hour)” and “Cycle time (board/hour)”.
