1-46 1 Unit names and functions n YSM20WR Single-lane (for transferring heavy board) 6 1 4 7 8 5 2 3 Board transfer direction Conveyor unit Single-lane for transferring heavy board (Example: Right-to-left flow) 23147-KMK…

100%1 / 229
1-45

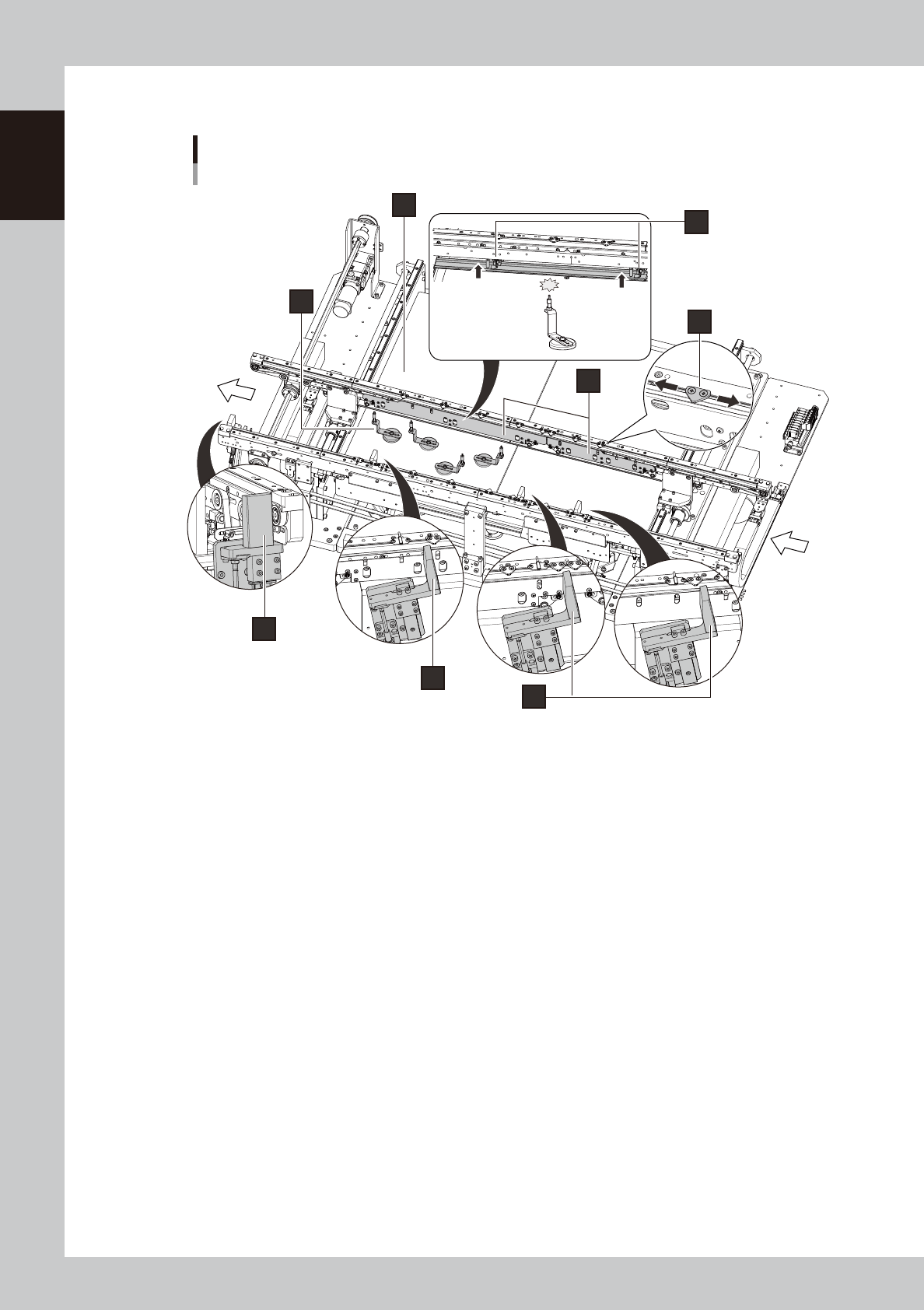

1
Unit names and functions
n
YSM20WR Dual-lane L = 510 mm type
Board transfer
direction
Conveyor unit
Dual-lane L = 510 mm type (Example: Right-to-left flow)
6
1
4
7
8
5
2
3
23143-KMK-00
1. Entrance stopper
If a board is on mounting position of the stage already, other board carried into the conveyor waits at the position of the
entrance stopper. Dual-lane L = 510 mm type has 2 entrance stoppers. The stopper to be used varies depending on the
board size.
2. Main stopper
The board stopper for the mounting position. A board carried into the conveyor is in contact with the main stopper, then
it stops. Regarding dual-lane type, there is one main stopper.
3. Exit stopper
If the machine in down stream doesn't demand a board, the mounted board waits at the position of the exit stopper.
4. Push-up plate
5. Push-up pins
Push-up pins are arranged on the push-up plate depending on the board to be mounted. When a board comes to the
mounting position, these pins secure the board by pushing it up from the bottom.
6. Board hold plate
7. Board clamp plate
When a board comes to the mounting position, the board clamp plate moves up. This clamps the board by pushing its
edges up against the board hold plates. Dual-lane L = 510 mm type has a small and a large clamp board assemblies per
conveyor.
8. Pin push-up prevention sensor
This sensor stops the push-up plate moving up by detecting the push-up pin pushes up the conveyor frame when the
push-up pins are between the push-up plate and the conveyor frame.
1-46
1
Unit names and functions
n
YSM20WR Single-lane (for transferring heavy board)
6
1
4
7
8
5
2
3
Board transfer
direction
Conveyor unit
Single-lane for transferring heavy board (Example: Right-to-left flow)
23147-KMK-00
1. Entrance stopper
If a board is on mounting position of the stage already, other board carried into the conveyor waits at the position of the
entrance stopper. Single-lane type has 2 entrance stoppers. The stopper to be used varies depending on the board size.
2. Main stopper
The board stopper for the mounting position. A board carried into the conveyor is in contact with the main stopper, then
it stops. For the type of single-lane, there is one main stopper.
3. Exit stopper
If the machine in down stream doesn't demand a board, the mounted board waits at the position of the exit stopper.
4. Push-up plate
5. Push-up pins
Push-up pins are arranged on the push-up plate depending on the board to be mounted. When a board comes to the
mounting position, these pins secure the board by pushing it up from the bottom.
6. Board hold plate
7. Board clamp plate
When a board comes to the mounting position, the board clamp plate moves up. This clamps the board by pushing its
edges up against the board hold plates.
Regarding single-lane type, there are small and large clamp board assembly.
8. Pin push-up prevention sensor
This sensor stops the push-up plate moving up by detecting the push-up pin pushes up the conveyor frame when the
push-up pins are between the push-up plate and the conveyor frame.
1-47
1
Unit names and functions

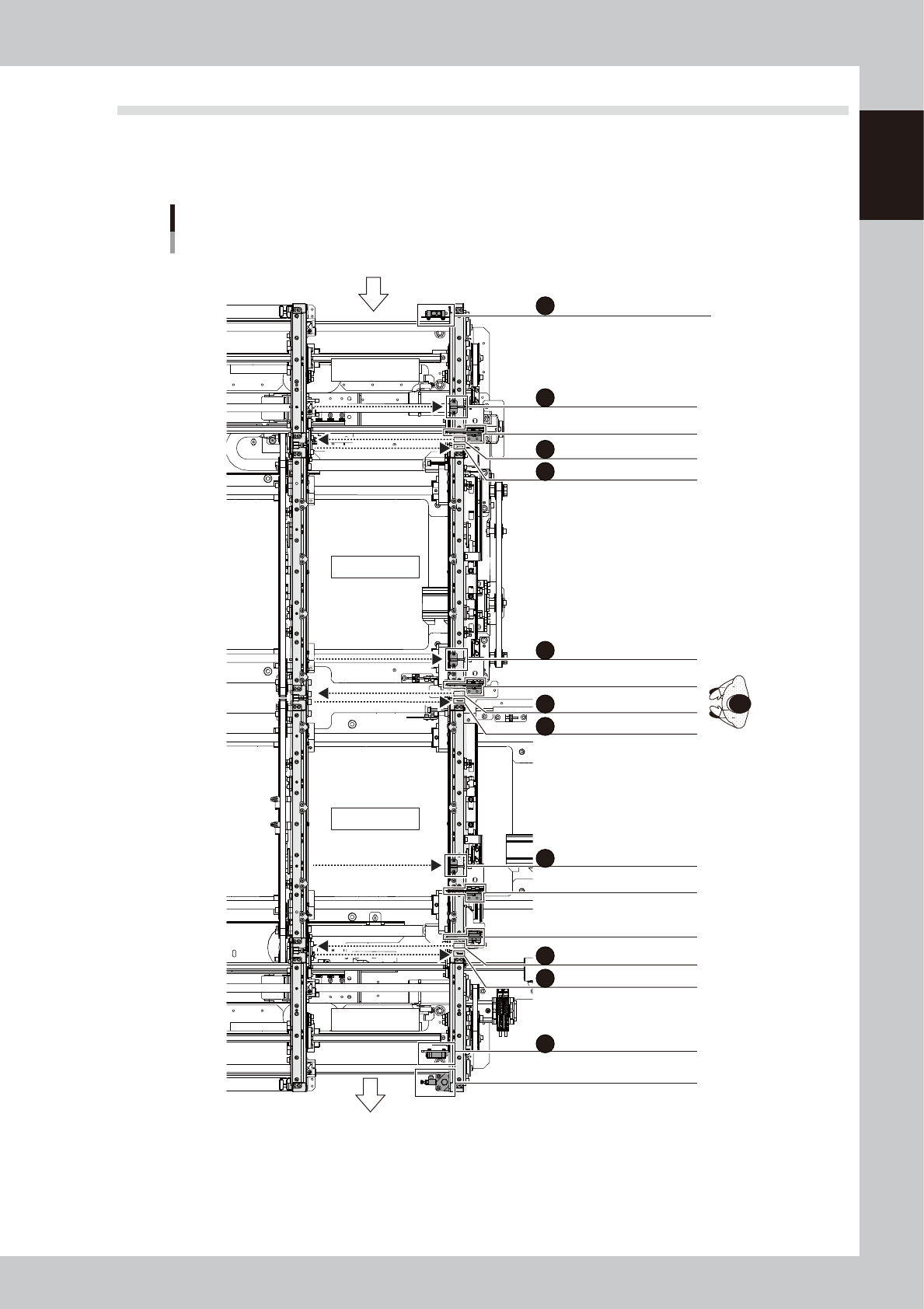

5.2 Sensor layout of conveyor unit
The following shows the sensor layout of the conveyor unit.
n
YSM20R Dual-stage type
Carrying direction
W1/ Entrance conveyor
W2/ Mounting stage 1
W3/ Mounting stage 2
W4/ Exit conveyor
LANE1
ENT-CONVEYOR ENTRANCE
WAITING POSITION
Entrance stopper
Stage 1 main stopper
Stage 2 main stopper 1
Stage 2 main stopper 2
Exit stopper
CONVEYOR EXIT
STAGE-1 ENTRANCE
STAGE-2 ENTRANCE
STAGE-1 EXIT
STAGE-1
PCB MOUNT POSITION
STAGE-2
PCB MOUNT POSITION
STAGE-2 EXIT
CONVEYOR4 ENTRANCE
LANE1 EXIT POSITION
Conveyor sensor layout for YSM20R
Dual-Stage (Right-to-left flow example)
A
B
C
D
E
F
F
G
H
I
J
K
