4.1.4 Setting board data of component tape
After completing setting up the feeder on the machine main body, set the tape feed pitch in the board data on
the machine main body.
1
Check the component tape feed pitch.
Check the component tape feed pitch prior to the operation.
2
Call up the [Parts] – [Basic] screen.
Read out the board data. Call up the [Parts] – [Basic] tab screen.
3

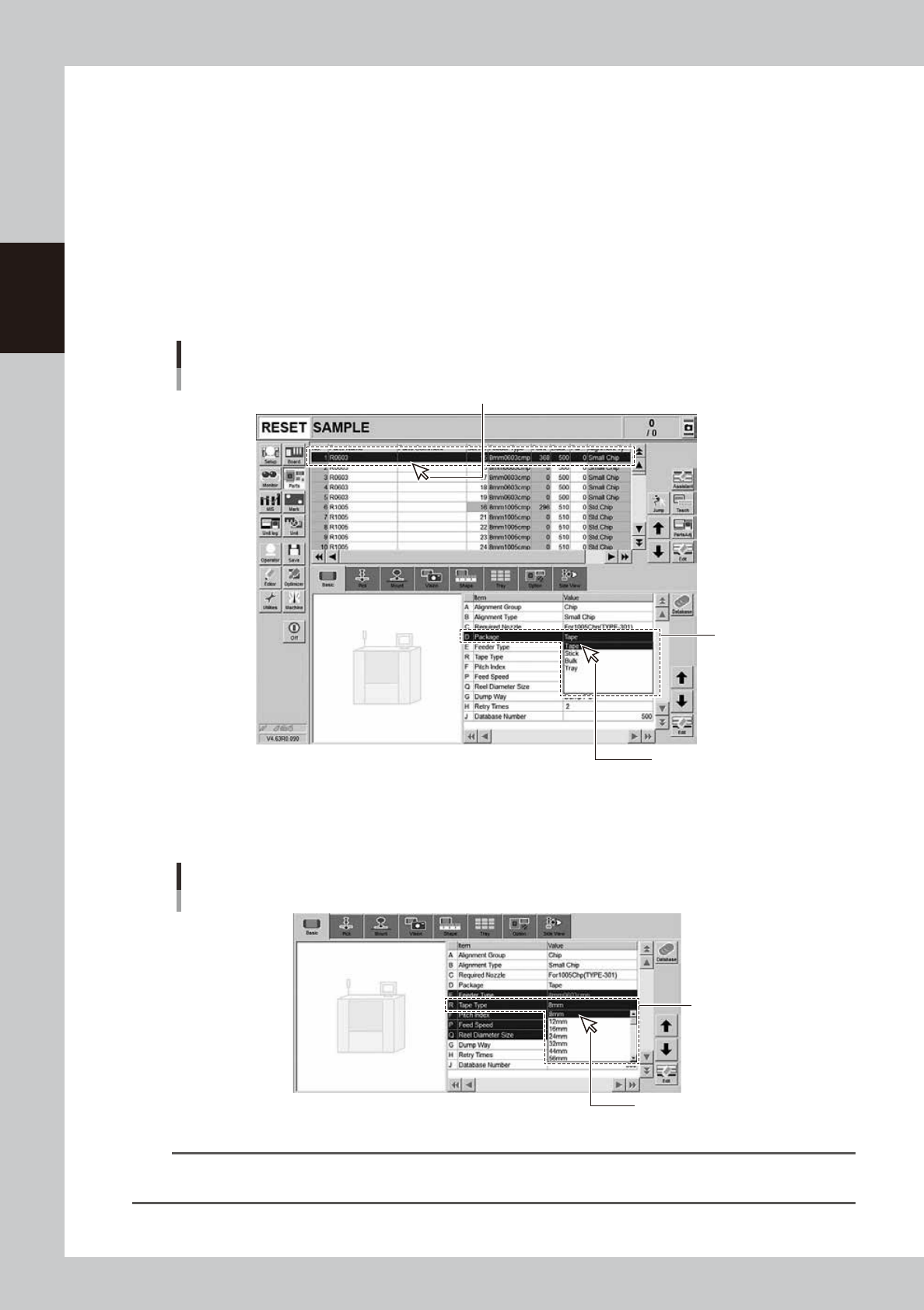

Specify the “Package”.
Select the components to specify the parameters for. Pull down “D. Package” and select “Tape”.
Setting up board data / Component tape
[Parts] - [Basic] tab
D. Package
Select “Tape”.
Select the components to specify the parameters for.
24226-KMK-00
4
Specify the “Tape type”.
Drop down “R. Tape Type” to select the type of component tape.
Setting up board data / Component tape
[Parts] - [Basic] tab
R. Tape Type
Select from the drop-down list.
24227-KMK-00
TIP
• Changing “D. Package” also changes “R. Tape Type”.
• The setting of “E. Feeder Type” is not provided.
2-57
2
Basic operation
5

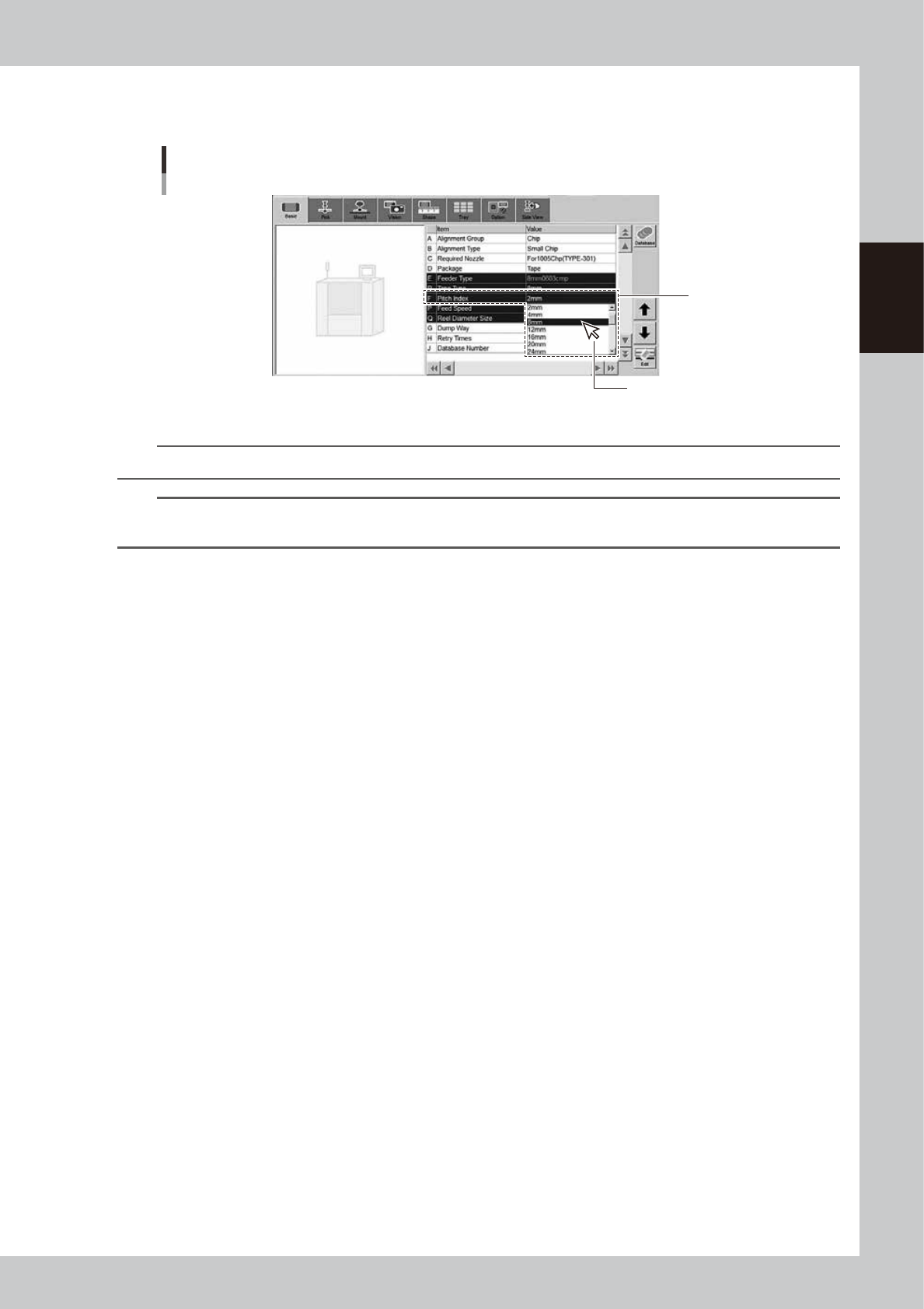

Specify “Pitch Index”.
Drop down “F. Pitch Index” to select the feed pitch according to the component tape to be used.
Specifying the Pitch Index
[Parts] - [Basic] tab
F. Pitch Index
Select from the drop-down list.
24228-KMK-00
n
NOTE
If “Feeder setup” is selected for "Reference of feeder pitch" on the Option Setting, “F. Pitch Index” does not appear.
TIP
See the “ZS Feeder User’s Manual” or the “SS Feeder User’s Manual” for the details of setting up the feeder board
data.
2-58
2
Basic operation
n
Setting the pitch index (feed pitch) of component tape
As described on the previous page, the tape feeder pitch is normally set up the on the board data screen.
Based on the setting on the machine main body, however, the “Feeder setup” that the feeder memorizes tape
feed pitch is also available. The following describes the procedure of setting the "Reference of feeder pitch" to
“Feeder setup”.
n
NOTE
To activate “Feeder setting”, you have to go to “Machine” – “Option” – “Implementation” – “Specify feeder pitch”
and then set it to “Feeder setting”. (Normally, “Specify feeder pitch” is specified in “Board data”.) Note that this
changes one of the machine data setting items. Accessing such parameters requires the administrator level of
authority.
The feeder setting has two ways for the above – One is using the temporary tape set station or the power station
for off-line setup to send the parameter to the feeder to let it memorize the tape feed pitch and the other is
sending the parameter from the mounter main body to do so.
n
Method to memorize tape feed pitch at each station
The following describes the procedure for setting a tape feed pitch using the temporary tape set station or
power station for the off-line setup.
1
Check the tape feed pitch of the component tape.
Check the tape feed pitch of the component tape in advance.
2
Set the feeder.
Set the feeder in the extreme left set position of the temporary tape set station / the power station for
off-line setup.
3
Check the tape feed pitch of the feeder.

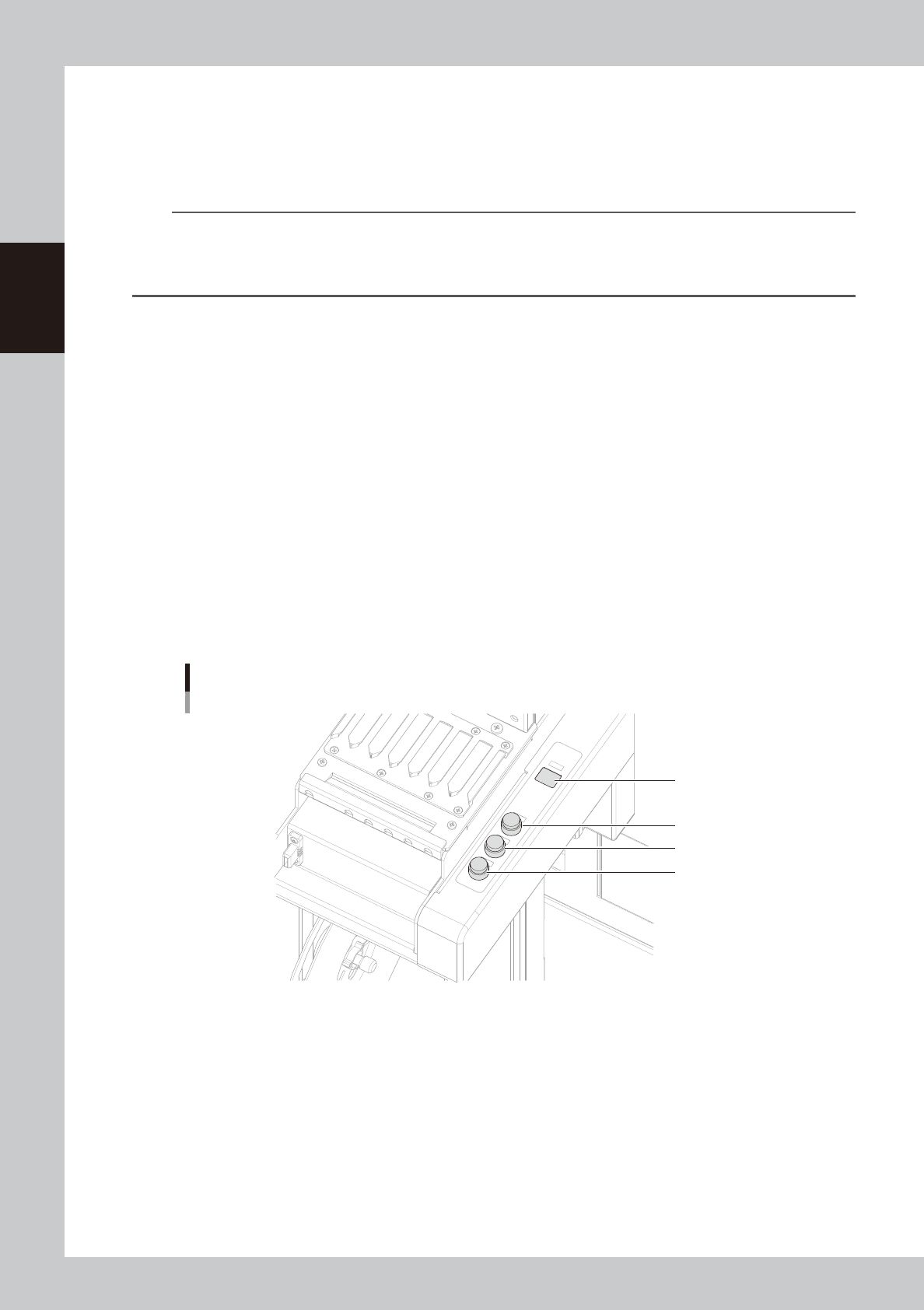

The tape feed pitch is indicated on the display as shown below.
Tape feed pitch
Display and buttons
[SET] button
[DOWN] button
[UP] button
Display
23223-KMK-00
4
Set the tape feed pitch.
Press the [UP] or [DOWN] button to set the feed pitch that matches the components in the feeder, and
then press the [SET] button to determine the setting.
