1-22
1
Unit names and functions
3
Set the nozzle shaft blow.
1. Select the “Shaft Cleaning Blow” from the Check Item drop-down list.
2. Tick the checkbox of the “Check Execution”.
3. (If the machine has the nozzle station) Select the nozzle for nozzle shaft blow from "All Nozzle" or
“Only Using Nozzle” specified by the board data.
4. Set the “Executive Condition” and the “Cycle Condition”.
5. Press the save icon on the upper left corner of the screen to save the settings.
6. Press the close icon [x] on the upper right corner of the screen to exit the “VmSpec” screen.
Setting automatic nozzle shaft blow
“VmSpec” screen
1. Select the “Shaft Cleaning Blow” from the Check Item drop-down list.
2. Tick the checkbox of the “Check Execution”.
5. Press the save icon.
3. If the machine has the nozzle station, select "All Nozzle" or
“Only Using Nozzle”.
4. Set the “Executive Condition” and “Cycle Condition”.
24107-KMK-00
4
Reload the board data.
The automatic nozzle shaft blow setting is reflected after reloading the board data.
1-23
1
Unit names and functions
n
“Executive Condition” and “Cycle Condition” of nozzle shaft blow
Executive Condition
Executive Condition Operation
None The automatic nozzle shaft blow is not performed.
Power On The nozzle shaft blow is performed after powering on the machine.
Power Off The nozzle shaft blow is performed before powering off the machine.
Reset The nozzle shaft blow is performed at the time of resetting.
Start Run The nozzle shaft blow is performed when starting up the automatic operation.
Lot Start+Auto Running
The nozzle shaft blow is performed at the time of starting up the automatic
operation after loading the board data according to the set cycle condition.
Only Auto Running The nozzle shaft blow is performed according to the set cycle condition.
Cycle Condition
Cycle Condition Operation
None No cycle condition applies.
Minute Unit
The nozzle shaft blow is performed according to the pre-set time interval
(minutes).
Every Day
The nozzle shaft blow is performed at the pre-set time of every day when the
machine is in the automatic operation.
Every Week
The nozzle shaft blow is performed at the pre-set time of the day of the week
when the machine is in the automatic operation.
n
NOTE
Setting the multiple times is available with the “Multi Interval Setting”.
1-24
1
Unit names and functions
3.4.4 Shaft blow dump of very small components
Regarding to disposal of very small components less than 0603 size on this machine, if some components or
dust are recognized at checking after disposing operation, the air-blow station continues the shaft blow dump.
The target components for the shaft blow dump are determined by the following three settings.
1. The machine is equipped with the air-blow station.
2. The function of the shaft blow dump is set "Use" in "Machine Data"-"Mechanical"-"Position" and "Dump
Size" and "Blow Timer" are appropriately set.
3. The size of the component to be disposed of is less than the setting value in 2.
Additionally, to check the disposal, if "B: Bring Back Check" in [Parts]-[Side View] is set with "Use", the side
view camera is used for judgement. If it is set with "Not Use", the vacuum pressure check is used for
judgement.

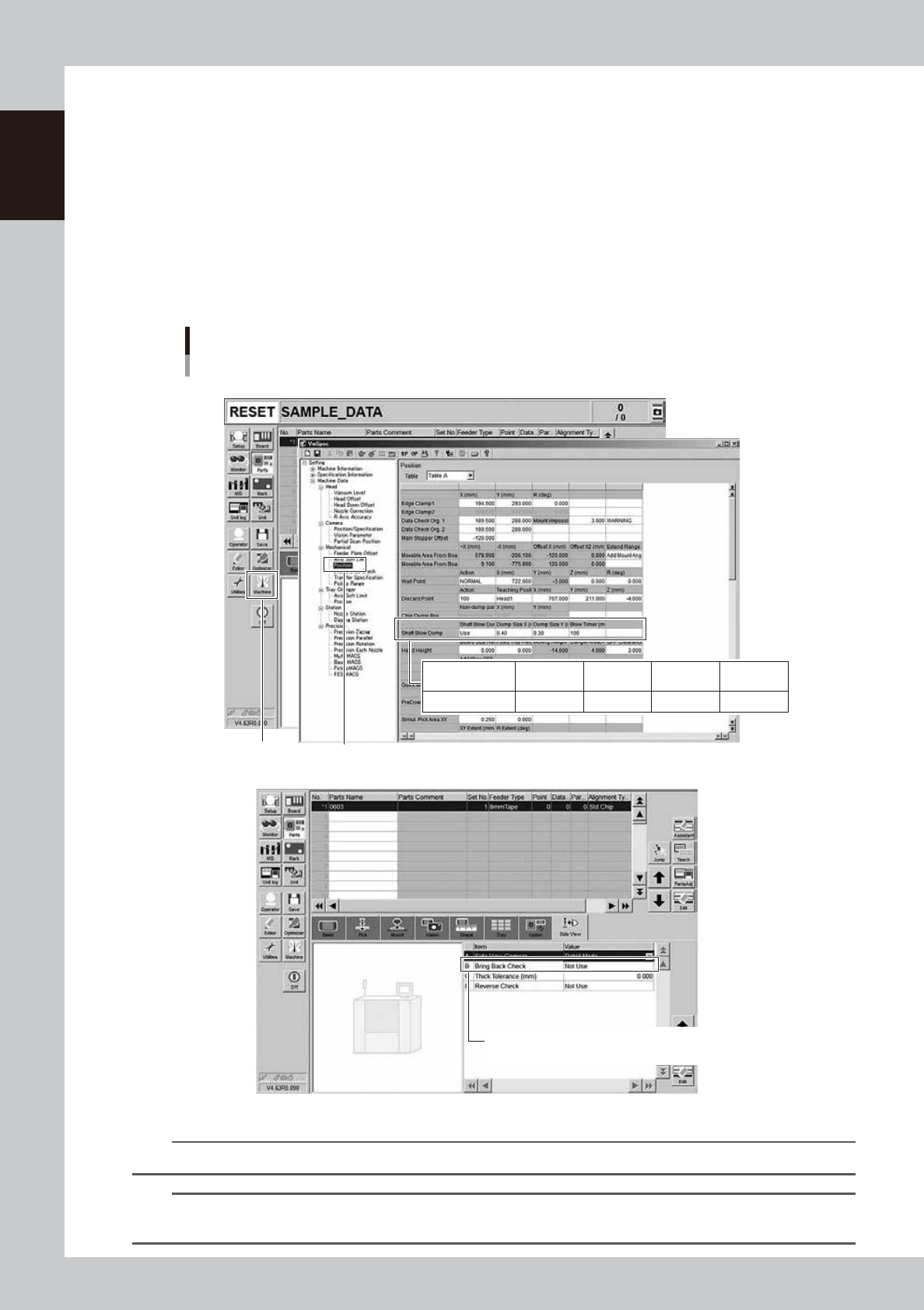

Setting the Shaft Blow Dump
Board data : [Parts] - [Side View]
Setting : “Machine Data” - ”Mechanical” - “Position”
[Machine] button
“Mechanical” - ”Position”
Shaft Blow Dump
Dump Size
X (mm)
0.4
Dump Size
Y (mm)
0.8
Shaft Blow
Dump
Use
Blow Timer
(msec)
100
B Bring Back Check/Use : Judged by the side view camera
Bring Back Check/ Not Use : Judged by the vacuum pressure
24108-KMK-00
n
NOTE
The shaft blow dump doesn't work if "Shaft Blow Dump" is set with "Not Use", "Dump size" is "0" or "Blow timer" is "0".
TIP
The setting in the figure above is the recommended setting that the shaft blow is only applicable for small components
less than size 0603.
