1-54 1 Unit names and functions 5.3 Board position in machine by conveyor type/board size T he board stay position in YSM20R/YSM20WR machine v aries depending on the convey or type and board size. T he following figures …

100%1 / 229
1-53
1
Unit names and functions
n
YSM20WR Single-lane (for transferring heavy board)
A
B
C
D
E
F
Carrying direction
Entrance stopper 2
ENT-CONVEYOR ENTRANCE
WAITING POSITION1
STAGE PCB MOUNT POSITION
STAGE WORK OUT2
EXIT POSITION
Main stopper
Exit stopper
Entrance stopper 1
WAITING POSITION2
YSM20WR conveyor sensor layout
Single-lane for transferring heavy board (Example: Right-to-left flow)
23148-KMK-00
Sensor name Sensor number Remarks
A
ENT-CONVEYOR ENTRANCE
N2302000
Reflective type
B
WAITING POSITION2
N2302001
Thrubeam type
C
WAITING POSITION1
N2302002
Thrubeam type
D
STAGE PCB MOUNT POSITION
N2302003
Thrubeam type
E
STAGE WORK OUT2
N2302005
Thrubeam type
F
EXIT POSITION
N2302006
Thrubeam type
1-54
1
Unit names and functions
5.3 Board position in machine by conveyor type/board size
The board stay position in YSM20R/YSM20WR machine varies depending on the conveyor type and board size.
The following figures describe each position.
n
YSM20R Dual-stage type
L ≤ 810 mm: 1 board can stay in machine
Relation between board size and board position
L ≤ 210 mm: 4 boards can stay in machine
L ≤ 305 mm: 2 boards can stay in machine
L ≤ 380 mm: 2 boards can stay in machine
L ≤ 720 mm: 1 board can stay in machine
L ≤ 210 mm
L ≤ 305 mm
L ≤ 380 mm
L ≤ 810 mm
L ≤ 720 mm
Main stopper 1
Main stopper 2
23140-KMK-10
1-55
1
Unit names and functions
n

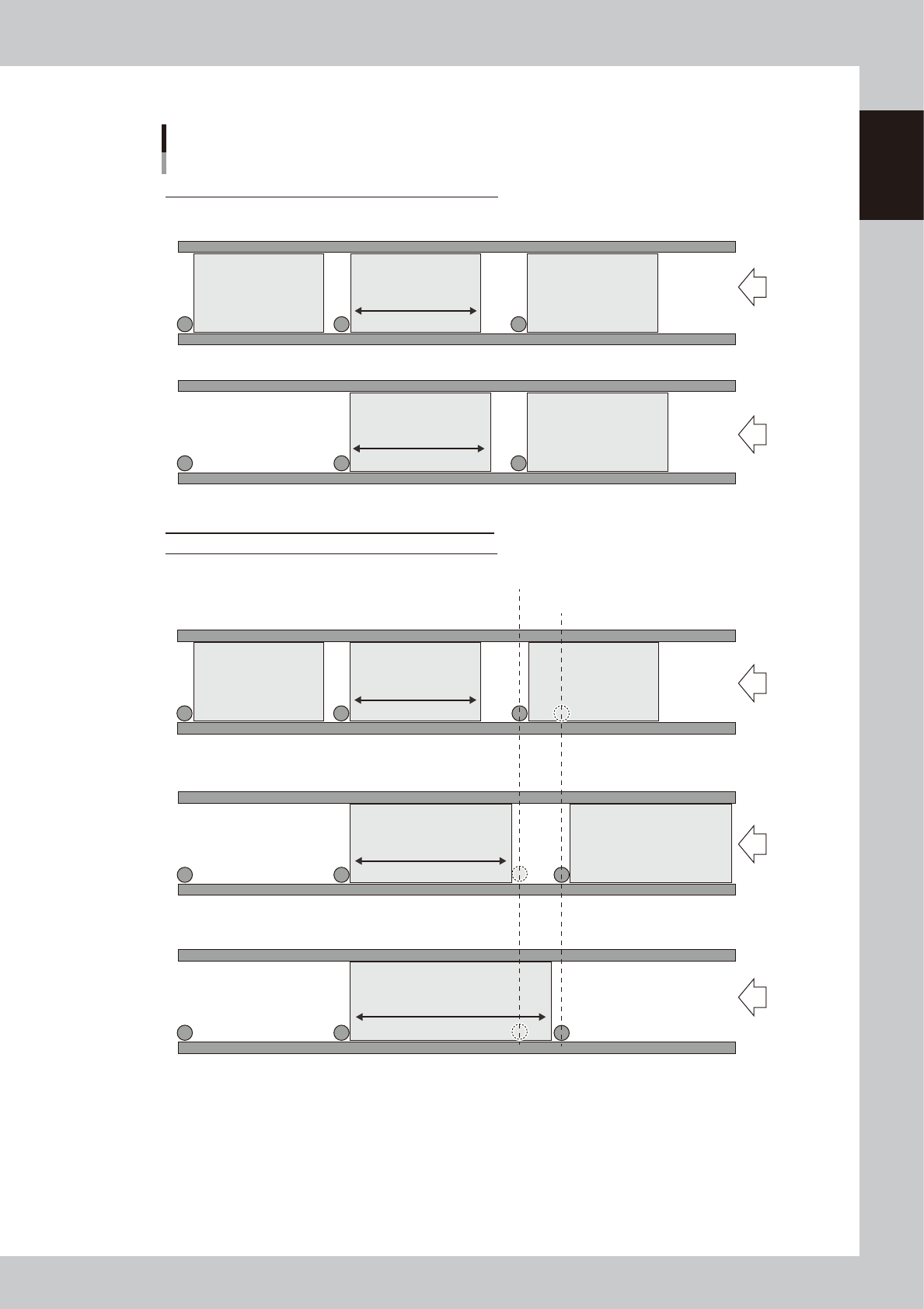

YSM20R/YSM20WR Single-lane type
/ YSM20WR Dual-lane type
Relation between board size and board position
YSM20R Single-lane / YSM20WR Dual-lane L = 510
YSM20WR Single-lane (for transferring heavy board)
L ≤ 330 mm: 3 boards can stay in machine
L ≤ 410 mm: 2 boards can stay in machine
L ≤ 510 mm: 1 board can stay in machine
YSM20R Single-lane / YSM20WR Dual-lane L = 360
L ≤ 360 mm: 2 boards can stay in machine
L ≤ 330 mm: 3 boards can stay in machine
Entrance stopper 2
Entrance stopper 1
L ≤ 360 mm
L ≤ 410 mm
L ≤ 510 mm
L ≤ 330 mm
L ≤ 330 mm
23141-KMK-20
