1.3 Selecting the operator
Assign the operator who operates the machine.
Normally, register the operator names and operation authorities (and passwords, if necessary) in advance and
select the operator from those registered.
At the time of shipping, two operators or operator groups were registered - The “Administrator” (“A group of
administrators)” who have all the complete operation authorities and the “Default operator” (“A group of
default operators”) who have a fewer operation authorities.
TIP
Active menu buttons differ depending on the operation level setup. For example, when the machine is turned on with
the factory setup, the program starts up at an operation level called "Default Operator". This "Default Operator" level is
set to "Level 0" at the time of shipment to allow only basic operation items. This operation level can be changed as
needed. Operators and operation items can also be added and specified by setting the password and operation
level.
For more details, see “A2 Operator access control” in Appendix of the Surface Mounter (SMT) Programming Manual.
1

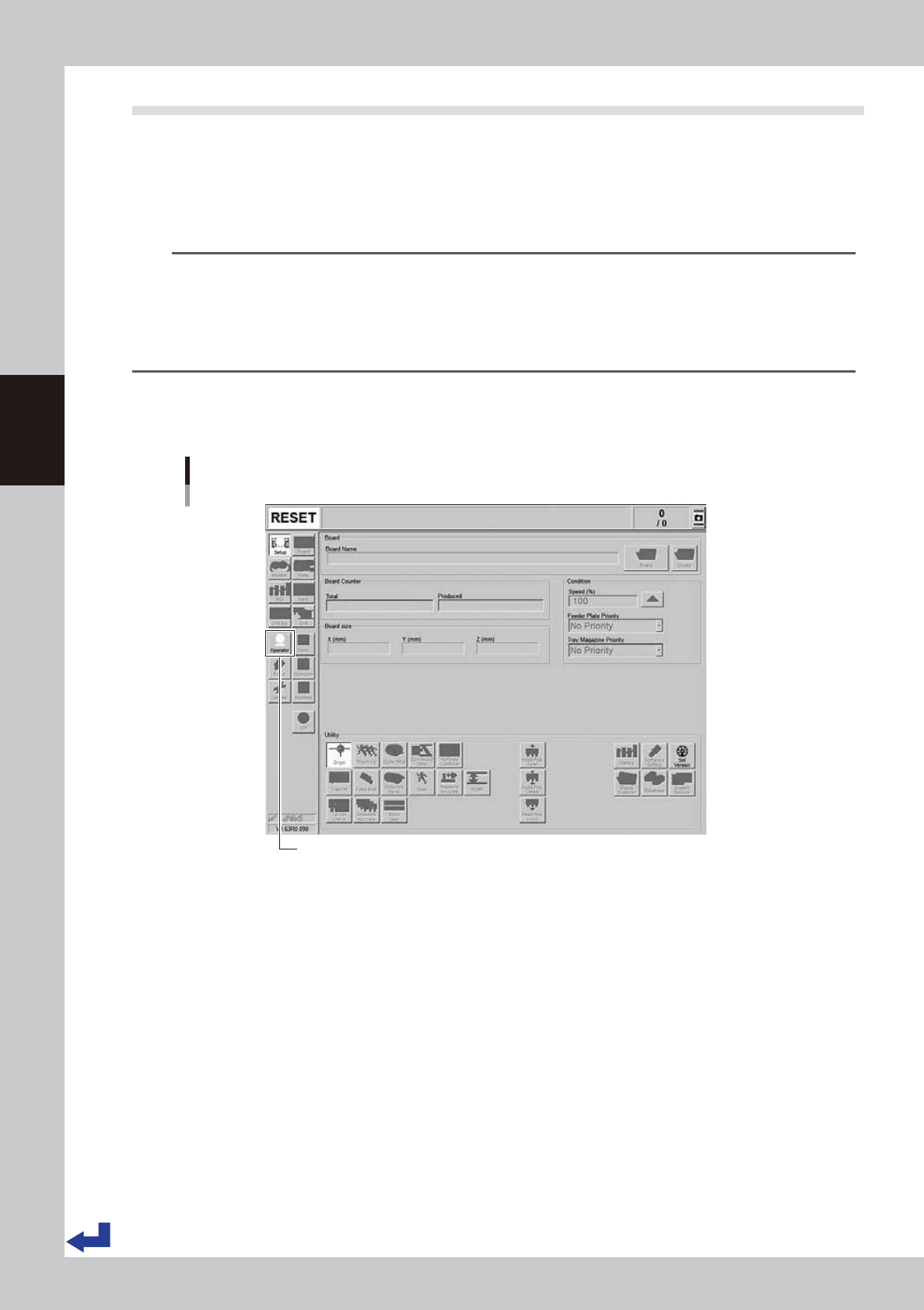

Press the [Operator] button.
The ID WINDOW screen appears for specifying the operator.
[Operator] button
[Operator] button
24302-KMK-00
3-5
3
Flow from starting up machine to production
2
Assign the operator.

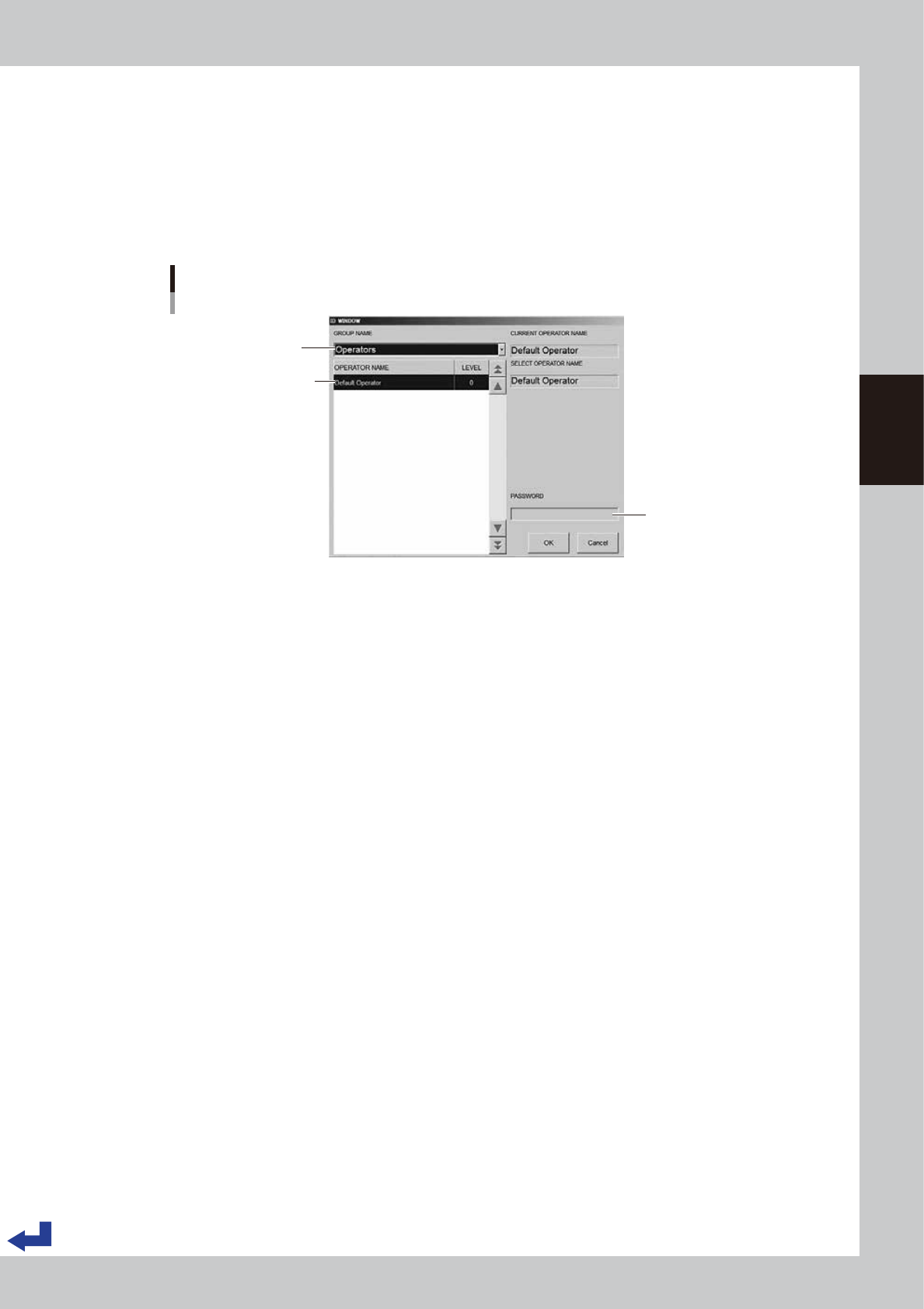

1. Pull down the “Operators” (Group name) on the “ID window” (operator window) and select an
“Administrator” or “Operator”.
2. Select the “Operator”.
3. (If passwords are used) Enter the corresponding password.
4. Press the [OK] button. The initial screen (the setup screen before selecting a board) appears on the
display.
Select group name.
Enter password.
Select operator name.
Specifying the operator
24303-KMK-00
3-6
3
Flow from starting up machine to production
1.4 Warming up the machine
After starting up the machine, we recommend warming it up for about 10 minutes in most cases. If less than
two hours has elapsed after the machine was last used, no warm-up is necessary.
1

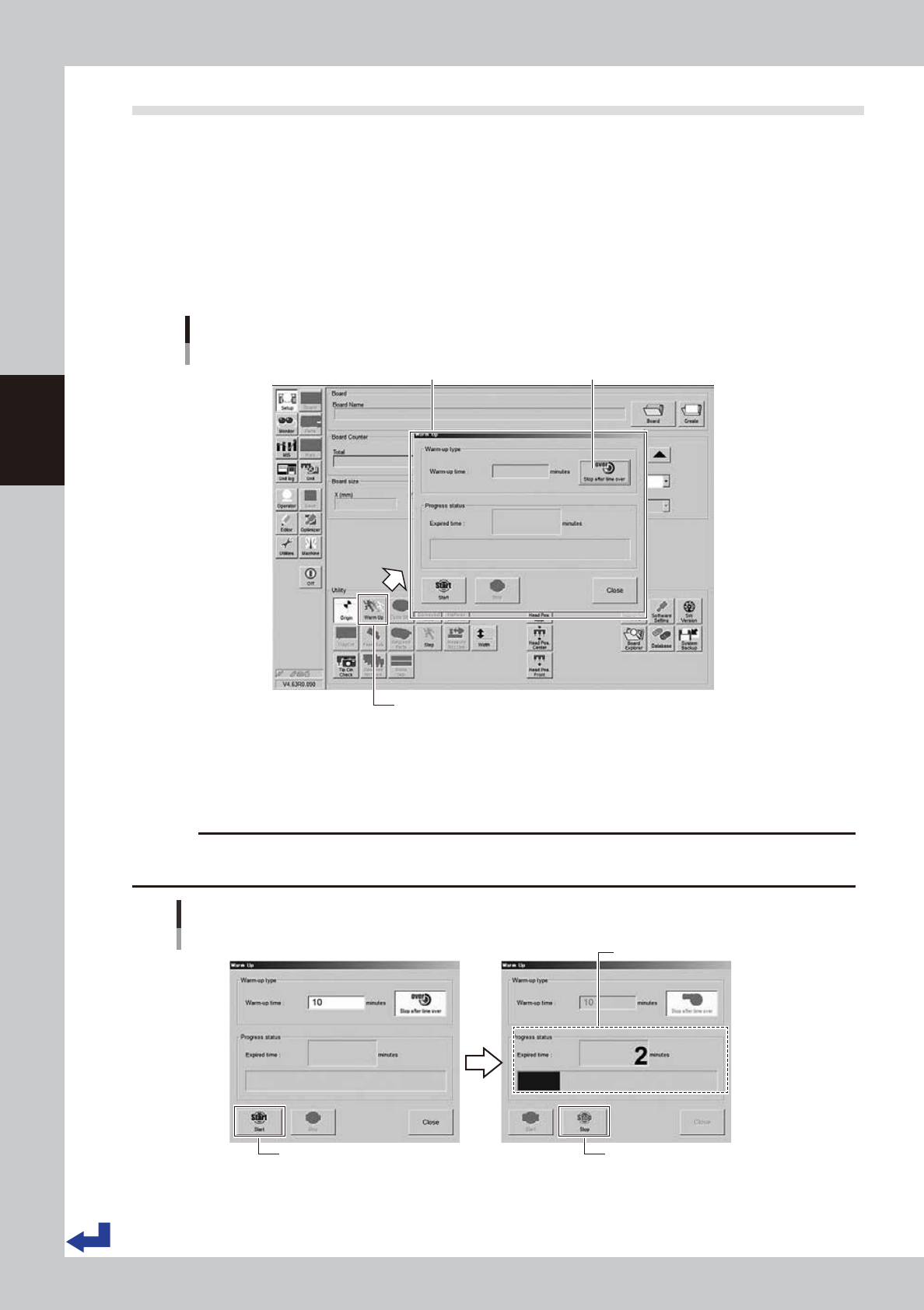

Press the [Warm Up] button on the Setup screen.
The Warm-up screen then appears.
2
Enter a warm-up time.
Press the [Stop after time over] button and enter the warm-up time. Warm-up will automatically stop
when the warm-up time you set has elapsed. Normally, about a 10-minute warm-up is sufficient.
[Warm Up] button
“Warm up” screen
Warm-up time setting
[Setup] screen
Press this button to set warmup time.
24304-KMK-00
3
Start warming up the machine.
Press the [Start] button to start warm-up. The elapsed warm-up progress time and status appear in the
"Progress status" column.
c
CAUTION
If an abnormality occurs during warm-up, press the [Stop] button to stop operation immediately, check the cause of
the problem and eliminate it.
Indicates progress.
[Start] button [Stop] button
Warm-up time setting 2
24305-KMK-00
4
Finish the warm-up.
Warm-up will automatically stop when the warm-up time you set is reached. Press the [Close] button,
and return to the previous screen.
