3.12 Nozzle health check
This screen appears only when the "Nozzle Health Check" on [Machine Information] - [Installation Setting] of
the machine setting is set to "Use".
The nozzle health check is a function that does the tasks individually performed in the previous section "3.11
Schedule task"in a comprehensive, batch manner. The “Nozzle Health Check” screen shows the nozzles in bad
condition.
The nozzle health check goes through a sequence in the order of 1. Vacuum Check
→
2. Nozzle Tip Cleanliness
Check
→
3. Buffing Check
→
4. Shape Check
→
5. Alignment Check. If the nozzle fails any of them (NG), the
machine no longer checks that particular nozzle.

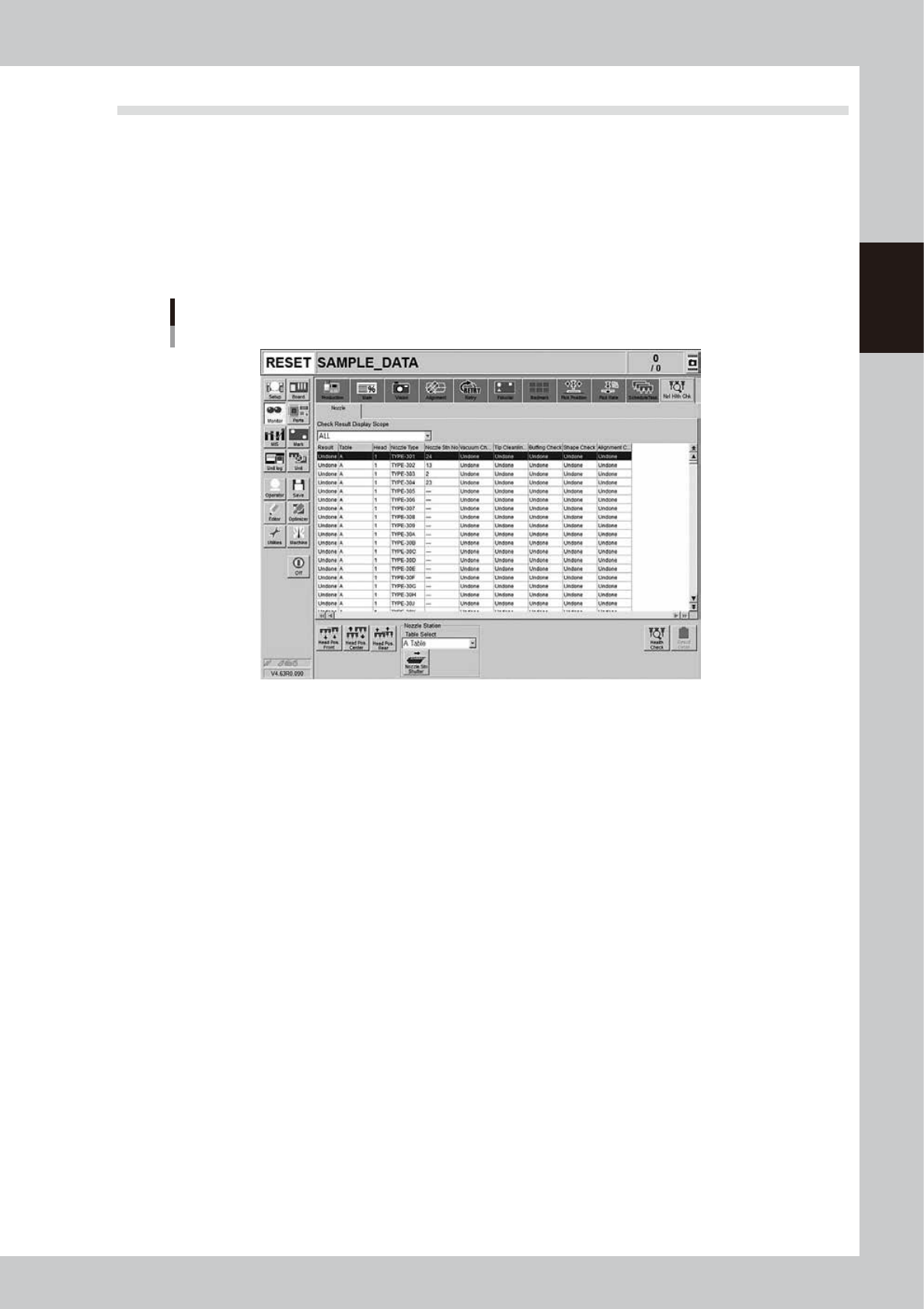

Monitor：Nzl Hlth Chk (Nozzle health check)
24223-KMK-00
• [Health Check] button
Pressing this button calls up the nozzle health check screen. Specify the object table (head unit) and object ranges and
press the [OK] button. The machine goes through the nozzle health check.
The object ranges are “All (all nozzles)”, “Board data (nozzles to be used so designated by the board data)” and “NG (a
nozzle designated to be NG after going through the nozzle health check once)”.
• Check Result Display Scope
This designates the range of nozzle health check results.
Select either “All”, “Board data” or “NG” to have the corresponding results appear on the screen.
• Result
This shows the results of the nozzle health check. If resulting in “NG”, the corresponding row on the screen is displayed
in red.
Note that the result is “NG” if the nozzle fails any one of the check items.
• Table
Select the object table.
• Head
Indicates the head number used.
• Nozzle Type
Indicates the type of nozzle.
• Nozzle Stn No
Indicates the setup position of that particular nozzle on the nozzle station.
• Vacuum Check, Tip Cleanliness Check, Buffing Check, Shape Check, Alignment Check
These indicate the results of the schedule tasks individually.
2-40
2
Basic operation
• [Result Detail] button
Selecting a row with an NG result and pressing the [Result Detail] button shows the details of NG item.
TIP
If the “Save NG images” is enabled on “Setup” screen - “Software Setting” – “Basic” tab –“Nozzle Heath Check” and if
the nozzle failed in the Nozzle Tip Cleanliness Check, Nozzle Shape Check or Nozzle Alignment Check, the image of
that failed nozzle appears.
TIP
If ticking the checkbox of “Don’t start running if Nozzle Health Check NG is detected” on “Setup” screen – “Software
Setting” – “Basic” tab – “Nozzle health check”, an error message appears at the time of starting the operation so as
not to use the “NG” nozzle for the production. If providing this parameter with a check mark, it is necessary to clean or
replace the failed nozzle and once again go through the nozzle health check.

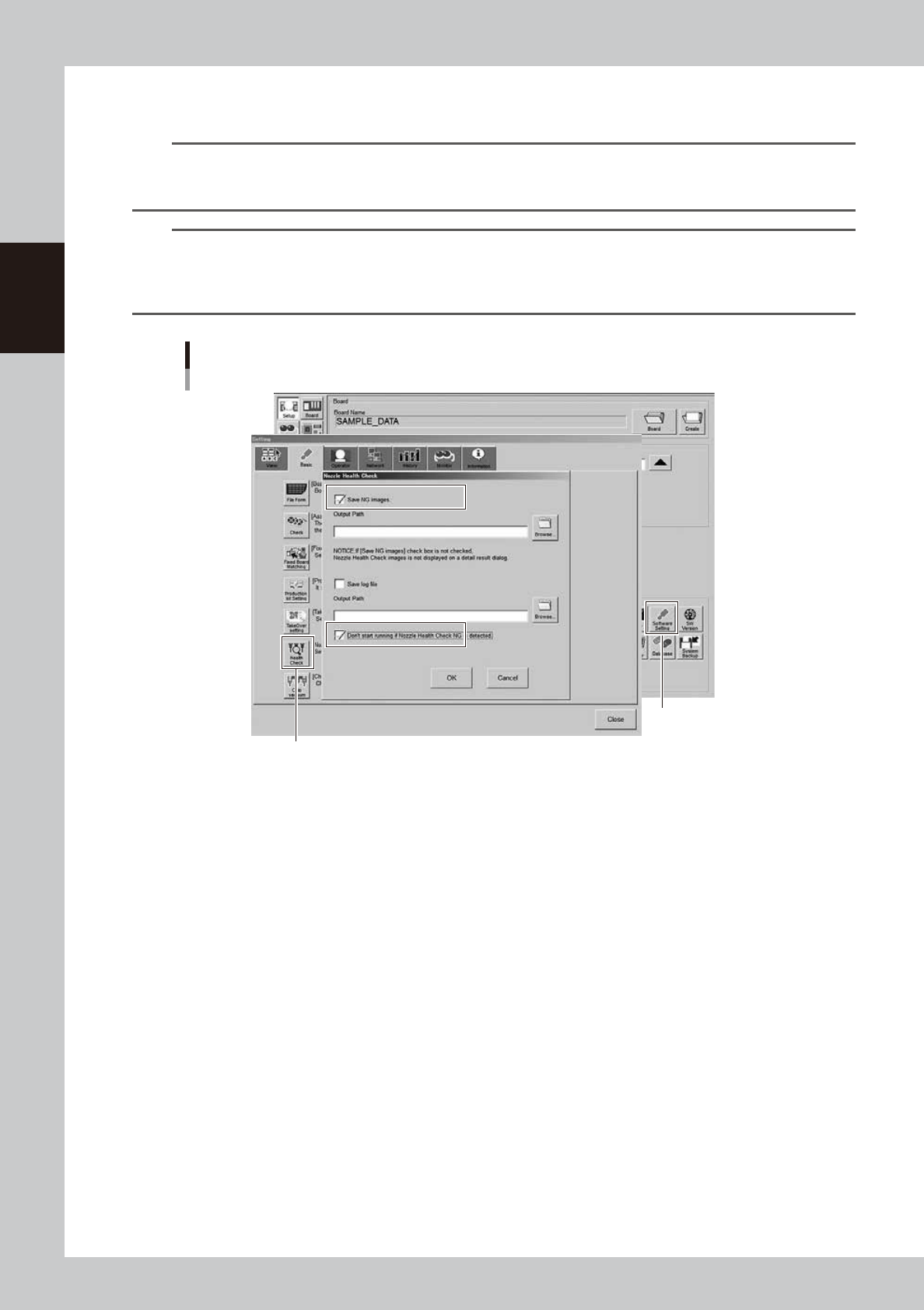

[Health Check] button
[Software Setting] button
“Nozzle Health Check” setup screen
24224-KMK-00
2-41
2
Basic operation
3.13 Coplanarity checker
This screen is displayed when the machine is equipped with a coplanarity checker (option). This screen shows
the results at real-time when using the coplanarity check or component recognition surface height check.

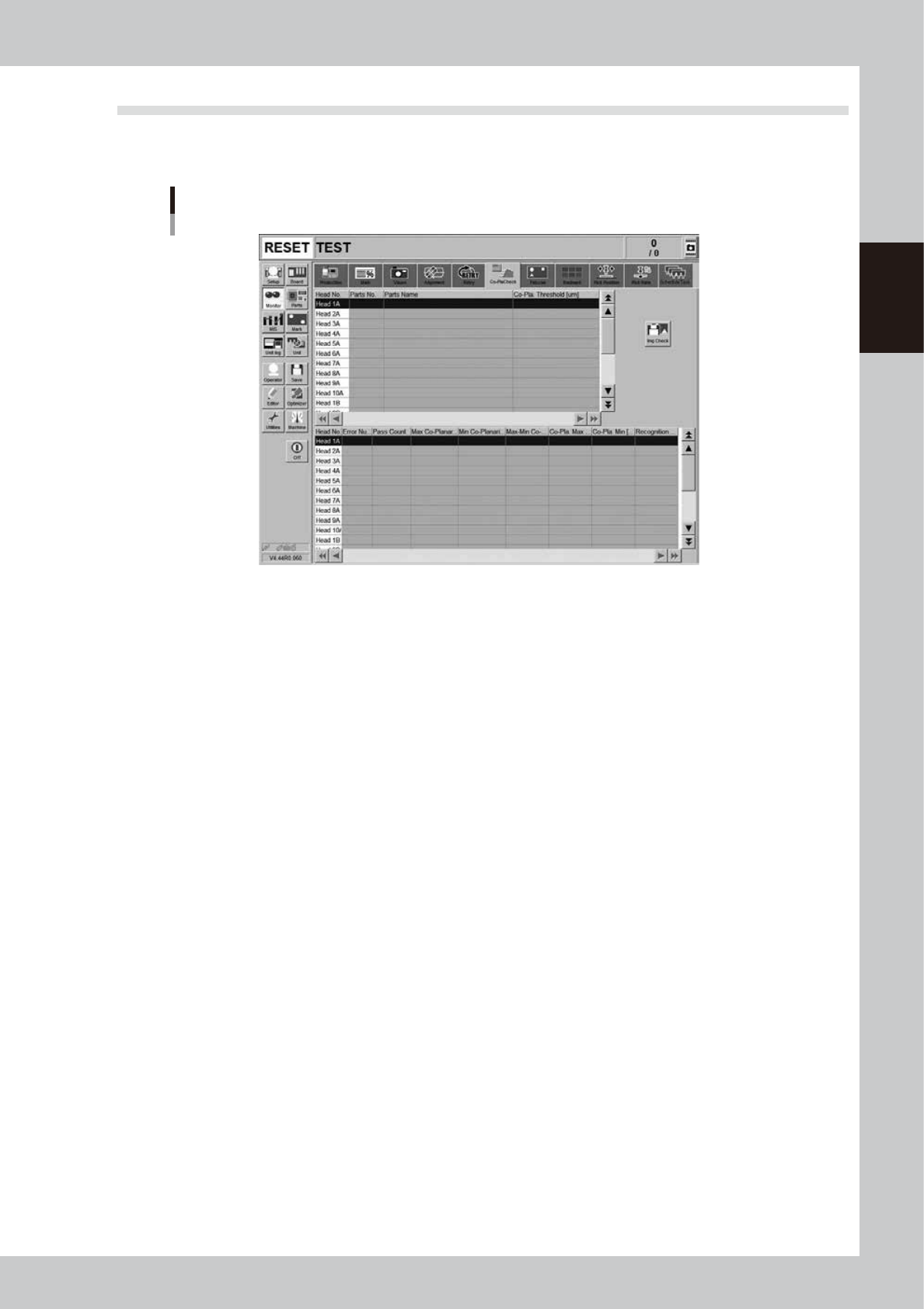

Monitor: Co-PlaCheck (Coplanarity Check)
24234-KMK-00
• Head No.
Displays the head number currently being used.
• Parts No.
Displays the part number currently being used.
• Parts Name
Displays the part name currently being used.
• Co-pla. Threshold [μm]
Displays the coplanarity tolerance that was set in parts information.
• Error Number
Displays coplanarity error numbers.
• Pass Count
Displays the number of images that were captured during coplanarity check.
• Max. Co-planarity Pos.
Displays the lead number that was measured as the maximum coplanarity value.
• Min. Co-planarity Pos.
Displays the lead number that was measured as the minimum coplanarity value.
• Max-Min Co-planarity [μm]
Displays the coplanarity measurement result.
• Co-planarity Max. [μm]
Displays the maximum coplanarity value.
• Co-planarity Min. [μm]
Displays the minimum coplanarity value.
• Recognition Height
Displays the recognition height (height to underside of components).
