Appendix Appendix Contents A1. Specifications A-1
3-36
3
Flow from starting up machine to production
3
Start mounting operation.
1. Press the [START] button on the operation panel.
2. (Only for the first time after setting block skip) The block skip confirmation message appears. Check
the descriptions and press the [OK] button.
3. Press the [START] button on the operation panel once again to start up the automatic operation.

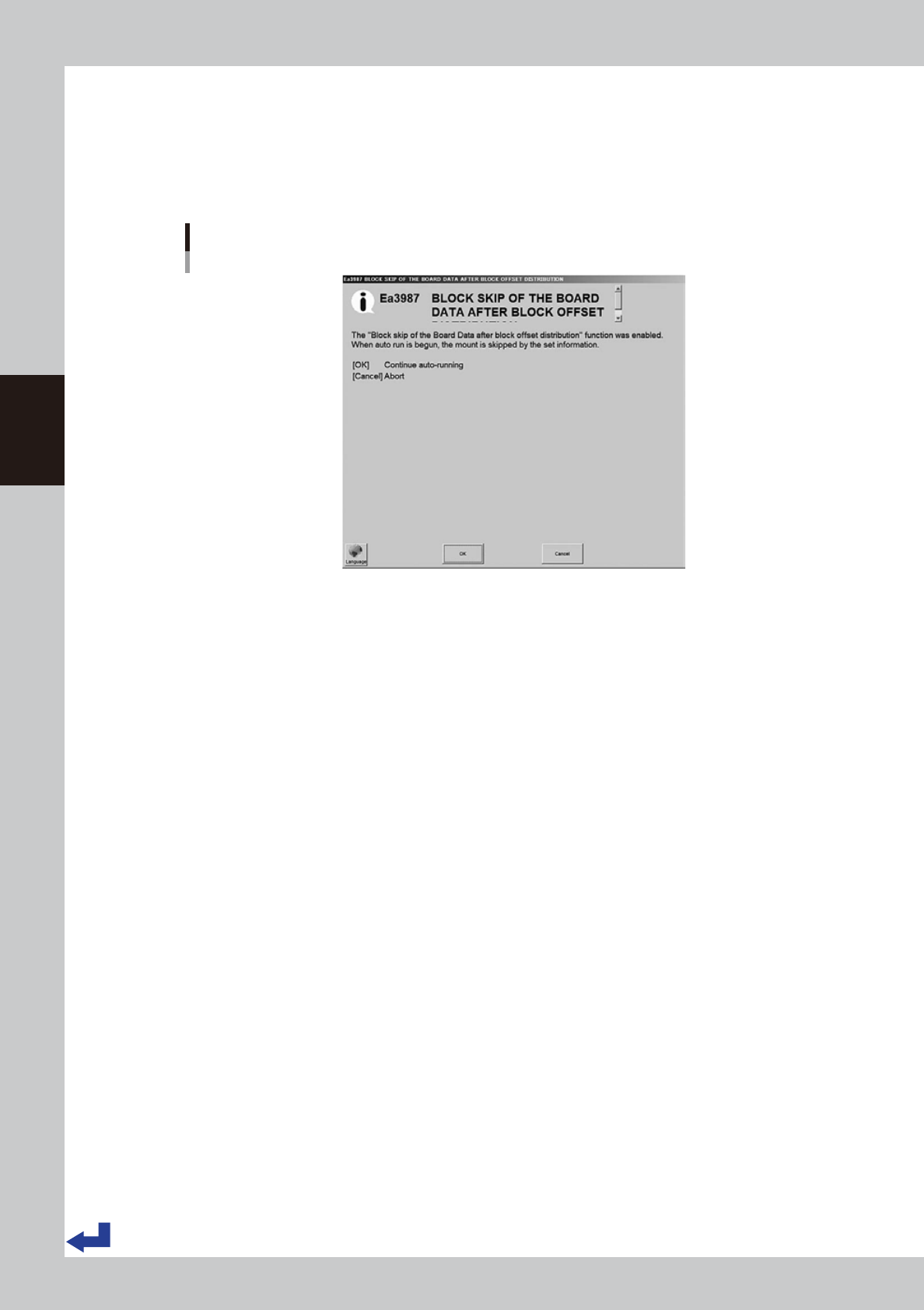

Block skip confirmation message
24328-KMK-00
A-1
Appendix
A1. Specifications
n
YSM20R/YSM20WR specifications
Item Specifications
Operating ambient temperature
Function guaranteed: 15 to 35°C
Accuracy guaranteed: 20 to 28°C
Operating ambient humidity 20 to 80% (no condensation), optimal range: 50 to 60%
Noise level Under 78dB
Power requirement (voltage and frequency) 3-phase AC 200/208/220/240/380/400/416 V +/- 10%, 50/60 Hz
Power capacity 10.4kVA
Average power consumption
YSM20R
TypePV: 1.9kW
TypeSV: 1.8kW
YSM20WR 1.9kW
Power cable (conductor cross-section area) 6 mm
2
or more
Overvoltage category *
1
Category III
Pollution degree *
1
Degree 2
Supply air pressure *
2
0.45MPa or more
Air consumption (ANR) *
6
YSM20R
HM head (1-beam) : 130L/min (average); 290L/min (max.)
HM head (2-beam) : 240L/min (average); 340L/min (max.)
FM head (1-beam) : 80L/min (average); 280L/min (max.)
FM head (2-beam) : 140L/min (average); 320L/min (max.)
YSM20WR
HM head (2-beam) : 240L/min (average); 340L/min (max.)
FM head (2-beam) : 140L/min (average); 320L/min (max.)
Altitude 1000 m or less above sea level
Board transport height *
3
900 mm +/- 10 mm
Data
Number of mounting
points *
4
12,800 points
Number of component
types
255 types per board
Number of fiducial
marks *
5
128 sets per board
*1: Conforms to IEC60664-1.
*2: For air dryer. Cleaning air filters. To be dry. Set pressure to 0.40 MPa.
*3: Distance from the floor surface to the upper surface of conveyor belt.
*4: Decreases with the number of boards, blocks and fiducial marks.
*5: When using 2-point fiducial mode.
*6: If the machine is equipped with tray component supply unit (option), add the air consumption of 10 L/min (ANR)
for each.
If the machine is equipped with an ionizer (option), add the air consumption of 10 L/min (ANR) per ionizer.
n
NOTE
See specification sheets for more detailed information not listed above.
