2-64 2 Basic operation n Disposing of used carrier tape T he used cut-up pieces of carrier tape are collected in the empty tape dust box as the production goes on. Dispose of the carrier tape from time to time. Disposing…
2-63
2
Basic operation
2

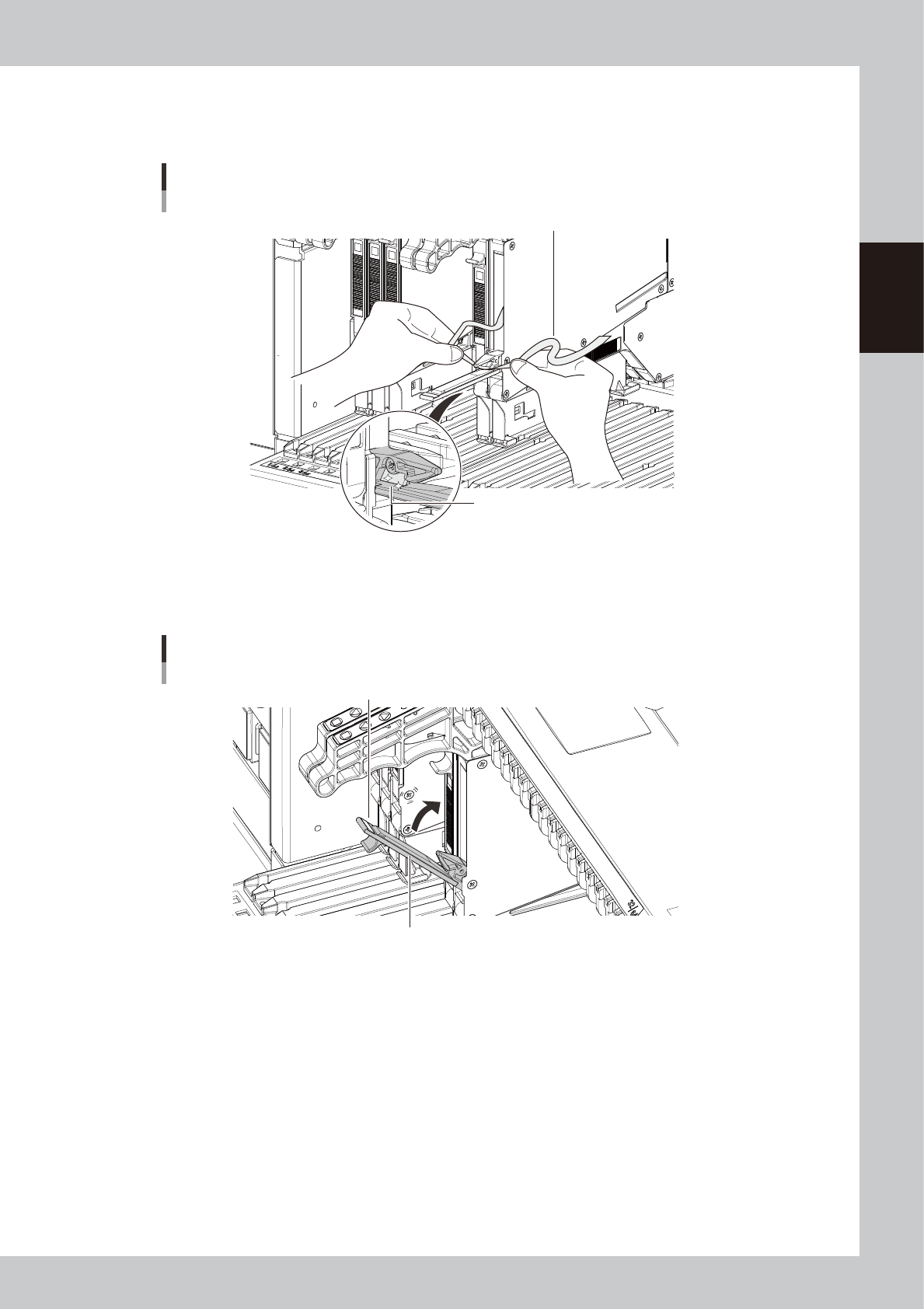

Cut the used cover tape.
If the cover tape still remains, use the edge cutter installed behind the tail cover to cut off the used
cover tape.
Cutting the used cover tape
Cover tape to be cut
Edge cutter
23227-KMK-00
3
Close the tail cover.
Note that the tail cover has a magnet.
Closing the tail cover
Tail cover
Magnet
23228-KMK-00
2-64
2
Basic operation
n
Disposing of used carrier tape
The used cut-up pieces of carrier tape are collected in the empty tape dust box as the production goes on.
Dispose of the carrier tape from time to time.
Disposing of the carrier tape
Cut-off carrier tape
Empty tape dust box
23229-KMK-00
2-65
2
Basic operation
4.1.6 Detaching the feeder exchange carriage
e
1
Press the emergency stop button.
Stop the mounter if in operation and then press the emergency stop button on the mounter.
2
(If SS feeder exchange carriage) Open the safety cover of the machine.
3
Turn the clamp switch to the right (OFF).
The clamp switch indicator flashes, the carriage clamp on the mounter moves up, and the feeder plate
is released. When released, the clamp switch will go off.
Clamp switch
Clamp switch
23230-KMK-00
4
Check that the clamp switch lamp is off.
5
Detach the feeder exchange carriage from the mounter.
Slowly pull back on the handles to separate the feeder exchange carriage from the mounter.
w
WARNING
DO NOT TOUCH THE MOUNTER BODY AND FEEDER EXCHANGE CARRIAGE WHILE THE CLAMP SWITCH LAMP IS FLASHING.
FINGERS MIGHT BE CAUGHT BY RISING FEEDER PLATE, AND PINCHED AND CRUSHED.
