3-30
3
Flow from starting up machine to production
1.12 Powering off the machine
This section describes how to power off the machine after finishing the production.
1
Bring the machine back to the state of ready for production.
If the emergency stop button has been pressed, reset the emergency stop and press the [READY]
button on the operation panel.
TIP
Cancel the emergency stop to perform the return-to-origin before powering off the machine. If powering off the
machine without performing return-to-origin, the machine can be in the state of emergency stop.
2
Press the [Off] button.
Press the [Off] button in the left button area of the screen.
3
Confirm that the machine is powered off.
Press the [Yes] button on the “SHUT DOWN” screen.
Powering off machine
“ SHUT DOWN” screen
[OFF] button
“ SHUT DOWN” screen
24322-KMK-00
4
Move the machine to the origin position.
When the move-to-origin screen appears, press [OK].
5
When the Shut Down screen appears, press [OK].
n
NOTE
If the feeder exchange carriage is equipped, Unclamp carriage screen appears.
Check and press [OK] or [Cancel].
3-31
3
Flow from starting up machine to production
e
6
Press the emergency stop button.
When the emergency stop screen appears, press the emergency stop button and then press the [OK]
button.
7
Turn off the main switch of the machine.
When completing the power shutdown process, a message “It is now safe to turn off your computer.”
appears on the screen. When confirming the message, turn the main switch to the left at the lower right
of the main machine to shut it down.
c
CAUTION
• Do not turn off the main switch unnecessarily while ignoring the set procedure. Otherwise, destruction of data or
damage to devices could occur.
• Do not turn on the main switch immediately after turning it off. Otherwise, such an operation could lead to damage
to the control board. Be sure to wait for 2 seconds or so after powering off the machine before turning it on again.
3-32
3
Flow from starting up machine to production
1.13 Resuming operation from the stopped point
If resuming to mount a board that has been reset due to an error occurrence in the middle of production or
mounting the components on a particular block or at a particular mounting point, use this “Halfway Continue
(Resuming operation from the stopped point)” function. Note that this function can be used just for the first
board after the operation is resumed, with routine mounting operation beginning from the next board.
1
Press the [Halfway Continue] button.
Pressing the [Halfway Continue] button on the “Setup” screen calls up the “Save abort information”
screen.
2
Read out the aborted information that has been saved.
After confirming the “Save Date/Time” and other details on the “Save abort information” screen, press
the [OK] button to open the “CONFIRMATION OF BOARD FIX” screen and then open the “Halfway
Continue” screen.
n
NOTE
• When system error occurred and machine stopped due to power outage, the error message "Check the inside of
machine" may appear n addition to “CONFIRMATION OF BOARD FIX” screen. In this case, follow the message and
check machine inside.
• When boards are being produced using both lanes of YSM20WR dual-lane, select the lane from the "Lane Select"
drop-down list in the "Halfway Continue" dialog box, and then resume operation.

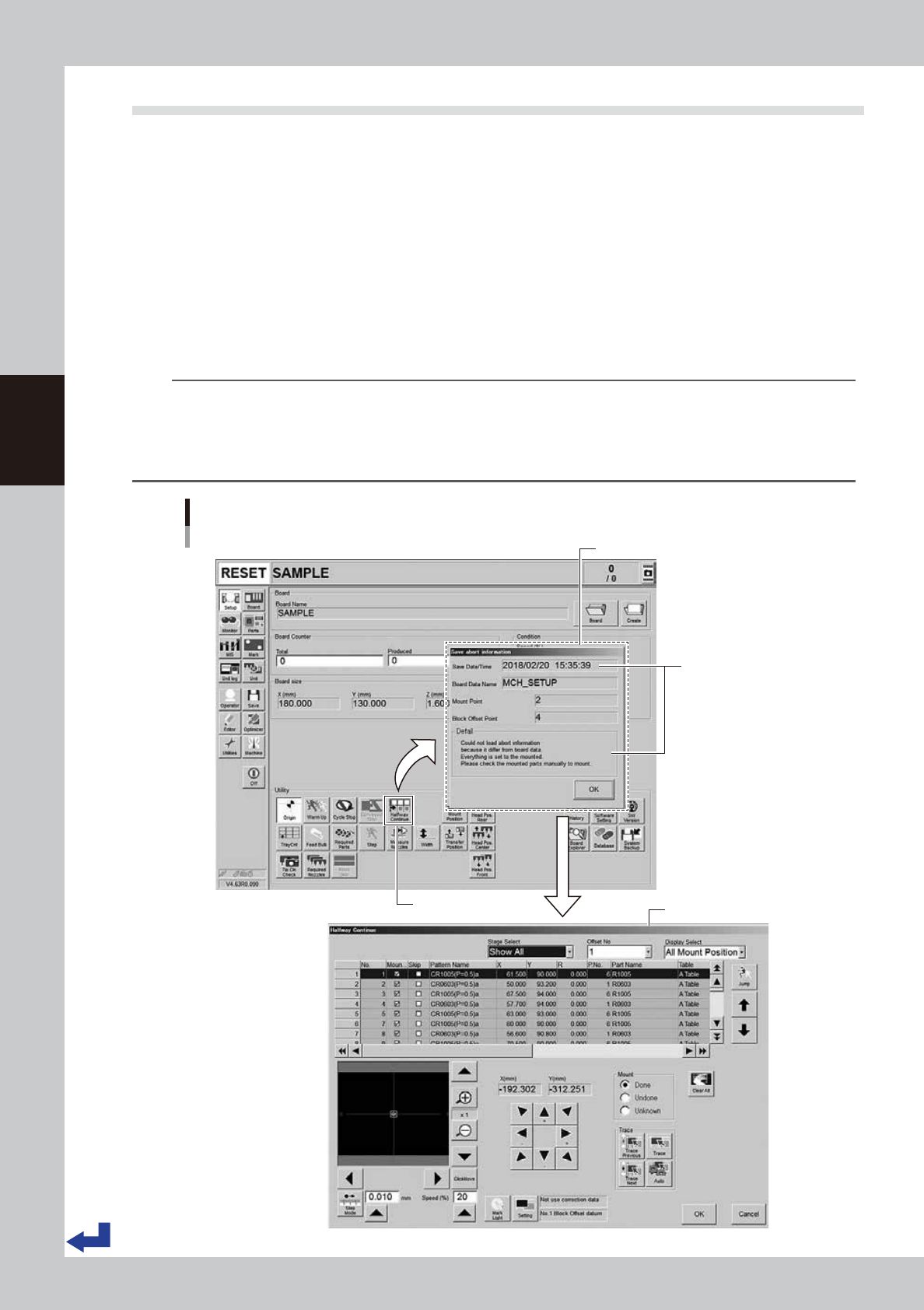

Halfway Continue
[Setup] screen -"Halfway Continue" screen
“Save abort information” screen
Check the aborted time
and details.
[Halfway Continue] button
“Halfway Continue” screen
24323-KMK-00
