1-16 1 Unit names and functions 3.4 Blow station 3.4.1 Shaft-blow function T he air -blow station provides a high-pressure air blo wing cleaning function to blow foreign matter from the nozzles and inside the shafts. Fi …
1-15
1
Unit names and functions
3.3.2 FM Head nozzle station
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20 21
22 23 24 25 26 32
33 34 35 36 37 38 39 40 41 42
47 48
49 50 51 52 53
54 55 56 57
27 28 29 30 31
43
44 45 46
FM head
: Special order area
23114-KMK-00
No.
Head No.
Standard
Narrow-
pitch
No.
Head No.
Standard
Narrow-
pitch
No.
Head No.
Standard
Narrow-
pitch
1-beam 2-beam 1-beam 2-beam 1-beam 2-beam
1 - -
Custom
nozzle
Custom
nozzle
22 - -
Custom
nozzle
Custom
nozzle
43 1 5
Custom
nozzle
311A
2 5 1 303A 314A 23 5 1 304A 315A 44 5 1
307A 318A
3 - -
Custom
nozzle
Custom
nozzle
24 5 1 301A 312A 45 4 2
4 4 2 303A 314A 25 4 2 304A 315A 46 3 3
5 - -
Custom
nozzle
Custom
nozzle
26 4 2 301A 312A 47 2 4
6 3 3 303A 314A 27 3 3 304A 315A 48 1 5
7 - -
Custom
nozzle
Custom
nozzle
28 3 3 301A 312A 49 - -
Custom
nozzle
(13.5 mm)
Custom
nozzle
(13.5 mm)
8 2 4 303A 314A 29 2 4 304A 315A 50 - -
9 - -
Custom
nozzle
Custom
nozzle
30 2 4 301A 312A 51 - -
10 1 5 303A 314A 31 1 5 304A 315A 52 - -
11 - -
Custom
nozzle
Custom
nozzle
32 1 5 301A 312A 53 - -
12 - -
Custom
nozzle
Custom
nozzle
33 - -
Custom
nozzle
Custom
nozzle
54 - -
Custom
nozzle
(25 mm)
Custom
nozzle
(25 mm)
13 5 1 302A 313A 34 5 1 3010A 3110A 55 - -
14 - -
Custom
nozzle
Custom
nozzle
35 5 1
Custom
nozzle
311A 56 - -
15 4 2 302A 313A 36 4 2 3010A 3110A 57 - -
16 - -
Custom
nozzle
Custom
nozzle
37 4 2
Custom
nozzle
311A
17 3 3 302A 313A 38 3 3 3010A 3110A
18 - -
Custom
nozzle
Custom
nozzle
39 3 3
Custom
nozzle
311A
19 2 4 302A 313A 40 2 4 3010A 3110A
20 - -
Custom
nozzle
Custom
nozzle
41 2 4
Custom
nozzle
311A
21 1 5 302A 313A 42 1 5 3010A 3110A
n
NOTE
Set a desired number for the head number of the special order nozzle.
1-16
1
Unit names and functions
3.4 Blow station
3.4.1 Shaft-blow function
The air-blow station provides a high-pressure air blowing cleaning function to blow foreign matter from the
nozzles and inside the shafts.
Five holes shown in the figure below are used to blow the heads separated in groups. Refer to "3.4.2 Manual
nozzle shaft blow procedure".
Here, components are normally disposed into the dump box. But regarding to the disposal of very small
components less than 0603 size, if some components or dust are recognized at checking after disposal
operation, the air-blow station continues shaft blow dump.
Refer to the section "3.4.4 Shaft blow dump of very small components".
Air-blow station and dump box
12mm
Dump box
confirmation sensor
Dump box
Exhaust box
Shaft blow
Side blow
Air-blow station nozzle
confirmation sensor
Air-blow station filter
23115-KMK-00
• Air-blow station nozzle confirmation sensor
Checks for the left nozzles when the nozzle shaft-blow.
• Dump box confirmation sensor
Checks the dump box presence and floating status.
• Side blow
Cleans the nozzle ends by air-blow from side when the nozzle shaft-blow is performed.
• Air-blow station filter
The filter for the side-blow line in the air-blow station
• Exhaust box
Stores dust and small chips disposed by the nozzle shaft-blow.
1-17
1
Unit names and functions

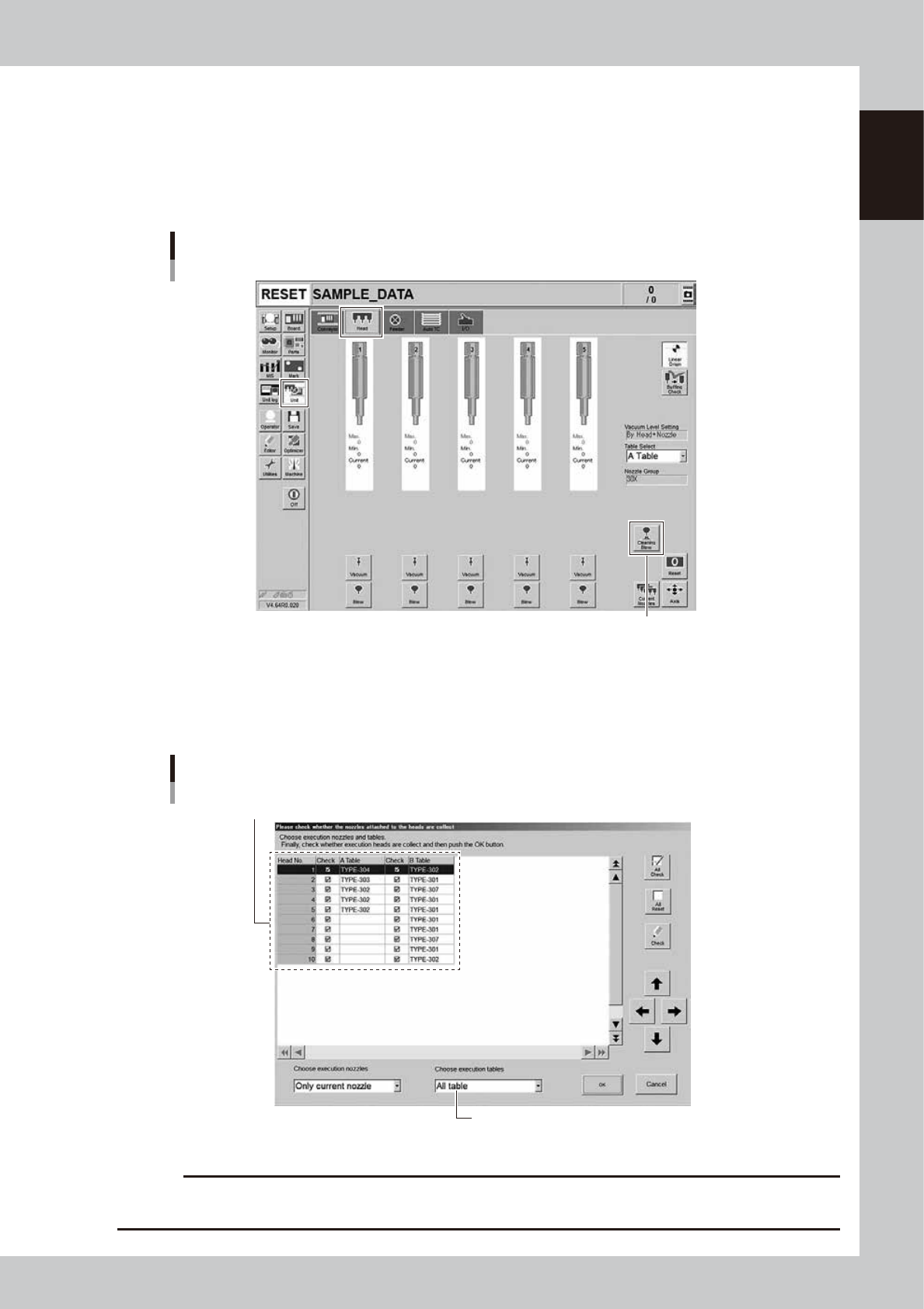

3.4.2 Manual nozzle shaft blow procedure
This section explains how to manually perform a nozzle shaft blow at any desired timing.
1
Open the [Unit] – [Head] screen.
2
Press the [Cleaning Blow] button.
Nozzle shaft blow
[Cleaning Blow] button
24100-KMK-00
3
Specify the nozzles you want to clean by nozzle shaft blow.
The "Nozzle Setting" screen will appear. Select the table where the nozzle shaft cleaning blow is per-
formed, put a check mark on the nozzles, and then press the [OK] button.
Nozzle Setting screen
Select the check boxes for the nozzles you want to clean by nozzle shaft blow.
Select the table.
24101-KMK-00
c
CAUTION
When the nozzle is not subject to the nozzle shaft blow, the nozzle may collide with the air-blow station, causing
breakage. Before starting the nozzle shaft blow, be sure to check that the set nozzles meet the installed nozzles.
