3-6
3
Flow from starting up machine to production
1.4 Warming up the machine
After starting up the machine, we recommend warming it up for about 10 minutes in most cases. If less than
two hours has elapsed after the machine was last used, no warm-up is necessary.
1
Press the [Warm Up] button on the Setup screen.
The Warm-up screen then appears.
2
Enter a warm-up time.
Press the [Stop after time over] button and enter the warm-up time. Warm-up will automatically stop
when the warm-up time you set has elapsed. Normally, about a 10-minute warm-up is sufficient.
[Warm Up] button
“Warm up” screen
Warm-up time setting
[Setup] screen
Press this button to set warmup time.
24304-KMK-00
3
Start warming up the machine.
Press the [Start] button to start warm-up. The elapsed warm-up progress time and status appear in the
"Progress status" column.
c
CAUTION
If an abnormality occurs during warm-up, press the [Stop] button to stop operation immediately, check the cause of
the problem and eliminate it.
Indicates progress.
[Start] button [Stop] button
Warm-up time setting 2
24305-KMK-00
4
Finish the warm-up.
Warm-up will automatically stop when the warm-up time you set is reached. Press the [Close] button,
and return to the previous screen.
3-7
3
Flow from starting up machine to production

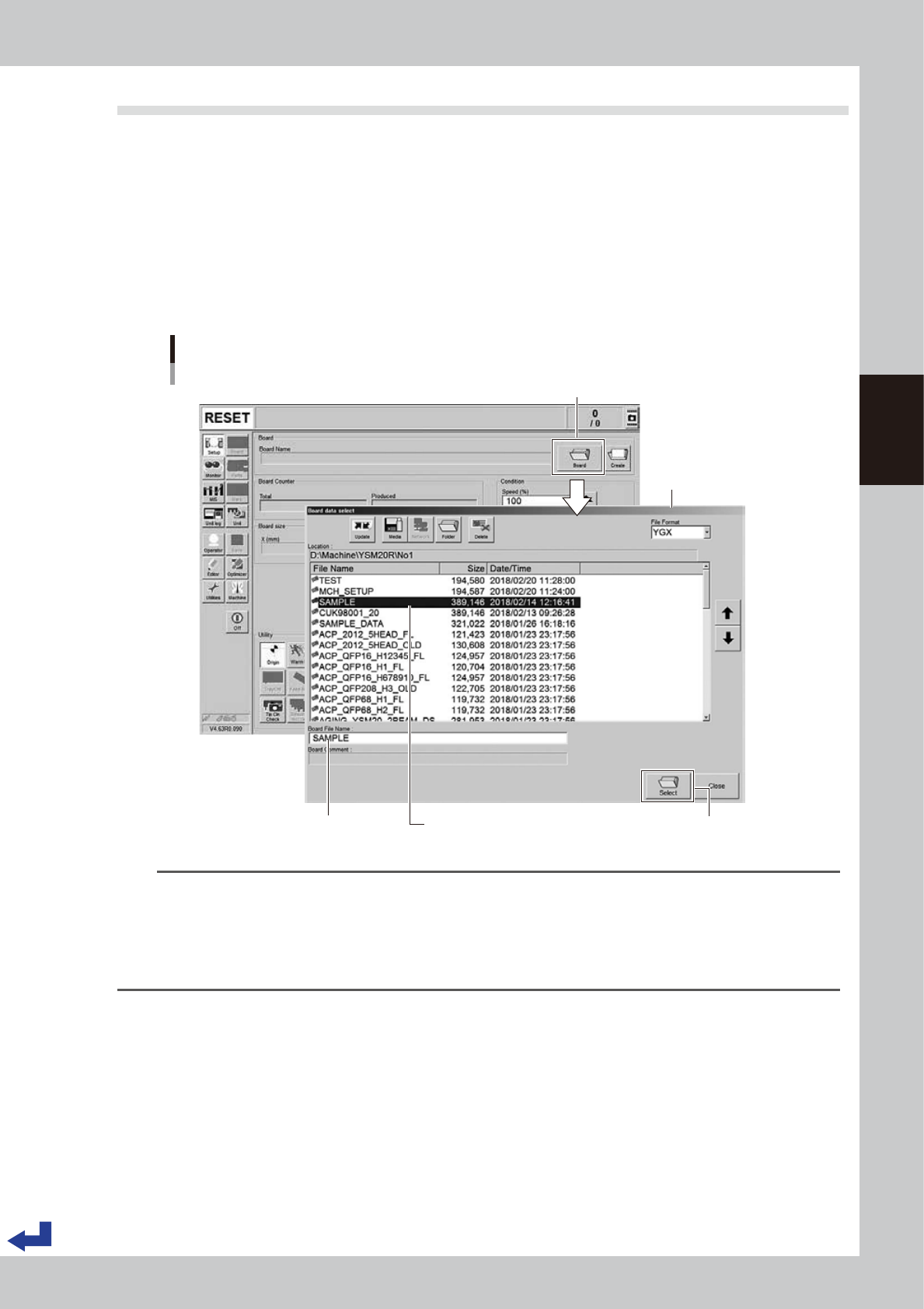

1.5 Selecting the board data
Select the board data used for production from those registered.
1
Call up the “Board Data Select” screen.
Press the [Board] button on the “Setup” screen to call up the “Board Data Select” screen.
YSM20WR Dual-lane: Press the [Lane switch] button to select the lane to be used for production.
(When using both lanes for production, press the [Lane Combine] button.)
2
Select the board data.
Select the board data used for the production from the list on the “Board Data Select” screen. Press the
[Select] button. The machine reads out the selected board data.
“Board data select” screen
[Select] button
Selecting the board data
[Setup] screen
Selected board name is displayed. Selected board name is displayed.
Press [Board] button.
24306-KMK-00
TIP
When using YSM20WR Dual-lane:
• Pressing the [Lane Combine] button displays the combined board data.
The combined board data is a board file that combined 2 board data. The combined board data is displayed in
orange.
• When selecting the combined board data, the board file name and board data name to be produced on the
selected lane are displayed on the free area of the "Setup" screen.
3-8
3
Flow from starting up machine to production

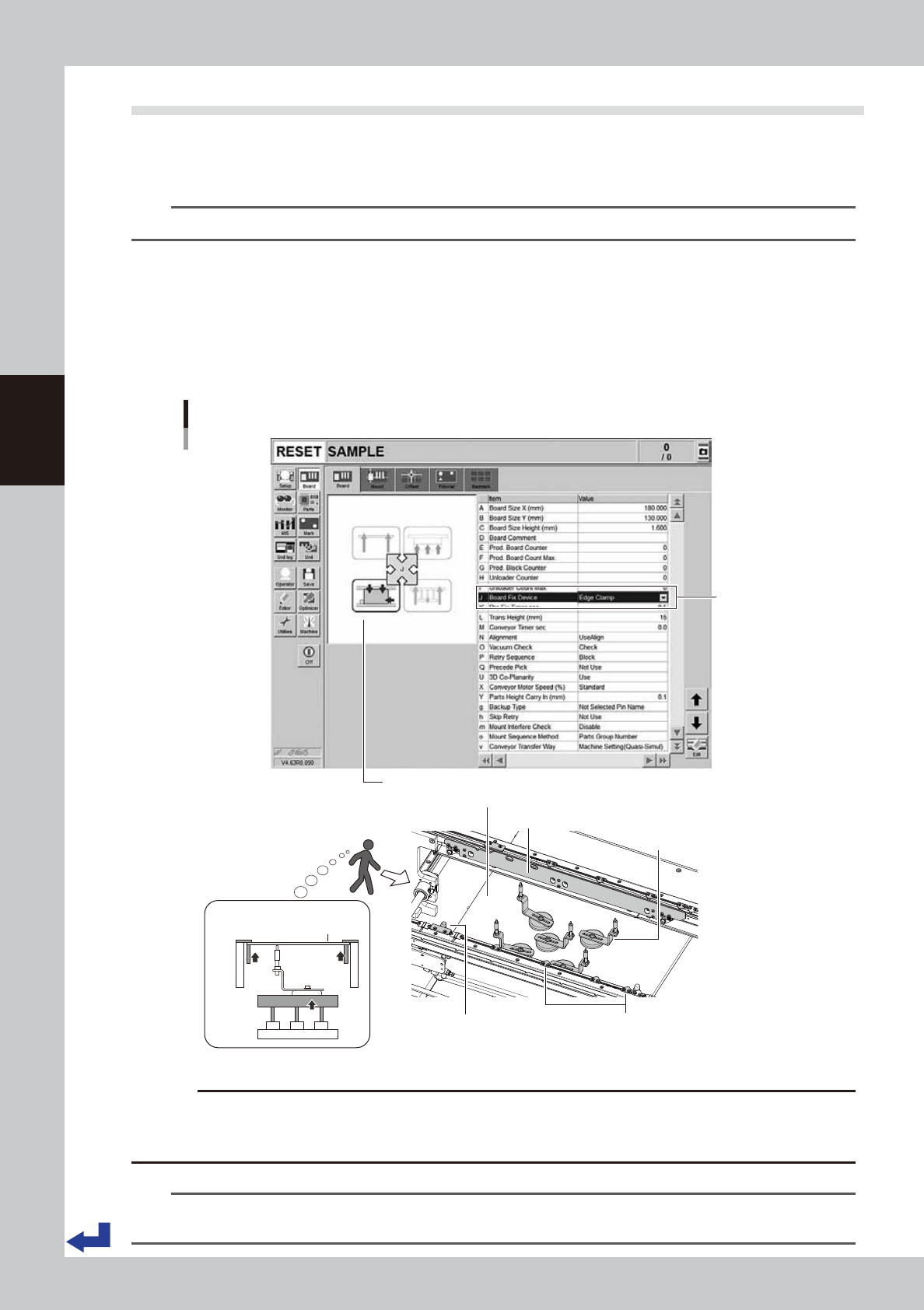

1.6 Conveyor unit setup
Set up (Get ready) the conveyor unit according to the selected board data.
The following 3 tasks for setting up the conveyor unit are required– “Push-up pin layout”, “Adjusting board
hold plate position” and “Checking state of clamping board”.
n
NOTE
When producing with the both lanes of dual-lane, press the [Lane switch] button to set up the lane to be operated.
n
Board clamping method
Normally, the machine follows the “Edge clamp” method to clamp a board. The procedure is as follows.
1. The board transferred on conveyor stops at the mounting position when it comes into contact with the main stopper.
2. The clamp board assembly pushes up the edge of the board so that the board is secured in place between the clamp
board assembly and the board hold plate.
3. Other than the edge of the board, the push-up pins support the board from under.
Figure of board clamped (side view)
C. Push-up pins
A. Push-up plate
B. Clamp board assembly
Main stopper
Board
D. Board hold plat
BB
DD
C
A
Board clamping
method
Figure of board clamped
Board clamping method
24329-KMK-00
c
CAUTION
If the board to be processed has a slit or the like, some of the conveyor sensors might not be able to detect the board.
In such a case, changing the machine settings and adjusting the sensor positions might be required. Before starting
the actual production, make absolutely sure that the boards are transferred correctly as intended.
n
NOTE
This machine follows the “Edge clamp” method to clamp a board. If using other method to clamp the board, the
machine may need to be modified or evaluated.
