2-49 2 Basic operation 4.1.2 Setting feeders on the feeder exchange carriage T his section describes the procedure to set the feeder with component tape on the feeder exchange carriage. F or example here, ZS feeder and S…
2-48
2
Basic operation
w
Cut the carrier tape.
Before setting the tape feeder on the machine, feed the tape out until a component is at the pickup
position, then cut the carrier tape about 15 mm from the feeder tip.
■ 8 mm feeder
■ 12 mm/16 mm feeder

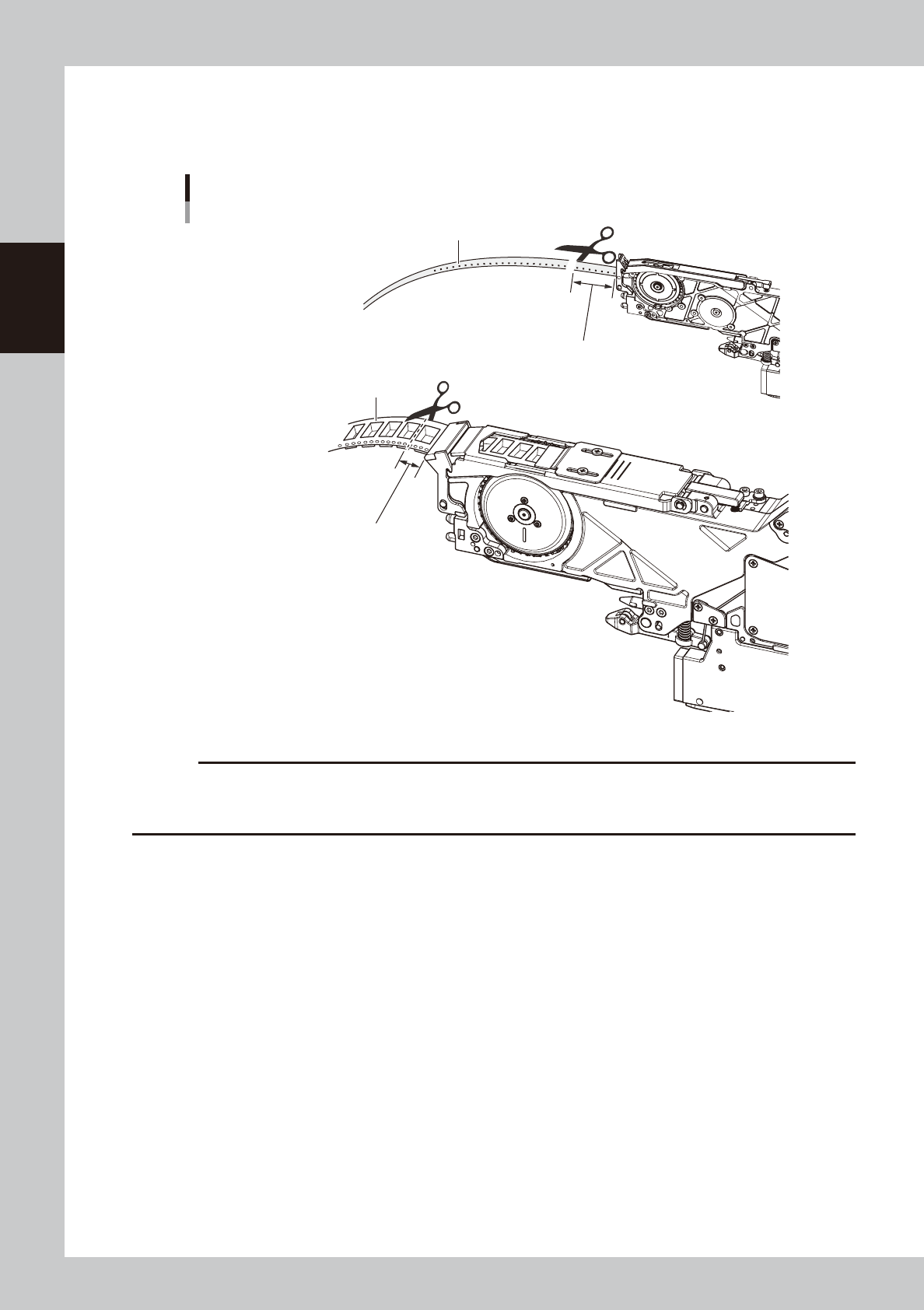

Cutting the carrier tape
Carrier tape
Cut the carrier tape about 15 mm
from the feeder tip.
Cut the carrier tape about 15 mm
from the feeder tip.
Carrier tape
23212-KMK-00
c
CAUTION
• If using the carrier tape without cutting the excess component, it could block the path way for discharging the tape.
• Cutting a hard emboss tape too short causes the carrier tape to touch at the slope entrance, then the feed can be
faulty.
2-49
2
Basic operation
4.1.2 Setting feeders on the feeder exchange carriage
This section describes the procedure to set the feeder with component tape on the feeder exchange carriage.
For example here, ZS feeder and SS feeder are set on ZS feeder exchange carriage.
c
CAUTION
Before setting up the feeder on the mounter main body, be sure to load the tape feeder with component tape in the
temporary tape set station or the power station for off-line setup. Setting the tape feeder with component tape cannot
be set up on the mounter.
n
NOTE
The following 3 tape feeders, SS feeder, ZS feeder and Auto loading feeder, are available with the machine.
It is required to open the guide rail cover for the carriage to set SS feeder on ZS feeder exchange carriage.
n
If ZS feeder is set on ZS feeder exchange carriage
1
Clean the feeder plate.
Before setting the feeder on the carriage, remove dust or foreign matter from the feeder plate. Use the
feeder plate cleaning brush that comes with the machine, a vacuum cleaner (home use) or the vacu-
um assembly (option) to get rid of dust or foreign matter on the feeder plate.
c
CAUTION
If a component or foreign matter disturbs when setting the feeder plate, the feeder may not sit there correctly, making
it unable to pick up components in a stable manner.
Foreign object where the feeder sits in may cause electrical short circuit, possibly causing devices to be damaged.
When cleaning the feeder plate, be sure not to let foreign object contaminate the connectors.

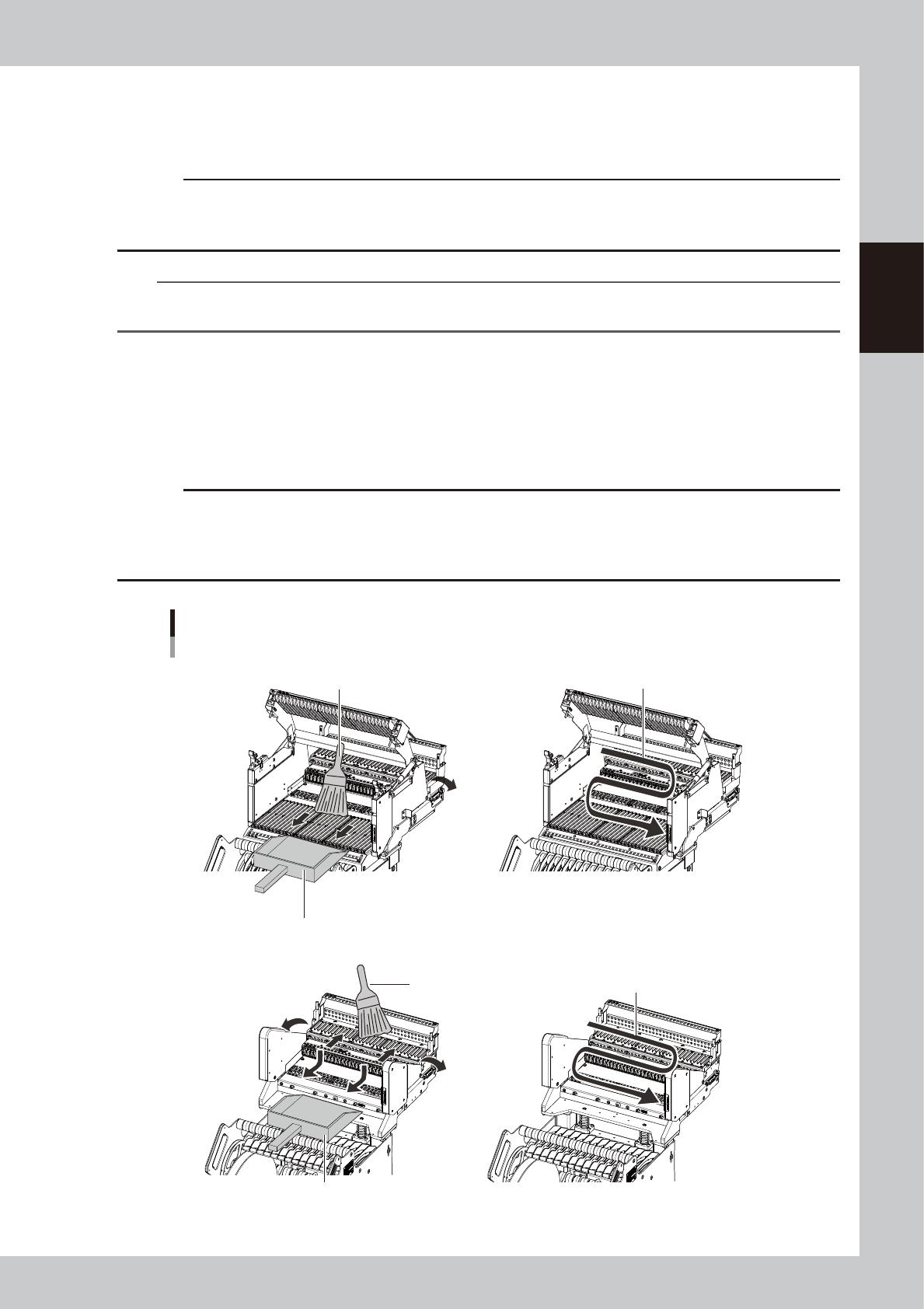

Cleaning feeder plate for carriage
Carriage for SS feeder
Carriage for ZS feeder
Use dust pan to collect foreign objects.
Cleaning brush Use home vacuum cleaner.
Use home vacuum cleaner.
Cleaning brush
Use dust pan to collect foreign objects.
23213-KMK-00
2-50
2
Basic operation
2
Place the tape reels in the slots of the reel holder.
The storing position varies depending on the tape reel size. Regarding a tape reel over 7 inches, lift the
upper reel holder and store it in the lower reel holder.
Reel holder

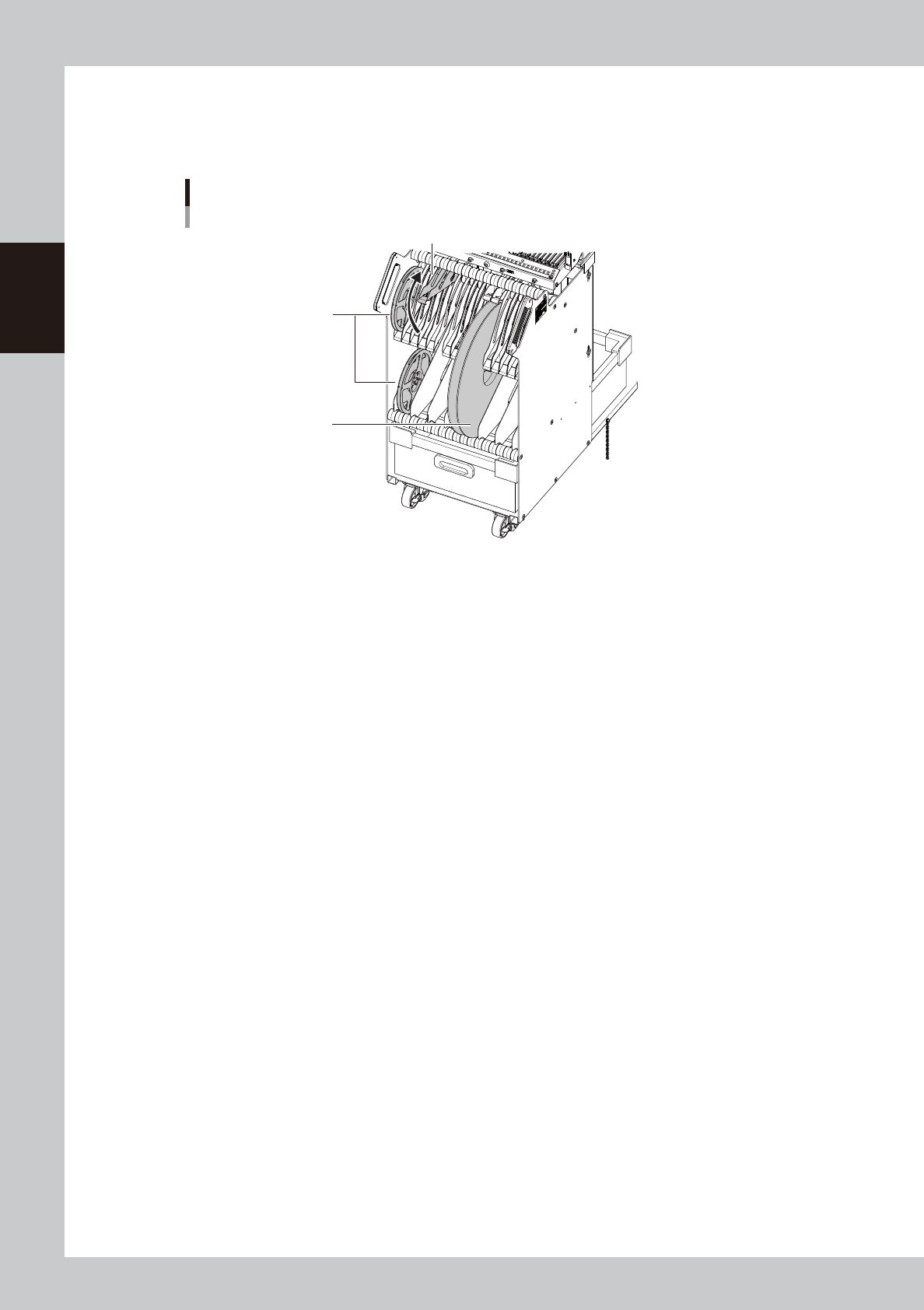

Setting the tape reel in the reel holder
Tape reel over
7 inches
7-inch reel
23214-KMK-00
