2-66
2
Basic operation
4.1.7 Detaching the feeder
This section describes the procedure to detach ZS feeder and SS feeder from ZS feeder exchange carriage as an
example.
n
If detaching ZS feeder from ZS feeder exchange carriage.
1
Detach ZS feeder from the carriage.
1. Hold the unclamping lever of ZS feeder.
2. While holding the unclamping lever, pull the feeder straight out.
ZS Feeder exchange carriage
Detaching ZS feeder
Unclamping lever
Clamping lever assembly
23231-KMK-00
2
Detach the reel.
Detach the reel from the reel holder.
2-67
2
Basic operation
n
If detaching SS feeder from ZS feeder exchange carriage.
e
1
Open the safety cover of the machine (If the carriage is set on the machine
already).
If the carriage is attached on the mounter, press the EMERGENCY STOP button, then open the safety
cover of the machine.
n
NOTE
To detach SS feeder from ZS feeder exchange carriage, it is required to open the guide rail cover. To open the guide
rail cover of ZS feeder exchange carriage attached on the machine, it is required to open the safety cover of the
machine.
2
Open the guide rail cover of ZS feeder exchange carriage.
1. Push the cover locks at left and right of the carriage to release them.
2. Lift up the guide rail cover to open it.
3
Detach SS feeder from the carriage.
1. While holding SS feeder at the bottom, pull out the handle backward.
2. While pulling out the handle backward, pull the feeder straight out.
ZS Feeder exchange carriage
Detaching SS feeder
Pull out the handle backward.
Clamping lever assembly
23232-KMK-00
4
Close the guide rail cover.
1. Close the guide rail cover.
2. After closing the cover, push the cover locks on both sides of the carriage to surely lock them.
5
Detach the reel.
Detach the reel from the reel holder.
n
NOTE
If the cover locks are released during production, the interlock stops the operation. Make sure that it is surely closed.
2-68
2
Basic operation

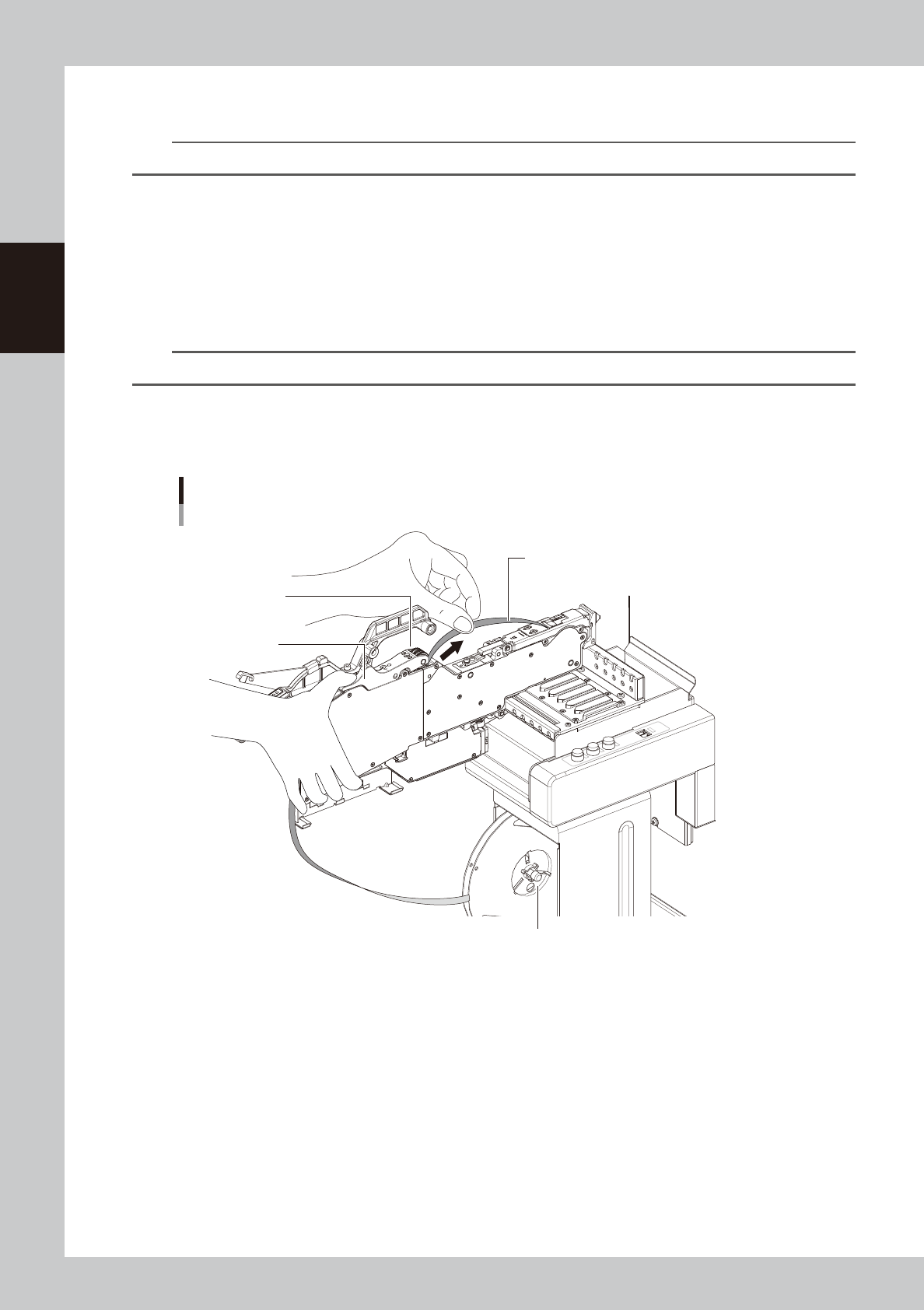

4.1.8 Detaching component tape
n
NOTE
If a mounter is equipped with the set-up station, detach the component tape at set-up station.
1
Set the feeder on the temporary tape set station.
1. Set the feeder on the temporary tape set station (or the power station for the off-line setup).
2. Set the tape reel on the reel holder of the temporary tape set station.
2
Dispose of the used cover tape.
When the used cover tape remains in the cover tape box, cut it with the edge cutter inside of the tail
cover.
TIP
See "4.1.5 Disposing of used cover tape and carrier tape" in this chapter for the detailed procedure.
3
Pull out the cover tape.
Press the P/O lever assembly to make a clearance under the winding roller. Then pull out the cover tape
from the clearance.
Pulling out cover tape
Pull out cover tape.
P/O lever assembly
Winding roller
Reel holder of the temporary tape set station
23233-KMK-00
