1-62199-3100
6.1 INP / OUT
6.1.1 InP Chk

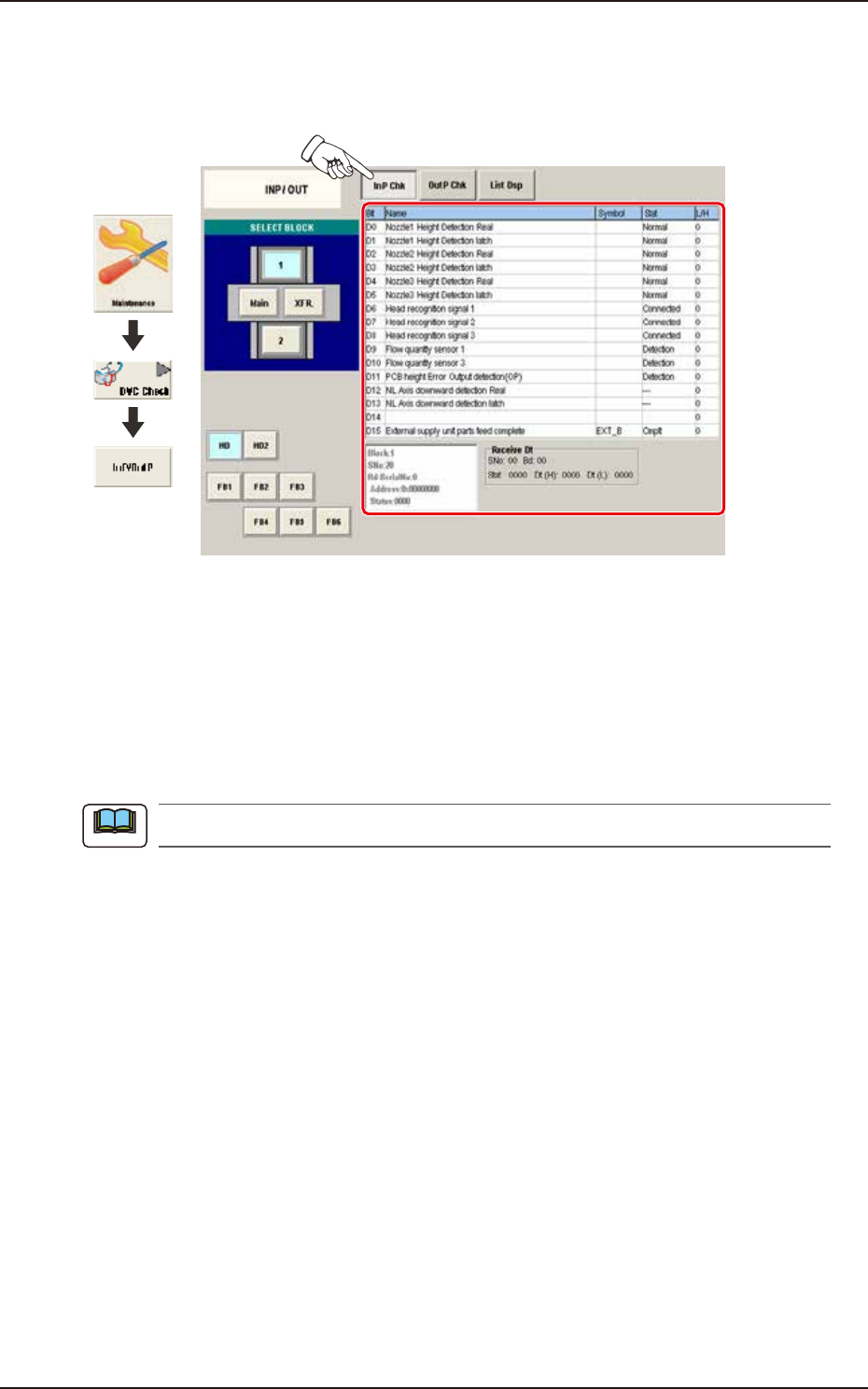

Pressing the [InP Chk] button on the "INP/OUT" window displays the following window. Check the
sensor input status.
Graphic
Development
F3A50A
Status Indicator
Displayed is the status of each section.
Bit : Displayed are the satellite Nos.
Name : Displayed are the satellite names.
Symbol
: Displayed are the satellite symbols.
Stat : Displayed are the satellite statuses.
L/H : Displayed are the satellite logics.
The unused optional functions are not to be displayed.
Note
EUKYX
1-63199-3100
6.1 INP / OUT
6.1.2 OutP Chk

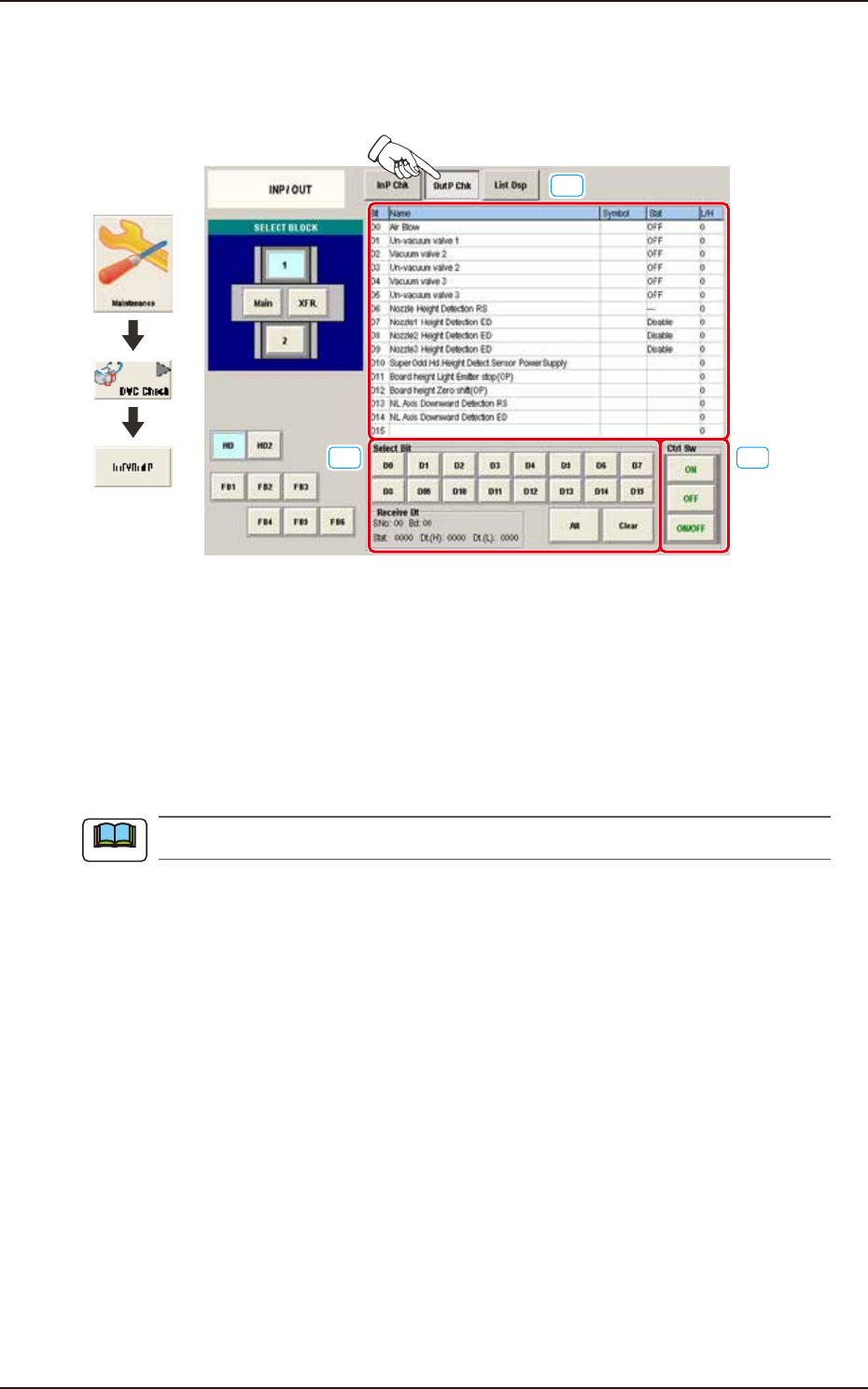

Pressing the [OutP Chk] button on the "INP/OUT" window displays the following window. Check
the sensor output status.
[1]
[2] [3]
Graphic
Development
F3A51A
[1] Status Indicator
Displayed is the status of each section.
Bit : Displayed are the satellite Nos.
Name : Displayed are the satellite names.
Symbol
: Displayed are the satellite symbols.
Stat : Displayed are the satellite statuses.
L/H : Displayed are the satellite logics.
The unused optional functions are not to be displayed.
[2] Select Bit Buttons
Select the button of the satellite for which the output status should be checked. When the desired
button is pressed, the line of the corresponding satellite turns red in the status indicator.
[3] Ctrl Sw
The buttons in this group box are used to turn on or off the satellites.
Note
EUKYX
1-64199-3100
6.1 INP / OUT
6.1.3 List Dsp

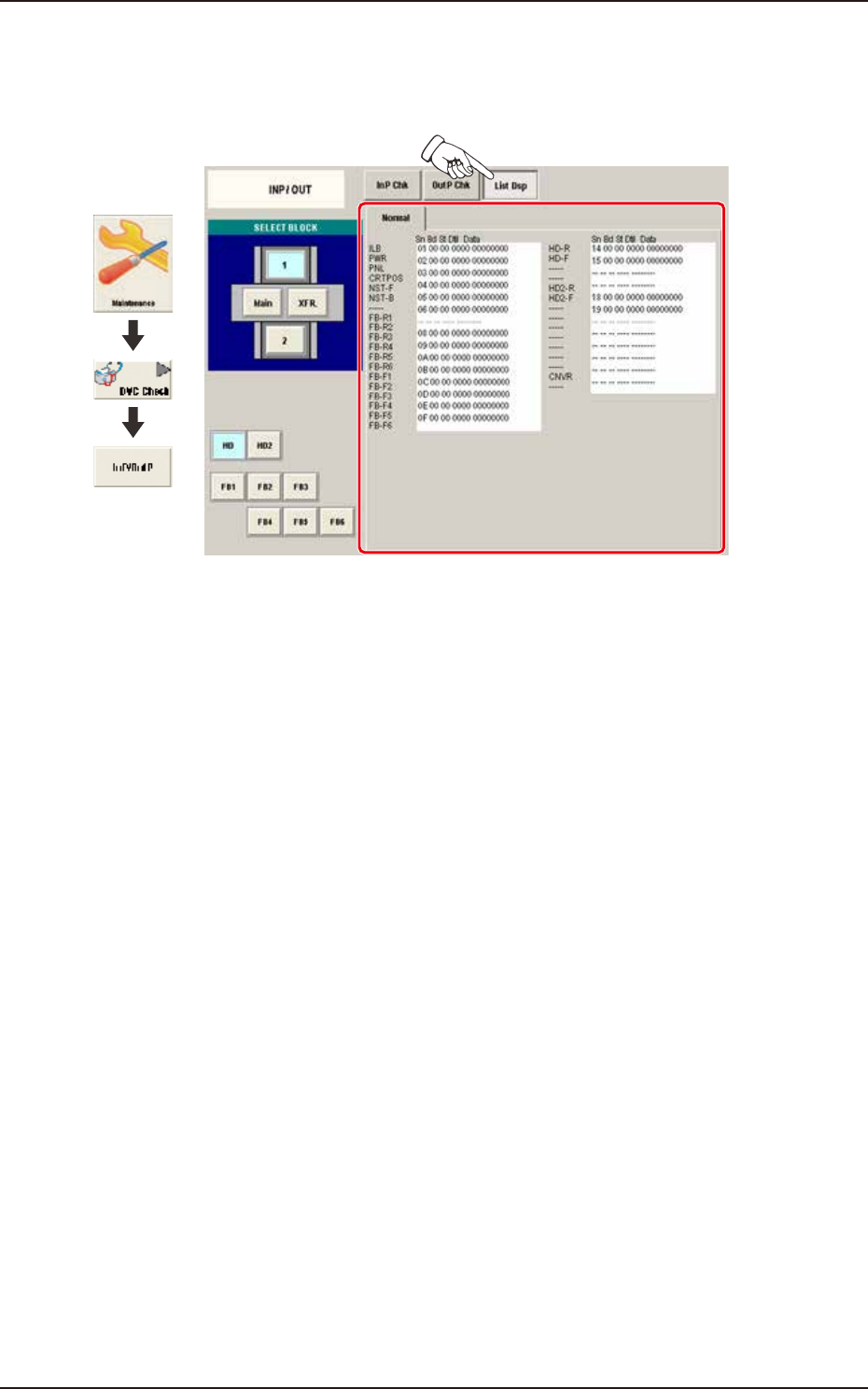

Pressing the [List Dsp] button on the "INP/OUT" window displays the following window. Check the
sensor I/O status.
Graphic
Development
F3A52A
Status Indicator
Displayed is the status of each section.
