EUKYX
1-22199-3100
4.3 CONVEYOR

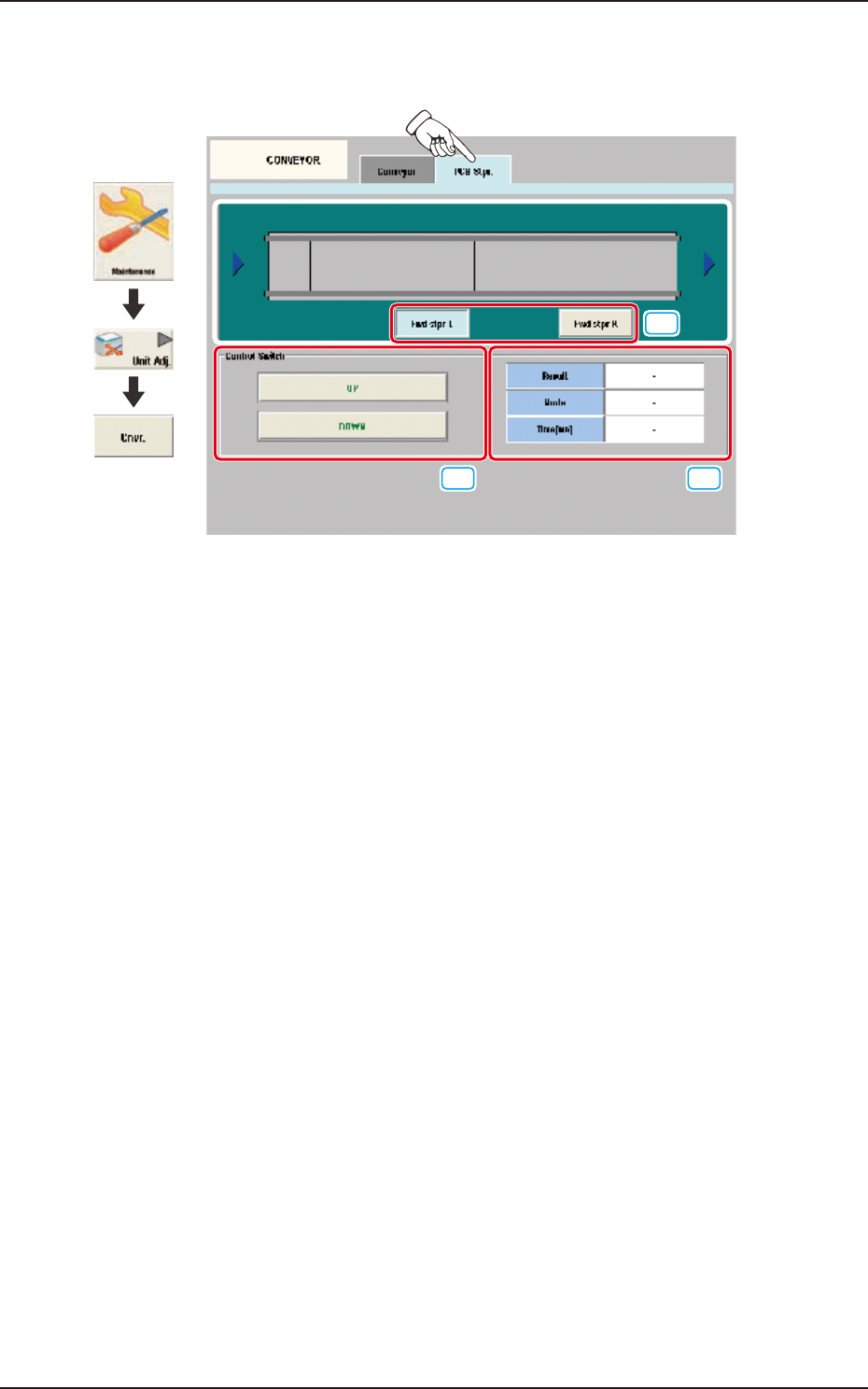

4.3.2 PCB Stpr.
The adjustment for each PCB stopper is performed on this tab sheet.
[1]
[2] [3]
Graphic
Development
F3A21
[1] PCB Stopper Selection Buttons
Select the PCB stopper to be operated.
[2] Control Switch
[UP] Button
When the [START] button is pressed on the operation panel within 10 seconds after this
button is pressed, the selected PCB stopper is moved up.
[DOWN] Button
When the [START] button is pressed on the operation panel within 10 seconds after this
button is pressed, the selected PCB stopper is moved down.
[3] Status Display
Result
In this data box the PCB stopper operation result is displayed as "OK" or "NG".
Mode
In this data box the PCB stopper present status is displayed as "UP" or "Down".
Time [ms]
In this data box the PCB stopper operation time is displayed.
EUKYX
1-23199-3100
4.3 CONVEYOR

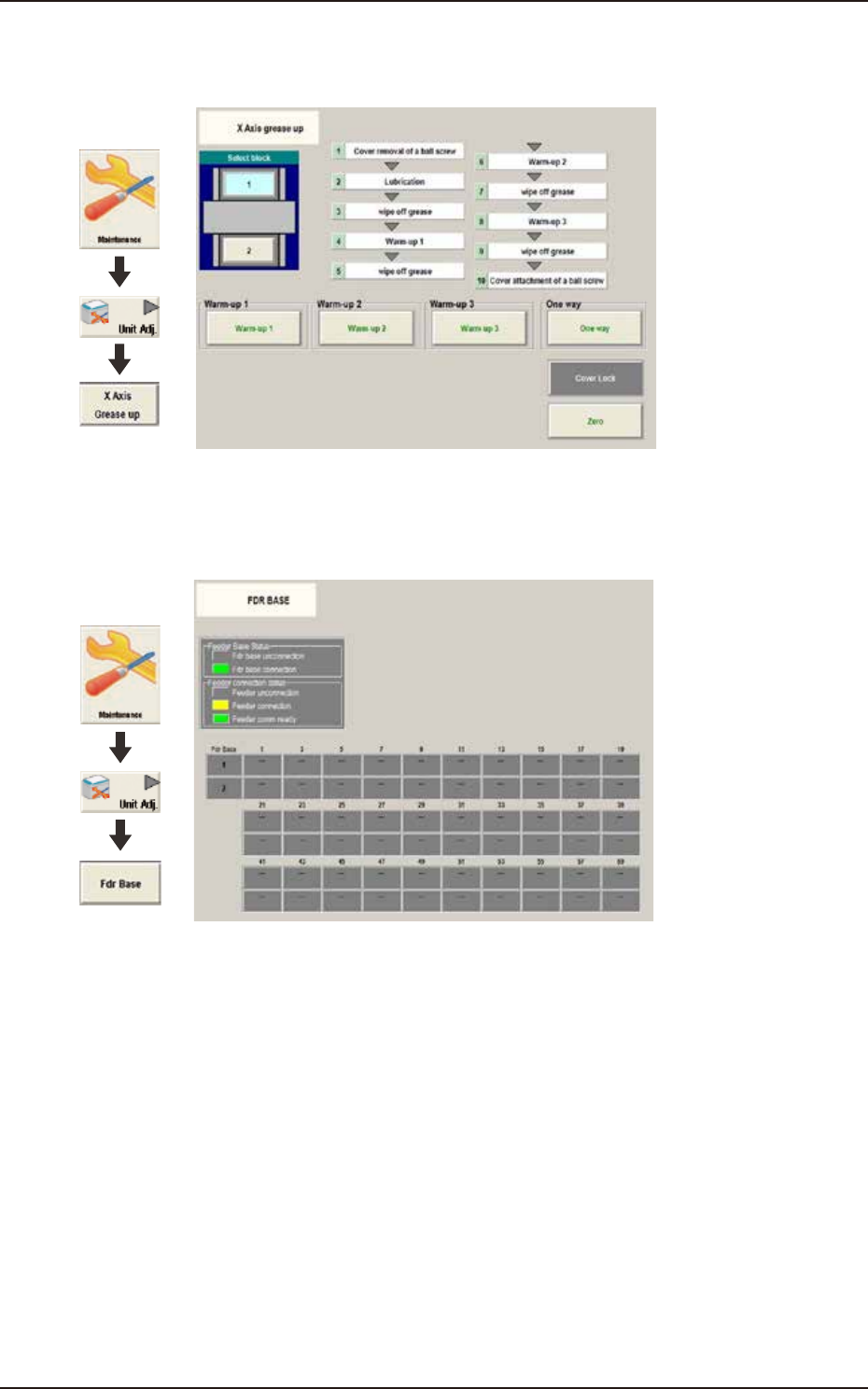

4.3.3 X Axis grease up
Follow the instructions on the window to apply grease to X-axis.
Graphic
Development
F3A95
4.3.4 FDR BASE
The status colors show the connection status of feeder base and feeder.
Graphic
Development
F3A96
EUKYX
1-24199-3100

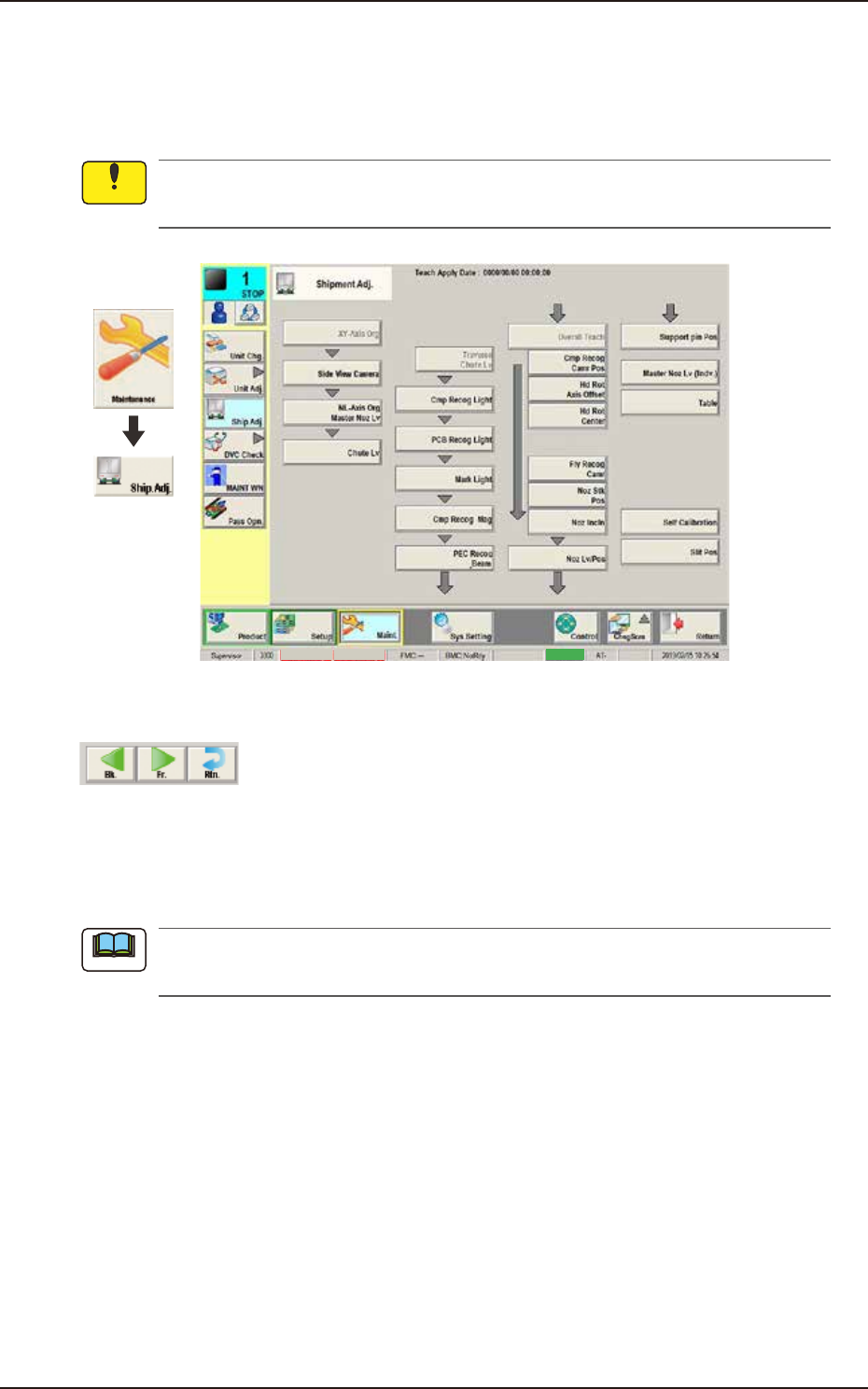

5. Shipment Adj.
5. Shipment Adj.
In this window, the teaching operations to be performed when the machine is shipped from the
factory, are summarized.
In normal cases, it is not required to perform this teaching operation because the offsets are
factory-adjusted upon shipment of the machine.
Graphic
Development
MTN:NotRdy RCG:NotRdy
Cover
F3A22A
Common Operation Description
F3A23
[Bk.] Button
When this button is pressed, the window for the current items is changed to the one for the
previous Shipment Adjustment items.
As there is no previous items for the "Side View Camera" window, this button is not displayed
on the window.
[Fr.] Button
When this button is pressed, the window for the current items is changed to the one for the next
Shipment Adjustment items.
[Rtn.] Button
When this button is pressed, the window is changed to the one for the shipping adjustment initial
display window.
Notice
Note
