EUKYX
2-21199-3100
2.4 Beam
[4] XY-Axis Origin 1 and 2
The set parameters are used to maintain the beam condition (position) set up right after the machine
was assembled.
Use the values fed back automatically from the motion controller after the Y-axis is zeroed
(adjustment mode).
Master SideSlave Side
Origin Mark
(Origin Signal Position)
Beam
Beam
Zeroing
Direction
Zeroing
Direction
Y-Axis Origin Offset
= (+) Value
Limit Sensor
Y-Axis Origin Offset
= (+) Value
Origin Mark
(Origin Signal Position)
Origin Mark
(Origin Signal Position)
Origin Mark
(Origin Signal Position)
Limit Sensor
F3B29
Note
(a) The displayed parameters cannot be edited manually.
(b) The Y-axis origin offset indicates where the origin signal position of the master axis is
located when viewed in the zeroing direction from the origin signal position of the slave
axis. A plus sign will be affixed when the origin signal position is located in the same
direction as the zeroing one. When it is located in the opposite direction, a minus sign is
affixed.
[5] Y-Axis Parallel Drive Origin
Displays the offset value of origin signal position of the automatically adjusted Y-axis parallel drive
axis (master axis and slave axis).
[6] [Return] button
When this button is pressed, the window returns to the "Offset Data" window.
[7] [Save] button
When this button is pressed, the input data is applied.
[Cancel] button
When this button is pressed, the input data is cancelled and window returns to the save data.
EUKYX
2-22199-3100
2.5 Head
2.5 Head
Pressing the [Head] button on the "Offset Data" window displays the following window.
Graphic
Development
[1]
[5]
[6]
[2]
[3]
[4]
F3B30A
[1] Offset button
When this button is pressed, the offset data for the selected tab is displayed.
[2] Offset Data Display Section
In this section, the offset data selected in step [1] is displayed.
[3] Page Change Button
Using this button, the offset editing page is changed.
[4] [Return] button
When this button is pressed, the window returns to the "Offset Data" window.
[5] [Save] button
When this button is pressed, the input data is saved.
[Cancel] button
When this button is pressed, the input data is cancelled and window returns to the save data.
[6] [Cam1] / [Cam2] button
Switches the component recognition camera.
EUKYX
2-23199-3100
2.5 Head
2.5.1 Head-A

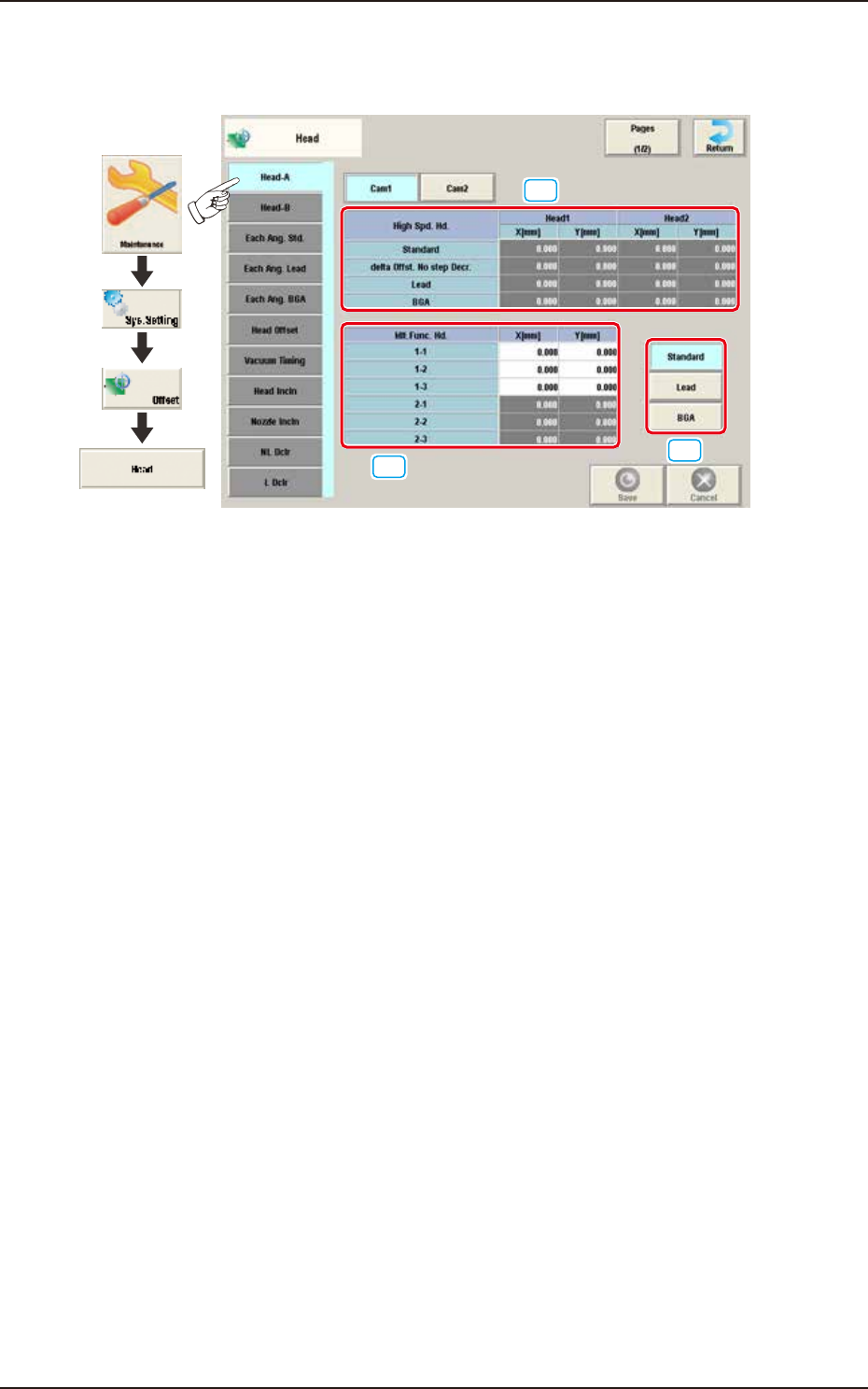

Pressing the [Head-A] tab on the "Head" window displays the following window.
[1]
[2]
[3]
Graphic
Development
F3B31A
[1] High Spd. Hd., Head 1 and Head 2 (X [mm], Y [mm] /Standard)
The set parameters are used to adjust the deviations of the head rotational centers caused
due to the movement of the head U/D axes.
delta Offst. No step Decr.
When no speed deceleration for component placement is specified in the library data and
the position for the placement is calculated, the proper deceleration rate is converted and
added.
Lead
When the library data set at the component placement is for the leaded components, the
value is converted or added in the placement target position calculation using this button.
BGA
When the library data set at the component placement is for the BGA components, the value
is converted and added in the placement target position calculation using this button.
[2] Mlt.Func. Hd. (X [mm], Y [mm])
The set parameters are used to adjust the deviations of the head rotational centers caused due to
the movement of the head U/D axes.
[3] [Standard] Button
When the applicable component is a standard one, the value is converted or added in the
placement target position calculation using this button.
[Lead] Button
When the applicable component is a leaded one, conversion and addition are made while
the target position for placement is being computed.
[BGA] Button
When the applicable component is a BGA/CSP one, conversion and addition are made while
the target position for placement is being computed.
