2.9 Comp. Recog

2.9.4 Fly Recog XY

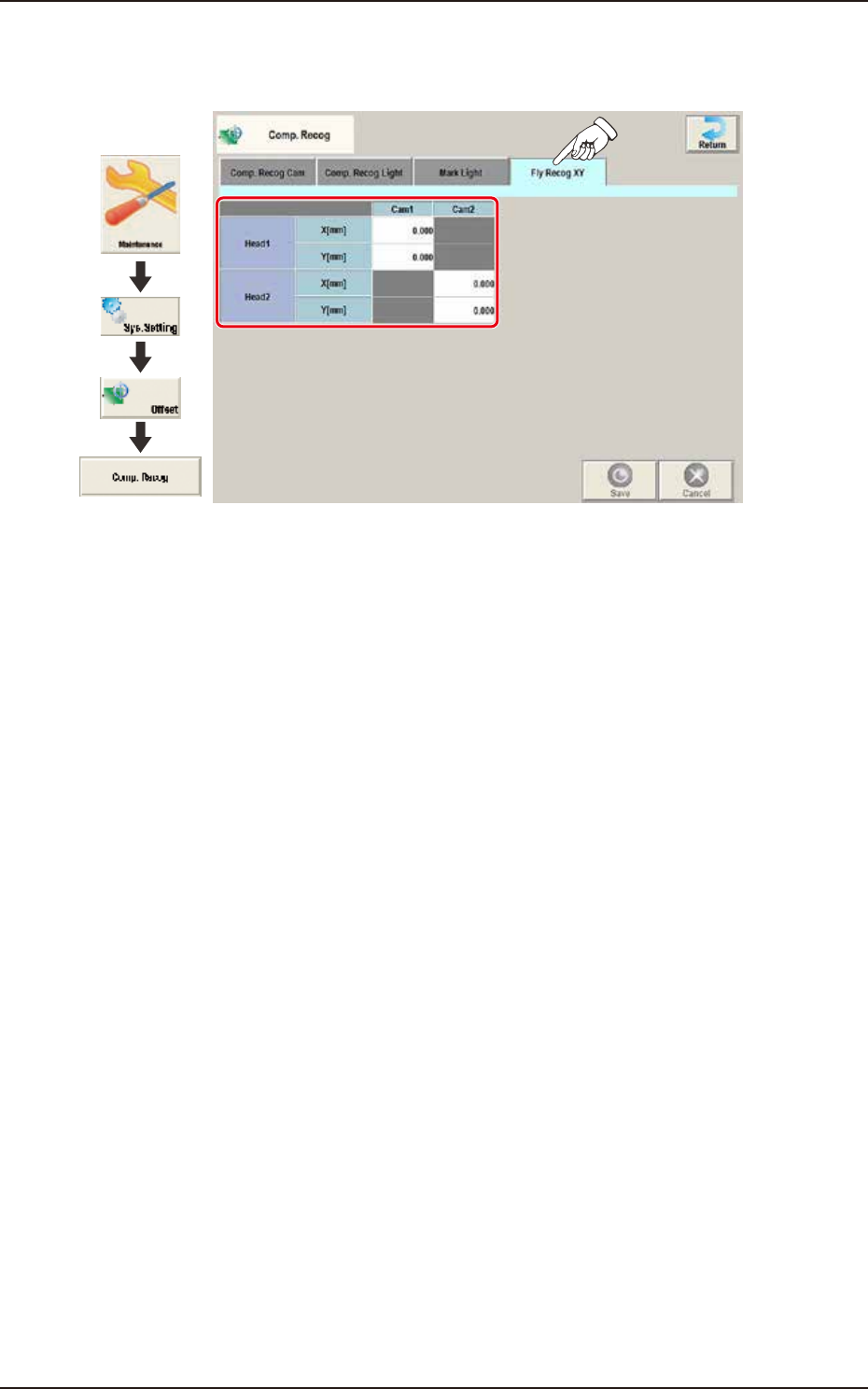

Pressing the [Fly Recog XY] tab on the "Comp. Recog" window displays the following window.

Graphic

Development

F3B67

[1] Head 1 / Head 2

X [mm] / Y [mm]

Cam1 / Cam2

Obtain the deflections (caused mainly due to the delay time of the servo amplifier and the strobe)

of the images captured by the stopped component recognition camera (still image capture) and the

flying component recognition camera (fly image capture) and set the obtained values to adjust the

deviations in timing for image capture.

The set parameters are used to prevent a component from getting affected by the delay and staying

out of camera field of view.

EUKYX

2-53199-3100

2.10 Table

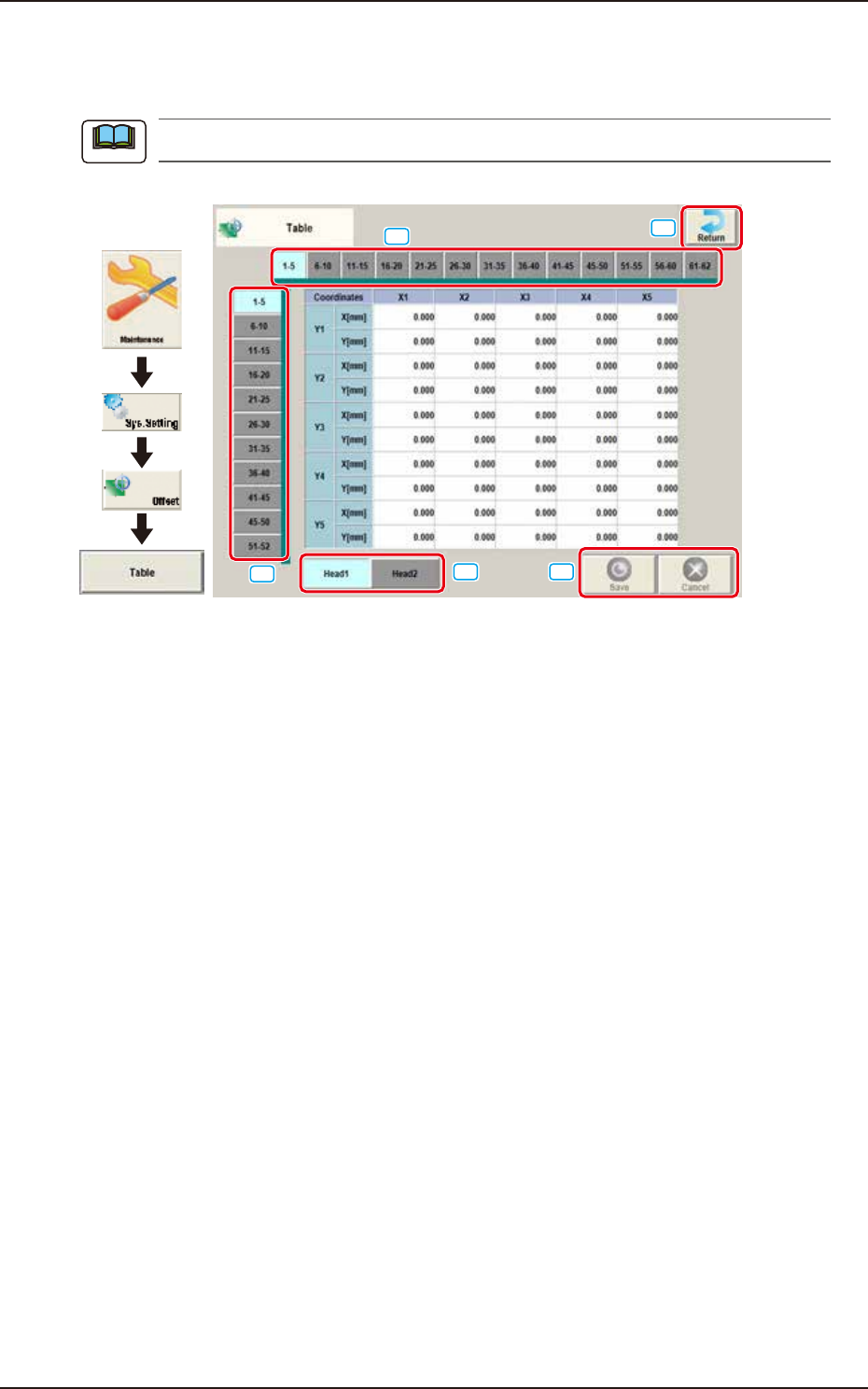

Pressing the [Table] button on the "Offset Data" window displays the following window.

As for the "Head 2" tab sheets, the same contents as the "Head 1" tab sheet are displayed.

Graphic

Development

[1]

[2]

[3]

[4]

[5]

F3B68A

Enter the amount of deviation based on the specified distance when Head 1 has moved as far as the

specified distance (each grid point, X Direction: X1 through X40, Y Direction: Y1 through Y40) from

the PCB positioning reference.

These values are calculated automatically through the teaching operation and entered in each text

box.

[1] Head Select Tab

Using this tab, the head to be input is selected.

[2] Direction "X" Select Tab

Using this tab, the point on the grid in the direction "X" for the selected tab, is displayed.

[3] Direction "Y" Select Tab

Using this tab, the point on the grid in the direction "Y" for the selected tab, is displayed.

[4] [Return] button

Returns to the “Offset Data“ window.

[5] [Save] button

Saves the entered data.

[Cancel] button

Cancels the entered data and returns to the saved data.

Note

EUKYX

2-54199-3100

2.11 Unit Offset

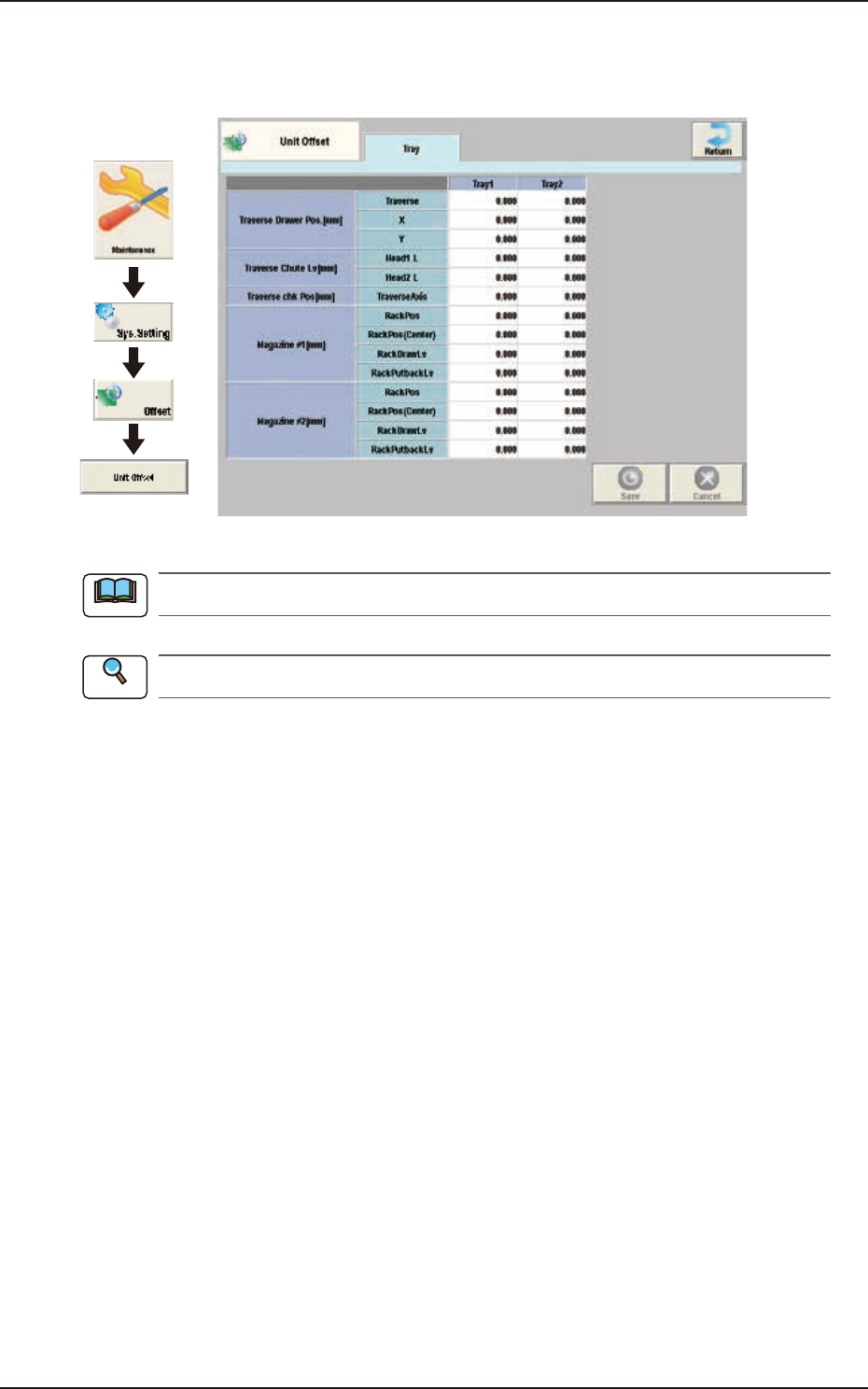

Pressing the [Unit Offset] button on the "Offset Data" window displays the following window.

Graphic

Development

F3B69

This setting is used as an option.

Refer to "GS-FP600 Multi-Layer Tray Feeder" for details.

Note

Reference
