EUKYX
2-24199-3100
2.5 Head
2.5.2 Head-B

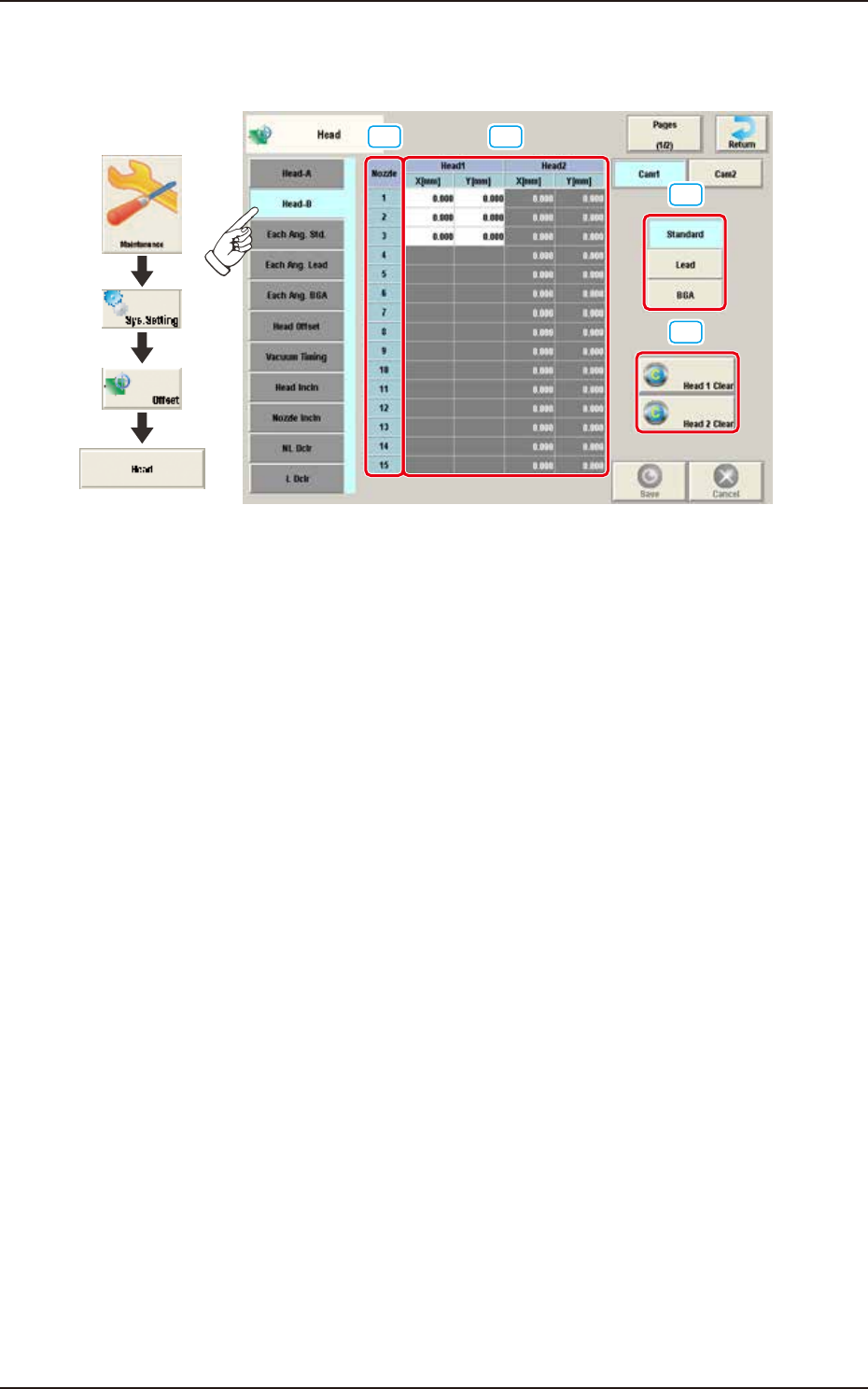

Pressing the [Head-B] tab on the "Head" window displays the following window.
[1] [2]
[3]
[4]
Graphic
Development
F3B32A
[1] Nozzle 1 through 15
In this section, each nozzle No. is displayed.
[2] Head 1 and Head 2
X (Horizontal) and Y (Vertical) [mm]
The set parameters are used to adjust the positional deviations of the nozzles caused due to the
movement of the nozzle U/D axes.
[3] [Standard] Button
When the applicable component is a standard one, conversion and addition are made while
the target position for placement is being computed.
[Lead] Button
When the applicable component is a leaded one, conversion and addition are made while
the target position for placement is being computed.
[BGA] Button
When the applicable component is a BGA/CSP one, conversion and addition are made while
the target position for placement is being computed.
[4] [Head 1 Clear] Button, [Head 2 Clear] Button
Using these buttons, the data parameters for all the nozzles in the corresponding head are
performed.
EUKYX
2-25199-3100
2.5 Head
2.5.3 Each Ang. Std

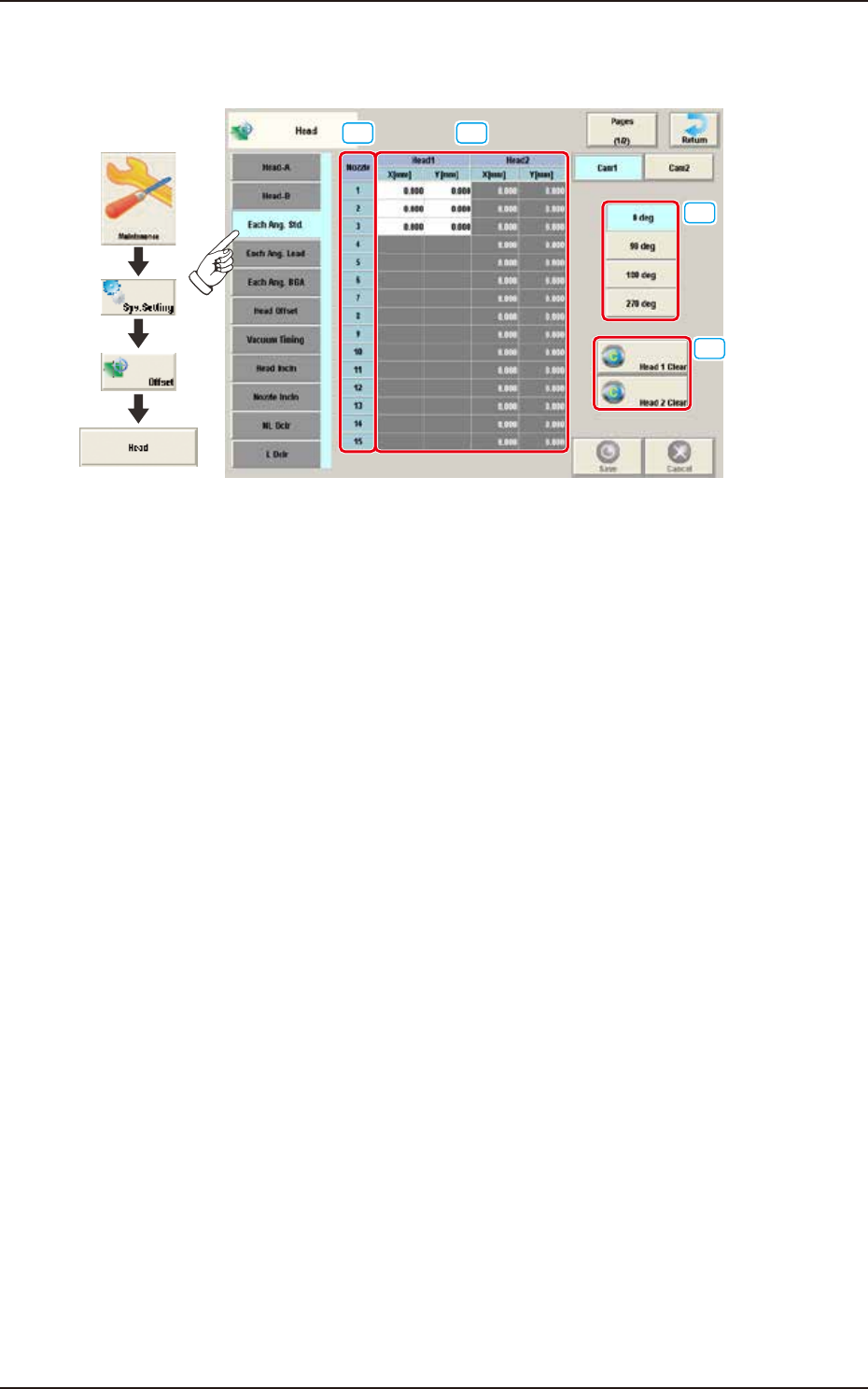

Pressing the [Each Ang. Std] tab on the "Head" window displays the following window.
[1] [2]
[3]
[4]
Graphic
Development
F3B34A
[1] Nozzle 1 through 15
In this section, each nozzle No. is displayed.
[2] Head 1 and Head 2
X (Horizontal) and Y (Vertical) [mm]
When the applicable component is a each angle one, conversion and addition are made in response
to the placement angle while the target position for placement is being computed.
[3] Head Direction Selection Buttons
When this button is selected, the head direction is adjusted for each selected angle.
[4] [Head 1 Clear] Button, [Head 2 Clear] Button
Using these buttons, the data parameters for all the nozzles in the corresponding head are
performed.
EUKYX
2-26199-3100
2.5 Head
2.5.4 Each Ang. Lead

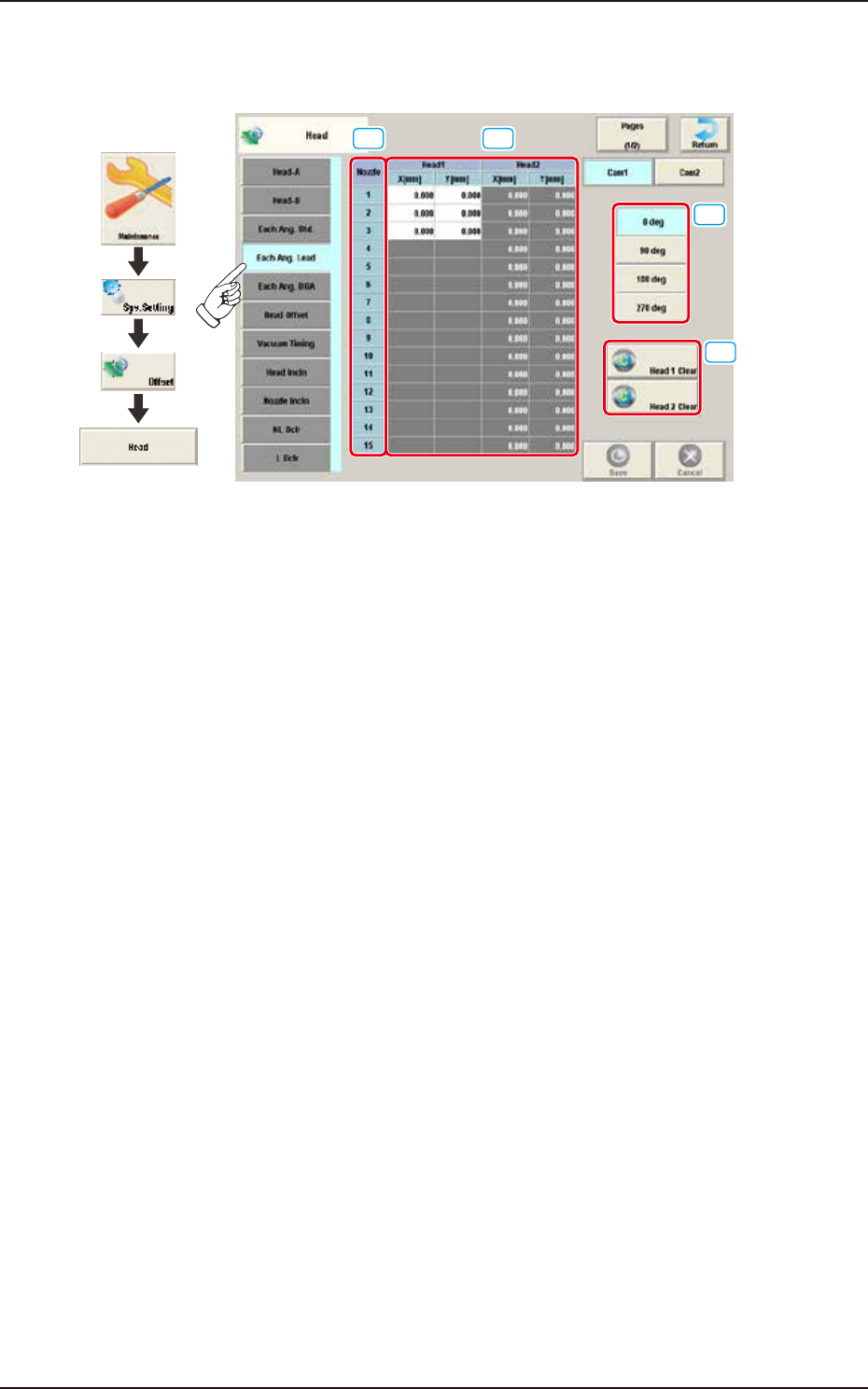

Pressing the [Each Ang. Lead] tab on the "Head" window displays the following window.
[1] [2]
[3]
[4]
Graphic
Development
F3B35A
[1] Nozzle 1 through 15
In this section, each nozzle No. is displayed.
[2] Head 1 and Head 2
X (Horizontal) and Y (Vertical) [mm]
When the applicable component is a leaded one, conversion and addition are made in response to
the placement angle while the target position for placement is being computed.
[3] Head Direction Selection Buttons
When this button is selected, the head direction is adjusted for each selected angle.
[4] [Head 1 Clear] Button, [Head 2 Clear] Button
Using these buttons, the data parameters for all the nozzles in the corresponding head are
performed.
