EUKYX

1-71199-3100

6.2 MOTOR

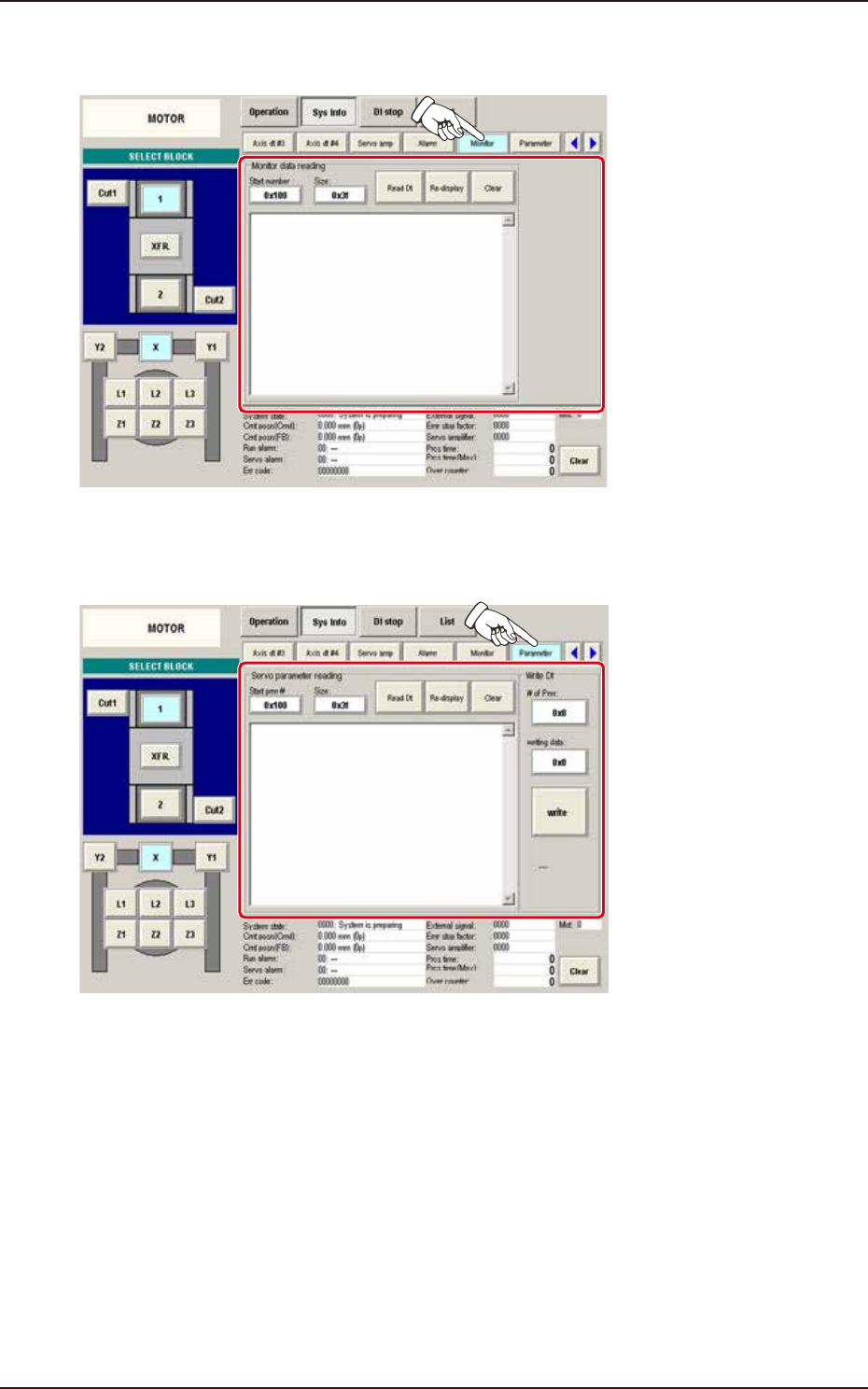

(5) Monitor

When the [Monitor] button is pressed on the "Sys Info" window, the "Monitor" window appears.

F3A62A

(6) Parameter

When the [Parameter] button is pressed on the "Sys Info" window, the "Parameter" window appears.

F3A63A

EUKYX

1-72199-3100

6.2 MOTOR

6.2.3 DI stop

Pressing the [DI stop] button on the "MOTOR" window displays the following window.

[1]

[2]

Graphic

Development

F3A64A

[1] Display Change Buttons

This "DI Stop" windows are provided with the following items. When each button is pressed, the

corresponding window appears.

Button Description

State monitor Displays the status of the DI stop signal state monitor.

Parameter Displays the status of the Reading DI stop sign setup prm.

EUKYX

1-73199-3100

6.2 MOTOR

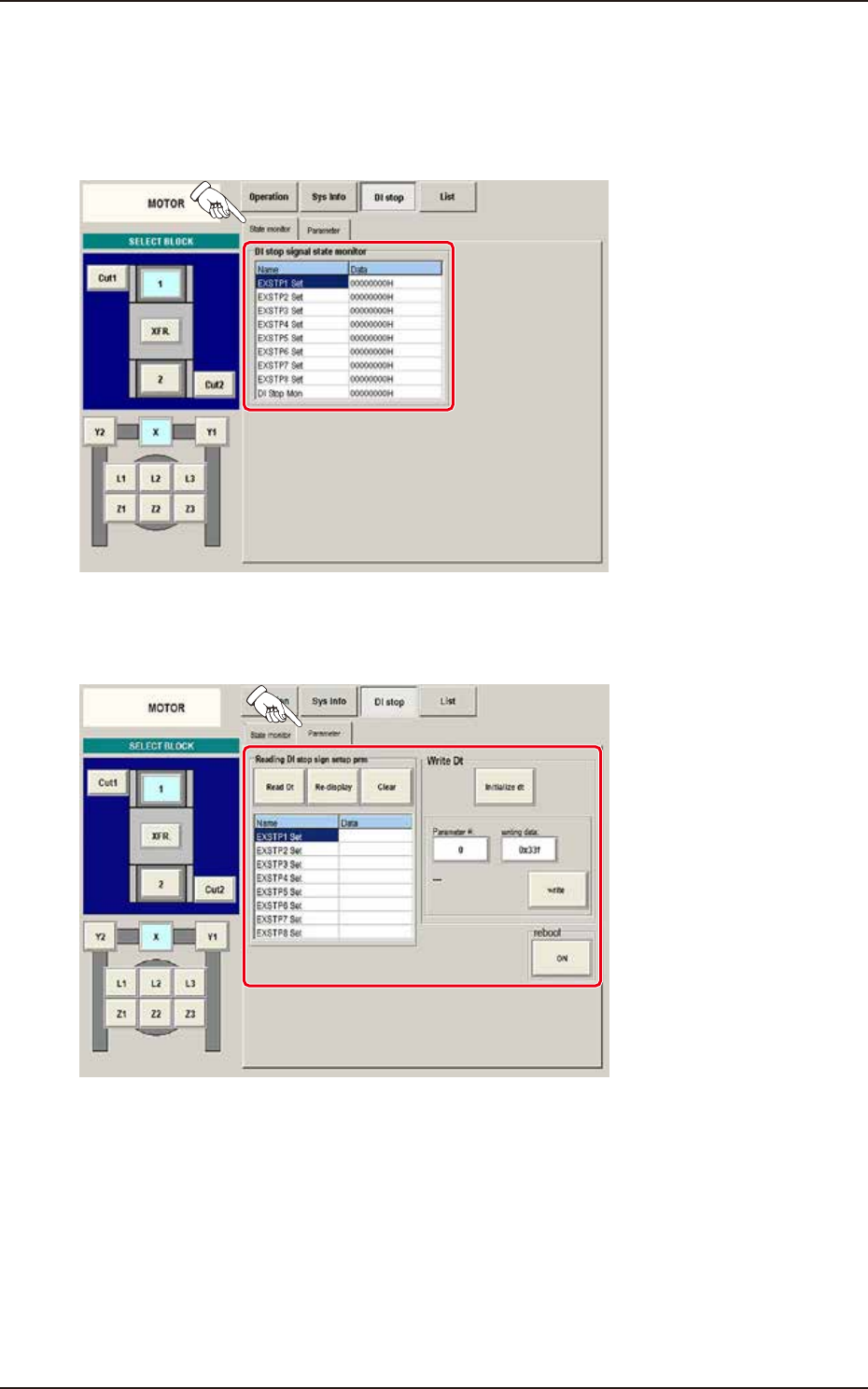

[2] Status Indicator

The status of each section is displayed.

(1) State monitor

When the [State monitor] button is pressed on the "DI stop" window, the "State monitor" window

appears.

F3A65A

(2) Parameter

When the [Parameter] button is pressed on the "DI stop" window, the "Parameter" window appears.

F3A66A
