6.5 PRGM.INFO.

6.5.1 Application

Pressing the [Application] tab on the [PRGM.INFO] window displays the following window. The

application information is displayed.

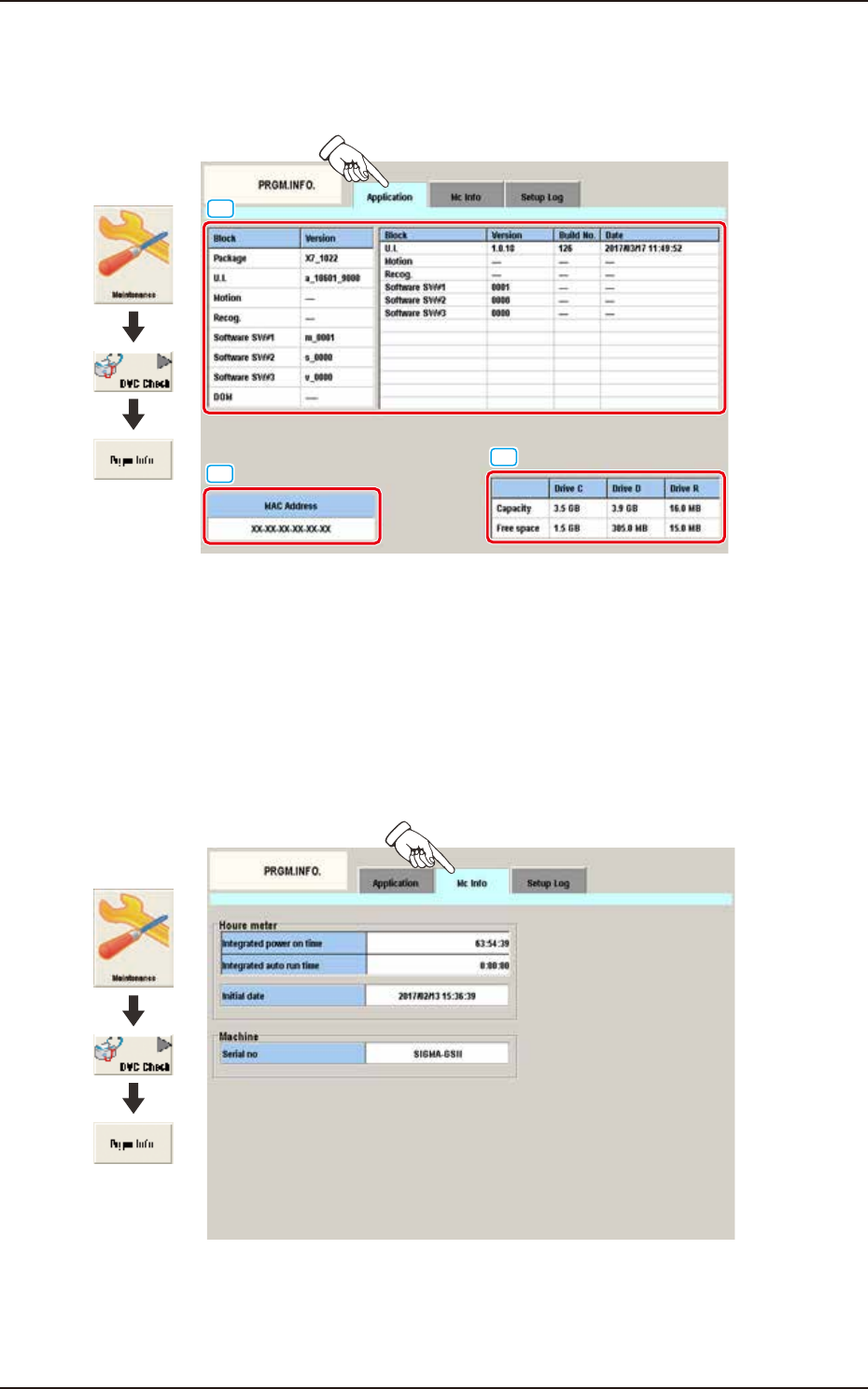

[2]

[3]

[1]

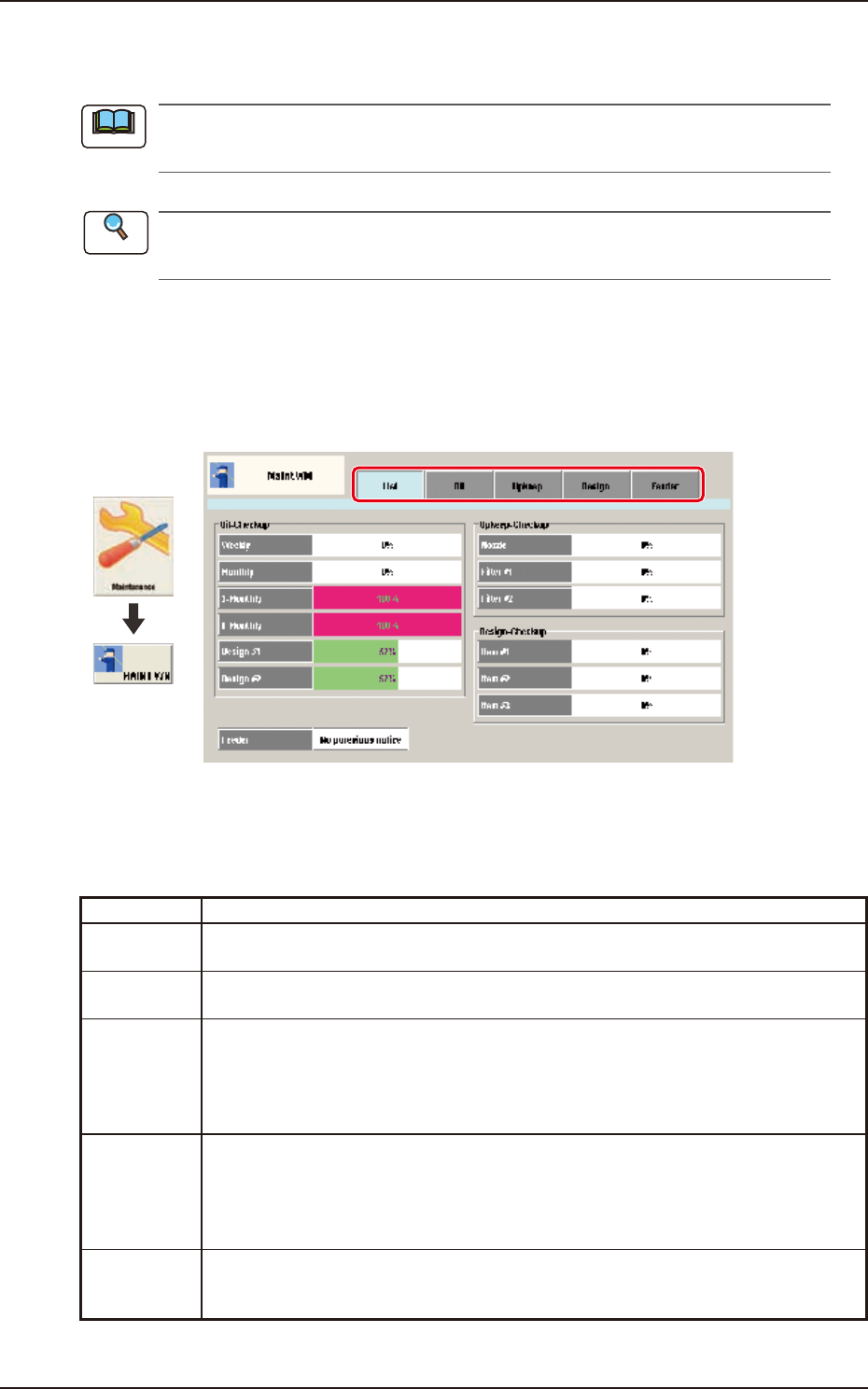

Graphic

Development

F3A83A

[1] Detailed Display:

Displays the application versions and the updated time per block.

[2] Mac Address:

Displays the Mac Address.

[3] Capacity / Free Space:

Displays the capacity and free space of each drive of U. I.

6.5.2 MC Info

Pressing the [Mc Info] tab on the [PRGM.INFO] window displays the following window. The

machine information is displayed.

Graphic

Development

F3A83B

Detailed Display

The integrated power on time, the integrated auto run time, the initial date and the serial number

are displayed.

EUKYX

1-90199-3100

6.5 PRGM.INFO.

6.5.3 Setup Log

Pressing the [Setup Log] tab on the [PRGM.INFO] window displays the following window. The

setup log information is displayed.

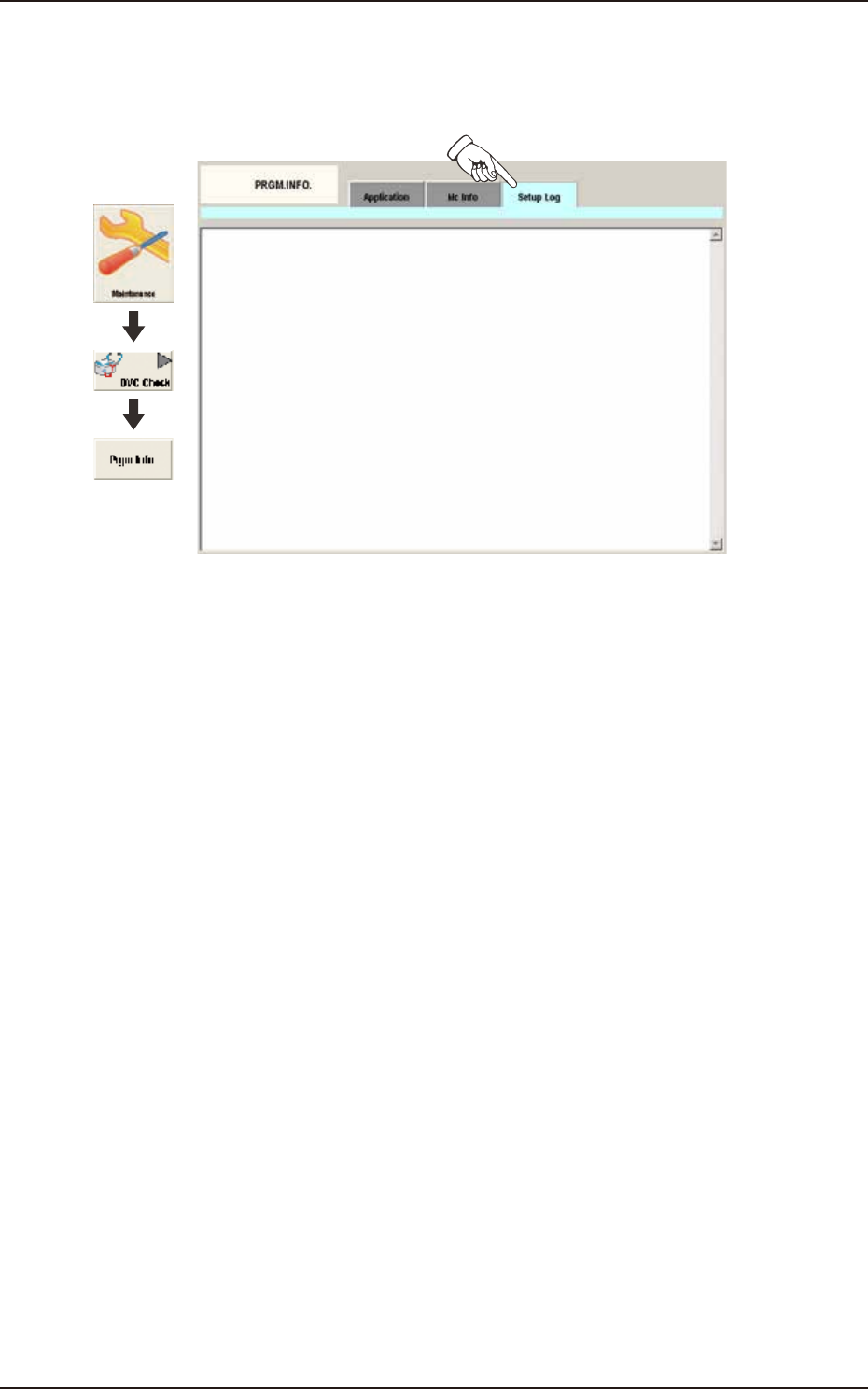

Graphic

Development

F3A84A

Detailed Display

The setup logs of the machine is displayed.

EUKYX

1-91199-3100

7. Maint.WM

The setting for sending the maintenance warning message is performed using the NT-100

system software.

Refer to "NT System Software" Instruction Manual Volume 1, Chapter 6, "4.10 Maintenance

WM".

This menu is used to manage the periodic maintenance timing.

The timing for the oiling check or maintenance and inspection can be confirmed on the window

and also the maintenance and inspection timing is notified in the "Mach Info" window. For the

maintenance items described in Volume 4, the "Maintenance Timing" data is notified to the

maintenance operator using the "Operator Message" or in the "Mach Info." window.

Graphic

Development

F3A85

Tabs

This "MaintWM" window is provided with the following 5 tabs. When each tab is pressed, the

corresponding tab sheet appears.

Tab Description

List

Displays the present status for the oiling check-up, maintenance check-up and

designated check-up, as a list.

Oil

Displays the practice dates for the maintenance cycles (weekly, monthly, every three

months, every six months and every 365 days) of the oiling check.

Upkeep

Displays the setting status and present status for the nozzle, filter #1 (head filter) and

filter #2 (filter for air supply).

"Elapsed operation period" or "No. of picked-up components" can be setup as the

announcement condition. When the value reaches the set value for either of the above

2 conditions, the announcement is issued.

Design

Displays the setting status and present status for the additionally set maintenance

check-up items (Maintenance 1, Maintenance 2 or Maintenance 3 for maintenance

announcements.) "Elapsed operation period" or "No. of picked-up components" can be

setup as the announcement condition. When the value reaches the set value for either

of the above two conditions, an announcement is issued.

Feeder

Displays the feeder setting status and present status. The No. of shots is setup for each

of the feeder types (four types), and the value reaches the set value, an announcement

is issued. Also, the current No. of shots can be cleared.

Note

Reference
