2-8199-3100
2.1 Device Offset
2.1.6 Teach Plate

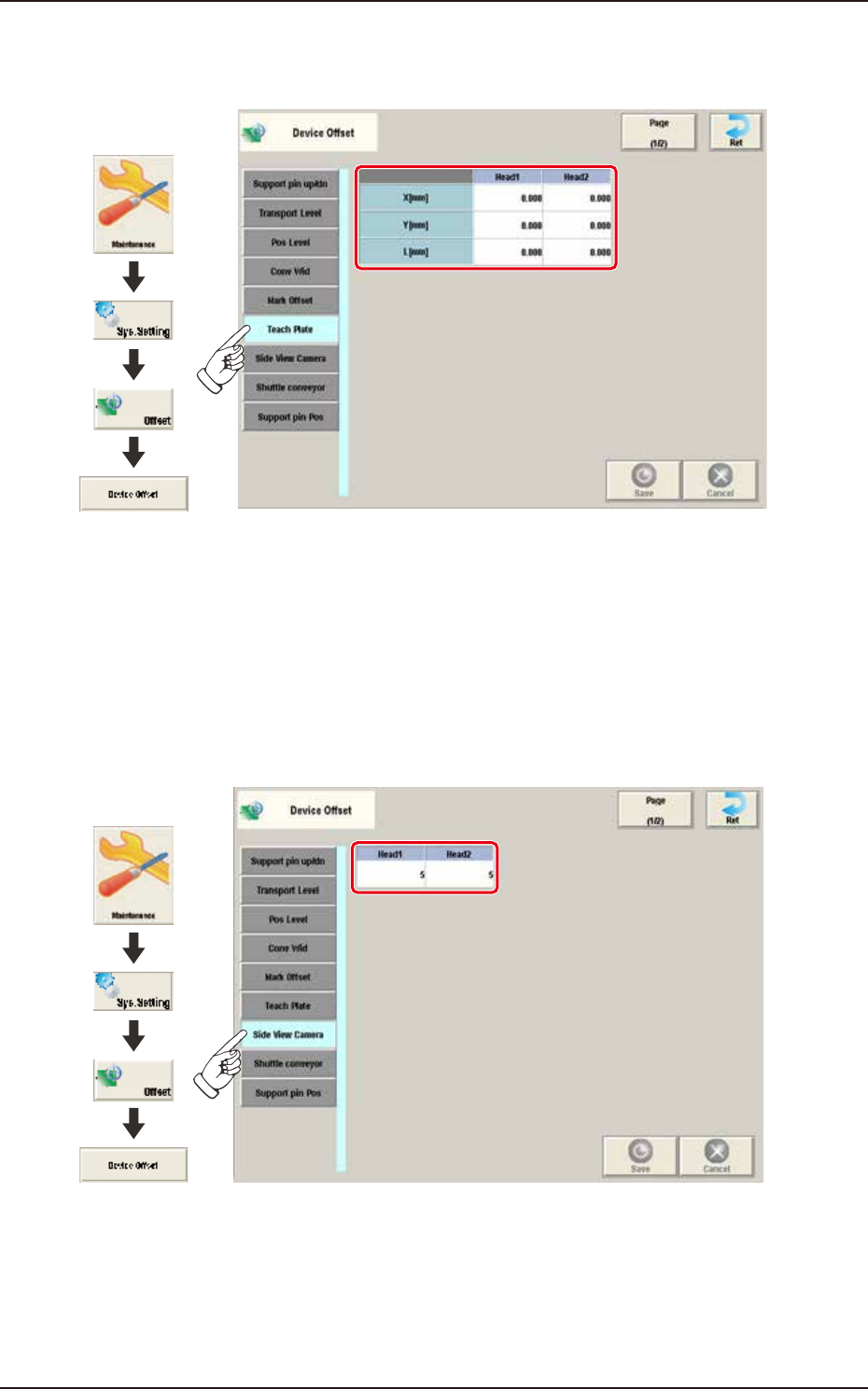

Pressing the [Teach Plate] tab on the "Device Offset" window displays the following window.
Graphic
Development
F3B11A
[1] Head 1 / Head 2
X (Horizontal), Y (Vertical), and L (Height) [mm]
Enter the parameters required to adjust the deviations based on the design position of the jig
depot.
2.1.7 Side View Camera
Pressing the [Side View Camera] tab on the “Device Offset” window displays the following window.
Graphic
Development
F3B12A
Head 1 / Head 2
Set the number of dirt detection scanning times to be conducted by the side view camera of each
head.
EUKYX
2-9199-3100
2.1 Device Offset
2.1.8 Shuttle conveyor

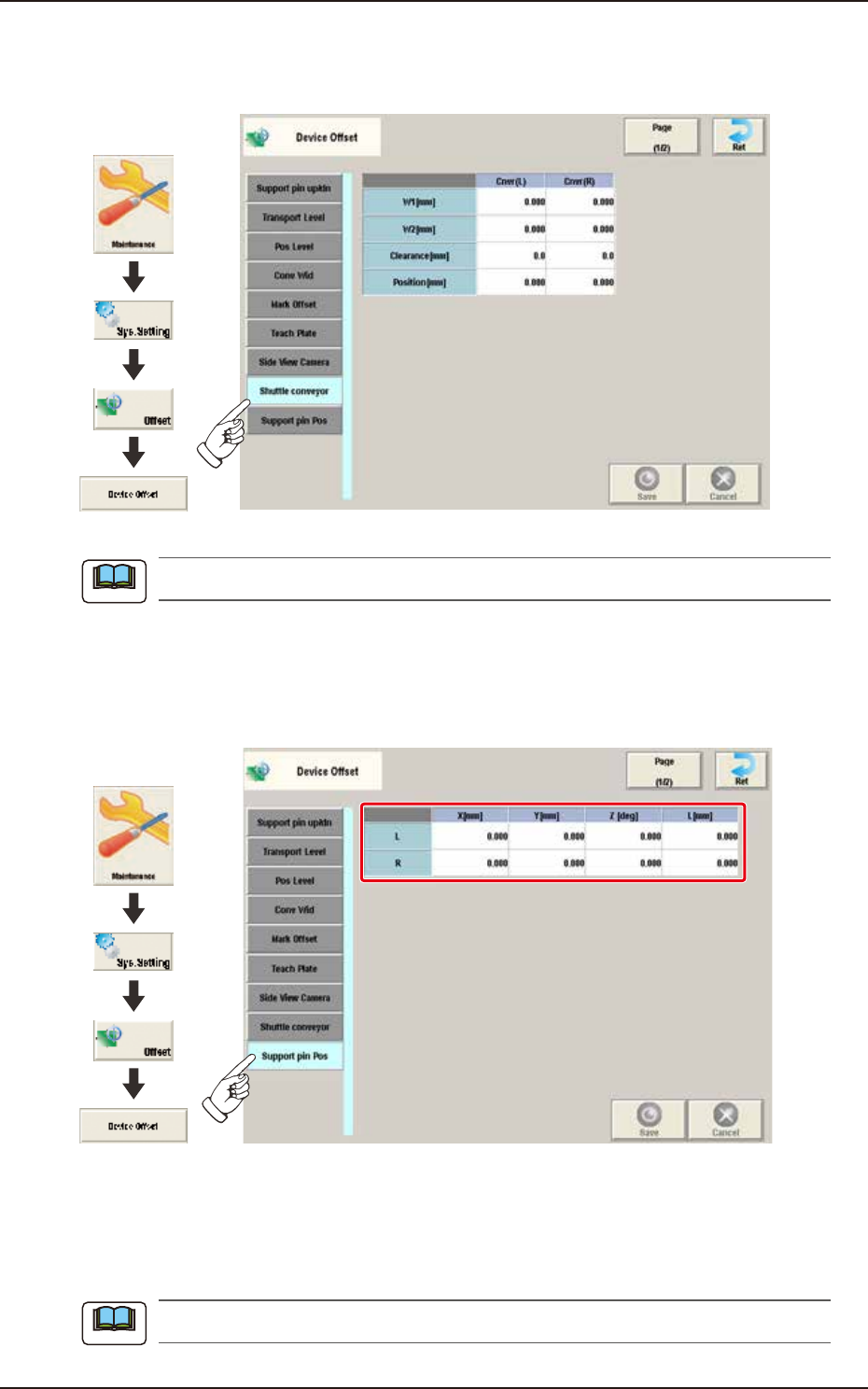

Pressing the [Shuttle conveyor] tab on the "Device Offset" window displays the following window.
Graphic
Development
F3B13A
This setting is used as an option.
2.1.9 Support pin Pos
Pressing the [Support pin Pos] tab on the “Device Offset” window displays the following window.
Graphic
Development
F3B14A
[1] L / R
X [mm], Y [mm], Z [deg], L [mm]
These offset parameters are to be corrected when the support pin data is converted. These offset
parameters are calculated automatically in the support pin teaching operation.
When this teaching is performed, the dedicated teaching pins are required.
Note
Note
EUKYX
2-10199-3100
2.1 Device Offset
2.1.10 Mark-Pick-up
This window is not displayed when the multi-functional head is selected.

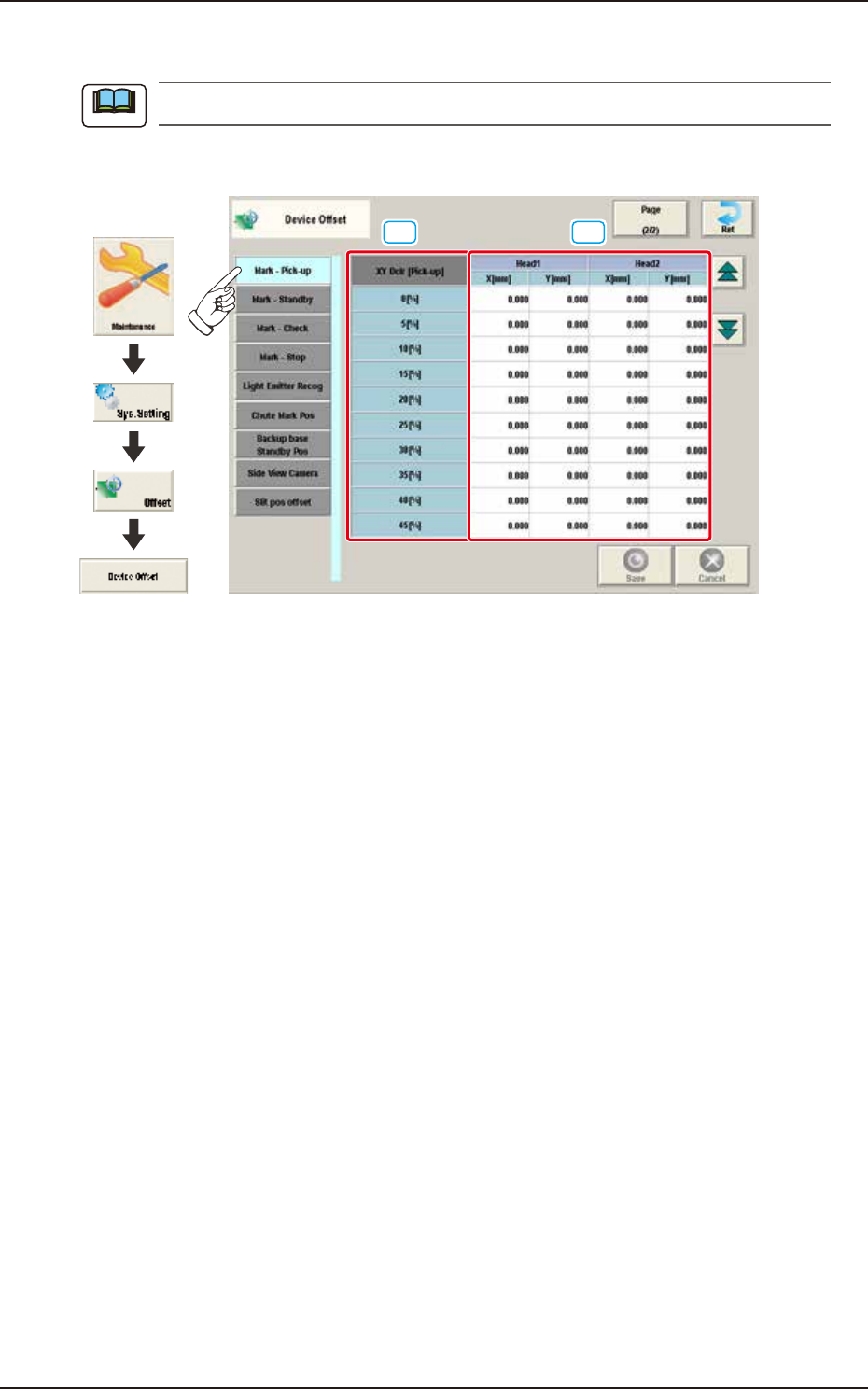

Pressing the [Mark-Pick-up] tab on the "Device Offset" window displays the following window.
[1] [2]
Graphic
Development
F3B15A
[1] XY Dclr [Pick-up]
0 [%] to 45 [%]
The XY speed reduction rate is displayed in these data boxes.
[2] Head 1 / 2
X [mm] / Y [mm]
The deviation for the head X, Y when the head is moved from the reference mark to the pick-up
position, is corrected based on the XY speed reduction rate.
Note
