EUKYX
2-57199-3100
3.1 Auto Ope. Set-up
3.1 Auto Ope. Set-up
Pressing the [Auto Ope Set-up] tab on the "Auto Operation" window displays the following window.
Graphic
Development
[1]
[2]
[3]
F3B72A
[1] Set-up Change Button
The window is changed over from "Set-up 1", "Set-up 2", or "Set-up 3".
[2] Init Value Button
When this button is pressed, the auto operation set-up is initialized.
[3] [Apply] button
When this button is pressed, the input data is applied.
[Cancel] button
When this button is pressed, the input data is cancelled and the window returns to the save data.
EUKYX
2-58199-3100
3.1 Auto Ope. Set-up

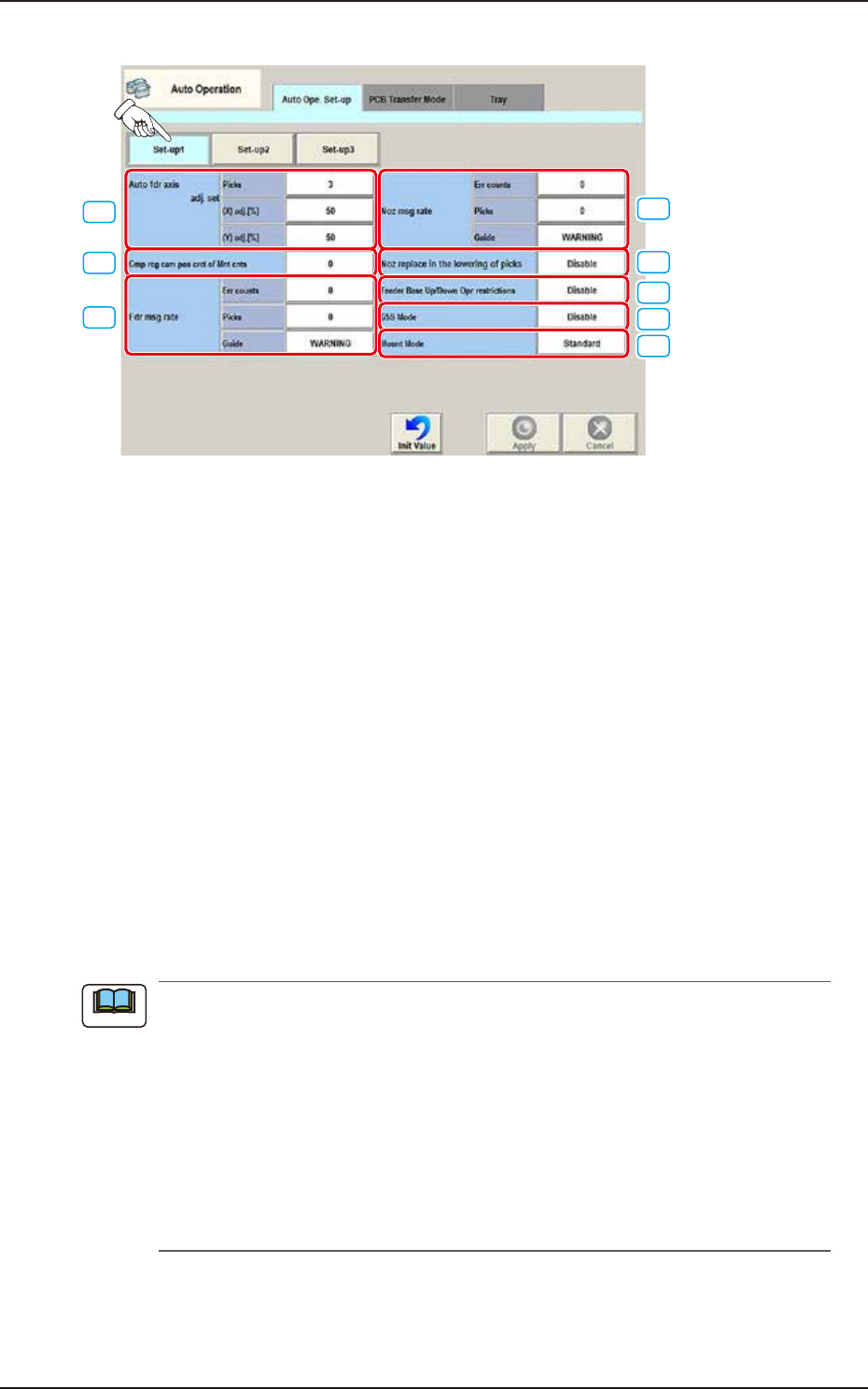

• Set-up 1
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
F3B73A
[1] Auto fdr axis adj. set
picks [times]
Set the total number of collected samples when data is updated or changed.
(X) adj. [%]
Set the feedback coefficient of mean of X-direction deviation in this data box.
Set Value Range: 10 to 90
(Y) adj. [%]
Set the feedback coefficient of mean of Y-direction deviation in this data box.
Set Value Range: 10 to 90
[2] Cmp rcg cam pos crct of Mnt cnts [times]
Press the value to display the “Ten-key Input” window and enter one of the following values.
“0” : No automatic correction operation is performed for each number of
components to be placed.
“1” to “9999” : Correction is made according to the specified number of components to
be placed.
(a) When “1” to “9999” is set in the “Cmp rcg cam pos crct of Mnt cnts” box, the corrective
actions take place automatically before the PCB is transferred to the PCB positioning
section and the component recognition operation is performed.
(b) When the number of components (components to be placed on a production PCB) per
beam is smaller than the set number of components, the corrective actions do not take
place in the middle of placement operation.
Because the internal counter for interval monitoring is cleared through the above-
described corrective actions (the actions which take place during PCB positioning), no
corrective actions take place in compliance with the number of components to be placed
on several PCBs.
Note
EUKYX
2-59199-3100
3.1 Auto Ope. Set-up
[3] Fdr msg rate
Err counts [times], pick [times]
Set the parameters to show the feeder slot No. (Fdr. No.) of the tape feeder whose pickup rate has
deteriorated during automatic operation. When the number of picks has reached the specified
value, the parameter in the "Error counts" text box is cleared.
The number of picks and pick-up errors is managed for each individual feeders but the
parameters of "Error counts" and "# of picks" is equally reflected on every feeder.
Guide
"WARNING", "Stop (Cycle stop), or "Pause" can be selected to determine in which mode the
machine should be set when the number of pickup errors has reached the specified error counts
before the number of picks reaches the specified number of picks. When "Warning" is selected, a
warning message is issued as machine information. "Stop (Cycle stop)" stops the machine after one
cycle of operation and "Pause" sets the machine in the "PAUSE" mode.
When both "Error counts" and "# of picks" are set "0" (zero) or "Error counts" is set to a
number larger than "# of picks", no warning message is issued.
[4] Fdr(Noz) msg rate
Err counts [times], pick [times]
Error counts and # of picks [times] Set the parameters to show the nozzle No. whose pickup rate
has deteriorated during automatic operation.
When the number of picks has reached the specified value, the parameter in the “Error counts” text
box is cleared.
The number of picks and pick-up errors is managed for each individual nozzles but the
parameters of “Error counts” and “# of picks” is equally reflected on every nozzle.
Guide
“WARNING”, “Stop (Cycle stop), or “Pause” can be selected to determine in which mode the
machine should be set when the number of pickup errors has reached the specified error counts
before the number of picks reaches the specified number of picks. When “WARNING” is selected,
a warning message is issued as machine information. “Stop (Cycle stop)” stops the machine after
one cycle of operation and “Pause” sets the machine in the “PAUSE” mode.
When both “Error counts” and “# of picks” are set “0” (zero) or “Error counts” is set to a
number larger than “# of picks”, no warning message is issued.
