EUKYX
1-95199-3100
7.3 Upkeep
[5] Total Comp
The total quantity of components actually picked up in the machine after the practice date is
displayed in these data boxes.
When the value of the total quantity of components reaches the value set in [7], the background
color turns to pink.
When the setting is performed using the NT-100 system software, the display of "Total Comp"
parameter is updated to "0".
[6] End Day
The end day is displayed as the date with the shortest period from the point when the practice date
is set referring to the current operation dates in these data boxes.
[7] Term, Days, Total
For the "Upkeep", unlike the oiling check with specified maintenance timing, maintenance with
timing that depends on machine use condition is performed.
As for conditions for issuing the maintenance warning message, the parameters for the operation
days and quantity of picked up components are displayed.
When the value reaches either of the parameters for the above two set conditions, the warning
message is issued.
The operation time period in "Days" data box is displayed as "1 day (24 hours)", "7 days (7 ×
24 hours)", "1 month (30 × 24 hours)".
Note
EUKYX
1-96199-3100
7.4 Design
7.4 Design

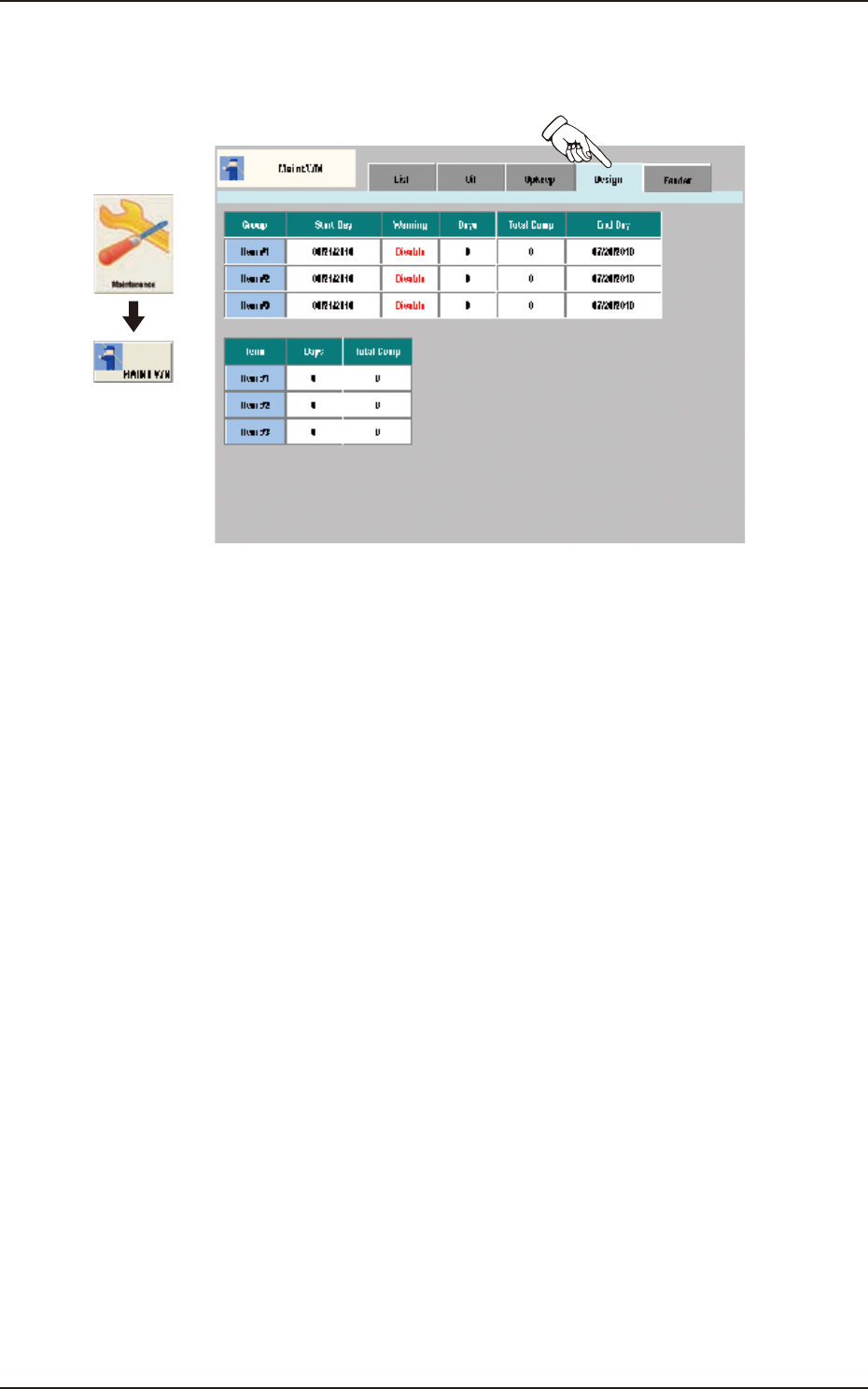

When the [Design] tab is pressed on the "Maint.WM" window, the following tab sheet appears.
Graphic
Development
F3A89
The corresponding tab sheet enables the operator to display the setting status and present status for
the additionally set maintenance check-up items (Maintenance 1, Maintenance 2 or Maintenance 3
for maintenance announcements.)
EUKYX
1-97199-3100
7.5 Feeder
7.5 Feeder

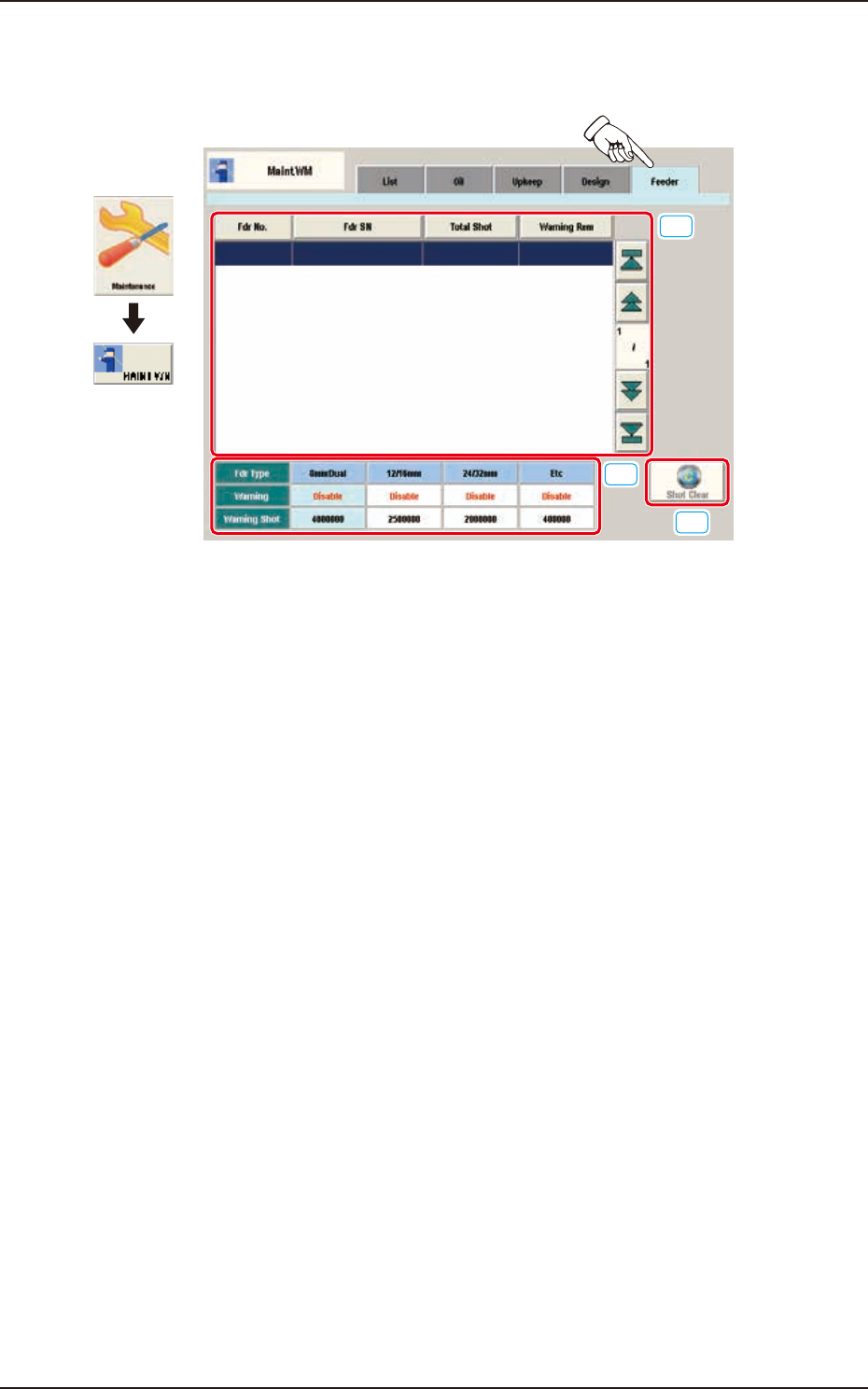

When the [Feeder] tab is pressed on the "Maint.WM" window, the following tab sheet appears.
Graphic
Development
[3]
[2]
[1]
F3A90
[1] Present Status Display Section
Fdr No.
The feeder No. is displayed in this section.
Fdr SN
The feeder serial No. is displayed in this section.
Total Shot
The current No. of shots is displayed in this section.
Warning Rem
The No. of remaining shots until the announcement is issued, which has been set using the
NT-100 system software, is displayed in this section.
[2] Setting Status Display Section
The values set using the NT-100 system software, are displayed in this section.
[3] [Shot Clear] Button
Using this button, the current No. of shots is cleared.
After performing maintenance, press this button.
