EUKYX
2-13199-3100
2.1 Device Offset
2.1.14 Light Emitter Recog
This window is not displayed when the multi-functional head is selected.

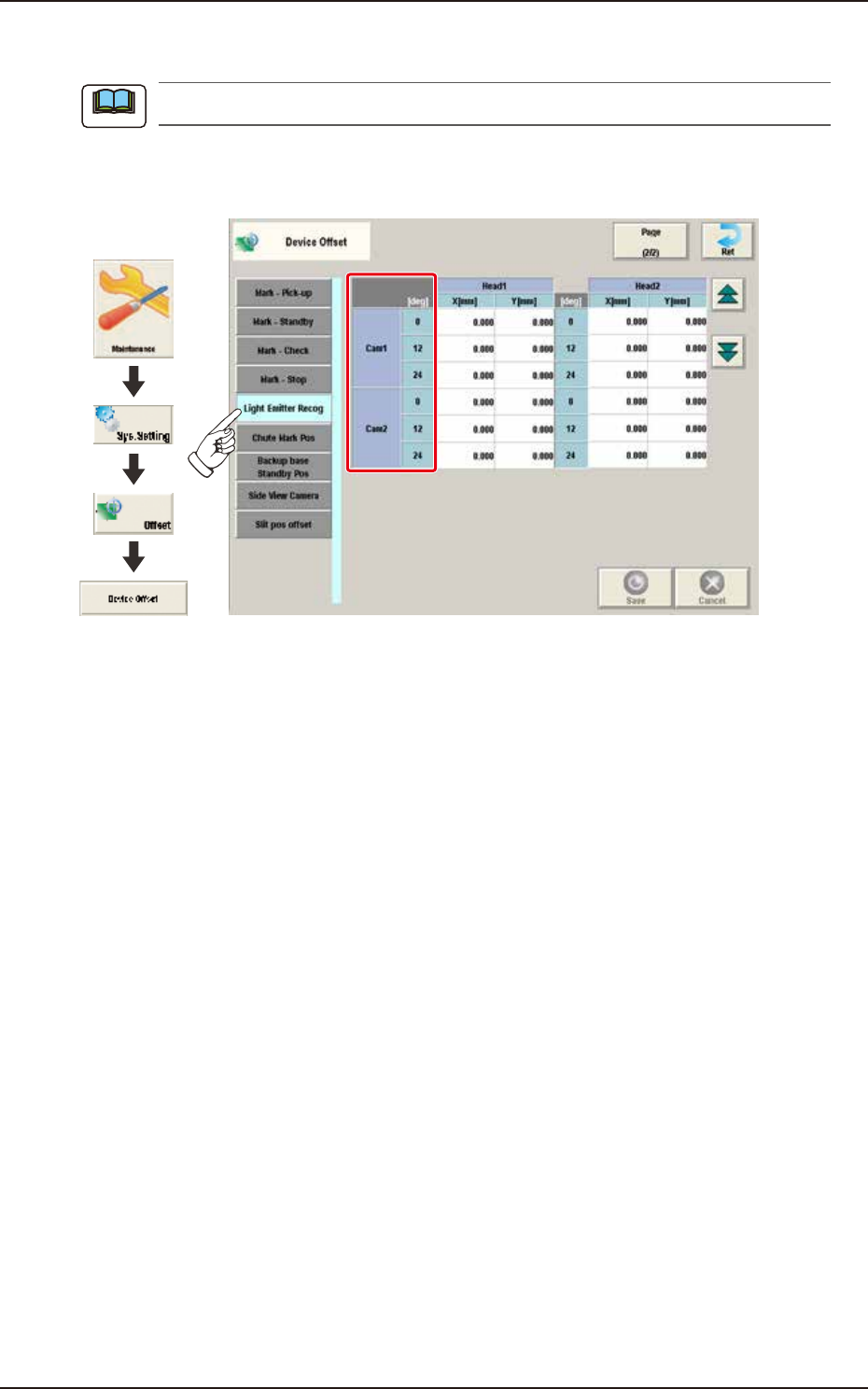

Pressing the [Light Emitter Recog] tab on the "Device Offset" window displays the following
window.
Graphic
Development
F3B19A
Cam 1 / 2
The offsets for the Heads 1 and 2 based on each camera position, are displayed in the units of 12
degrees".
Note
EUKYX
2-14199-3100
2.1 Device Offset
2.1.15 Chute Mark Pos

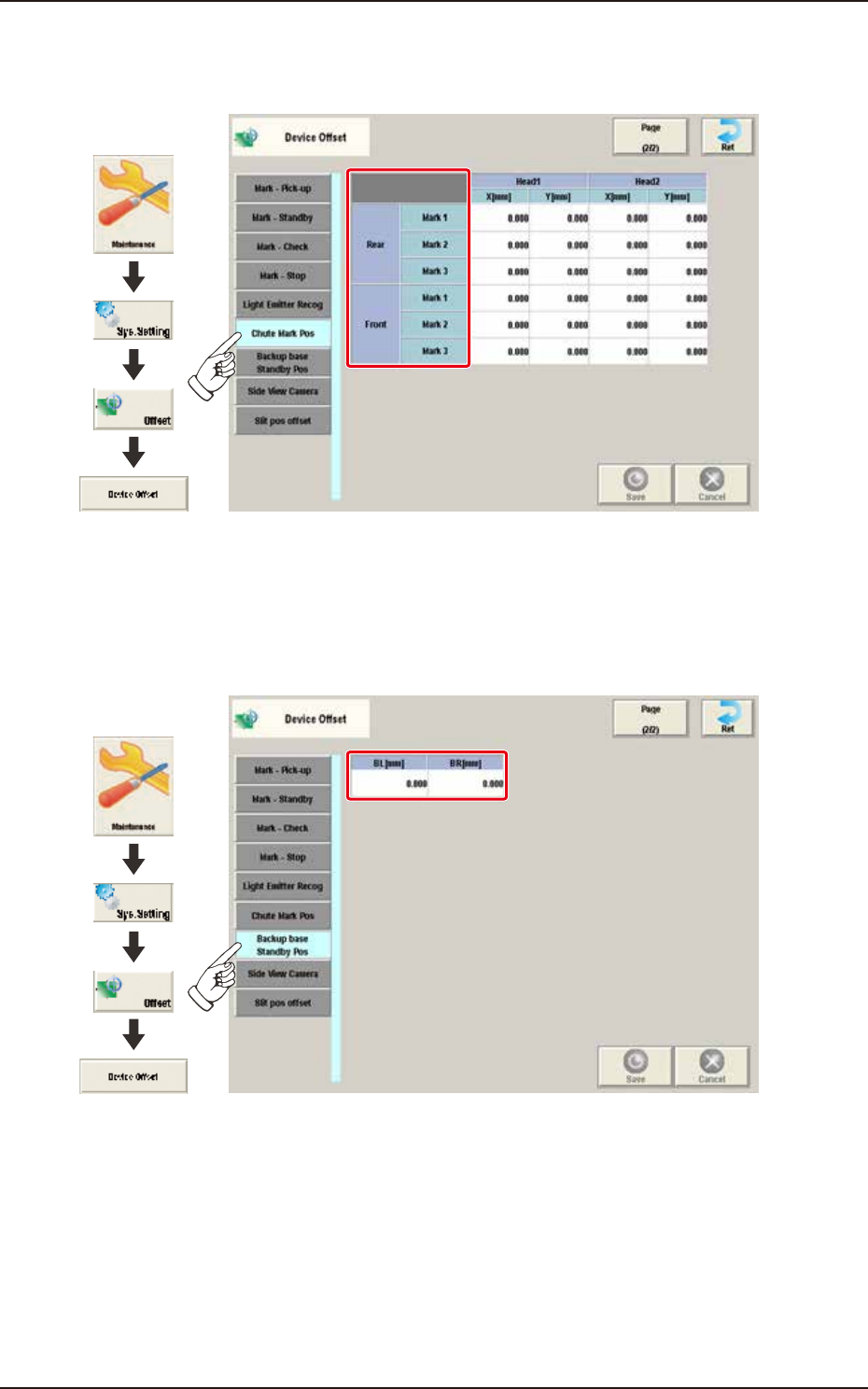

Pressing the [Chute Mark Pos] tab on the "Device Offset" window displays the following window.
Graphic
Development
F3B20A
2.1.16 Backup Base Standby Pos
Pressing the [Backup Base Standby Pos] tab on the "Device Offset" window displays the following
window.
Graphic
Development
F3B21A
EUKYX
2-15199-3100
2.1 Device Offset
2.1.17 Side View Camera

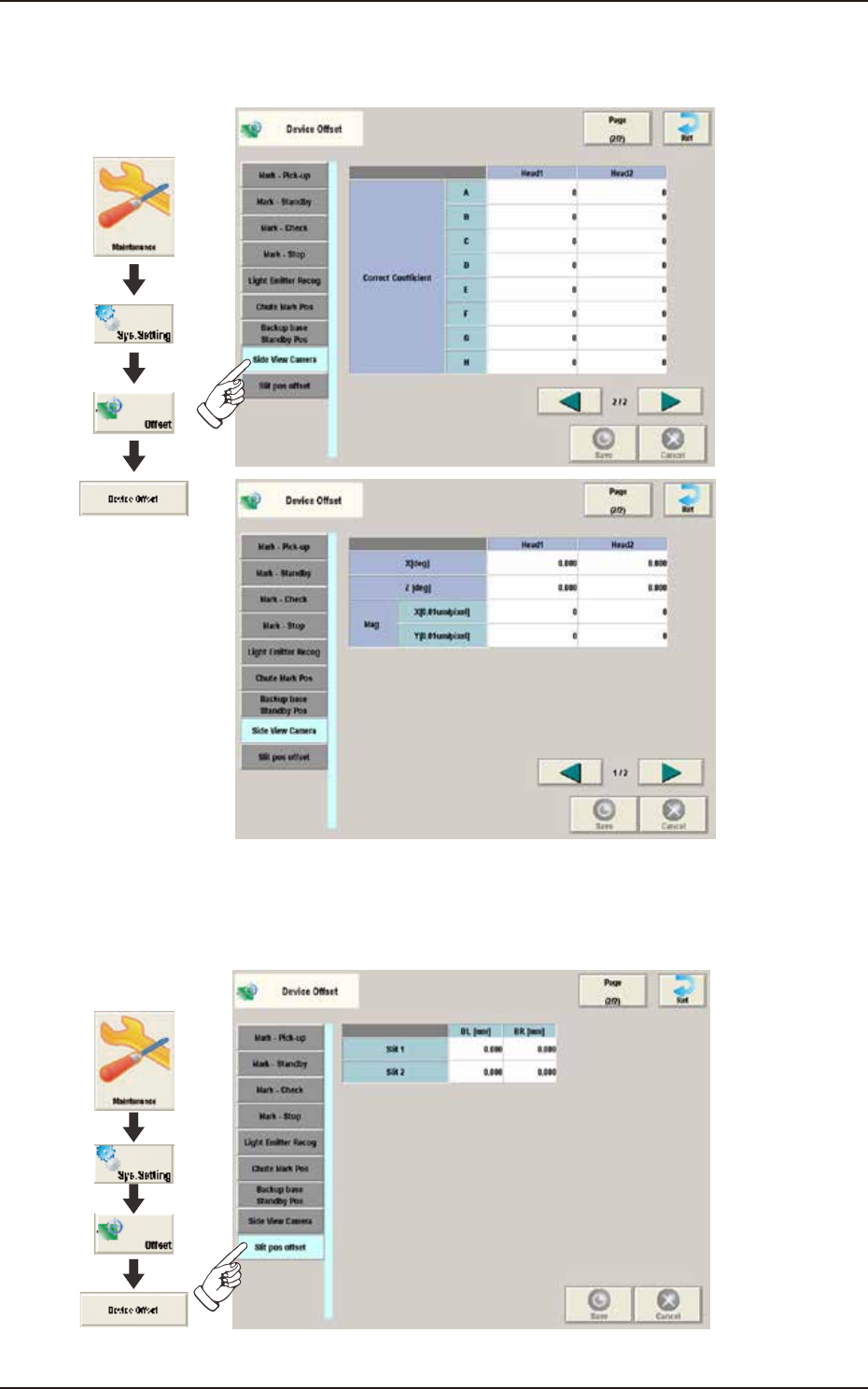

Pressing the [Side View Camera] tab on the "Device Offset" window displays the following window.
Graphic
Development
F3B90A
2.1.18 Slit Pos Offset
Pressing the [Slit Pos Offset] tab on the "Device Offset" window displays the following window.
Graphic
Development
F3B91A
