EUKYX 2-77 199-3100 4.4 Data & Time 4.4 Data & Time The system cl o ck (y ear , month, da y , hours, mi nutes, a nd seconds) can be adju sted and a time z one can b e sele c ted. Graphic Development [1] [2] [3] […

EUKYX

2-76199-3100

4.3 Light Tower Alarm

[6] [

▲

], [

▼

] Button

Pressing these buttons scrolls the data item.

[7] Init Value

Return the parameters for the Light Tower and Alarm Sound to the initial values.

The initial values are as follows.

F3B84A

EUKYX

2-77199-3100

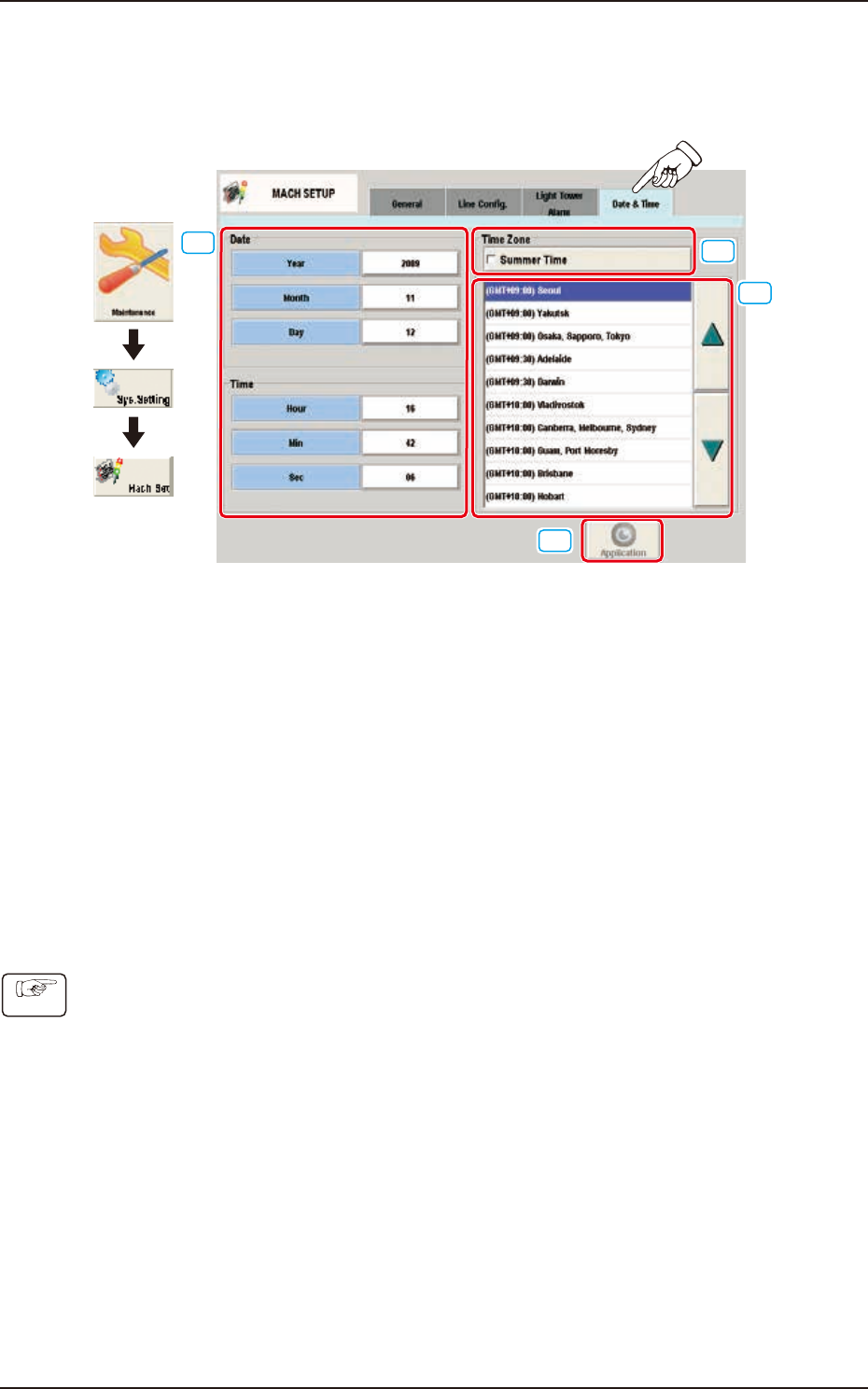

4.4 Data & Time

The system clock (year, month, day, hours, minutes, and seconds) can be adjusted and a time zone

can be selected.

Graphic

Development

[1]

[2]

[3]

[4]

F3B85

[1] Edit Buttons

The buttons to open the input window for Year, Month, Day, Hour, Min, and Sec are arranged.

[2] "Summer Time" Check Box

Tick this button to specify the summer time. A check mark appears inside the box, indicating that

the summer time is selected.

[3] "Time Zone" List

Select the proper time zone from this list.

[4] [Application] button

The data adjusted with the edit buttons is confirmed and set in the machine by means of this

button.

• How to specify the date and time

(1) When the [Year] button is pressed, the “Year” edit window opens.

(2) Enter a year in the entry field of the “Year” edit window and press the [Set] button.

The entered year appears in the corresponding text box.

(3) Follow the same procedure to specify a month, a day, hours, minutes, and seconds.

(4) Select the proper time zone from the “Time Zone” list pane.

(5) When the [Application] button is pressed, the settings are determined.

Procedure

EUKYX

2-78199-3100

5. Password Setting

Pressing the [Sys. Setting] - [Password] buttons displays the following window.

5.1 Password

The password can be set according to the user authority on the following window.

[1]

[2]

[3]

Graphic

Development

F3B86

[1] Supervisor

A password can be set in this group box for the user who has the scope of authority as "Supervisor".

[2] Operator #1

A password can be set in this group box for the user who has the scope of authority as "Operator #1".

[3] Mng. Dt. Clear the Type #1

Mng. Dt. Clear the Type #2

A password can be set in this group box for the user who has the scope of authority for clearing the

management data type 1 and type 2 (totalization data).
