EUKYX
1-65199-3100

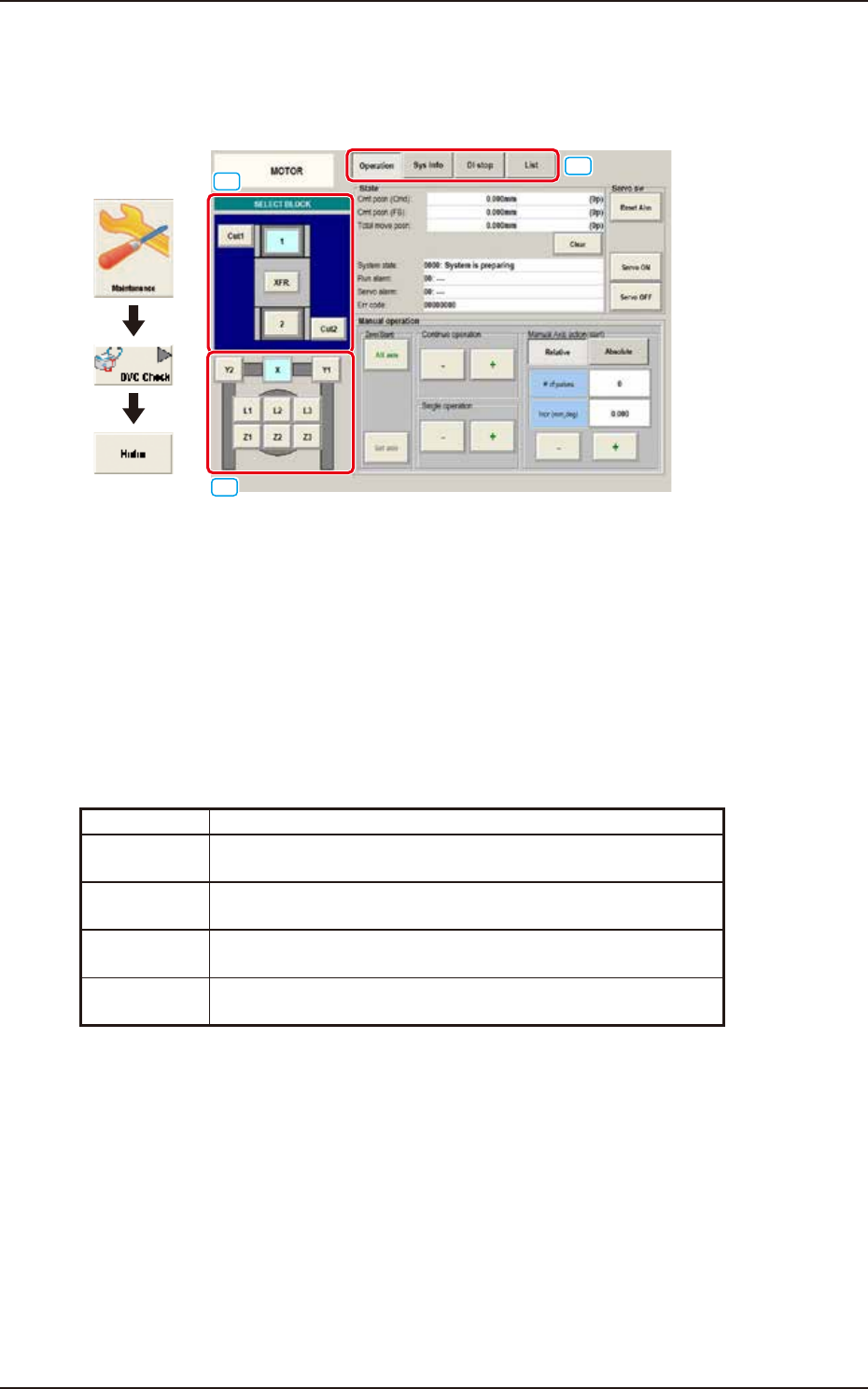

6.2 MOTOR
6.2 MOTOR
This window enables you to perform a manual operation (inching) of each unit and view the current
system information.
Graphic
Development
[1]
[2]
[3]
F3A53A
[1] SELECT BLOCK Buttons
Press 1 or 2 button to display the desired block.
The indication of the "[2] Unit Select Buttons" varies depending on the selected block.
[2] Unit Selection Buttons
Arranged are the unit buttons for the block selected with a block selection button. When a button
is pressed, the corresponding unit is selected.
[3] Display Change Buttons
Pressing any of these buttons, displays the corresponding window.
The description of each window is as follows.
Button Description
Operation The corresponding window enables you to perform a manual
operation (inching) of each unit.
Sys Info The corresponding window enables you to view the current system
information of the machine.
DI stop The corresponding window enables you to view the machine
monitor and parameters.
List The corresponding window enables you to view the status of each
section.
EUKYX
1-66199-3100
6.2 MOTOR
6.2.1 Operation
Pressing the [Operation] button on the "MOTOR" window displays the "Operation" window. The
manual operation (inching) for each unit is available.
[1]
[2]
[3]
[4]
Graphic
Development
F3A54A
[1] "State" Group Box
The following information is displayed.
Crnt posn (Cmd) / Crnt posn (FB) / Total move posn / System state / Run alarm / Servo alarm /
Err code
[2] "Servo sw" Group Box
The following buttons are provided.
[Reset Alm] Button : Resets the alarm to its normal condition.
[Servo ON] Button : Turns on the servomotor.
[Servo OFF] Button : Turns off the servomotor.
EUKYX
1-67199-3100
6.2 MOTOR
[3] "Manual operation" Group Box
The following operation buttons are arranged.
"Continue operation" Group Box
Press either the [+] or the [-] button to specify the direction of manual axis operation for the
unit.
"Single operation" Group Box
Press either the [+] or the [-] button to specify the direction of manual axis operation for the
unit.
"Zero (Start)" Group Box
[All axis] Button : Zeroes all axes.
[Sel axis] Button : Zeroes the axis selected by the unit selection buttons.
[4] "Manual Axis action (start)" Group Box
One of the following buttons can be selected to determine whether the manual axis action should
take place based on the relative or the absolute value.
[Relative] Button
When pressed, this button displays the relative values in the "# of pulses" and "Incr (mm, deg)" text
boxes for the selected unit.
When the [# of pulses] and [Incr (mm, deg)] buttons are pressed, the corresponding data entry
window opens.
When a numerical value is entered and the [Set] button is pressed, the entered numerical value is
set in the corresponding text box.
The [+] or the [-] button can be used to determine the direction of the manual axis (inching)
movement for the selected unit.
F3A55
[Absolute] Button
When pressed, this button displays the absolute values in the "# of pulses" and "Pos (mm, deg)" text
boxes for the selected unit.
When the [# of pulses] and [Pos (mm, deg)] buttons are pressed, the corresponding data entry
window opens.
When a numerical value is entered and the [Set] button is pressed, the entered numerical value is
set in the corresponding text box.
When the [START] button on the operation panel is pressed within 10 seconds after the [ON]
button, the selected axis is shifted to the specified position.
F3A56
