EUKYX

1-33199-3100

5.5 PCB Recog Light

[3] [Light Pt] button

The camera 1 or camera 2 lighting pattern is selected from the following items.

ALL : When selected, the teaching for the ring-lamp or coaxial lamp is performed.

RING : When selected, the teaching for the ring-lamp is performed.

COAX : When selected, the teaching for the coaxial lamp is performed.

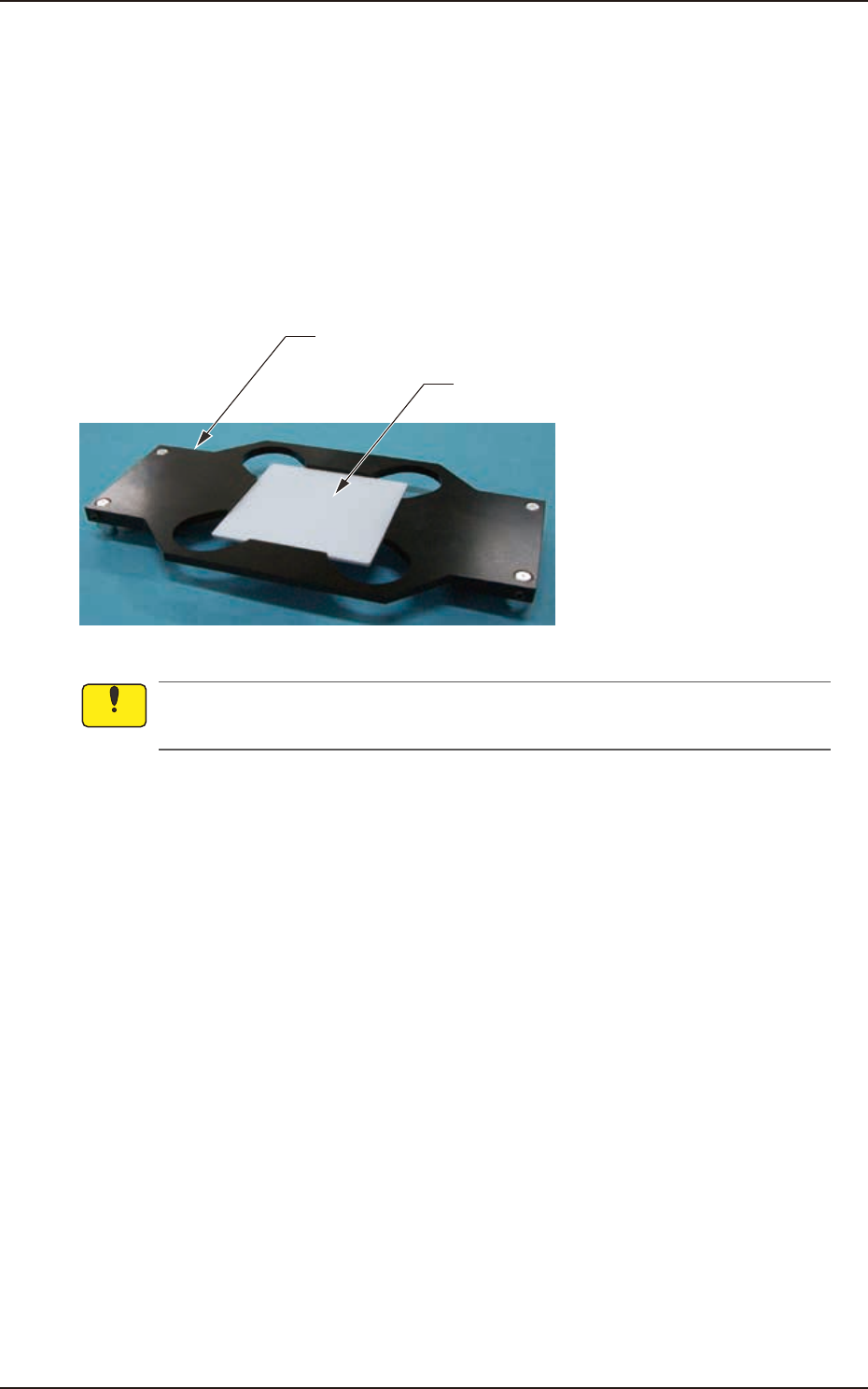

• Teaching Jig for PEC Recognition Camera Lighting

The following jigs are used for the teaching on the PEC recognition camera lighting. Before the

teaching, combine the jig with the teaching glass jig mounting support jig and place it on the PEC

recognition camera. After the teaching operation, remove it.

Teaching Glass Jig Mounting Support Jig

Teaching Glass Jig

(JG-0287,KYF-M8840-00)

(JG-0286,KYF-M8830-00)

F3A31

Set-up the teaching glass jig mounting support jig securely so that it does not rise. If the

mounting condition is not satisfactory, the head, etc., might be damaged.

Notice

EUKYX

1-34199-3100

5.5 PCB Recog Light

• Teaching Procedure

Before performing the teaching operation, press the [ZERO] button in the "Control" menu to

zero all axes.

(1) Select the camera for which the teaching is performed in the "Select Camera" section.

(2) Select the block where the jib is setup in the "Select Jig" section.

(3) Press the [Beam Evac Move] button and within 10 seconds, press the [START] button on the

operation panel.

The cover is unlocked automatically.

(4) Open the cover. Turn up the white side of the teaching glass jig and set up the PEC

recognition lighting teaching jig on the PEC recognition camera.

(5) Press the [Jig Set Conf] button.

(6) Close the cover.

(7) Press the [Teach Start] button. (The PEC recognition camera will move onto the PEC

recognition lighting teaching jig to perform the teaching operation on lighting.)

(8) Press the [Beam Evac Move] button and within 10 seconds, press the [START] button on the

operation panel.

The cover is unlocked automatically.

(9) Open the cover of relevant block.

(10) Remove the setup PEC recognition lighting teaching jig.

Unless the lighting teaching jigs are removed, the head would be damaged.

(11) Close the cover.

(12) Press the [Save] button to save the teaching results.

Note

Procedure

Note

Notice

EUKYX

1-35199-3100

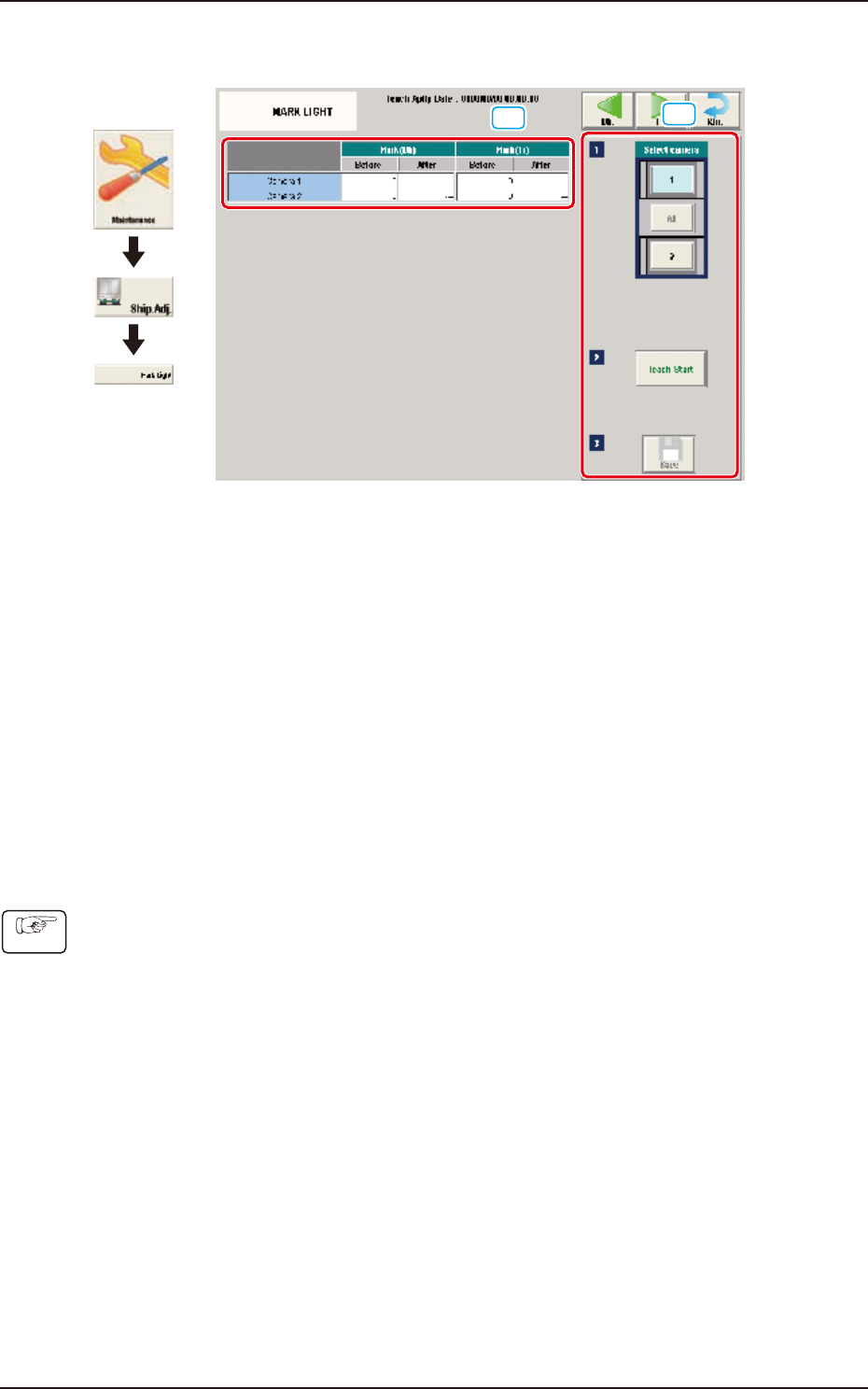

5.6 MARK LIGHT

[1]

[2]

Graphic

Development

F3A32

[1] Teaching Data Display Section

Displayed are the offset data items for each reference mark for the designated camera.

[2] Teaching procedures section

The following buttons are arranged in teaching procedures section.

Select camera

Selects the camera in the block to be taught.

[Teach Start] button

Starts the teaching.

[Save] button

The teaching results are saved.

• Teaching Procedure

(1) Select the component recognition camera for which the teaching is performed, in the

"Select Camera" section.

(2) Press the [Teach Start] button. (In a single teaching operation, the marks in the rear and

front of the designated component recognition camera are taught one by one).

(3) Press the [Save] button.

Procedure
