EUKYX
1-18199-3100
4.2 SIDE VIEW CAMERA
4.2.2 Img list
[1]
[2]
[3]
Graphic
Development
F3A17A
[1] The image display section
The images by nozzle appear after the detection test.
[2] Scroll buttons
Scrolls the displayed images.
[3] [Capture Img.] button
Displays the images after the detection test on "[1] The image display section".
EUKYX
1-19199-3100
4.3 CONVEYOR
4.3 CONVEYOR
This button adjusts the conveyor width overall setup or manual setup.
Graphic
Development
F3A19
Tabs
The "CONVEYOR" Window is provided with the following two tabs.
When each tab is pressed, the corresponding tab sheet appears.
Tab Description
Conveyor The tab sheet for the conveyor operation is displayed.
PCB Stpr. The tab sheet for the PCB stopper operation is displayed.
EUKYX
1-20199-3100
4.3 CONVEYOR

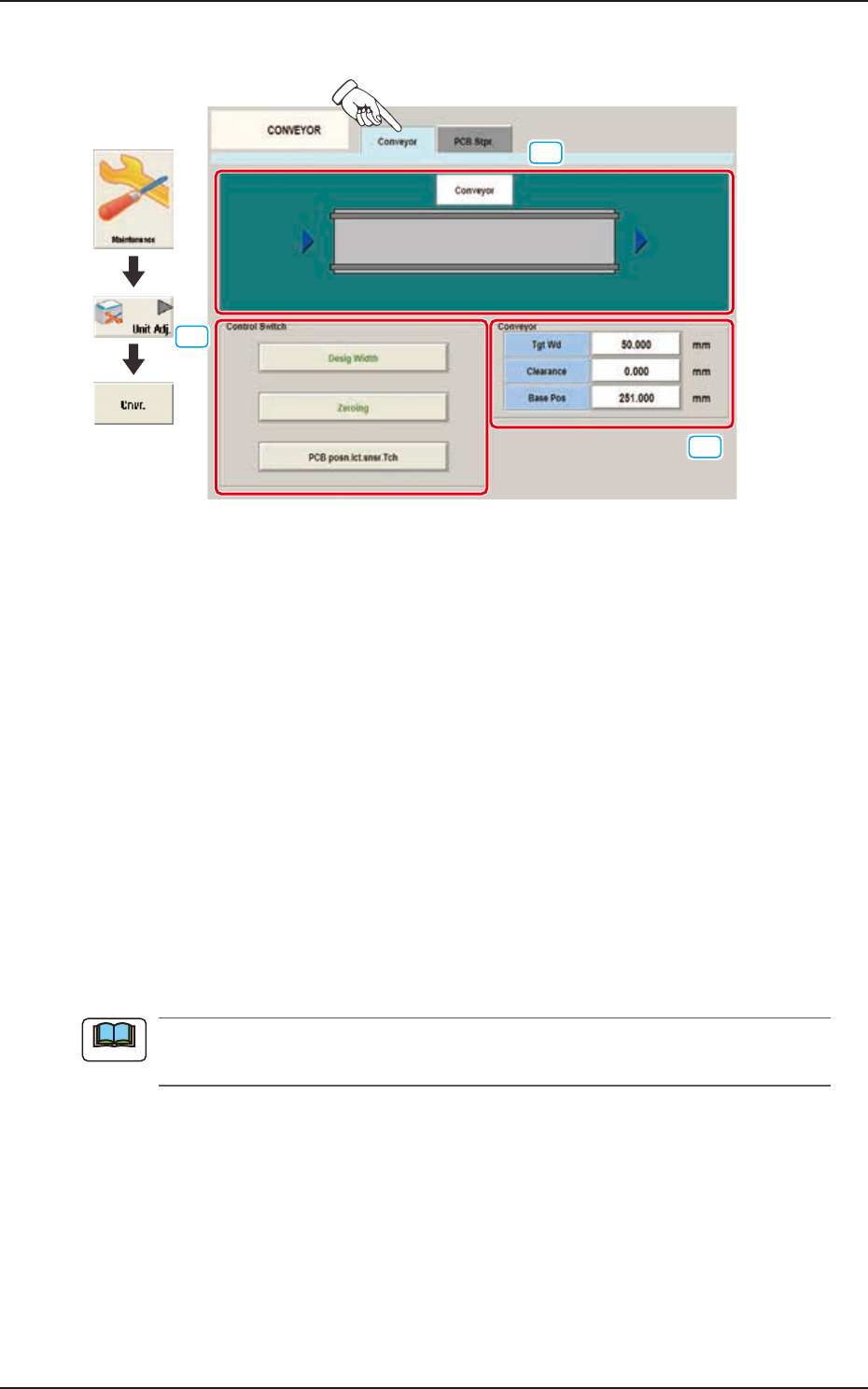

4.3.1 Conveyor
[1]
[2]
[3]
Graphic
Development
F3A20
[1] Conveyor Display Section
The conveyor image is displayed in this section.
[2] Control Switch
These buttons are arranged to perform the following setup operations. When any button is
selected, the background color of the selected button turns green.
[Desig Width] Button
When each value for "Tgt Wd", "Clearance" and "Base Pos" are set and the [START] button
on the operation panel is pressed within 10 seconds after pressing this button, the target
position movement is performed.
[Zeroing] Button
When the [START] button on the operation panel is pressed, within 10 seconds after pressing
this button, the conveyor zeroing operation is performed.
[PCB posn.lct.snsr.Tch] Button
When this button is pressed, the teaching operation for the PCB positioning detection sensor
is performed based on the current conveyor width.
When there is a PCB on the conveyor, accurate teaching is not available. Make sure that there
is no PCB on the conveyor and press this button to perform the teaching operation.
Note
