EUKYX
2-29199-3100
2.5 Head

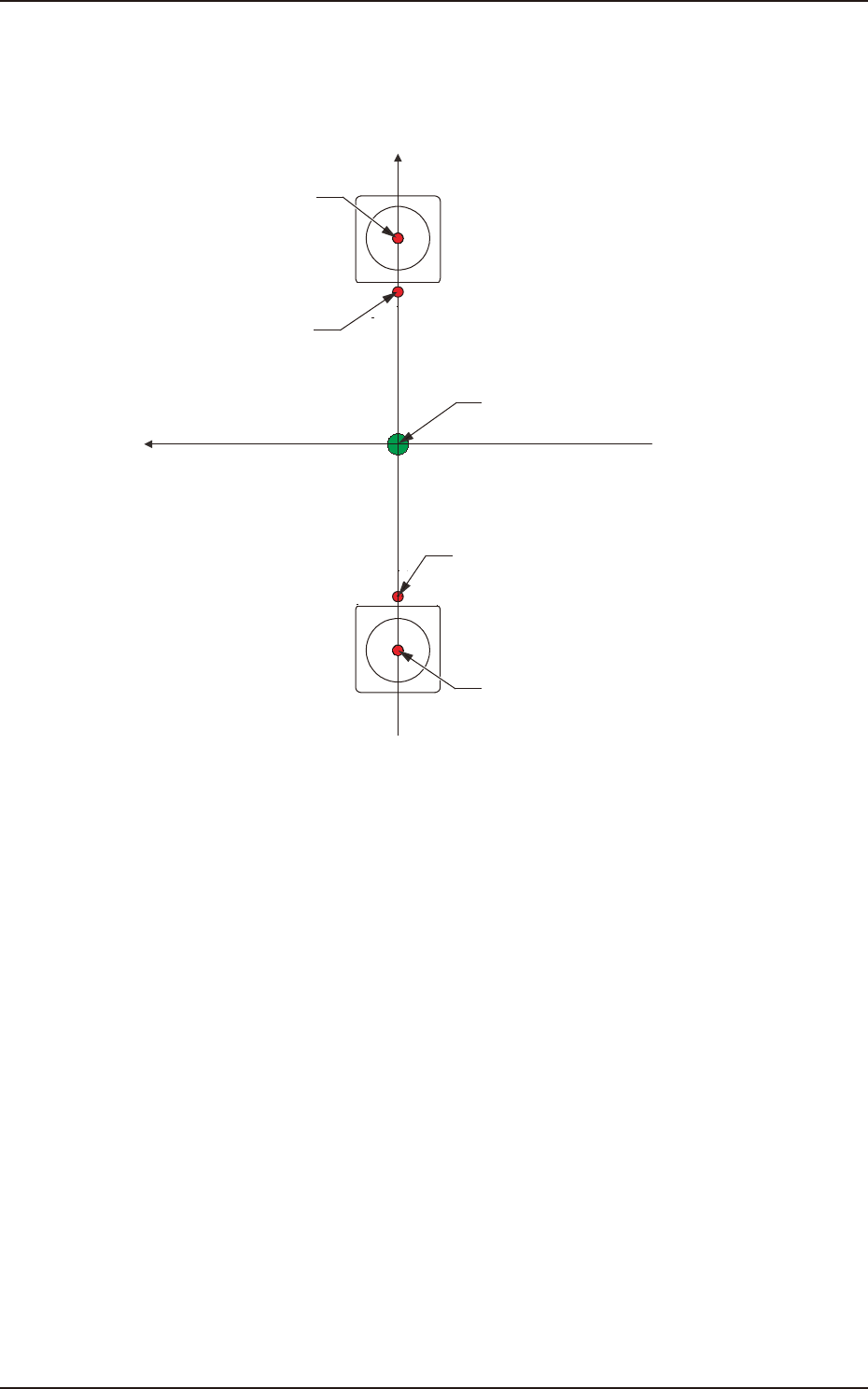

[3] Head Pivot Point
The set parameters are used to adjust the deviations in the design value between the head rotational
center and the center of the PEC recognition camera.
Xm-Ym :
Xm(+)
Ym(+)
Head Pivot Point
Center of PEC Recognition
Camera
Pm. Machine Reference
Coordinate Origin
Center of PEC Recognition Camera
Head Pivot Point
Machine Reference
Coordinate System
F3B38
EUKYX
2-30199-3100
2.5 Head

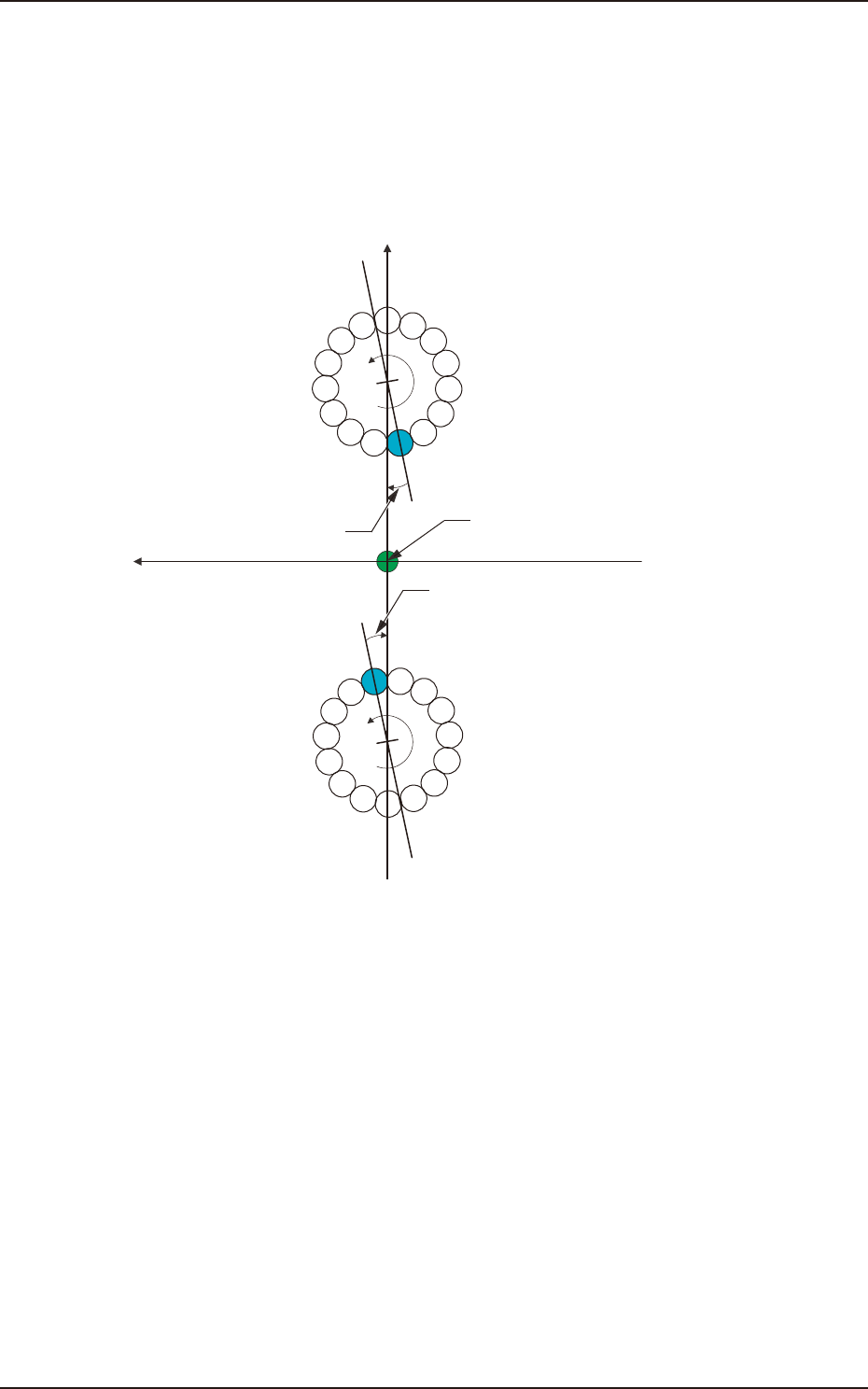

[4] Hd TurnAng. Axis
The set parameters are used to adjust the angular deviation of the line connecting the center of
Nozzle No. 1 and the position between the Nozzle Nos. 8 and 9 at the head rotational Z-phase
position based on the machine coordinate reference.
When the line connecting the center of Nozzle No. 1 and the position between the Nozzle Nos. 8
and 9 at the head rotational Z-phase position, is tilted clockwise in the machine reference X/Y
coordinate system, a plus sign must be affixed to the offset value.
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
Xm(+)
Ym(+)
DD Motor Z-Phase
Stop Position
DD Motor Z-Phase
Stop Position
DD (+)
DD (+)
Head Rotational Angle Offset
Head Rotational Angle Offset
Pm. Machine Reference
Coordinate Origin
Xm-Ym : Machine Reference
Coordinate System
F3B39
[5] NL Origin
The set parameters are used to correct the deviations between the nozzle U/D mechanism and the
nozzle roller caused while the NL axis is rotating.
[6] Noz Choice Axis
The set parameters are used to adjust the angular deviations between the head rotational and
nozzle selection axes.
[7] Flow Threshold
These parameters are used to judge the component presence/absence using the multi-functional
head flow sensor.
EUKYX
2-31199-3100
2.5 Head
2.5.7 Vacuum Timing

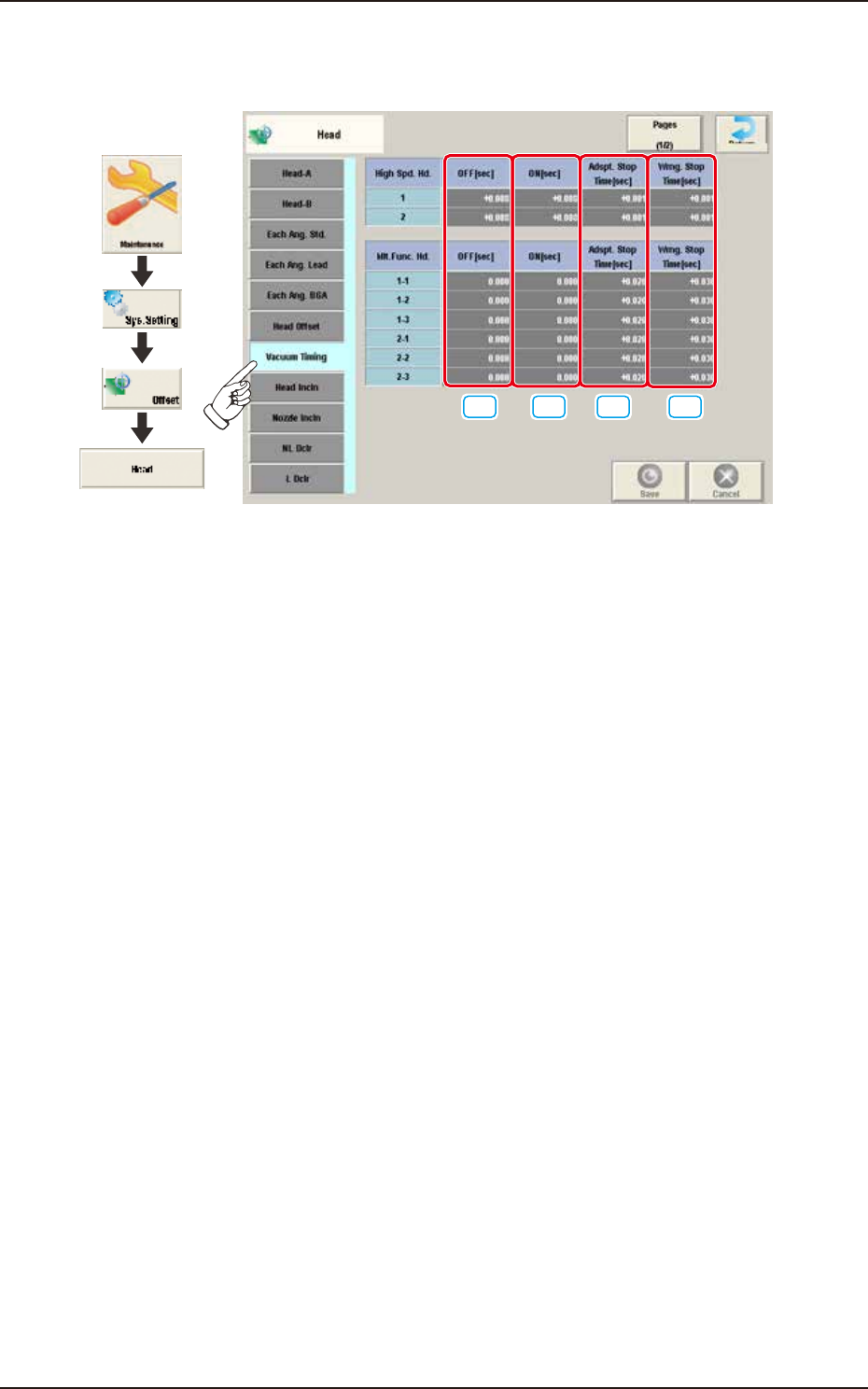

Pressing the [Vacuum Timing] tab on the "Head" window displays the following window.
[1] [2] [3] [4]
Graphic
Development
F3B40A
[1] OFF [sec]
The specified parameter is used to adjust the timing to turn the vacuum off while the NL-axis is
descending for component placement.
When "+0.000" is specified in the "OFF" text box, the vacuum is turned off when the NL-axis has
reached 10 ms away from the bottom arrival point.
Base on the point 10 ms away from the NL-axis bottom arrival point, a plus value in the "OFF" text
box means that the timing to turn off the vacuum will be delayed. A minus value means that the
timing will be quickened.
