EUKYX
1-17199-3100
4.2 SIDE VIEW CAMERA
[3] Speed
The speed reduction rate is selected from the following items.
Full Spd, 10 to 90 Dclr (Selectable by 10%), Cancel
[4] Detection Nozzle Selection
Select the nozzle to be detected.
Individual : Any nozzle can be selected for the detection.
ALL : All nozzles are selected for the detection.
[5] [Accept] Button, [Cancel] Button
[Accept] Button : The contents displayed in [3] to [4] are accepted and the window returns
to the"Dtct. Test" tab sheet.
[Cancel] Button : The changed contents are canceled and the window returns to the"Dtct.
Test" tab sheet.
[6] [Operation] Button
The nozzle detection is performed under the set conditions.
[7] Detection result display section
The nozzle detection result selected in "[8] Measurement result display section" appears.
[8] Measurement result display section
The of the selected nozzle of the head is displayed. The result appears by the detection test.
[9] Base line
[Not Exist] Button : The base line does not appear on the captured image of "[7]
Detection result display section".
[Exist] Button : The base line appears on the captured image of "[7] Detection
result display section".
[10] [Capture Img.] button
The image after the detection test appears on the captured image of "[7] Detection result display
section".
EUKYX
1-18199-3100
4.2 SIDE VIEW CAMERA

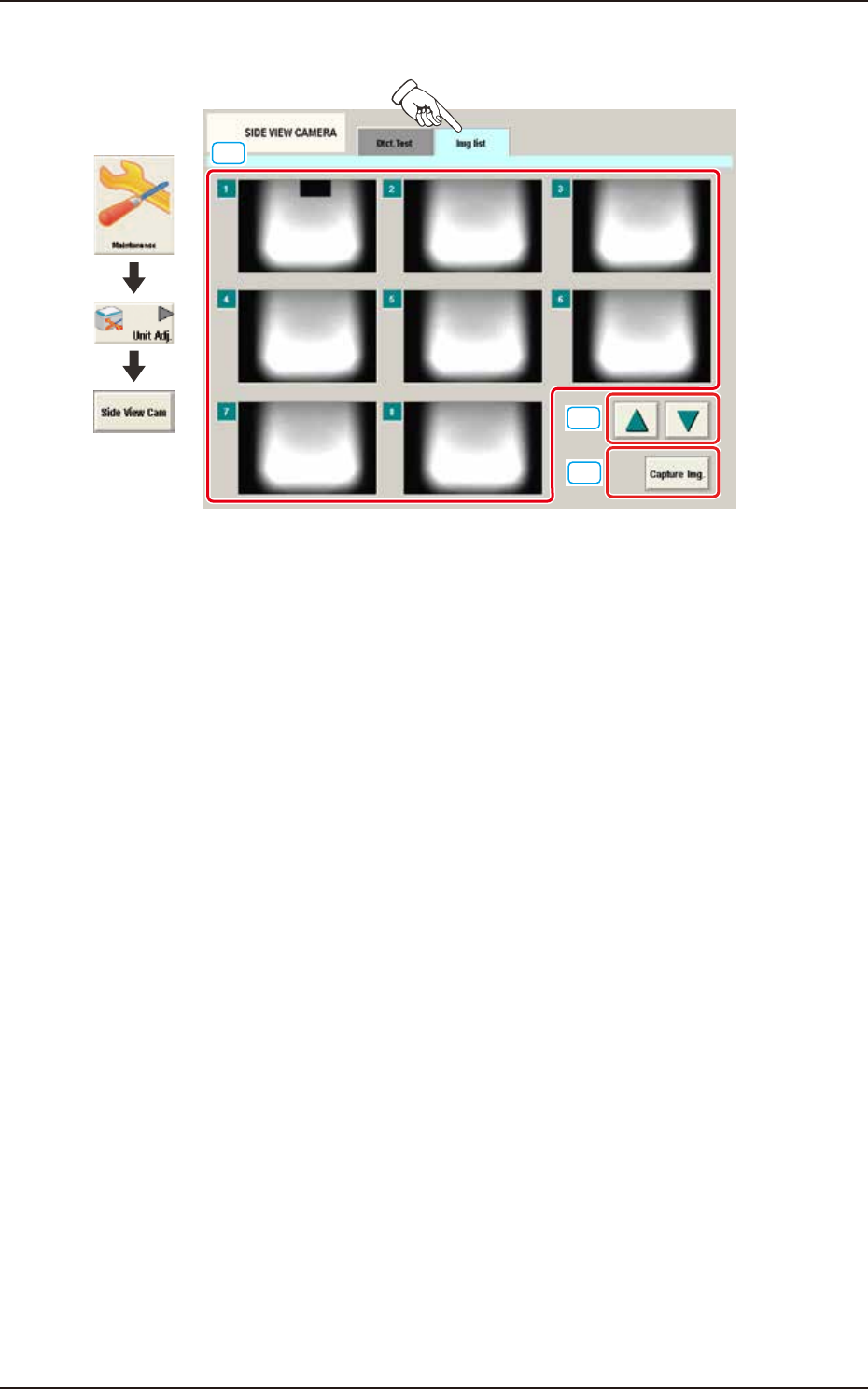

4.2.2 Img list
[1]
[2]
[3]
Graphic
Development
F3A17A
[1] The image display section
The images by nozzle appear after the detection test.
[2] Scroll buttons
Scrolls the displayed images.
[3] [Capture Img.] button
Displays the images after the detection test on "[1] The image display section".
EUKYX
1-19199-3100

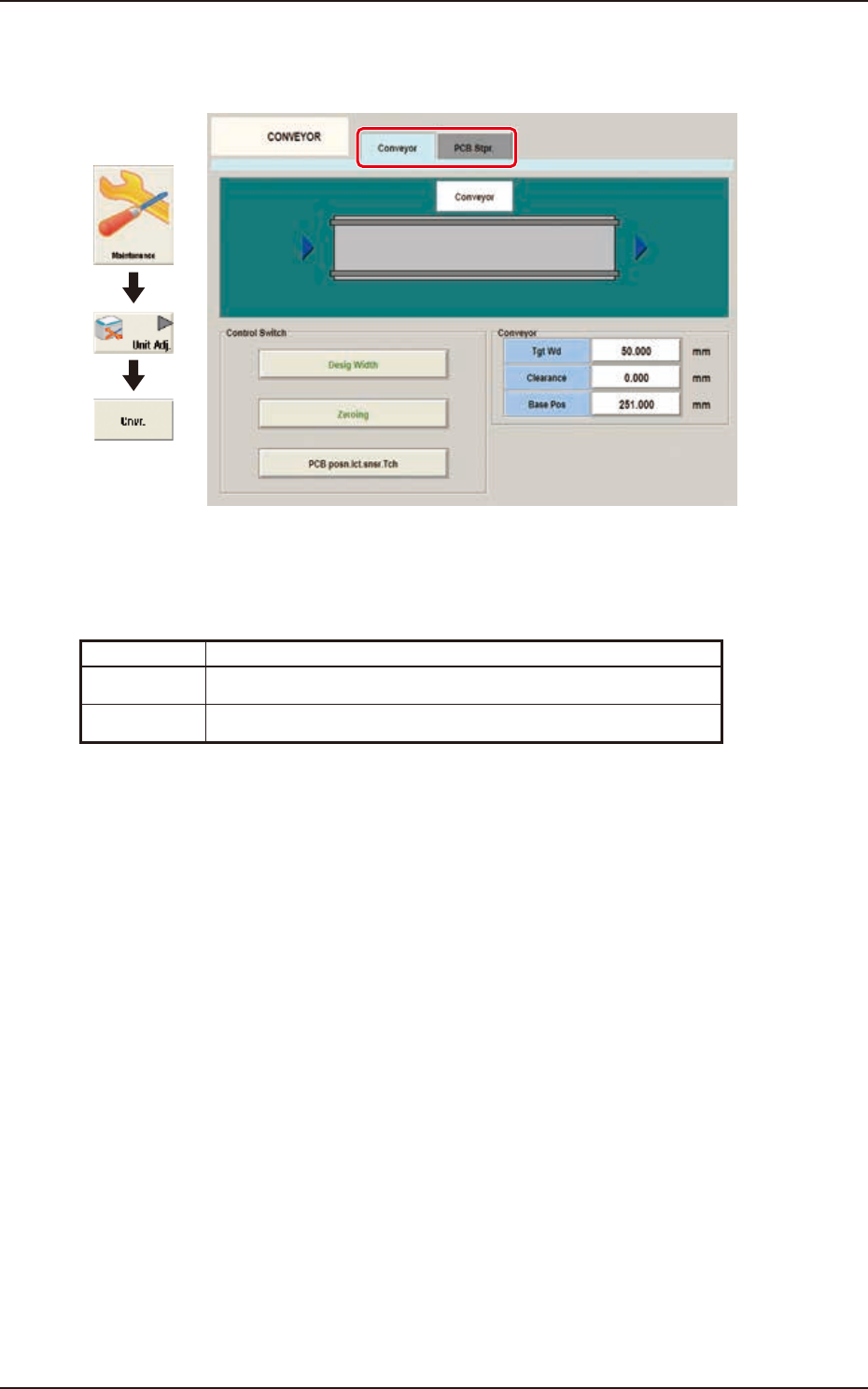

4.3 CONVEYOR
4.3 CONVEYOR
This button adjusts the conveyor width overall setup or manual setup.
Graphic
Development
F3A19
Tabs
The "CONVEYOR" Window is provided with the following two tabs.
When each tab is pressed, the corresponding tab sheet appears.
Tab Description
Conveyor The tab sheet for the conveyor operation is displayed.
PCB Stpr. The tab sheet for the PCB stopper operation is displayed.
