Machine Operation Manual
Revision L /
February 2020
Page 151 of 200
Path Preview
The path preview will give a graphic representation of the path program or segments.
1. Highlight all path segments to be displayed in the preview.
2. Select the
Utilities -> Path Preview
option from the main menu. The path preview
window will display.
Figure 184: Path Preview
3. Right click the path preview window to see a zoom, pan, rotate, coordinate info
menu.
4. Select “Reset” to return the preview to default display.
5. Select “Ok” when you are done.
Recover Main and Recover Project
With the Recover Main and Recover Project features the user can upload the compressed
main or compressed project from the controller.
1. Select
Utilities-> Recover MAIN
or
Utilities ->Recover Project
from the main menu.
2. When the dialog box appears, select a file folder location.
3. Select “Save”.
NOTE: The files will be compressed and in DMC, so the files will not be easy to change.
Machine Operation Manual
Revision L /
February 2020
Page 152 of 200
Show Code and Show Code with Surfaces
The show code option will show the compiled machine code for the selected segments.
Show Code with Surfaces is used as a debug tool, if necessary, and replaces all of the
variables with values used.
1. Highlight the path segments.
2. Select
Utilities -> Show Code
from the main menu, or right click and select Show
Code from the menu.

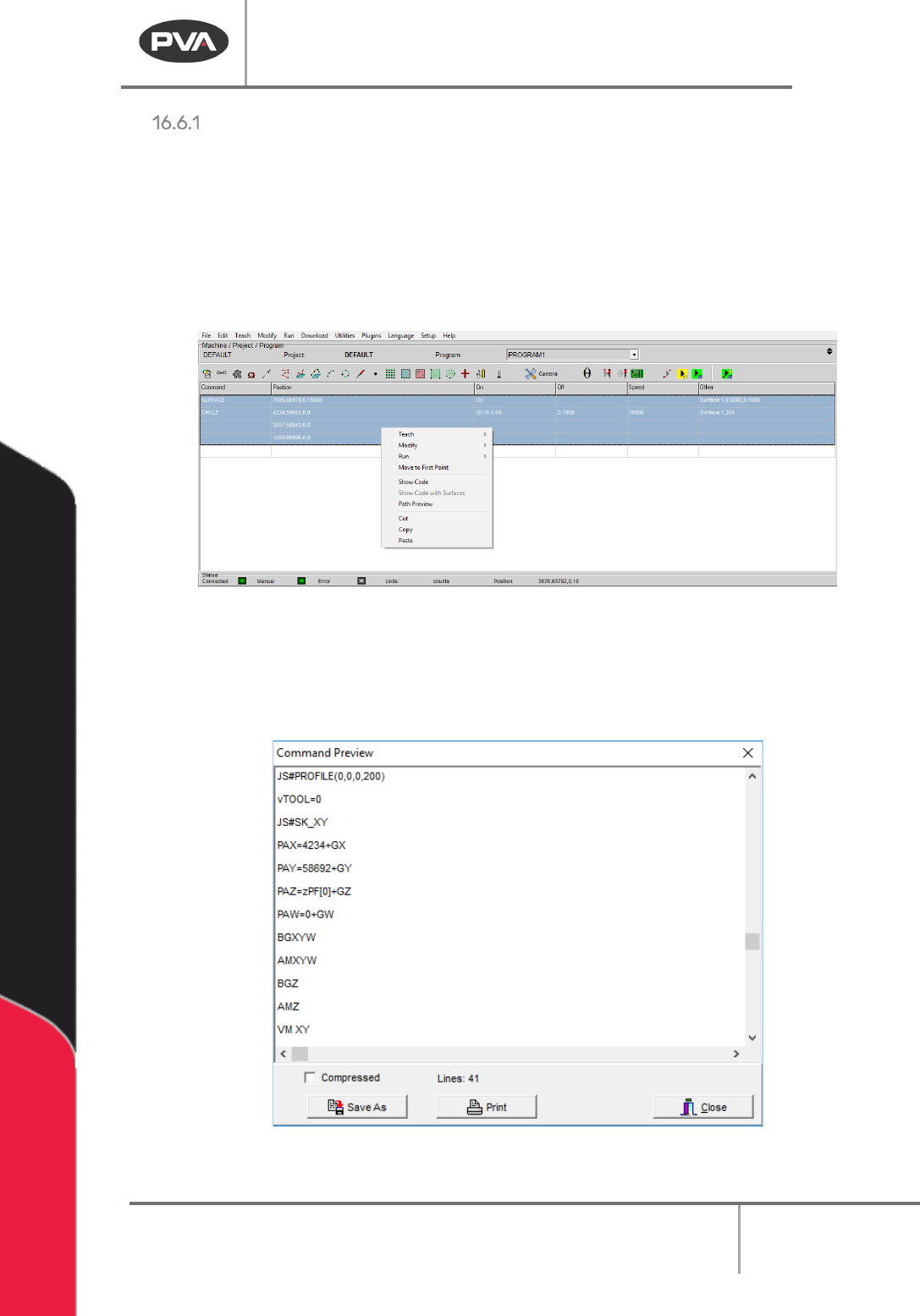

Figure 185: Show Code
A window will open with the machine code from the selected segments.
3. Select “Save As” to save the code as a text file.
4. Select “Print” to print the code.
Figure 186: Show Code, Command Preview
Machine Operation Manual
Revision L /
February 2020
Page 153 of 200
5. If the selected segment uses surfaces, run the surface, the text will be green when
it has passed.
6. Highlight the necessary path segments and select Show Code from the menu.
Figure 187: Show Code with Surfaces Menu
A window will open with the machine code from the selected segments.
Figure 188: Show Code with Surfaces, Command Preview
7. Use the necessary buttons to “Save As” or “Print”.
8. When you are done select “Done”.
