Machine Operation Manual
Revision L /
February 2020
Page 185 of 200
3. Use the teach pendant to teach the value; push the “Teach” button and release the
button to record the value.

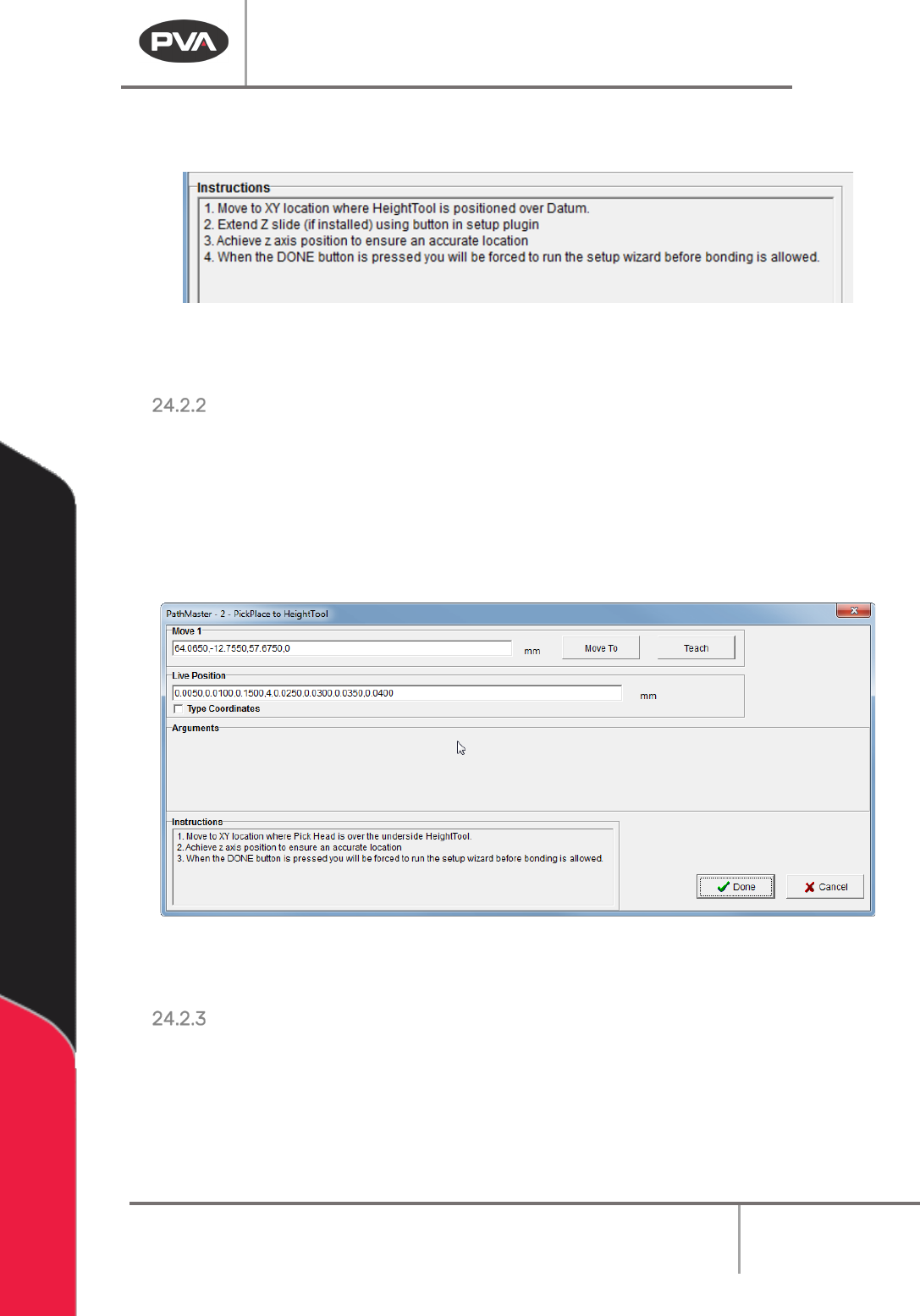

Figure 198: HeightTool to Datum Instructions
4. Select “Done” to save the values and return to the Setup Plugins window.
PickPlace to HeightTool
1. After the HeightTool Datum, select plugin 2-PickPlace to HeightTool.
The PickPlace to HeightTool window will open.
2. Refer to the instructions in the window to set the correct position.
3. Use the teach pendant to teach the value; push the “Teach” button and release the
button to record the value.
Figure 199: PickPlace to HeightTool
4. Select “Done” to save the values and return to the Setup Plugins window.
HeightTool to Plunger
1. After PickPlace to HeightTool, select plugin 3- HeightTool to Plunger.
The HeightTool to Plunger window will open.
2. Refer to the instructions in the window to set the correct position.
Machine Operation Manual
Revision L /
February 2020
Page 186 of 200
3. Use the teach pendant to teach the value; push the “Teach” button and release the
button to record the value.

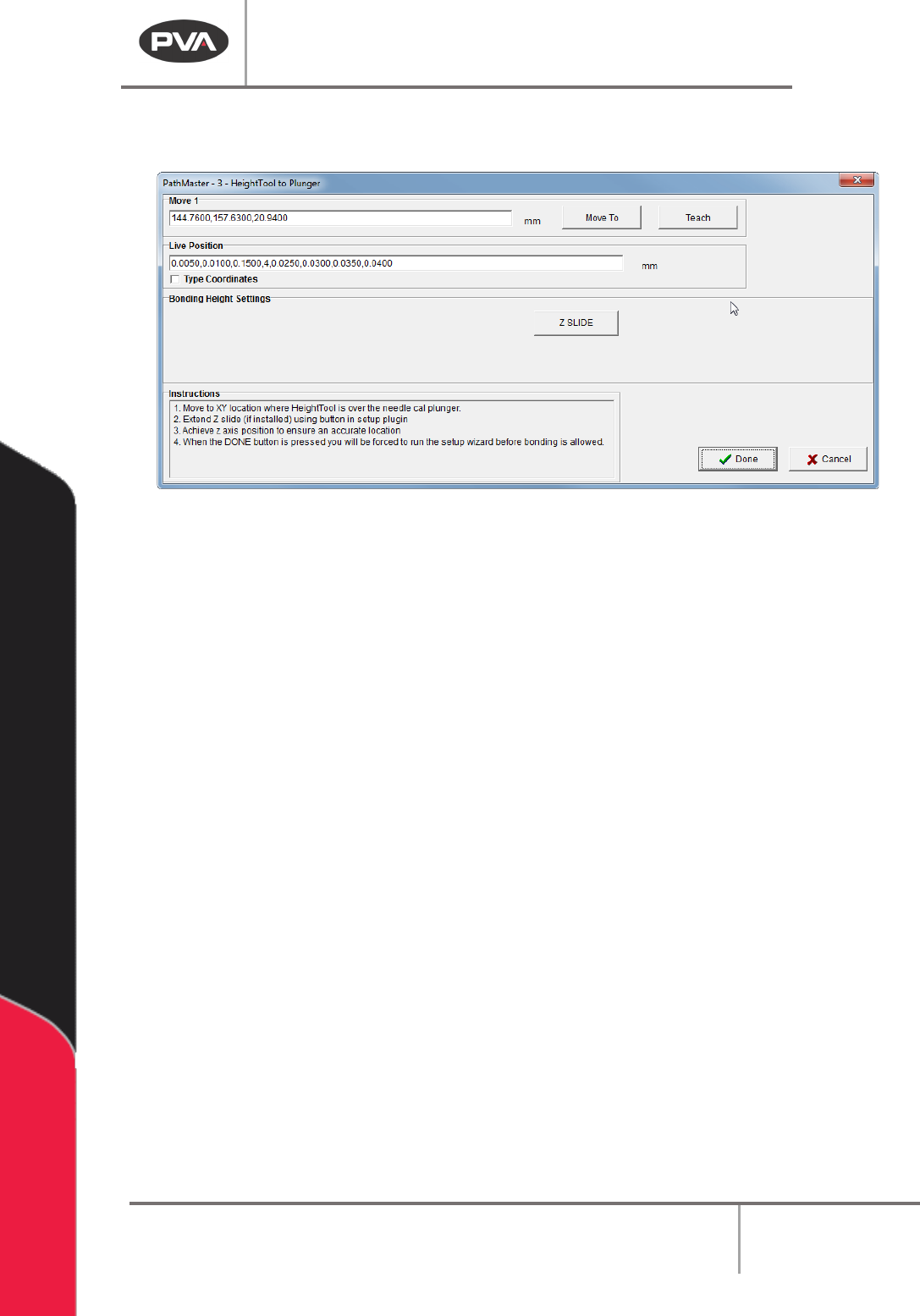

Figure 200: HeightTool to Plunger
4. Select “Done” to save the values and return to the Setup Plugins window.
Machine Operation Manual
Revision L /
February 2020
Page 187 of 200
Bond Offsets Wizard
1. After the other three bonding plugins have been setup, select the Bond Offsets
Wizard.
Figure 201: Bond Offset Wizard
2. Select the “Start” Button.
Figure 202: Make Sure Pick Tool and Datum are Empty
3. Select the “Next” button when the datum and pick tool are empty.
Figure 203: Teach the HeightTool to Datum Reference Height
4. Use the teach pendant to teach the HeightTool to the Datum Reference Height.
