Page 188 of 200

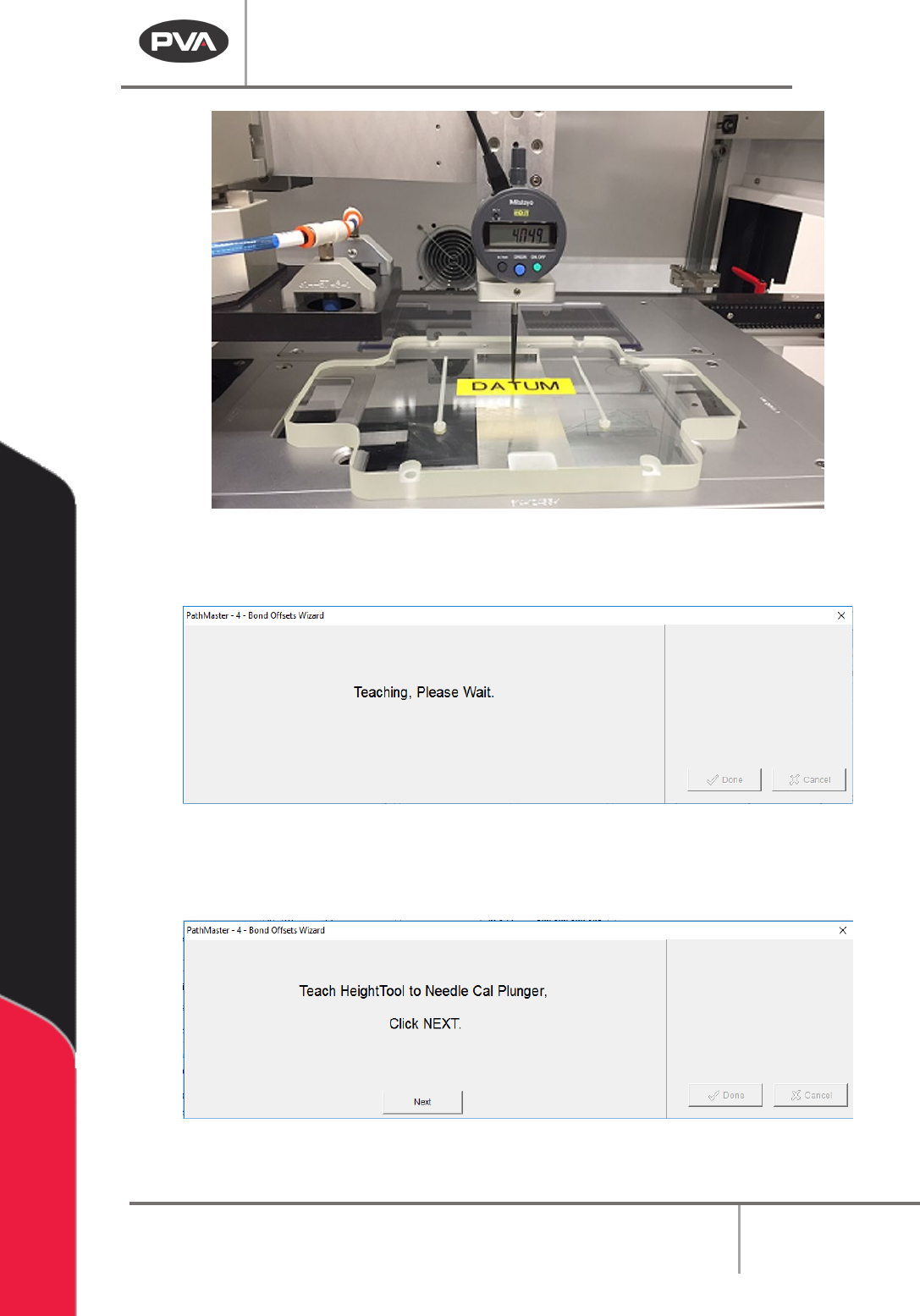

Figure 204: Datum Reference Height
The “Teaching, Please Wait” screen will be shown.
Figure 205: Teaching, Please Wait
5. Next the HeightTool to the Needle Cal plunger is taught. The height is automatically
detected by the wizard, there is no user input.
Figure 206: Teach HeightTool to Needle Cal Plunger
6. Click “Next”. The Teaching, Please Wait screen will be shown.
Machine Operation Manual
Revision L /
February 2020
Page 189 of 200
Figure 207: Teaching, Please Wait

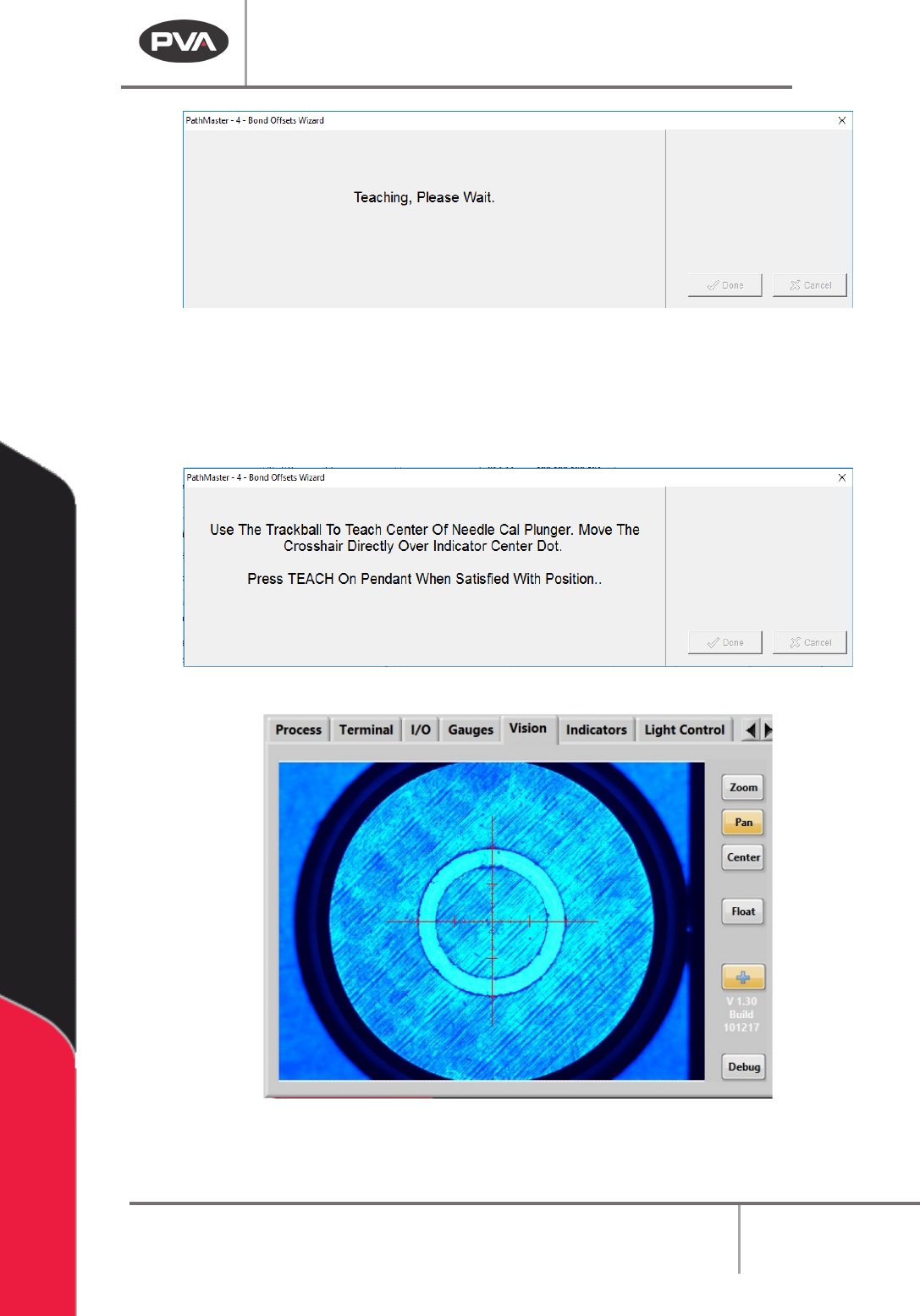

7. Use the teach pendant to teach the center of the needle calibration plunger as
shown on the screen. Use the teach pendant to make sure the crosshair is in the
center of the indicator dot. When the crosshair is correctly aligned, push the “
Teach”
button on the teach pendant.
Figure 208: Teach the Needle Cal Plunger Center
Figure 209: Portal Front Panel Screen, Needle Calibration for Plunger Center
8. Next, to turn the door bypass to on.
Machine Operation Manual
Revision L /
February 2020
Page 190 of 200

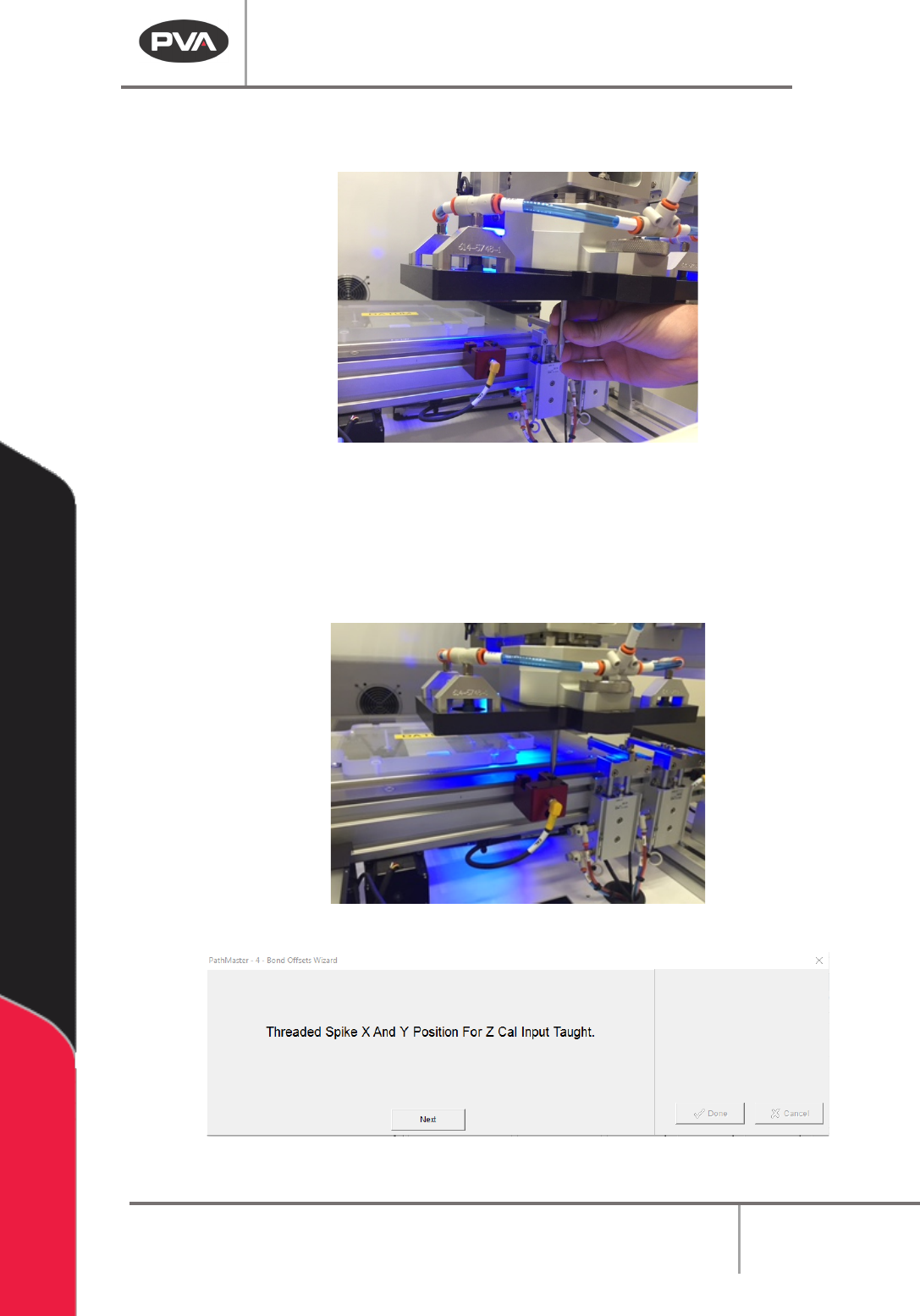

9. Install the threaded spike on to the pick and place tool. Turn the threaded spike
clockwise until it is tight, do not overtighten.
Figure 210: Install the Threaded Spike
10. When the threaded spike is installed, click the “Next” button.
11. Use the trackball to move the spike directly over the center of the needle calibration
plunger.
12. Push the “Teach” button when the position is correct.
Figure 211: Teach the Needle Calibration Position
Figure 212: Position Taught Screen
