AHB01ESPP
1.2 Using the Menus
1.2.1 Menus for Automatic Operation
• Menu Selection
1. When the [AUTO RUN] button on the main menu bar is pressed, the
"AUTO OPN." window opens. The "AUTO OPN." window is provided
with a submenu bar.
2. When one of the buttons on the submenu bar is pressed, the corre-
sponding sheet (submenu) or tab sheets appear inside the "AUTO
OPN." window.
This window is provided with main menus related to the automatic op-
eration of the machine. All operations required for automatic operation
are included in this window.
Fig. 2D4 Selection of Menus for Automatic Operation
1.2 Using the Menus
0308-004 4-3
"AUTO RUN" Submenu Bar
Main Menu Bar
AHB01ESPP
••
••
• Composition of Menus for Automatic Operation
The menus for automatic operation are composed of the following
submenus.
Refer to "2.1" in "Section 4" for the tabs and tab sheets.
Menus for Automatic Operation
Submenus Tabs (Tab Sheets) Reference Item Nos.
AUTO OPN. Message "2.2" in "Section 5"
State "2.3" in "Section 5"
Origin/Signal Info. "2.4" in "Section 5"
OPN. MODE Run Mode "3.1" in "Section 5"
Altn Fdr Mode "3.2" in "Section 5"
Opn. Mode "3.3" in "Section 5"
Test Run "3.4" in "Section 5"
Head/Noz. Bypass "3.5" in "Section 5"
Camera Bypass "3.6" in "Section 5"
Feeder Reload Feeder Reload "4.1" in "Section 5"
Pickup Tray Matrix (Option)
Tray Comp. Dt (Option)
RECOVERY Current Dt "5.1" in "Section 5"
Comp Carriage Dt Edit "5.2" in "Section 5"
P.C.B. Origin Offset Teach "5.3" in "Section 5"
Place Pos Teach "5.4" in "Section 5"
RECALL Device Err "6.1" in "Section 5"
Handling Err "6.2" in "Section 5"
Machine Info "6.3" in "Section 5"
Comp. Recog. Err "6.4" in "Section 5"
Servo Alarm "6.5" in "Section 5"
Recog. Image "6.6" in "Section 5"
PRGM. CHG. Program Change "7.1" in "Section 5"
Product Change "7.2" in "Section 5"
PCB. Support Pins Set-up Mode "7.3" in "Section 5"
Feeder Unit Set Status "7.4" in "Section 5"
Fig. 2D5 Composition of Menus for Automatic Operation
The above tree is based on the selection of the multi-layer tray
feeder (option).
1.2 Using the Menus
0308-004 4-4
Note
AHB01ESPP
1.2.2 Menus for Maintenance
• Menu Selection
1. When the [MAINT.] button on the main menu bar is pressed, the "MAIN-
TENANCE" window opens. The "MAINTENANCE" window is provided
with a submenu bar.
2. When one of the buttons on the submenu bar is pressed, the corre-
sponding sheet (submenu) or tab sheets appear inside the "MAIN-
TENANCE" window.
The "MAINTENANCE" window is provided with the functions that can be
used to adjust the machine or confirm the performance of the machine.

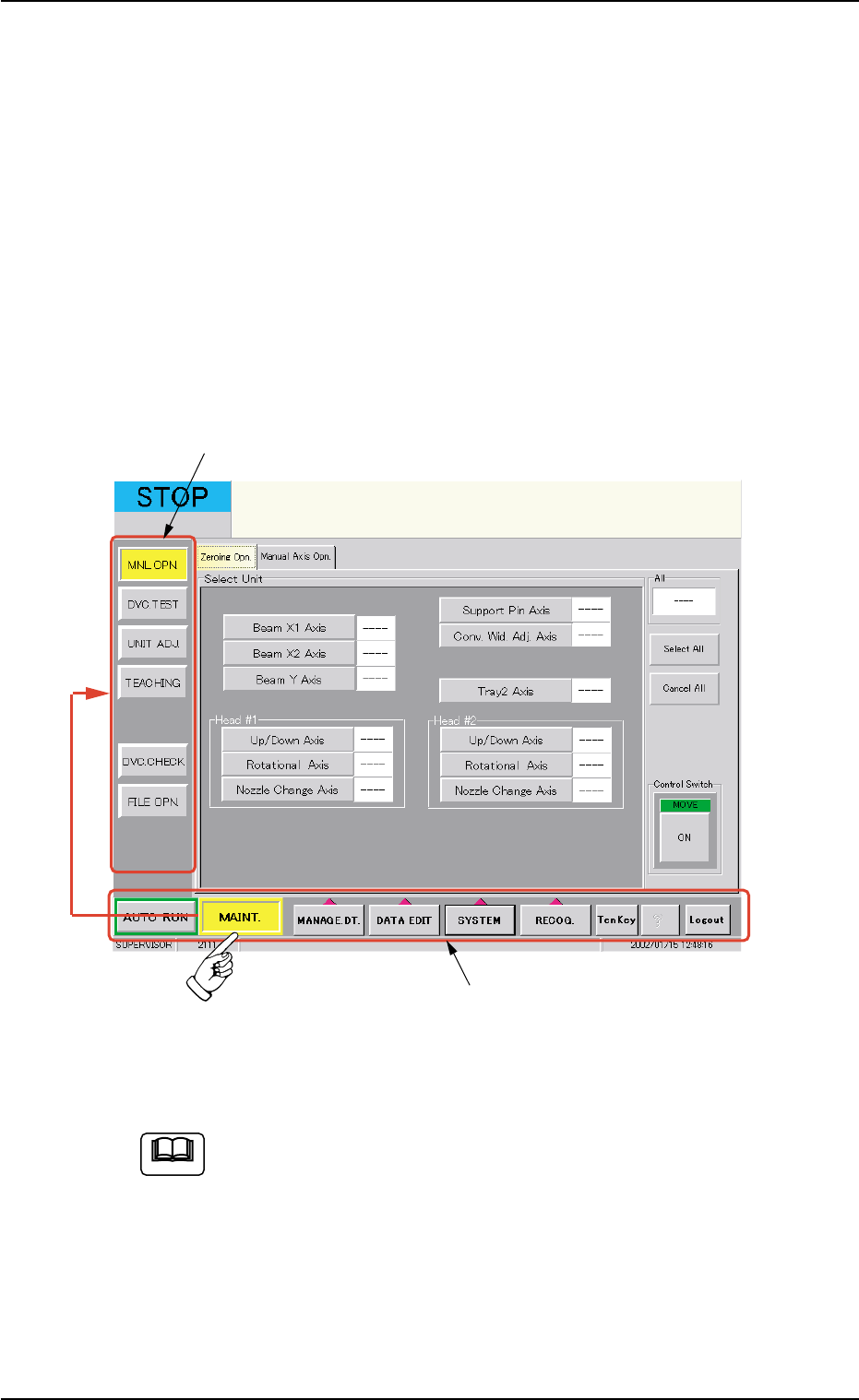

Fig. 2D6 Selection of Menus for Maintenance
(Provided with Multi-Layer Tray Feeder 2)
The tab sheet may look different, depending on which options
are selected.
1.2 Using the Menus
01 12-002 4-5
"MAINTENANCE" Submenu Bar
Main Menu Bar
Note
