AHB01ESPP 5.10 "Head Rotation Ofs" T ab The corresponding tab enables the operator to perform the teaching operation on the head rotation offset data. This tab sheet allows the operator to perform a teaching op…

AHB01ESPP

(4) Open the safety door and manually attach the nozzle.

(5) Specify the head on which a teaching operation should be performed.

(6) Select the [All Beam Heads Zero] button and press the [ON] button

entitled "MOVE". After that, press the [ENABLE] button on the op-

eration panel in 2 seconds. All beams are zeroed.

(7) Select the [Teach Start] button and press the [ON] button entitled

"MOVE". After that, press the [ENABLE] button on the operation panel

in two seconds. The teaching operation starts.

The following series of teaching operations are performed automati-

cally.

The nozzle picks up the teaching plate from the place where the

teaching plate is attached.

The placement head moves to the component recognition cam-

era position.

The jig component is recognized with the component recogni-

tion camera.

(Posture in 4 Directions: 0°, 90°, 180° and 270°)

The teaching plate is returned to the original place (the place

where it was attached).

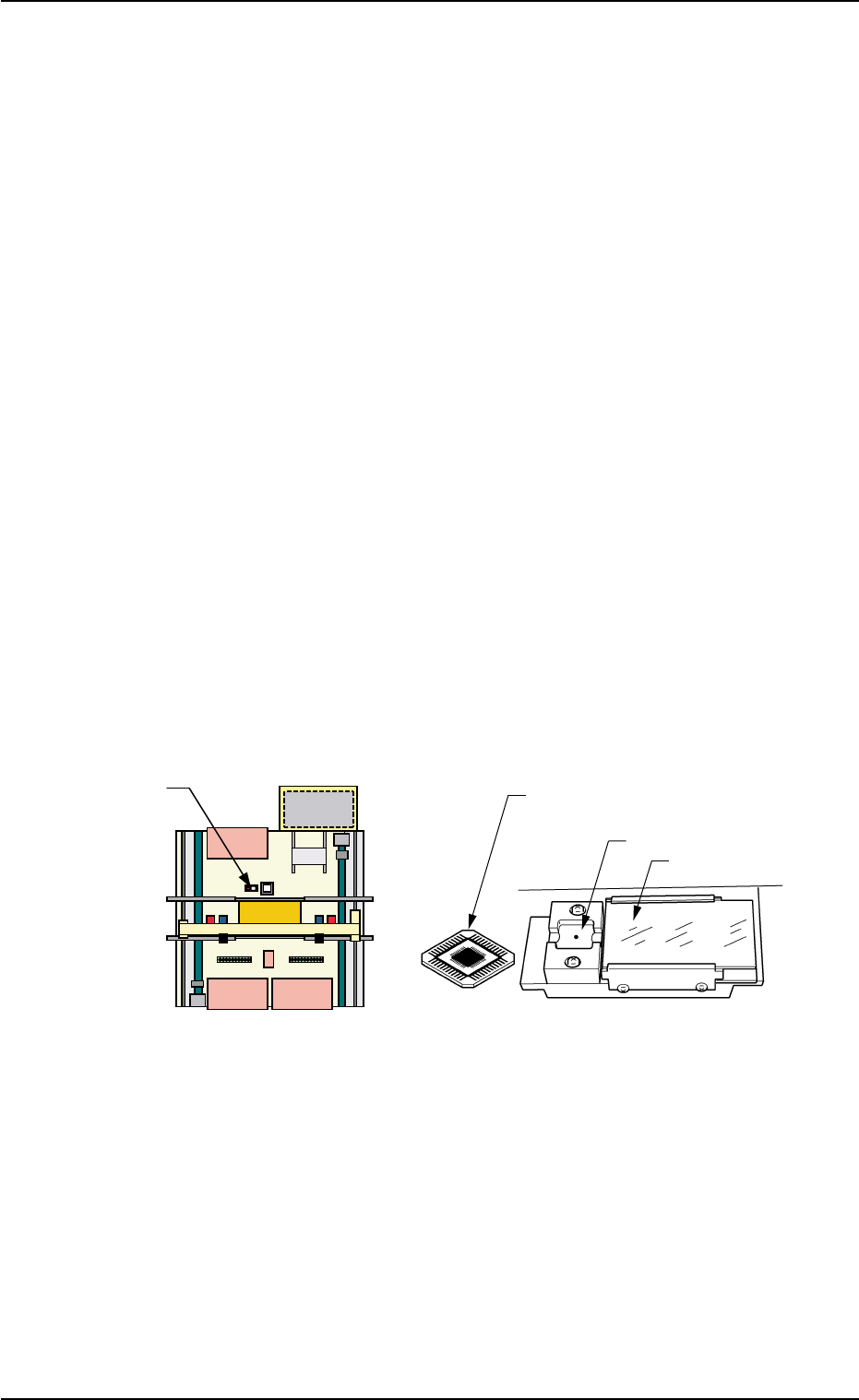

Fig. 2F116

0206-002 6-170

5.9 "Head Center Ofs" Tab

Teaching Plate

(Front Side of Machine)

Teaching Plate

(Component Recognition Offset Jig)

Position of Teaching Plate

Back Lighting Stage

Magnified View of Teaching Plate

AHB01ESPP

5.10 "Head Rotation Ofs" Tab

The corresponding tab enables the operator to perform the teaching

operation on the head rotation offset data.

This tab sheet allows the operator to perform a teaching operation on

the offset data that will be used to correct the angular deviation between

the nozzle clamp spring and the P.C.B. positioning reference with the

motor (for head rotational shaft) located at its origin.

Calculate the bending of the nozzle clamp spring with the component

recognition camera, regarding the special jig nozzle (option) as a com-

ponent.

The coarse step is taken to calculate an approximate angular deviation

and the accurate one to calculate an accurate angular deviation.

This teaching operation must be performed only by our service

personnel.

• Sheet Layout

When the "Head Rotation Ofs" tab is pressed in the "TEACHING" win-

dow (submenu), the following tab sheet appears inside the window.

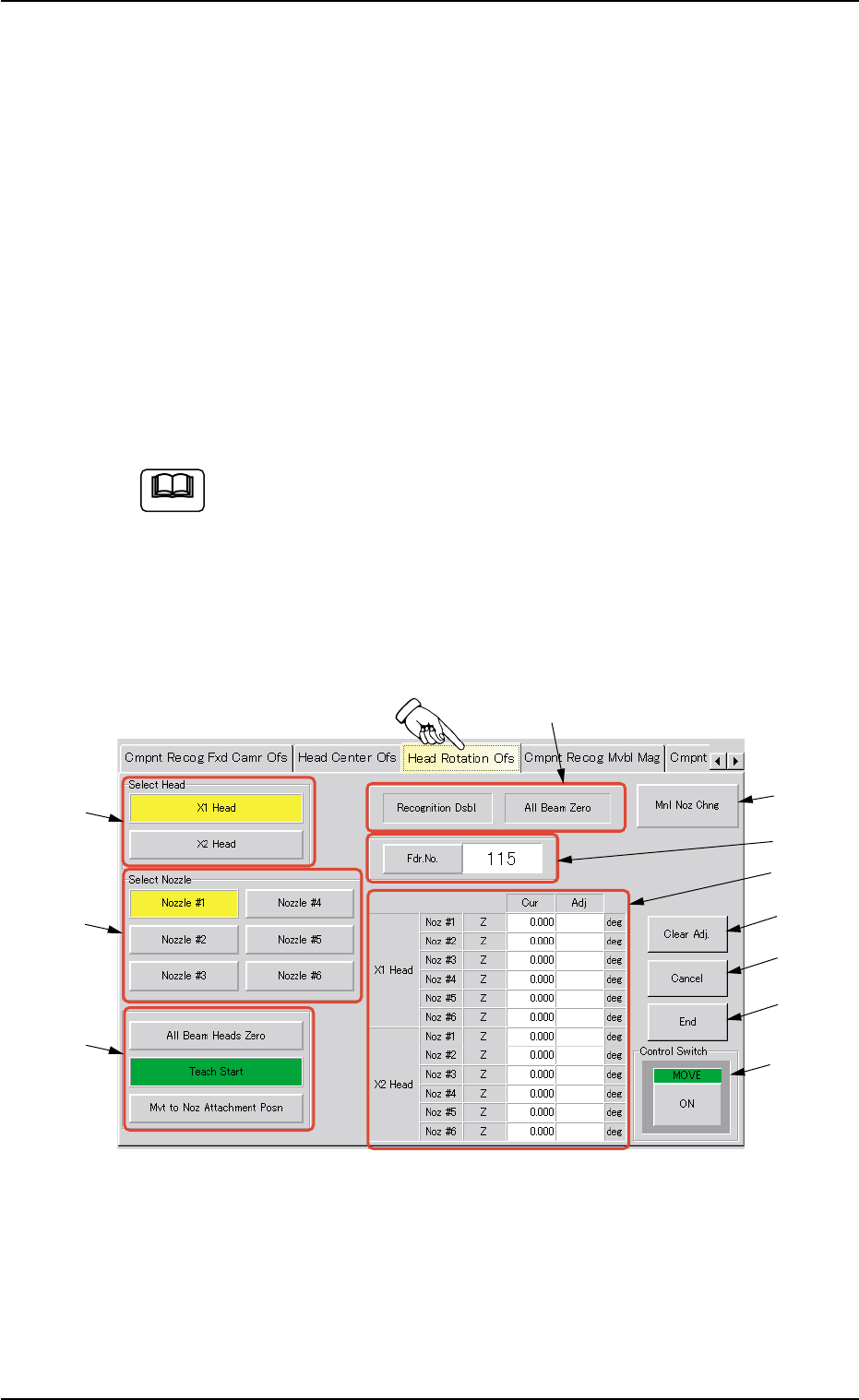

Fig. 2F117 "Head Rotation Ofs" Tab Sheet

Note

0206-002 6-171

5.10 "Head Rotation Ofs" Tab

*11

*10

AHB01ESPP

• Sheet Composition

*1 "Select Head" Group Box

Specify the head on which a teaching operation should be performed.

The following buttons are provided in this group box.

[X1 Head] and [X2 Head] Buttons

*2 "Select Nozzle" Group Box

Select the nozzle to be used for the teaching operation.

The following buttons are provided in this group box.

[Nozzle #1], [Nozzle #2], [Nozzle #3], [Nozzle #4], [Nozzle #5],

and [Nozzle #6] Buttons

*3 "Selection of Teaching Operation" Group Box

The following buttons are provided in this group box.

[All Beam Heads Zero] Button

When this button is pressed, all X/Y beams are zeroed.

[Teach Start] Button

When this button is pressed, the machine performs a teaching

operation on the selected item.

[Movement to Nozzle Attachment Position] Button

When this button is pressed, the head moves to the specified

feeder No. (Fdr. No.) position.

*4 Set Status

When the "P.E.C. Dsbl." or the "Comp. Recognition Dsbl." check

box in the "Test Run" window is turned on (checked), the background

color of "Recognition Dsbl." turns light red. (No background color in

normal cases).

No recognition processing is made even if a teaching op-

eration is performed when each check box is turned on

(checked) in the "Test Run" window. Therefore, various

teaching operations will get incorrect results.

When "All Beam (Incl. NC Axis) Heads Zero" is completed, the back-

ground color of "All Beam Zero" turns green. (Otherwise, the back-

ground has no color.)

(a) When each device is not zeroed and the teaching op-

erations are performed, note that the offset values may

not be taught correctly.

(b) Before performing a teaching operation, be sure to zero

all beams.

Note

0308-003 6-172

5.10 "Head Rotation Ofs" Tab
