AHB01ESPP *5 [T ape Width] Button Set the required tape width in the text box. Every time this button is pressed, the parameter changes in scroll- ing such as "8mm" Æ "12mm" Æ "16mm" Æ "…
AHB01ESPP
*2 "Feeder" Group Box
When one of the buttons in the "Feeder Base" group box (*1) is
pressed, the corresponding feeder No. buttons appear in this group
box.
Press the feeder No. button of the feeder to be activated.

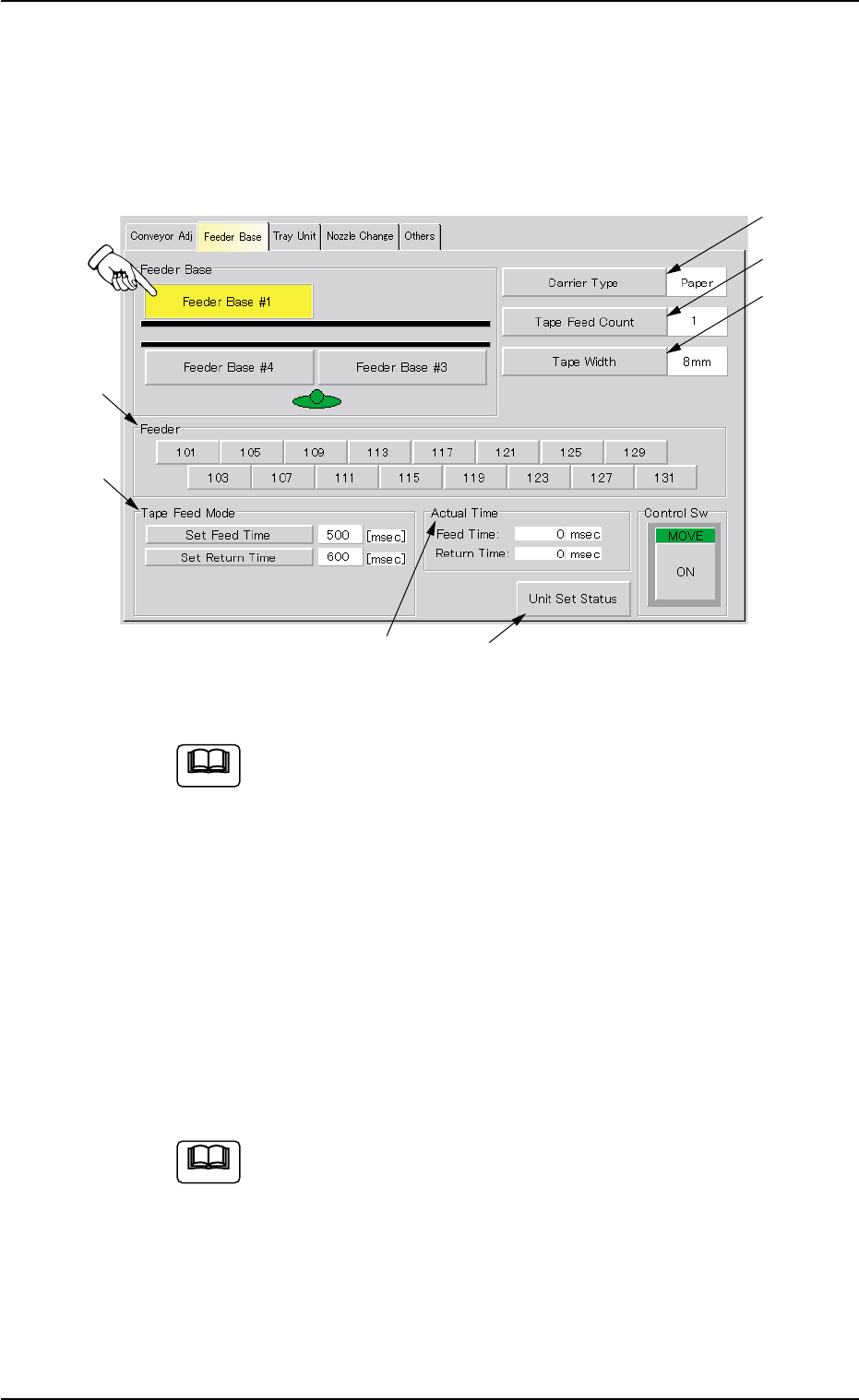

Fig. 2F47 "Feeder Base" Tab Sheet ([Feeder Base #1] Button Selected)
Two feeder Nos. can be selected at the same time to si-
multaneously move the two feeders forward.
*3 [Carrier Type] Button
Set the type of a tape in the text box.
Every time this button is pressed, the parameter changes in scroll-
ing such as "Paper" Æ "Embossed" Æ "Adhesive" Æ "Paper".
*4 [Tape Feed Count] Button
When this button is pressed, the "Tape Feed Count" edit window
opens. Enter the number of feeding times in the range of "1 to 9
times" as the number of tape feeding actions.
In normal cases, set "1" in the text box.
When the selected tape has to be fed more than one due to
the relation between the feed pitch and the feeder, set the
required number of tape feeding times.
0308-004 6-64
4.2 "Feeder Base" Tab
*3
*2
*8
*6
*7
*4
*5
Note
Note
AHB01ESPP
*5 [Tape Width] Button
Set the required tape width in the text box.
Every time this button is pressed, the parameter changes in scroll-
ing such as "8mm" Æ "12mm" Æ "16mm" Æ "24mm" Æ "32mm"
Æ "44mm" Æ "56mm" Æ "72mm" Æ "8mm".
*6 "Tape Feed Mode" Group Box
Select "Feed (Timer)" or "Feed (Sensor)" by turning on the corre-
sponding option button and specify the parameters (periods of time)
in the "Set Feed Time" and "Set Return Time" text boxes, using the
following buttons and the corresponding edit windows.
[Set Feed Time] Button
When this button is pressed, the "Set Feed Time" edit window
opens.
Enter the tape feed time in the range of "50 to 1999 msec".
[Set Return Time] Button
When this button is pressed, the "Set Return Time" edit win-
dow opens.
Enter the tape feed time in the range of "50 to 1999 msec"
*7 "Actual Time" Group Box
Displayed are the actual tape feed and returning periods of time.
0206-003 6-65
4.2 "Feeder Base" Tab
AHB01ESPP
*8 [Unit Set Status] Button
When the button is pressed, the "Unit Set Status" window opens.

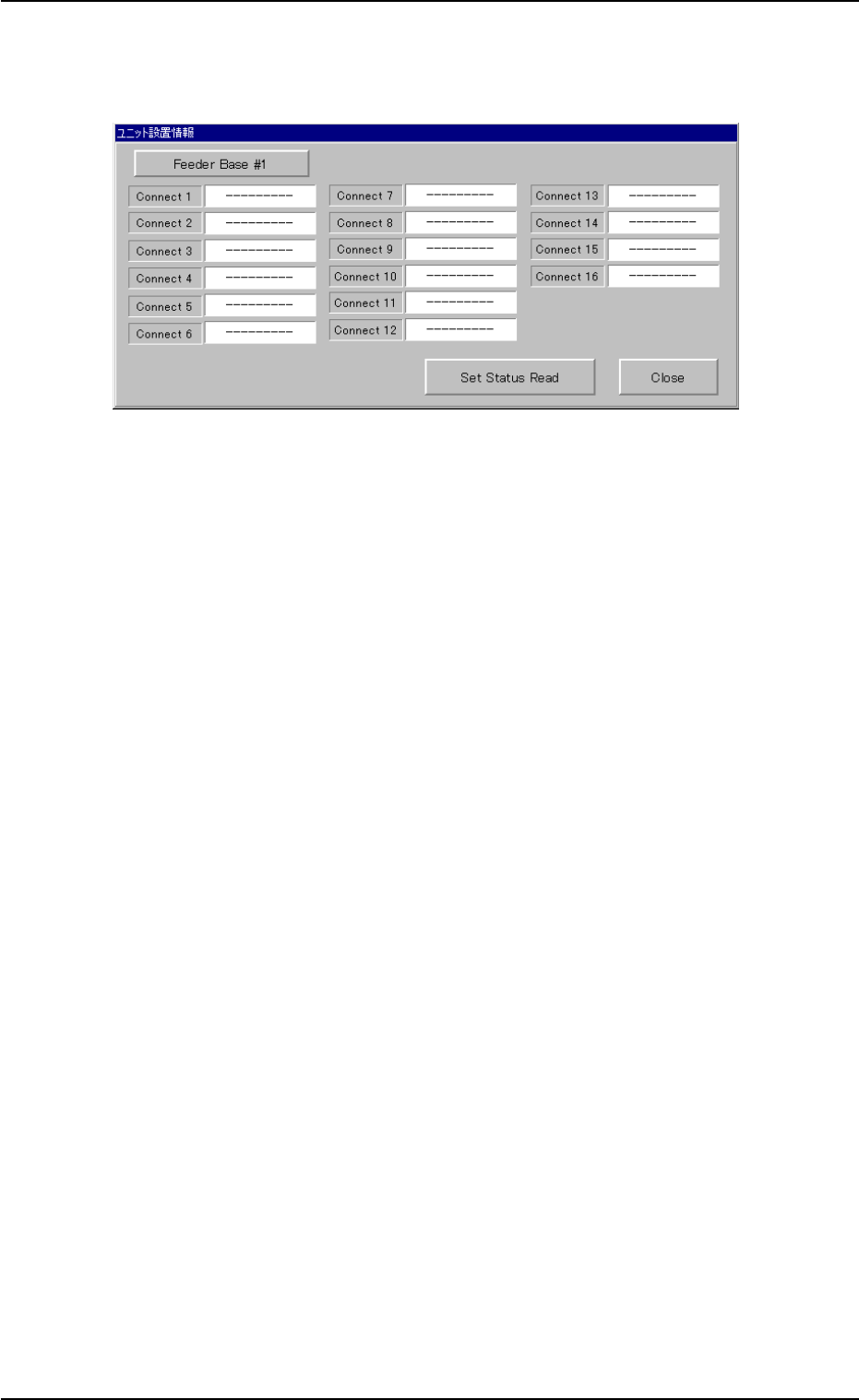

Fig. 2F48 "Unit Set Status" Window
(1) Select the desired feeder base.
Every time this button is pressed, the label changes in scrolling
such as "Feeder Base #1" Æ "Feeder Base #3" Æ "Feeder
Base #4" Æ "Feeder Base #1".
(2) Press the [Set Status Read] button.
The status of each connector (1 through 16) is displayed for the
selected feeder base.
(3) Press the [Close] button. The "Unit Set Status" window closes.
*9 "Control Sw" Group Box
When one of the buttons (feeder base No.) is selected in "*1", a
feeder No. is specified in "*2", various parameters are set in "*3
through *7", and the [ENABLE] button on the operation panel is
pressed in 2 seconds after the [ON] button (entitled "MOVE"), the
tape of the selected feeder moves forward and backward according
to the specified parameters.
0206-003 6-66
4.2 "Feeder Base" Tab
